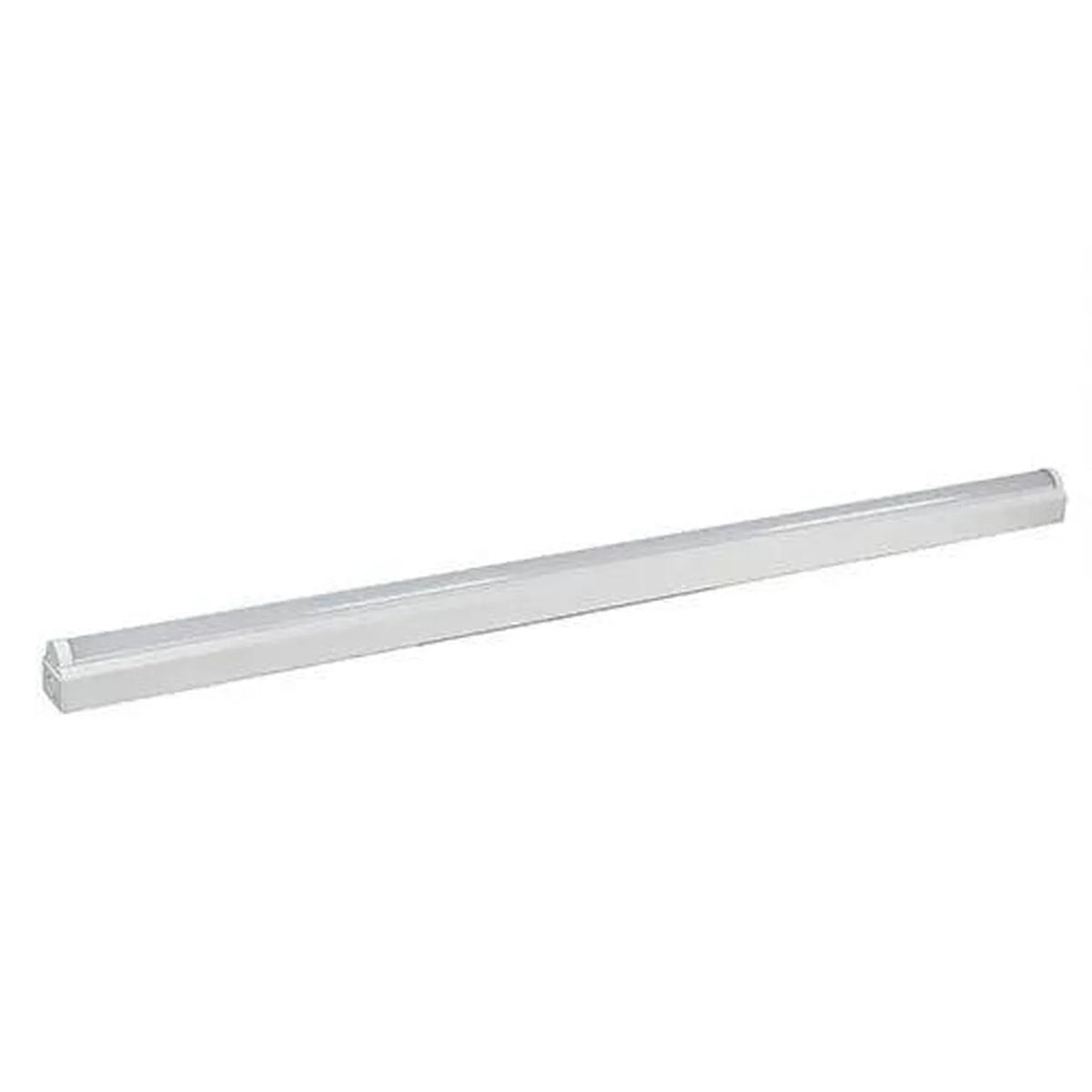

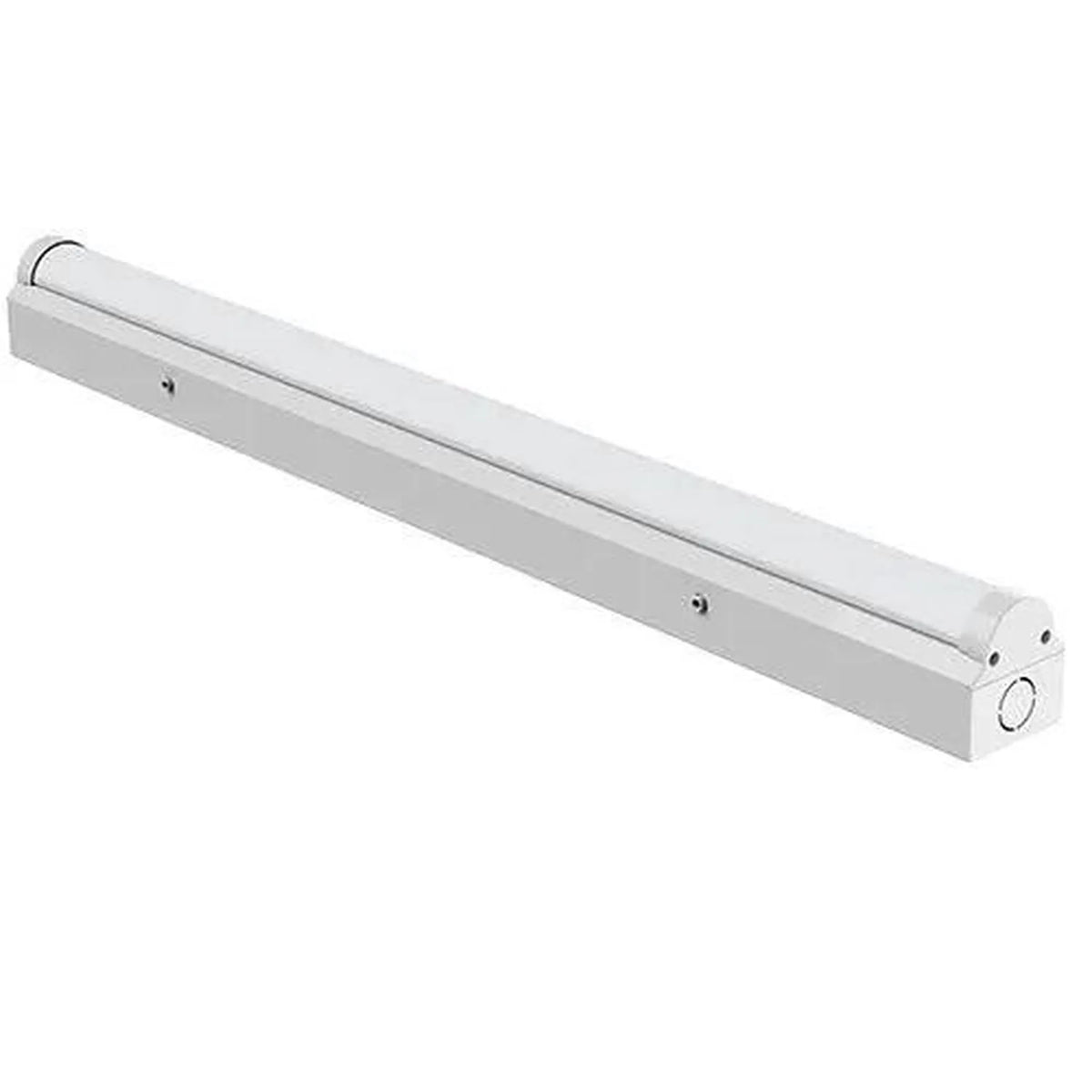

This 120cm LED batten light is a slim alternative to a traditional 4ft fluorescent T8 fitting. The white metal housing is only 55mm deep, giving a low-profile finish for surface-mounted installation. Rated at 18W, it produces 2250lm and includes a built-in selector for 3000K warm white, 4000K natural white or 5500K cool white, so one fitting covers three colour temperature needs.

Slim led batten light features

• Length, 120cm ultra-slim batten housing, 55mm deep
• Power, 18W rated, drawing from a 100-265V input at 50/60Hz
• Light output, 2250lm at 125lm/W efficiency
• Colour temperature, selectable 3000K, 4000K or 5500K
• Colour rendering, CRI greater than 80, beam angle 120 degrees
• Build, IP20 rated, rear and end cable entry, flat end caps for linking

Applications

Suited to utility rooms, offices, corridors, warehouses, laboratories, workshops and storage areas. Multiple units can be linked end to end using the flat end caps and interlocking connections, forming a continuous run of lighting rather than fitting separate battens.

Installation

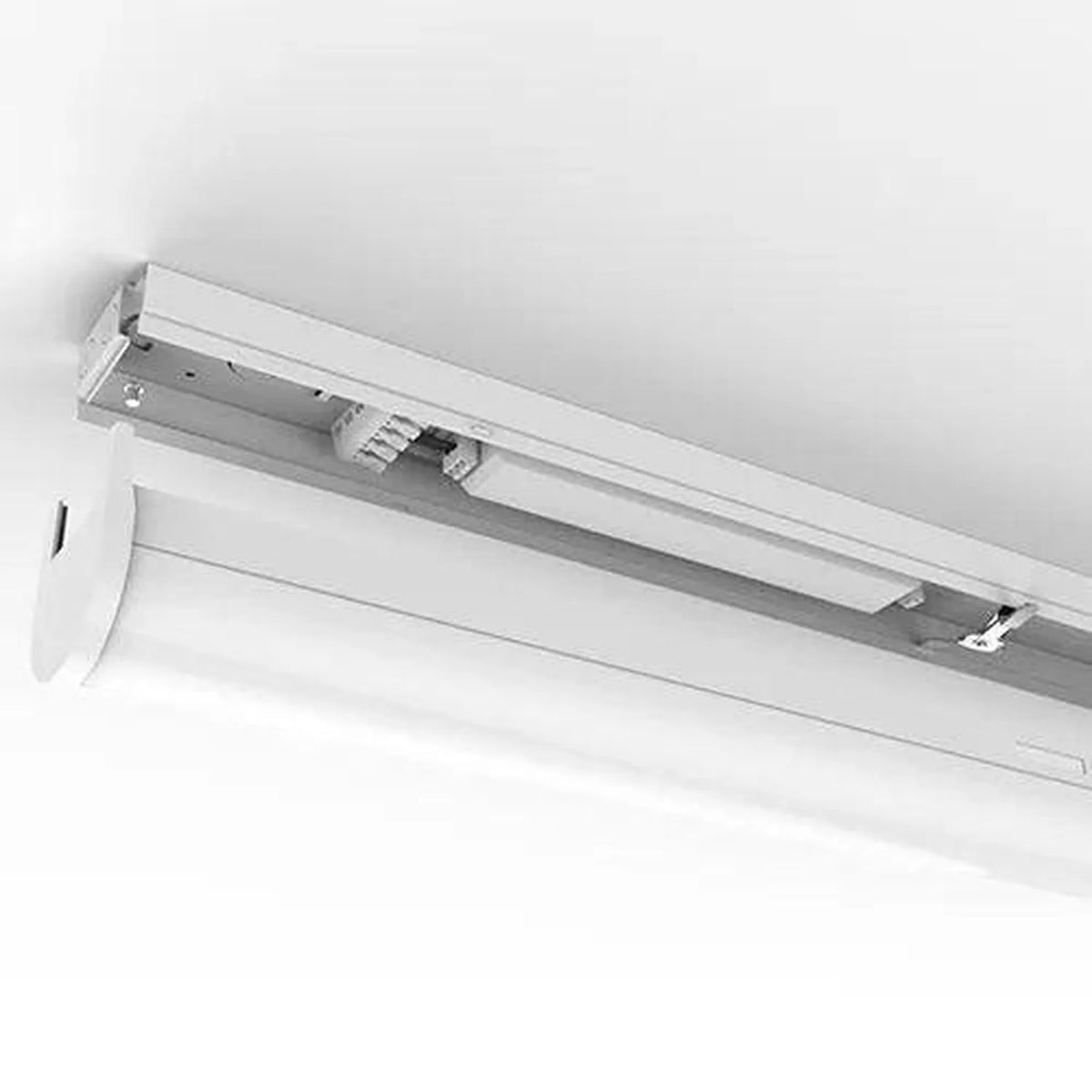

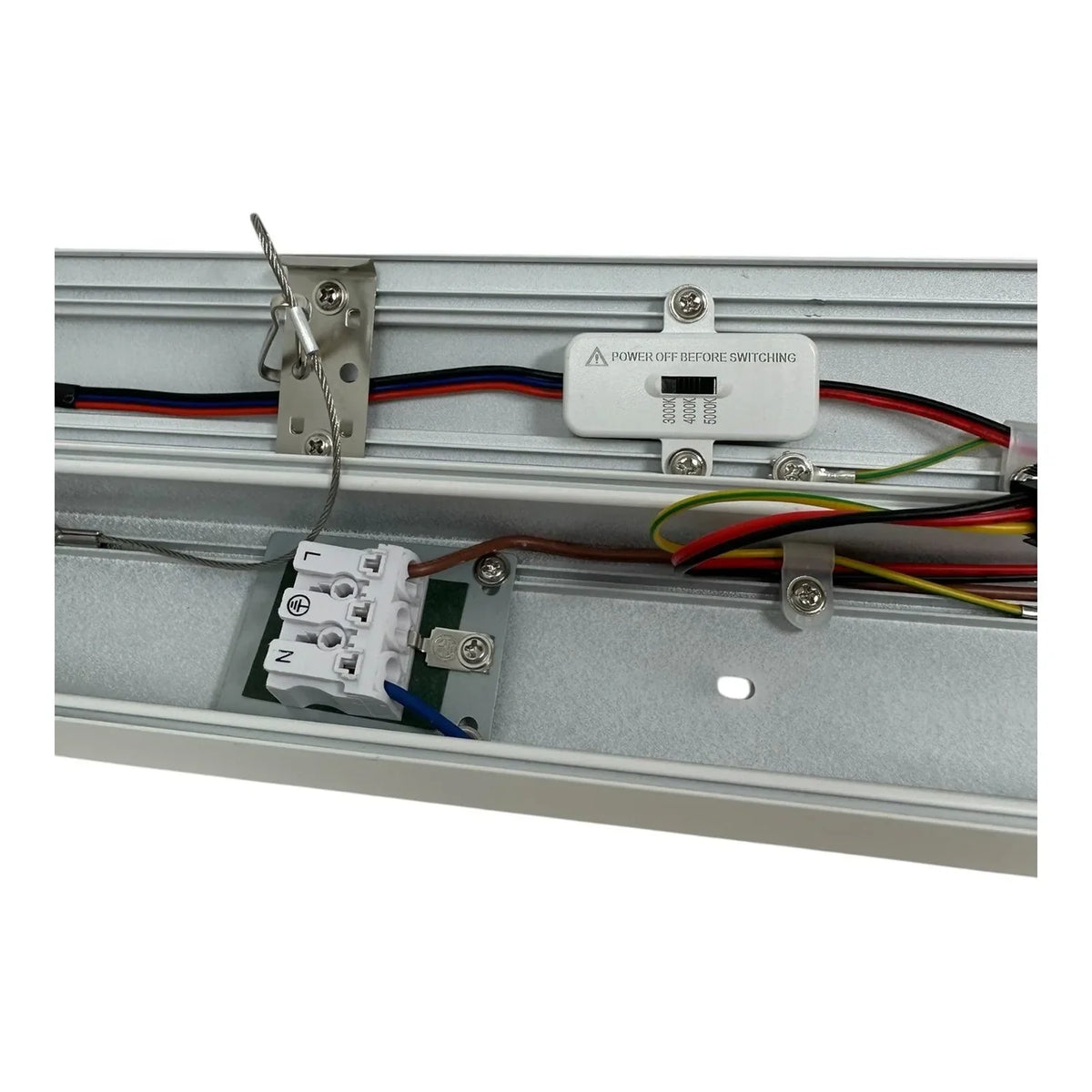

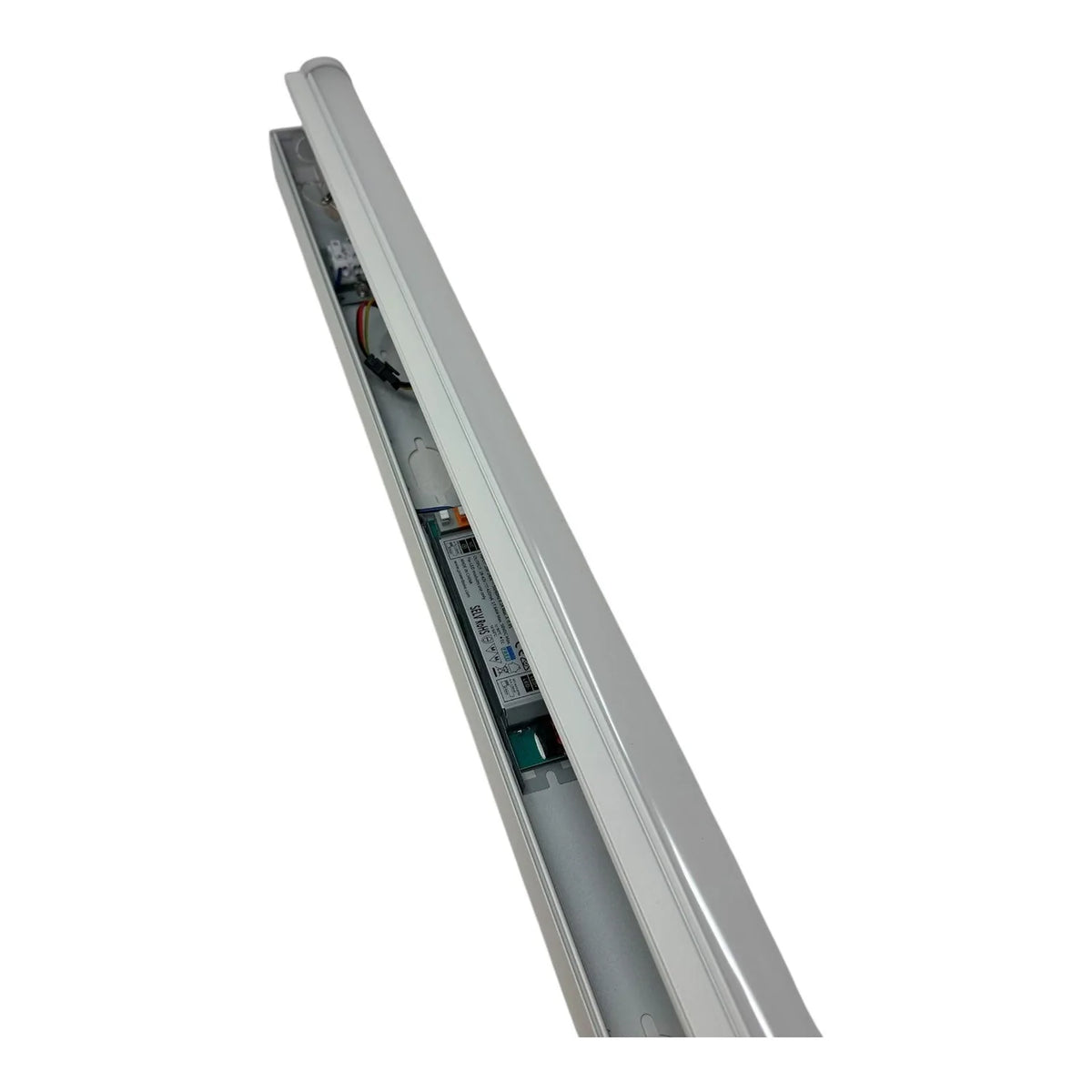

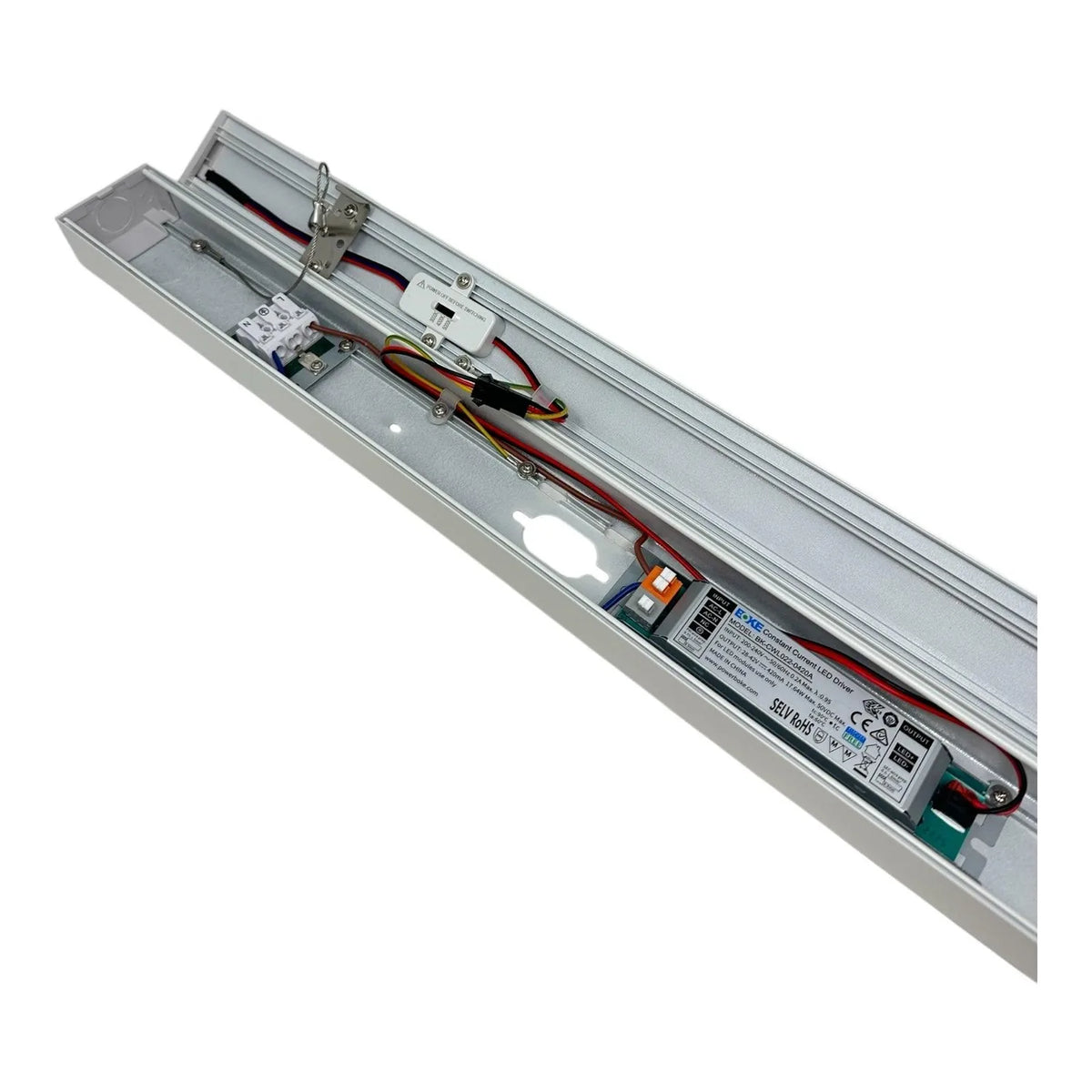

The fitting mounts to the surface with clips, and cable can enter from the rear or the end via a 20mm knockout. The LED board sits on a heat-dissipation plate inside the housing.

Optional versions

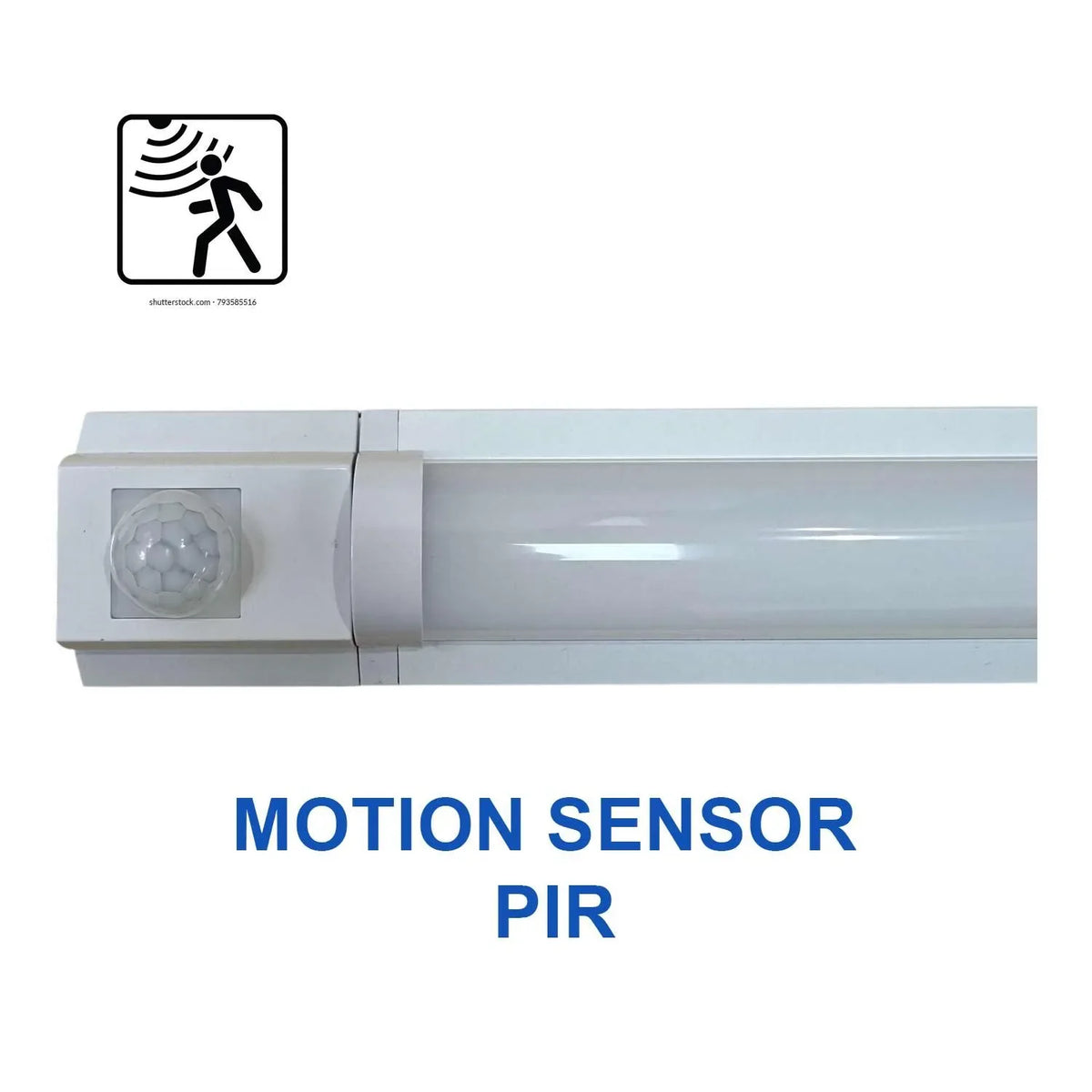

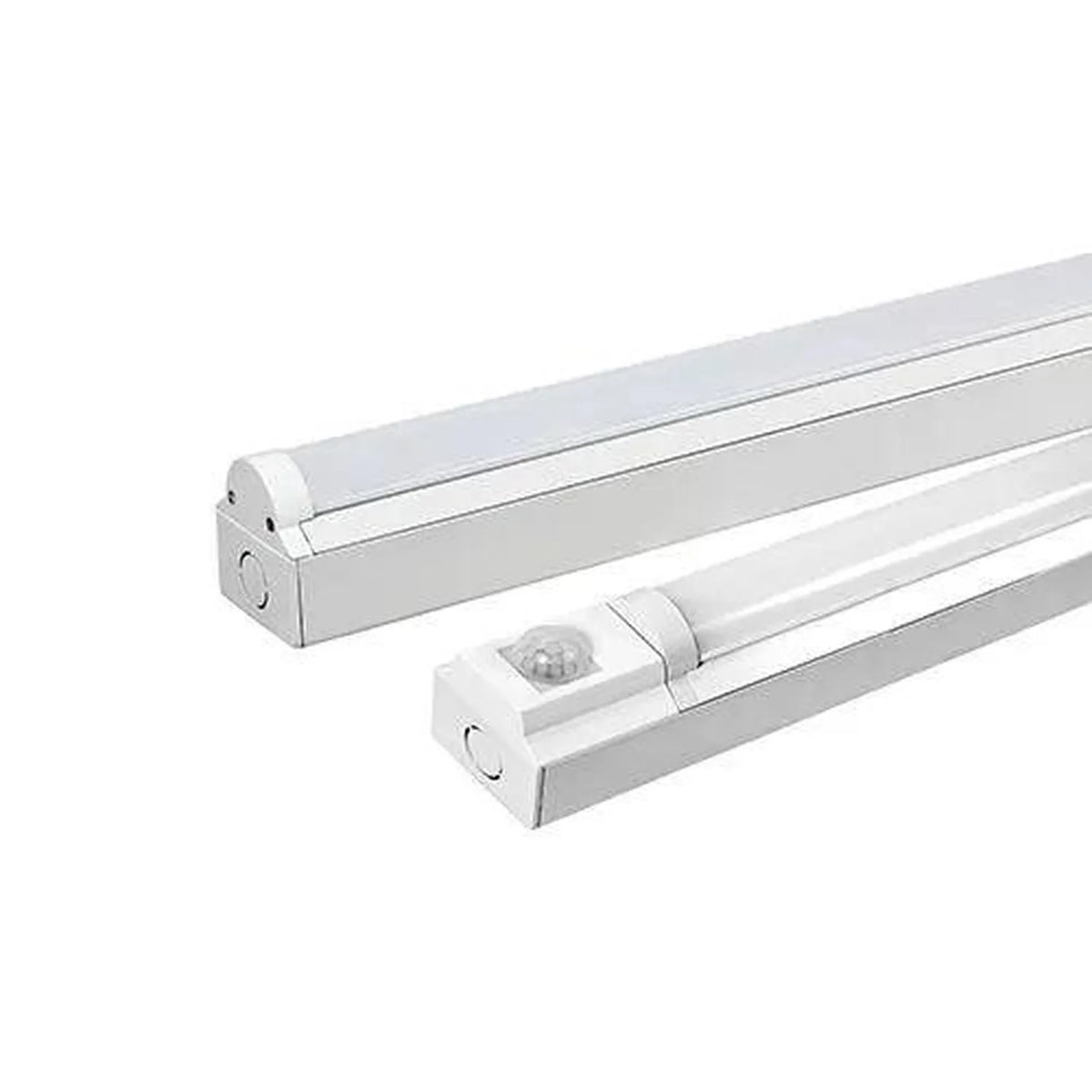

A PIR motion sensor version is available for spaces where light is only needed when movement is detected. Dimmable versions with 1-10V or TRIAC control may also be available. Confirm the version required before ordering, as the standard fitting does not include these features unless specifically selected.

Warranty

Supplied with a five year warranty and a rated lifespan of 50,000 hours, with lumen maintenance above 80% at that point and a power factor greater than 0.95.
