Description

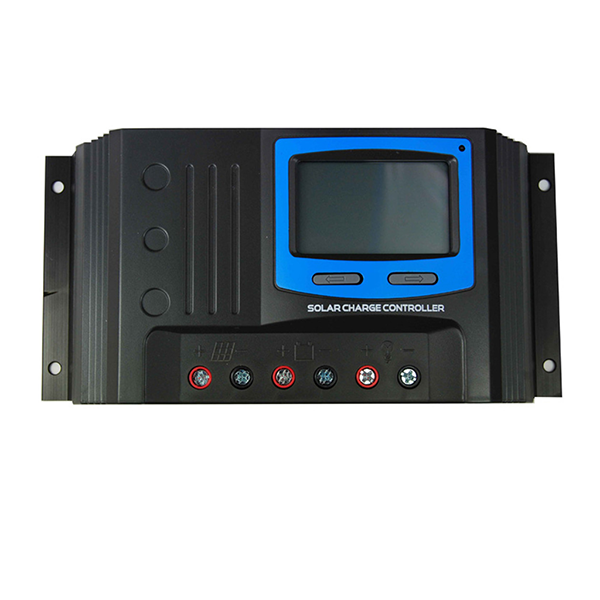

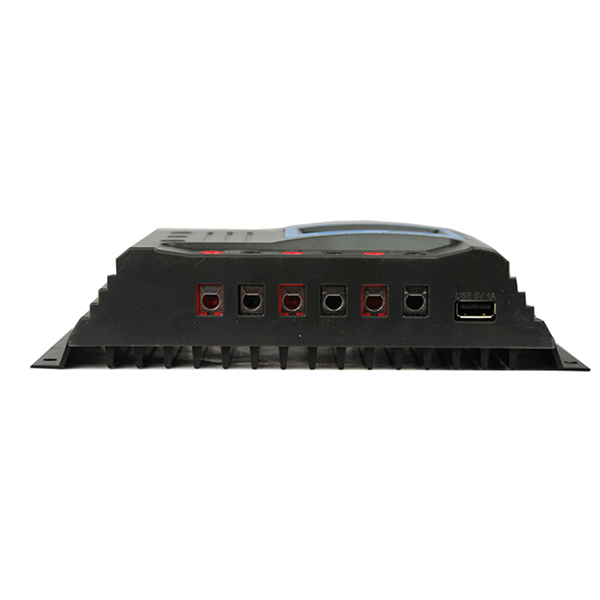

LD Solar SD-2430S 30A 12/24V PWM Solar Charge Controller
Manage your solar power system with confidence using the LD Solar SD-2430S PWM Solar Charge Controller. Delivering 30A of regulated charging current with automatic 12V/24V voltage detection, the SD-2430S intelligently protects your batteries from overcharging and over-discharge while maximising their service life.
Featuring a clear LCD display, built-in USB charging socket, adjustable load timer output and 3-stage PWM charging, the SD-2430S offers a feature-rich solution for off-grid solar systems, caravans, RVs, boats and auxiliary battery setups.
Key Features
- 30A maximum charge current
- 12V / 24V automatic voltage selection
- PWM 3-stage charging (Bulk, Absorption, Float)
- 2-hour boost charge when under voltage detected
- LCD display for real-time system monitoring
- USB charging socket
- Adjustable load timer output
- Large heat sink for thermal management
- Large terminals suitable for up to 16mm² cable
- Charge status, under-voltage and over-voltage indicators
- Load on/off selectable
- Reverse polarity protection
- Over-current protection with 30-second restart
- IP32 enclosure rating
Specifications
- Dimensions: 199 x 95 x 43mm
- Mounting Holes: 189 x 70mm
- Terminal Size: 16mm²
- Enclosure Rating: IP32
- Operating Temperature: -20°C to +55°C
- System Voltage: 12V / 24V auto selectable
- Maximum Charge Current: 30A
- Maximum PV Input Voltage: 55V
- Standby Current: 10mA
- Overload Protection: 30-second auto restart
Ideal For
- Caravans and camper trailers
- 4WD and touring vehicles
- Marine and boating systems
- Off-grid solar installations
- Auxiliary and secondary battery systems
- Remote and rural power applications
