Description

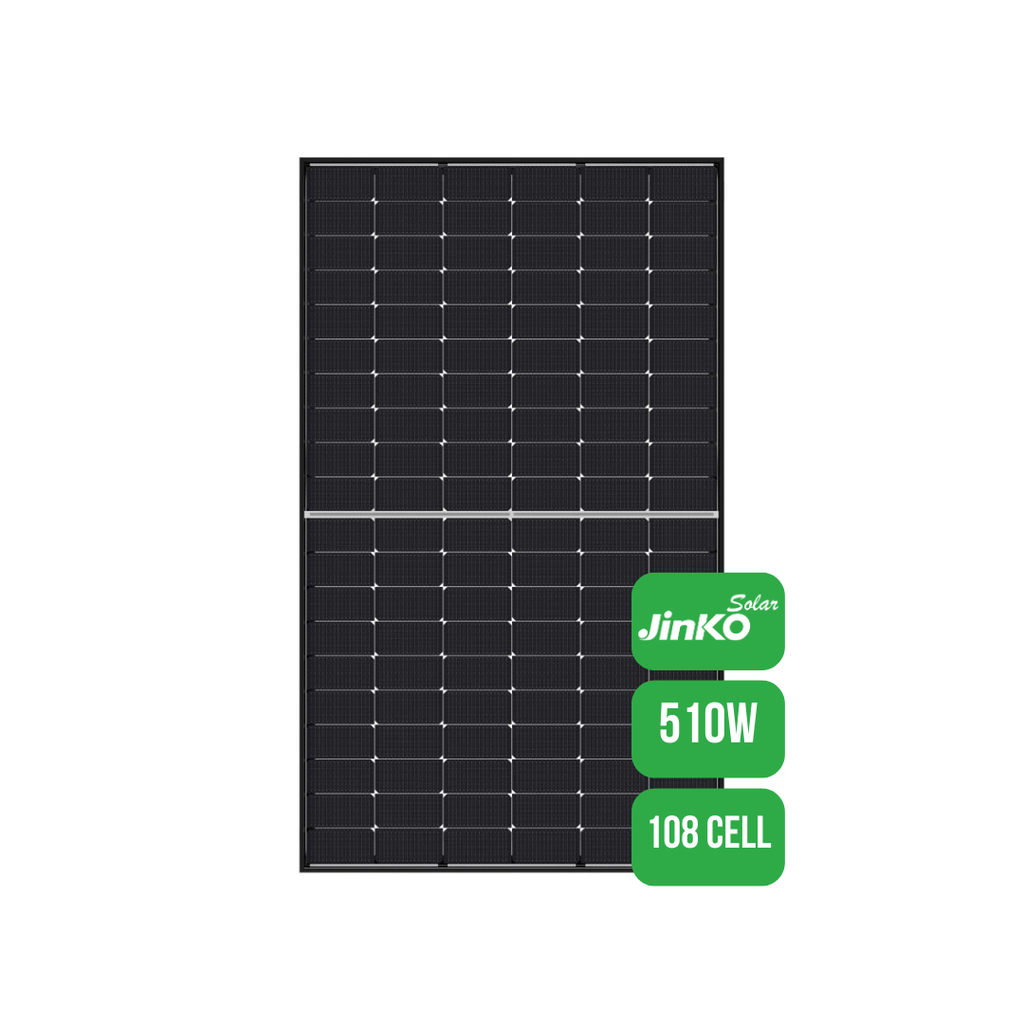

Jinko 510W Tiger Neo III N-Type TOPCon Black Solar Panel
Maximise solar generation with the Jinko 510W Tiger Neo III, a high-output N-Type TOPCon module built for residential rooftops, commercial arrays and high-performance off-grid systems. With 510W rated output, up to 23.6% module efficiency and a sleek 30mm black frame, it delivers strong power density without taking up unnecessary roof space.
Availability: In stock and available for sale now.
Key benefits
- 510W rated output for high-yield solar installations.
- Up to 23.6% module efficiency for excellent output per square metre.
- N-Type TOPCon technology designed for strong long-term performance and lower degradation.
- 204-cell architecture for high power density and modern module performance.
- Mono-facial dual-glass construction for added durability.
- 30mm black anodised aluminium frame for a clean, low-profile appearance.
- IP68 junction box for weather-resistant operation.
- Heavy-duty mechanical load rating up to 5400Pa front / 2400Pa rear.
Ideal applications
- Residential rooftop solar systems
- Commercial rooftop solar arrays
- Hybrid and battery-ready solar systems
- Off-grid homes, workshops and sheds
- Large RV, bus and motorhome systems where panel dimensions, mounting and PV controller/inverter limits are suitable
Specifications
| Brand | Jinko Solar |
| Series | Tiger Neo III |
| Model / SKU | JKM510-51QL6-DV-F2-OC |
| Rated Power | 510W |
| Module Efficiency | Up to 23.6% |
| Cell Technology | N-Type TOPCon monocrystalline |
| Cell Count | 204 cells |
| Construction | Mono-facial dual glass |
| Frame | 30mm black anodised aluminium |

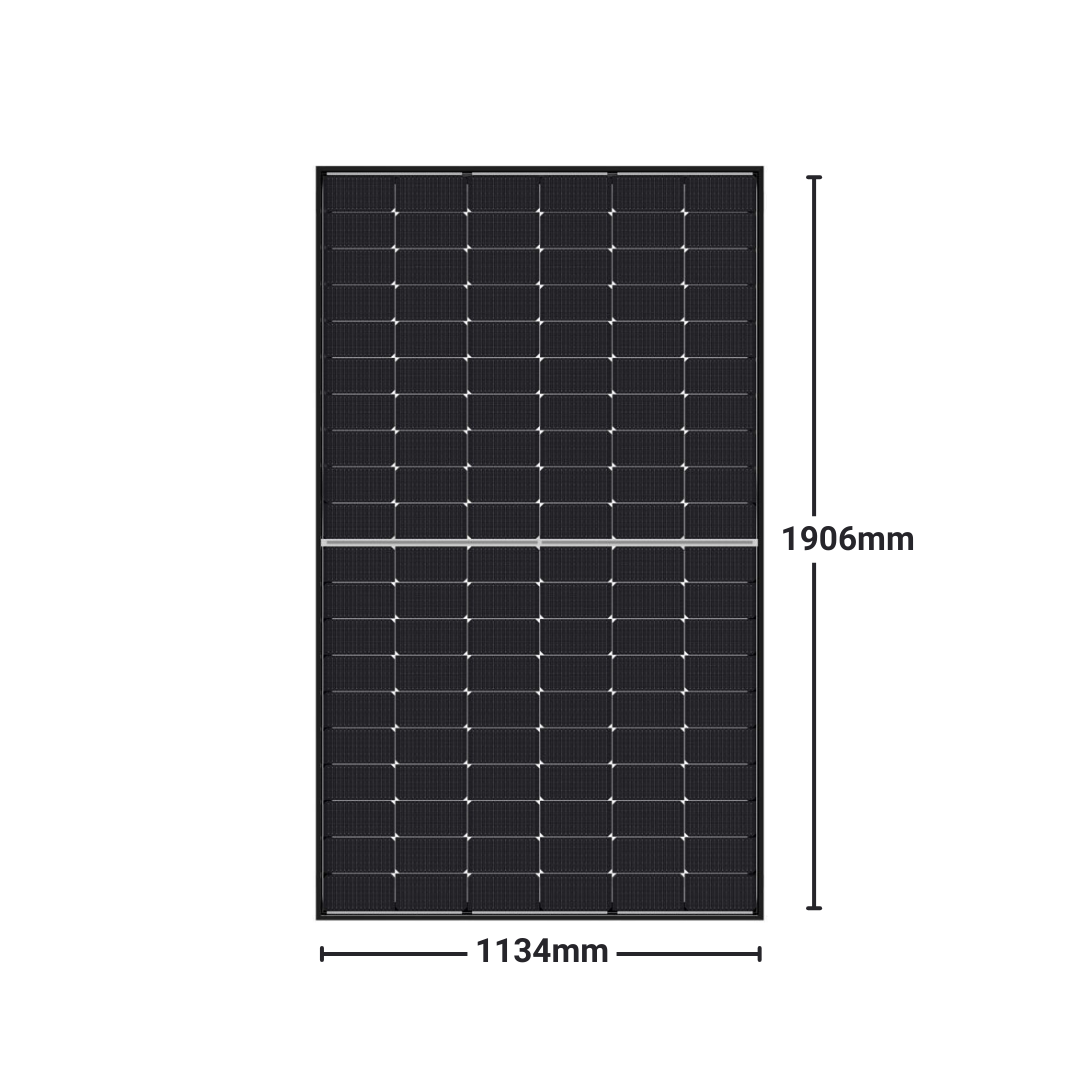

| Dimensions | 1906 × 1134 × 30mm |
| Weight | Approx. 23kg |
| Junction Box | IP68 |
| Maximum System Voltage | 1500V DC |
| Mechanical Load | 5400Pa front / 2400Pa rear |
Warranty
This model is backed by Jinko Solar manufacturer warranty coverage, including a 25-year product warranty and applicable long-term performance warranty terms, subject to the manufacturer’s conditions.
Important installation note
This is a high-output solar module. Always verify the exact electrical data on the supplied panel label/datasheet and confirm inverter or MPPT input voltage, current limits, string sizing, cable sizing, mounting requirements and applicable electrical standards before installation. It is not intended to be connected directly to a 12V battery.
