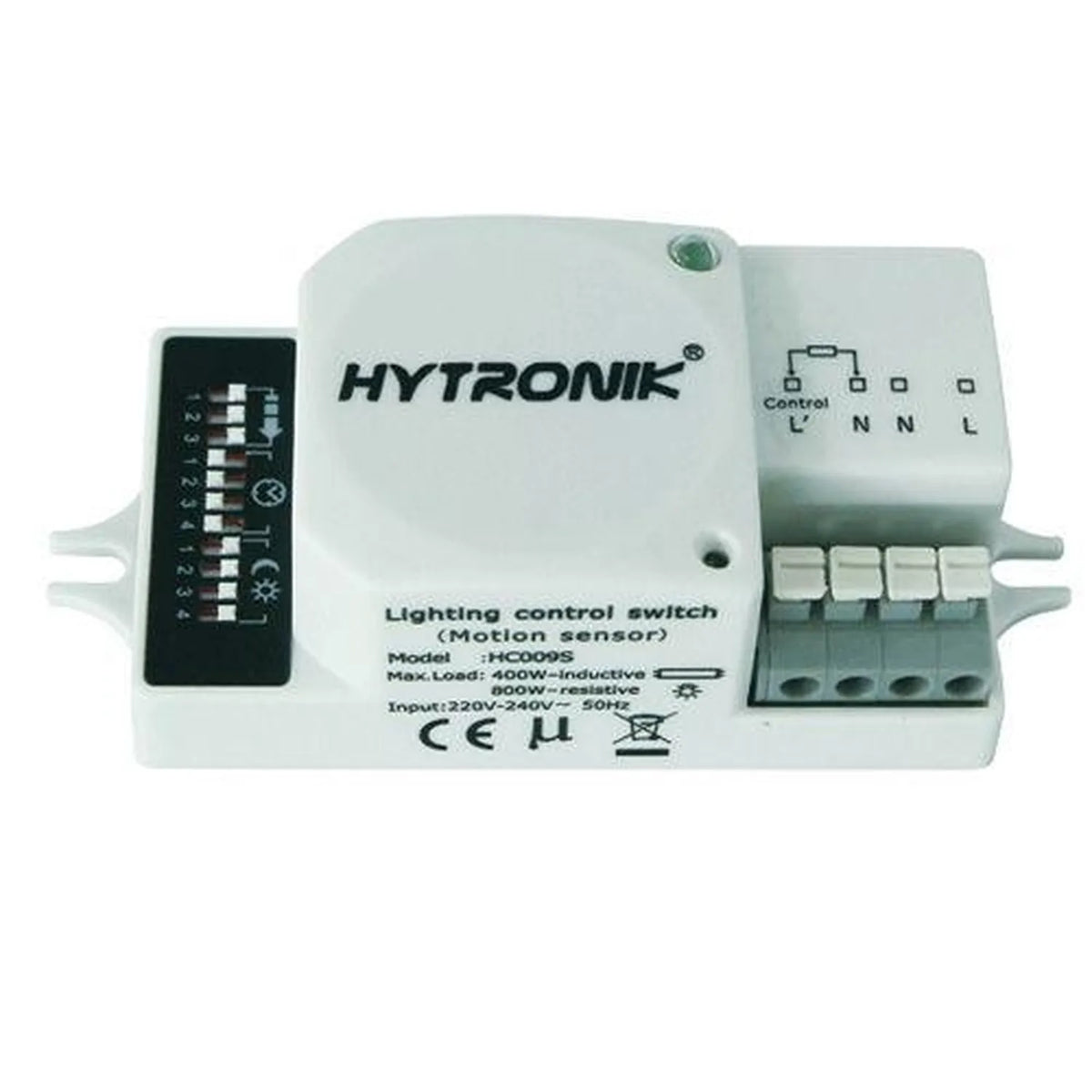

The Hytronik HC009S Eco is a microwave motion sensor that switches a light on when it detects movement nearby and switches off again after a set hold time once the area is clear. A built-in daylight sensor can hold the light off when there is already enough natural light, and this photocell function can be switched on or off as needed.

Key features of this microwave motion sensor light switch

• Detection range, adjustable from 1 to 16 metres
• Hold-on time, adjustable from 5 seconds up to 30 minutes
• Daylight sensor, integrated photocell, function can be enabled or disabled
• Detection area, 12m x 6m

Applications

The HC009S suits lighting circuits where presence detection and daylight cut-off are both wanted from a single sensor, with settings adjusted to match the space it covers.

Adjustable settings

Range and hold-on time are both set on the unit itself, so the same sensor can be tuned for a wide area with a long hold time or a narrower zone with a shorter one.
