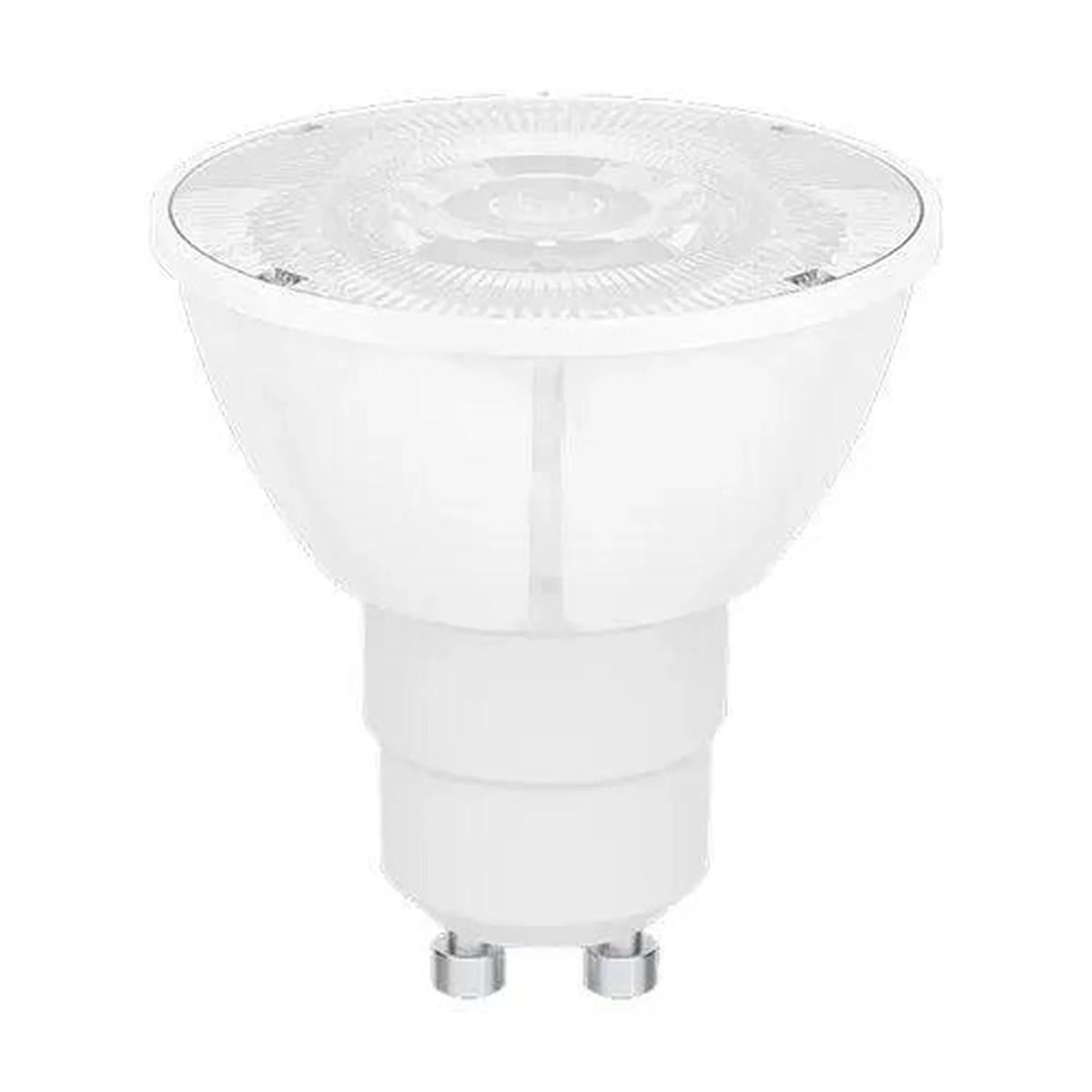

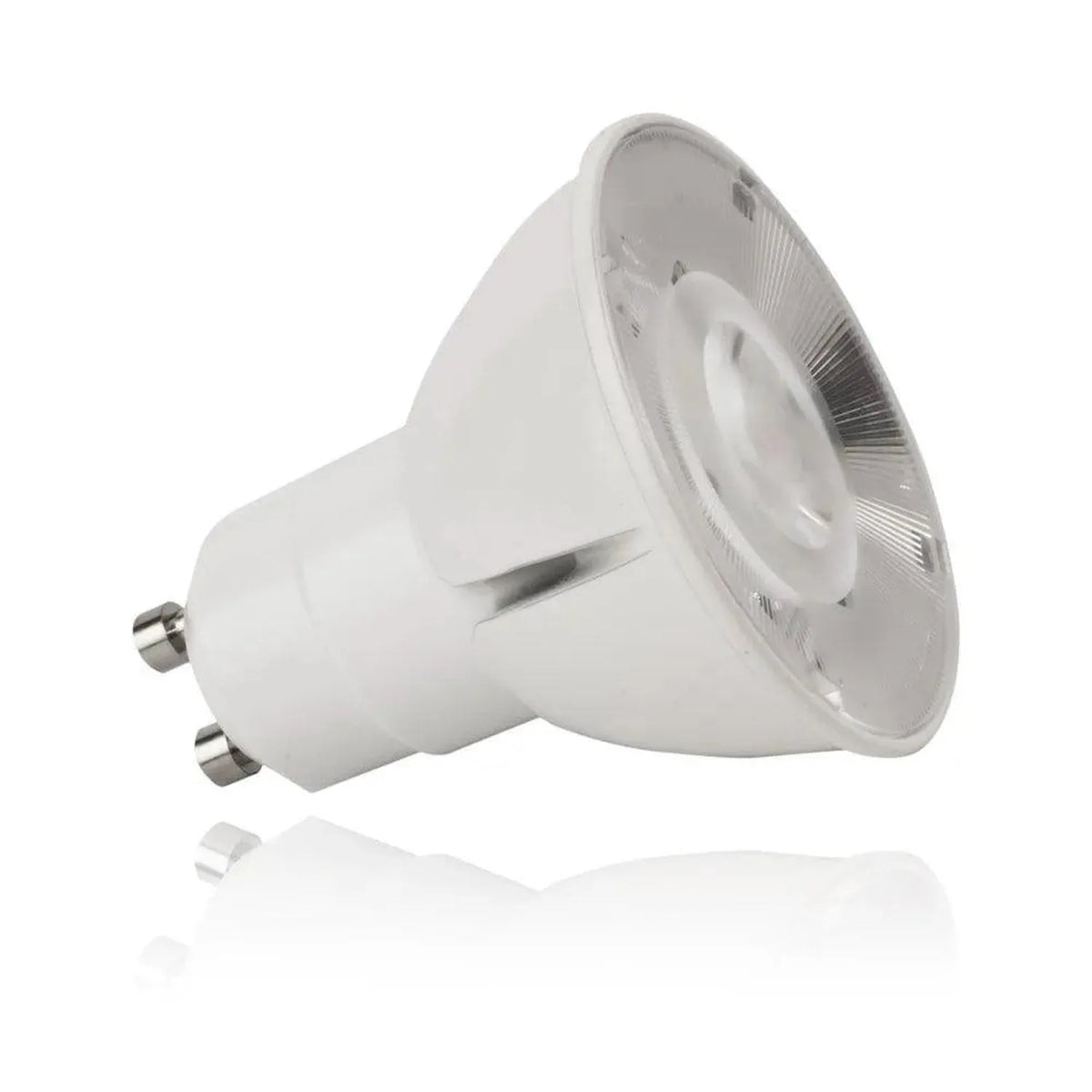

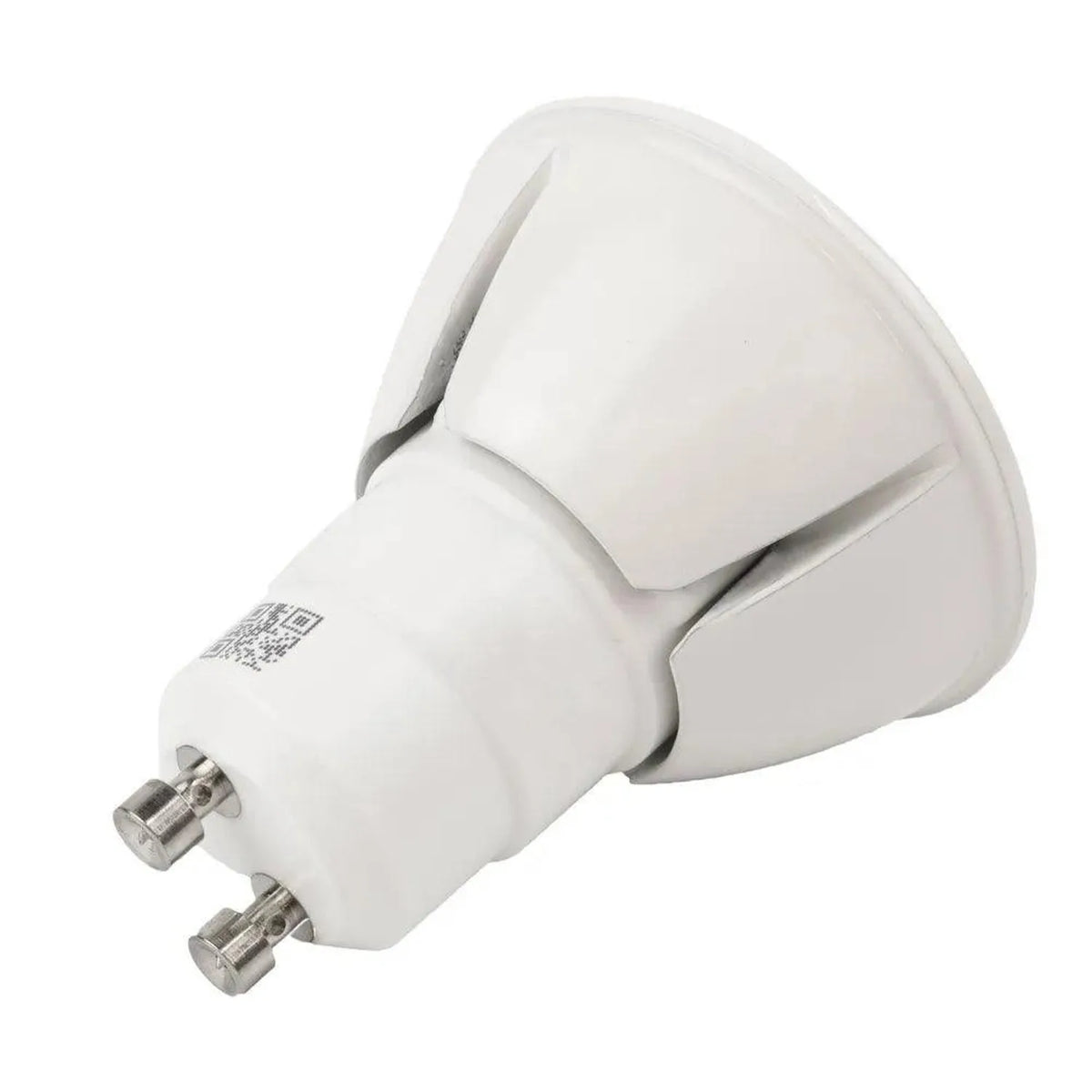

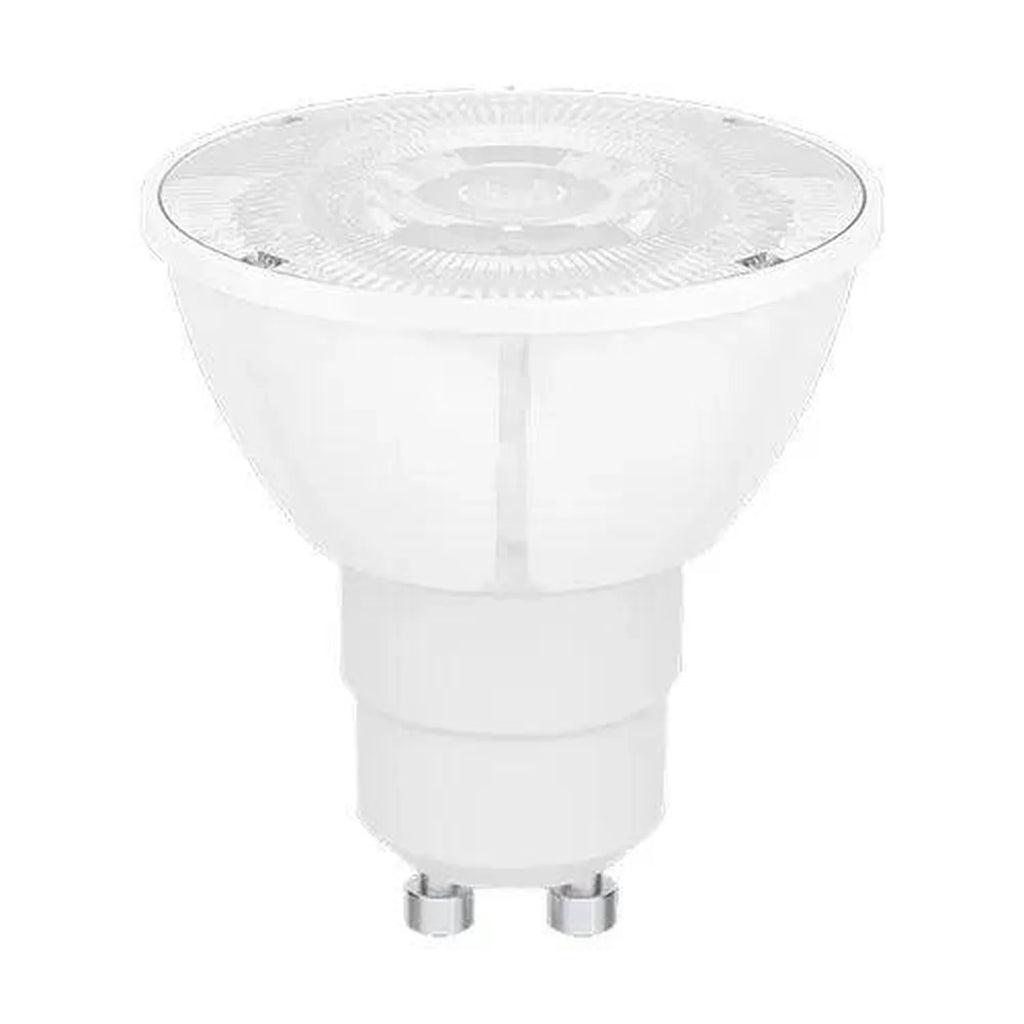

The Ledison GU10 LED bulb pairs a Fresnel lens with a 6 Watt LED engine to give a soft-edged, wide beam rather than the harsh circle typical of standard reflector lenses. The lens itself is a series of concentric grooves rather than a curved surface, which is what spreads the light without losing intensity.

Heat is the main enemy of any LED, so the bulb is encapsulated in an aluminium heat sink to draw heat away from the diodes and support a long service life. It uses the standard GU10 twist-lock fitting and shares the same dimensions as a halogen GU10, so it drops straight into existing fixtures without any adaptor.

Key features

• Power, 6 Watt rated consumption at 230Volt, 50/60Hz
• Light output, 552lm at 92lm/W efficiency
• Colour, 2700K warm white with a colour rendering index above 90
• Beam, 60 degree beam angle
• Dimmable, compatible with dimmer circuits
• Build, aluminium casing, 50mm diameter, 53mm height, 64g

Applications

Suited to standard GU10 downlights, track fittings and display lighting wherever a halogen-style spot is being replaced. The fitting is rated for continuous use, and the average lifetime is stated at 40,000 hours.

Operating range and certification

Operating temperature is quoted as -40°C to 50°C, with RoHS compliance, CE and UL certification and a 5 year warranty.
