Description

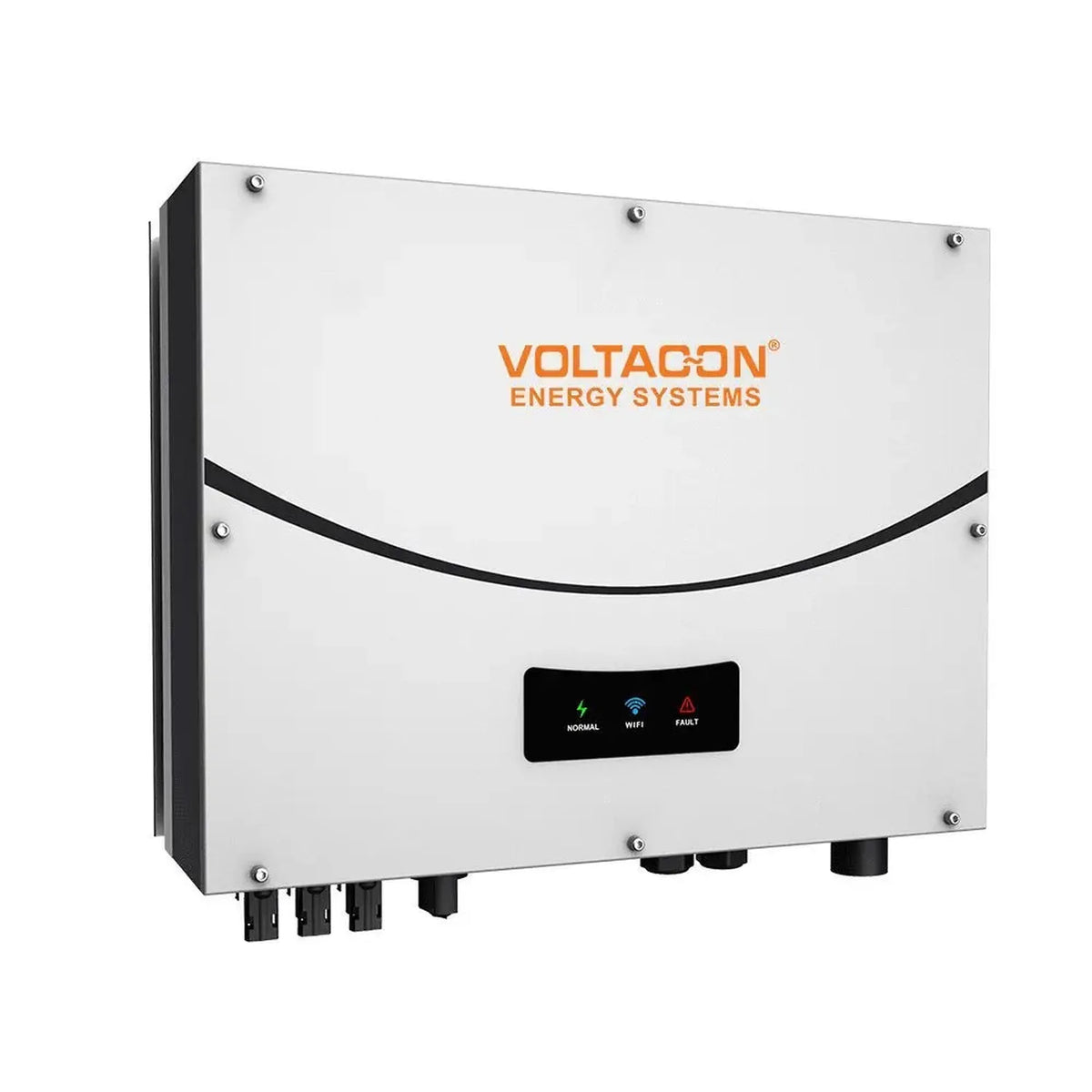

The Elios 15kW is a three-phase grid tied solar inverter with three independent MPPT controllers, Wi-Fi monitoring and fanless cooling. It is G98/G99 compliant for UK grid connection and suited to commercial and industrial solar PV installations. IP65 rated, with a maximum PV input of 18kW.
Key features of this grid tied solar inverter
- Output, 15kW three-phase on-grid output at 320 to 478VAC
- MPPT design, three independent MPPT controllers, 200V to 1000V DC range per MPPT
- String capacity, up to 20 panels in series per PV string
- Max PV input, 18000W
- Peak efficiency, 98.3% at full load
- Cooling, fanless natural convection through a large aluminium heatsink
- Protection rating, IP65 for outdoor installation
Product overview

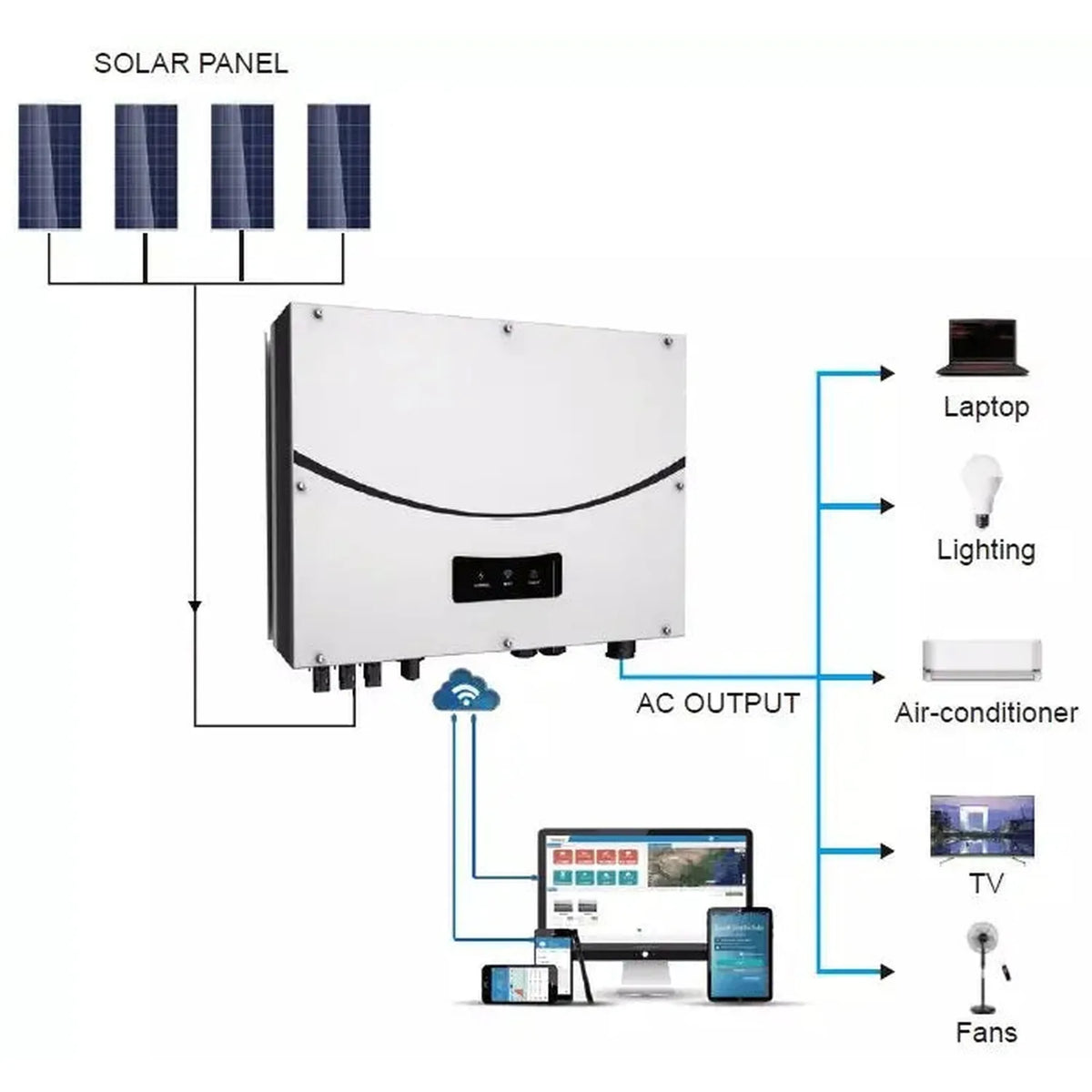

The inverter converts solar DC power into three-phase 320 to 478VAC output for self-consumption or export. Three independent MPPT controllers let it manage three separate string inputs, useful on commercial roofs with multiple orientations or partial shading across different sections.

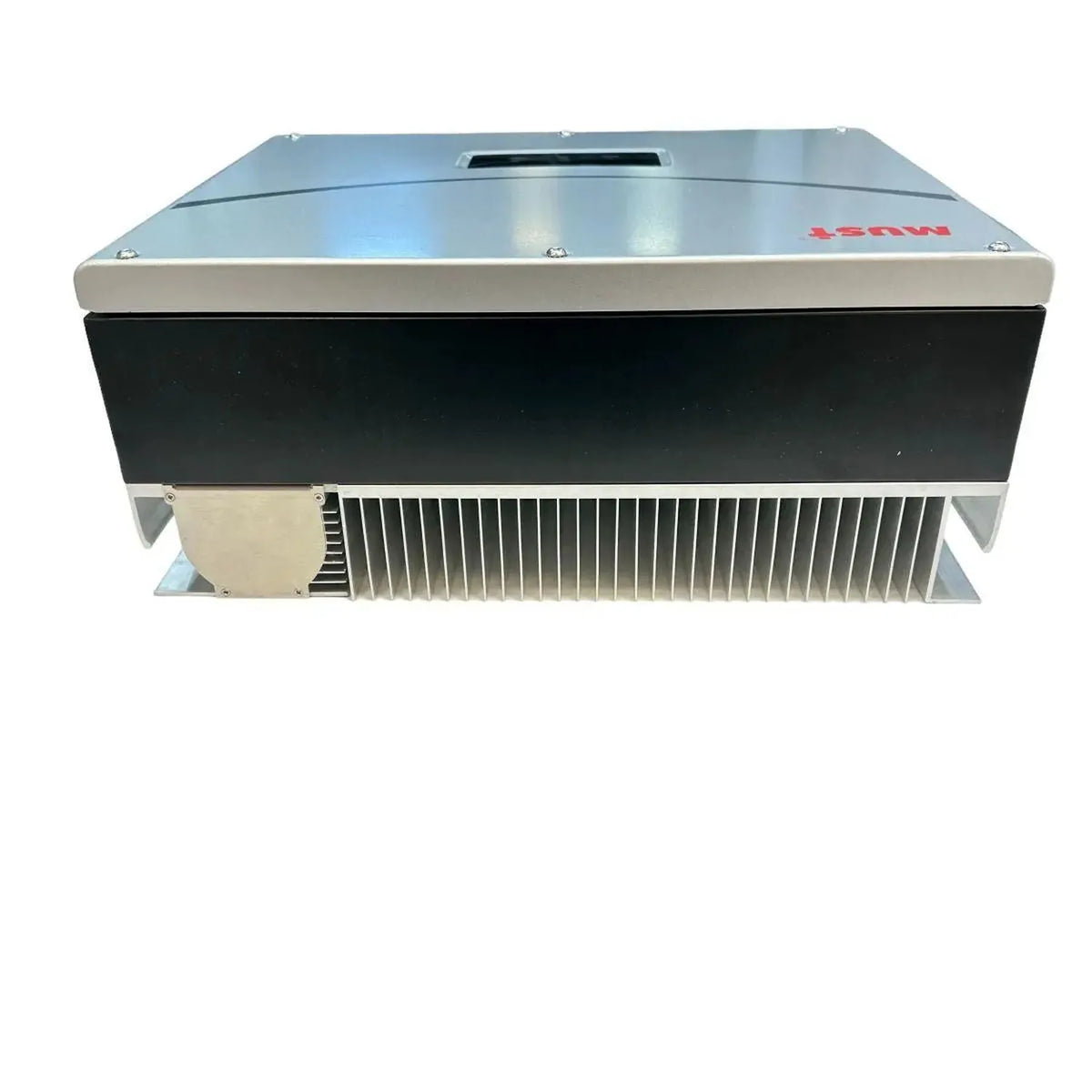

Fanless cooling removes moving parts entirely. Natural convection through the aluminium heatsink keeps operating temperatures in check without noise or maintenance, which suits noise-sensitive commercial sites.

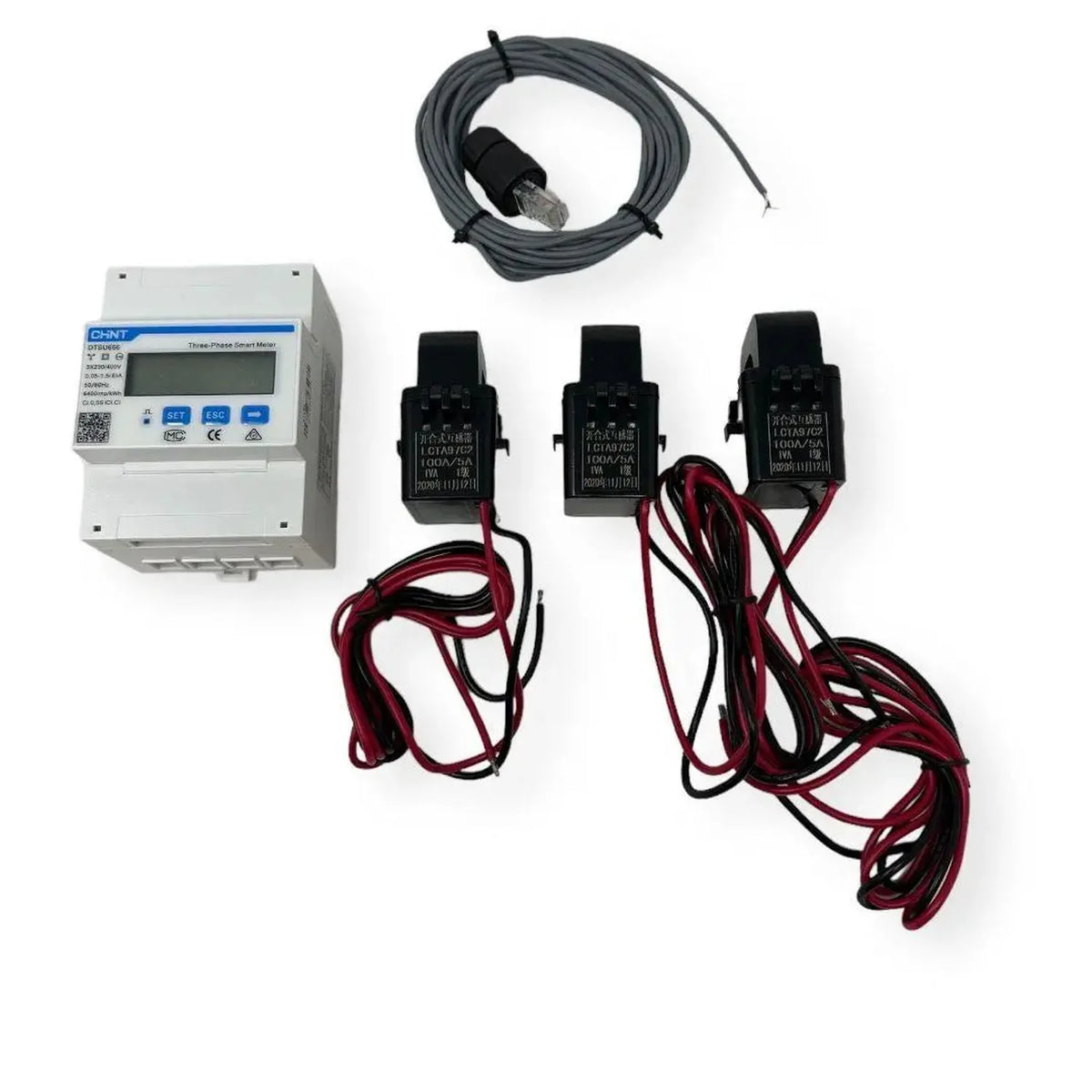

Export limitation via CT clamp adjusts output in real time to match consumption, giving zero-export or a fixed export level as required by the DNO. Monitoring runs through the Wi-Fi app or a Solar Assistant Orange Pi controller for more detailed local and remote monitoring.
Applications
- Commercial and industrial three-phase grid-connected solar PV systems
- Multi-orientation rooftop arrays benefiting from three independent MPPTs
- Installations requiring export limitation, zero-export mode or net metering
- Noise-sensitive sites where fanless operation is needed
Installation and safety notes
Fitting must be carried out by a qualified electrician or MCS-accredited solar installer. Three-phase grid-connected inverters in the UK need a G99 application and DNO approval before connection. DC isolators, AC protection, surge protection and earthing must comply with BS 7671. CT sensors must be fitted by a qualified electrician; this is not a DIY installation.
