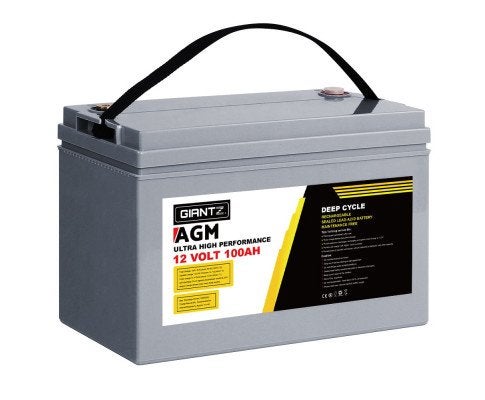

Giantz 12V 100Ah AGM deep-cycle battery for suitably matched caravan, camping, marine, 4WD auxiliary and solar-storage systems. Its sealed AGM construction, bolt-down terminals and carry handle provide a practical option for customers who need approximately 1,200Wh of nominal 12V storage.

Key Specifications

• Nominal voltage: 12V
• Rated capacity: 100Ah at the 10-hour rate
• Approximate nominal energy: 1,200Wh
• Battery type: sealed AGM deep cycle
• Overall dimensions: 33 × 17.1 × 21.6cm
• Approximate weight: 25kg
• Container material: ABS
• Terminals: bolt-down
• Internal resistance: approximately 5.4mΩ
• Maximum discharge current: 1,080A for 5 seconds
• Maximum charge current: 22.5A
• Listed cycle life: up to 1,400 cycles at 30% depth of discharge
• SKU: BATTERY-C-AGM-100

Charging Data

• Float charge: 13.5–13.8V
• Equalise charge: 13.8–14.1V
• Charge temperature: -20°C to 50°C
• Discharge temperature: -15°C to 50°C
• Storage temperature: -20°C to 50°C

Use a charger, solar controller or DC-DC charger with an AGM profile and remain within the listed 22.5A maximum charge current. Confirm the final settings against the supplied manual and charging-equipment instructions.

Runtime and Load Planning

Nominal energy is approximately 1,200Wh, but usable runtime is lower and varies with discharge rate, battery condition, temperature, wiring loss and the manufacturer’s recommended depth of discharge. Repeated excessive discharge can shorten AGM service life.

The 1,080A figure is a five-second maximum, not a continuous-current rating. Do not use it to size an inverter or continuous appliance load. Check the battery’s permitted continuous current, cable size, fuse and voltage drop for the intended system.

Installation and Storage

Measure the installation area before ordering and allow for the battery’s 25kg weight. Secure the battery, protect the positive cable with a correctly rated fuse and follow the manufacturer’s ventilation and orientation guidance. Recharge after use and periodically during storage as directed in the manual.

Package Contents

• One Giantz 100Ah AGM deep-cycle battery
• User manual

No separate battery box, charger, cable, fuse, solar controller or inverter is listed as included.

Compare the Giantz 120Ah AGM battery or browse all AGM deep-cycle batteries. Match the charging system with a compatible MPPT solar controller or DC-DC charger.

Frequently Asked Questions

Can this battery run a caravan fridge?

It may suit a compatible 12V fridge when the fridge’s measured daily watt-hours, start-up demand and required runtime fit the available battery energy and charging input.

Is it suitable for engine starting?

This product is listed as a deep-cycle storage battery. Do not use it as an engine-starting battery unless the manufacturer specifically approves that application.
