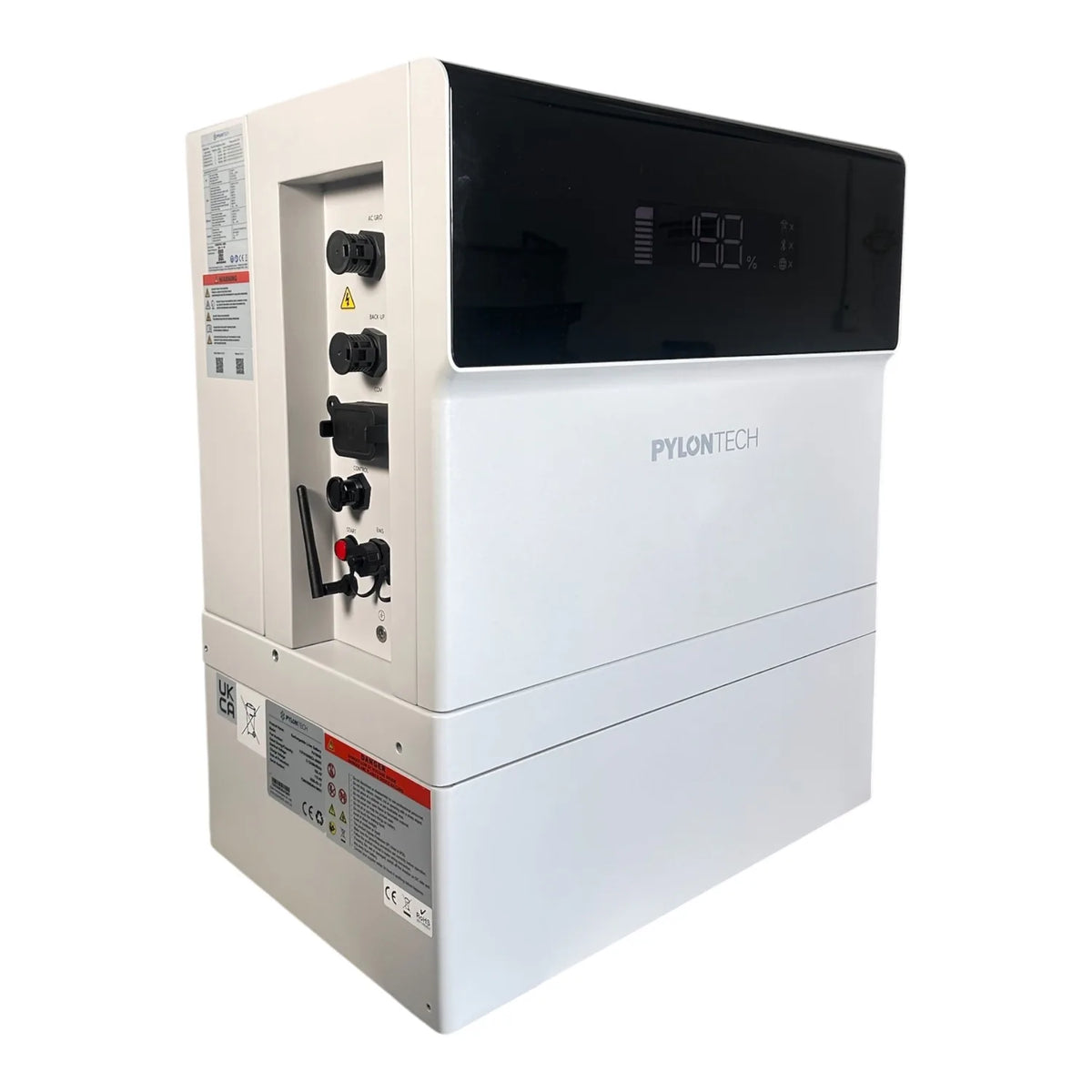

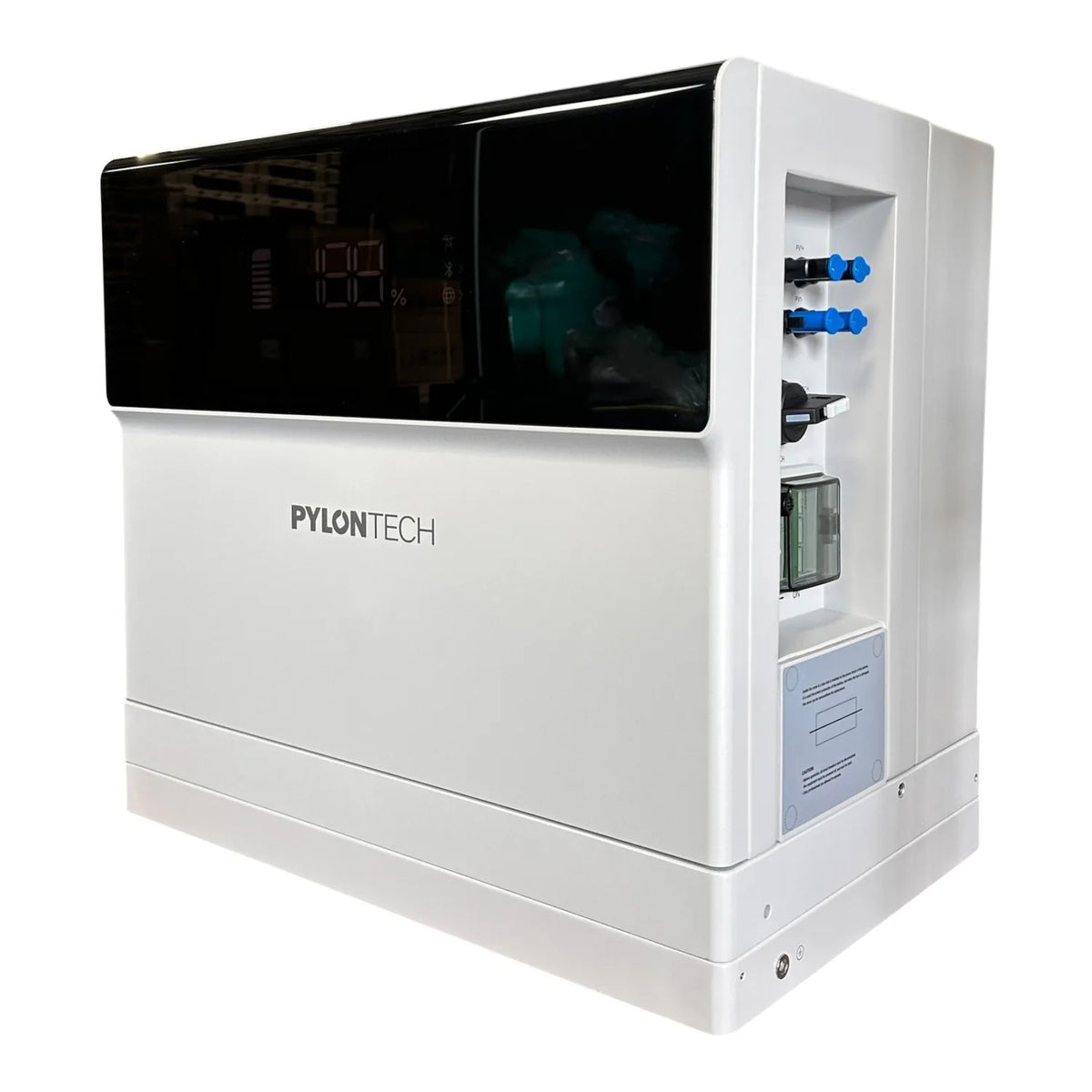

The Pylontech Force H3X FH3X6K-HY-1P is a single phase hybrid solar inverter and battery storage system rated at 6kW, built for solar self-consumption, grid import and export, smart tariff switching and backup power. This hybrid solar inverter pairs directly with Pylontech FH10050 high voltage LiFePO4 battery modules stacked vertically beneath the unit.

Pylontech Force H3X hybrid inverter overview

The inverter, BMS and energy management electronics are combined into one enclosure. Pylontech promotes a fast, simplified installation process of around 15 minutes on a properly prepared site, carried out by a qualified installer. The battery connection is wire-free, using an internal bus bar rather than separate power or communication cables between inverter and battery modules.

Key features

• Nominal power, 6kW single phase output
• Battery compatibility, Pylontech FH10050 high voltage LiFePO4 modules, stacked vertically
• Grid interaction, CT clamp based monitoring of import and export, without a separate Eastron meter for standard operation
• Backup power port, supplies selected essential loads during a mains outage
• Smart tariff support, Intelligent Dynamic mode adjusts charging and discharging around tariff periods, including time-of-use pricing
• Design, integrated inverter, BMS and energy management with fewer external components

Applications

Suited to home solar battery storage, solar self-consumption, smart import and export tariffs, backup power for essential circuits, and small offices, warehouses or commercial buildings using high voltage battery storage. The Force H3X platform can expand across residential and small commercial systems, subject to system design and manufacturer limits.

Installation

This is professional installation equipment. Grid connection, backup wiring, CT connection, DNO notification and electrical protection must all be completed by a qualified, competent installer in line with local regulations and the manufacturer's installation manual.
