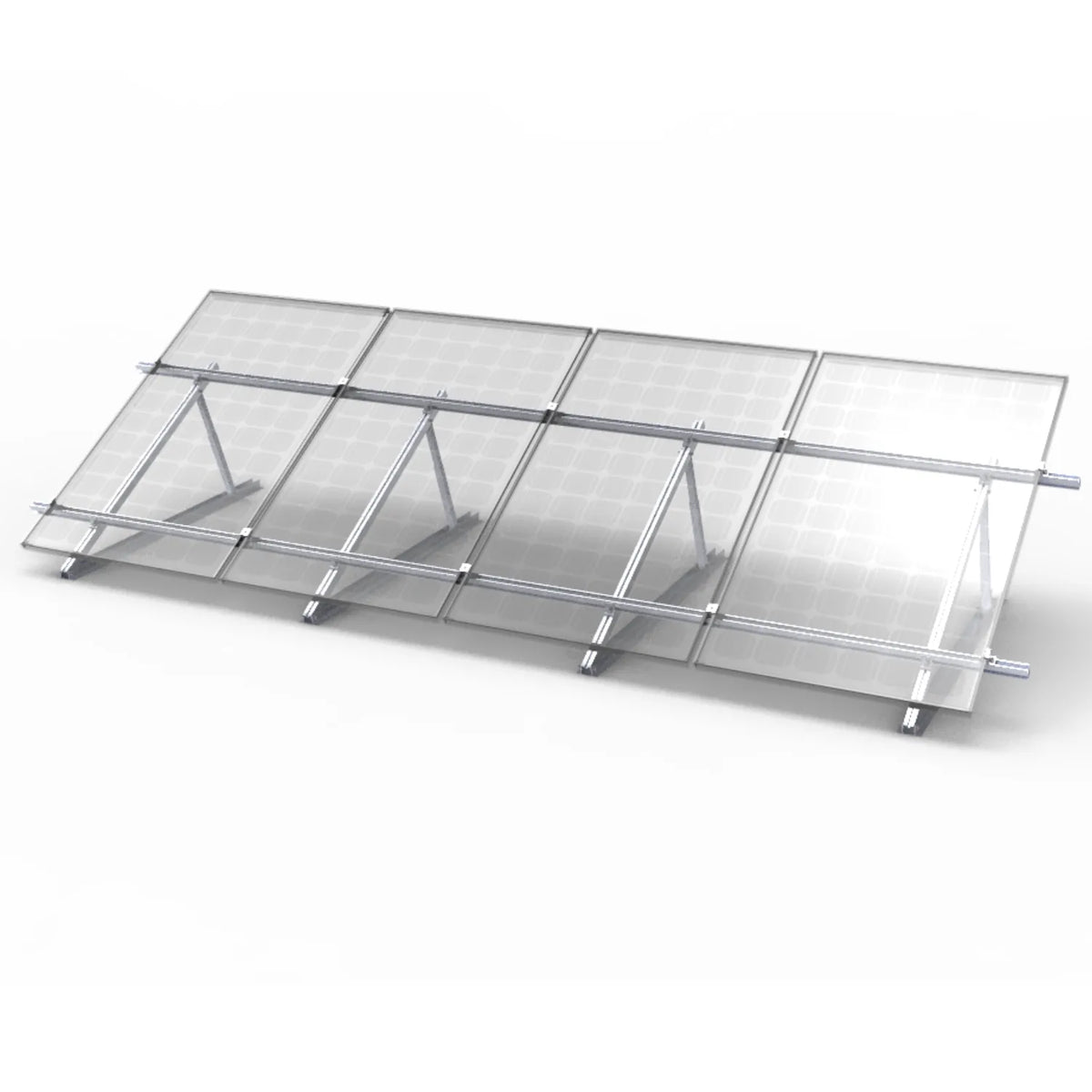

This flat roof solar panel mounting kit uses an adjustable aluminium triangle frame that can be set anywhere between 15 and 35 degrees, letting installers tilt panels to suit the roof or ground location. Stainless steel fixings are included for long-term outdoor use, and the frame fits concrete, timber, steel and other flat or ground surfaces.

Flat roof solar panel mounting kit features

• Adjustable angle, 15 to 35 degrees
• Frame material, aluminium triangle supports with stainless steel accessories
• Fixing options, direct fixing or heavy-duty concrete ballast blocks where drilling is not possible
• Panel compatibility, framed solar panels from 100W up to 715W
• Maximum panel height, approximately 2.4 metres
• Clamp compatibility, end and middle clamps for 30mm, 35mm and 40mm panel frames

Applications

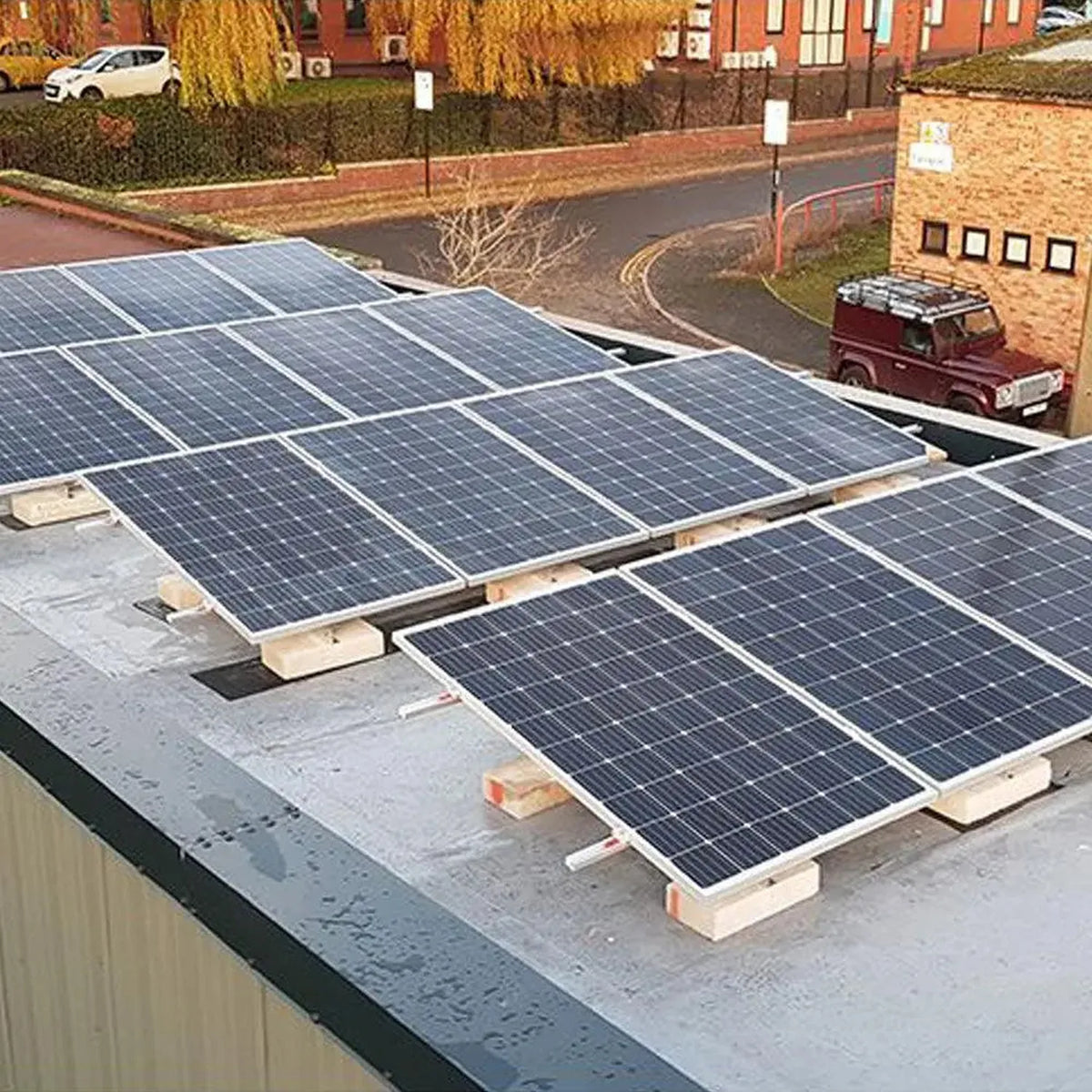

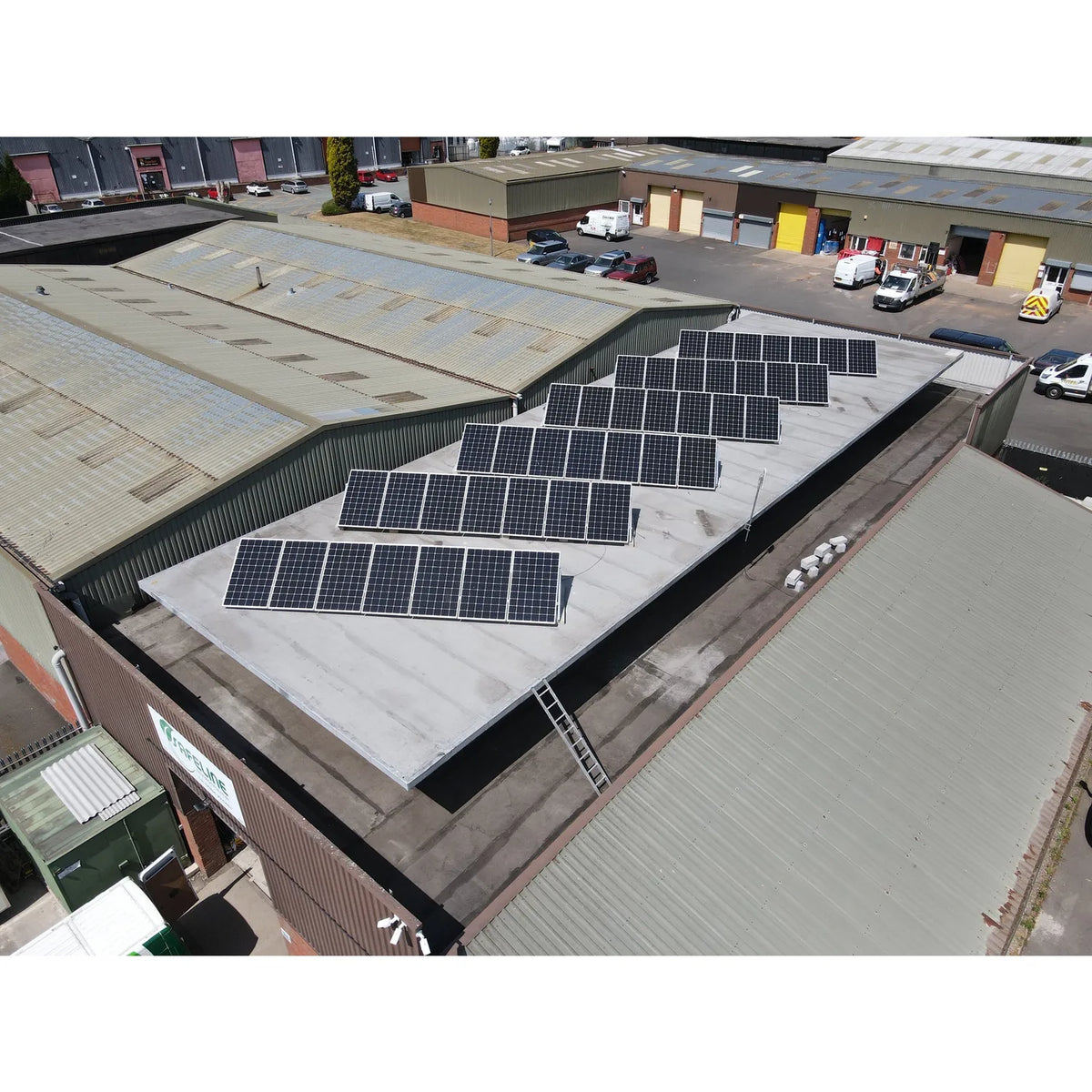

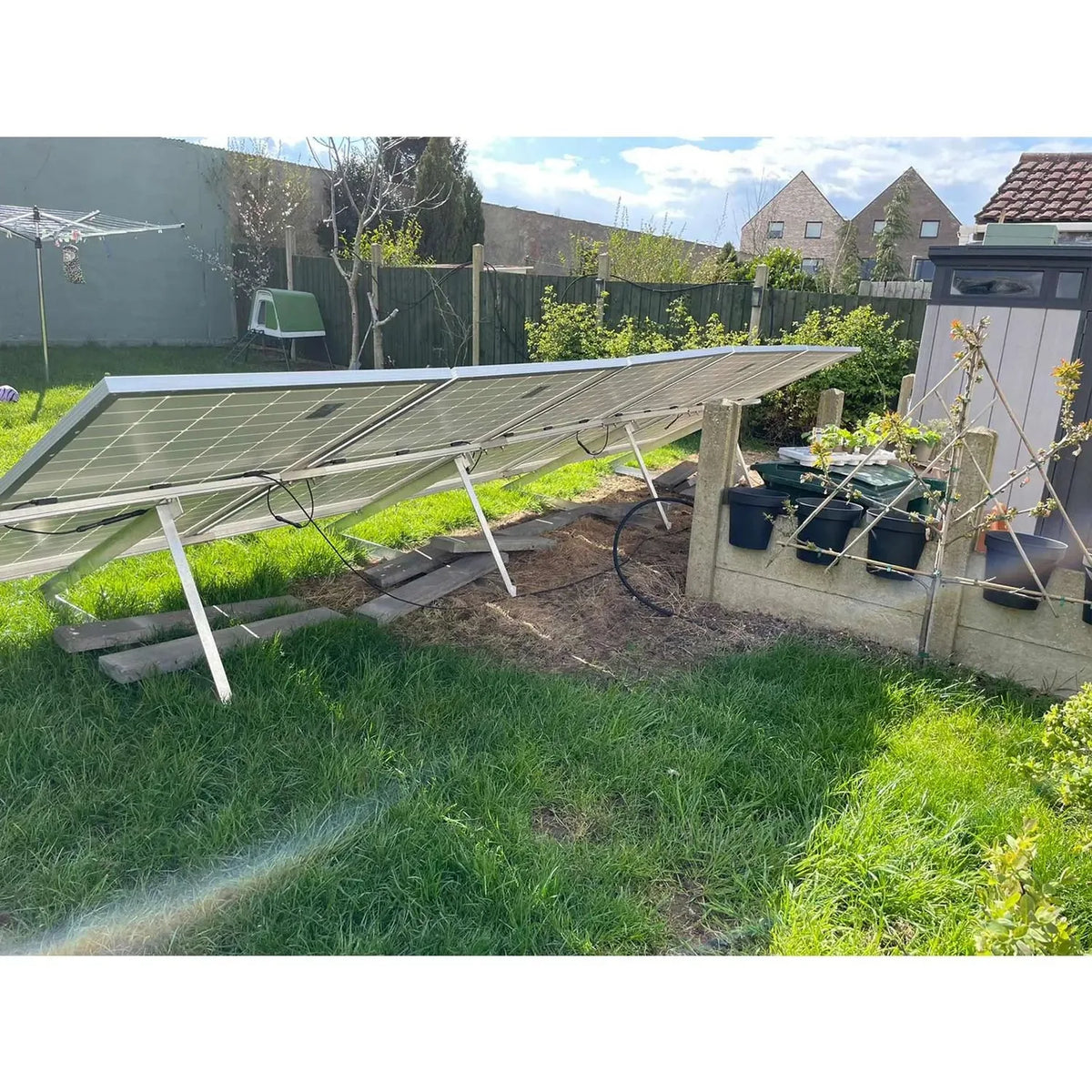

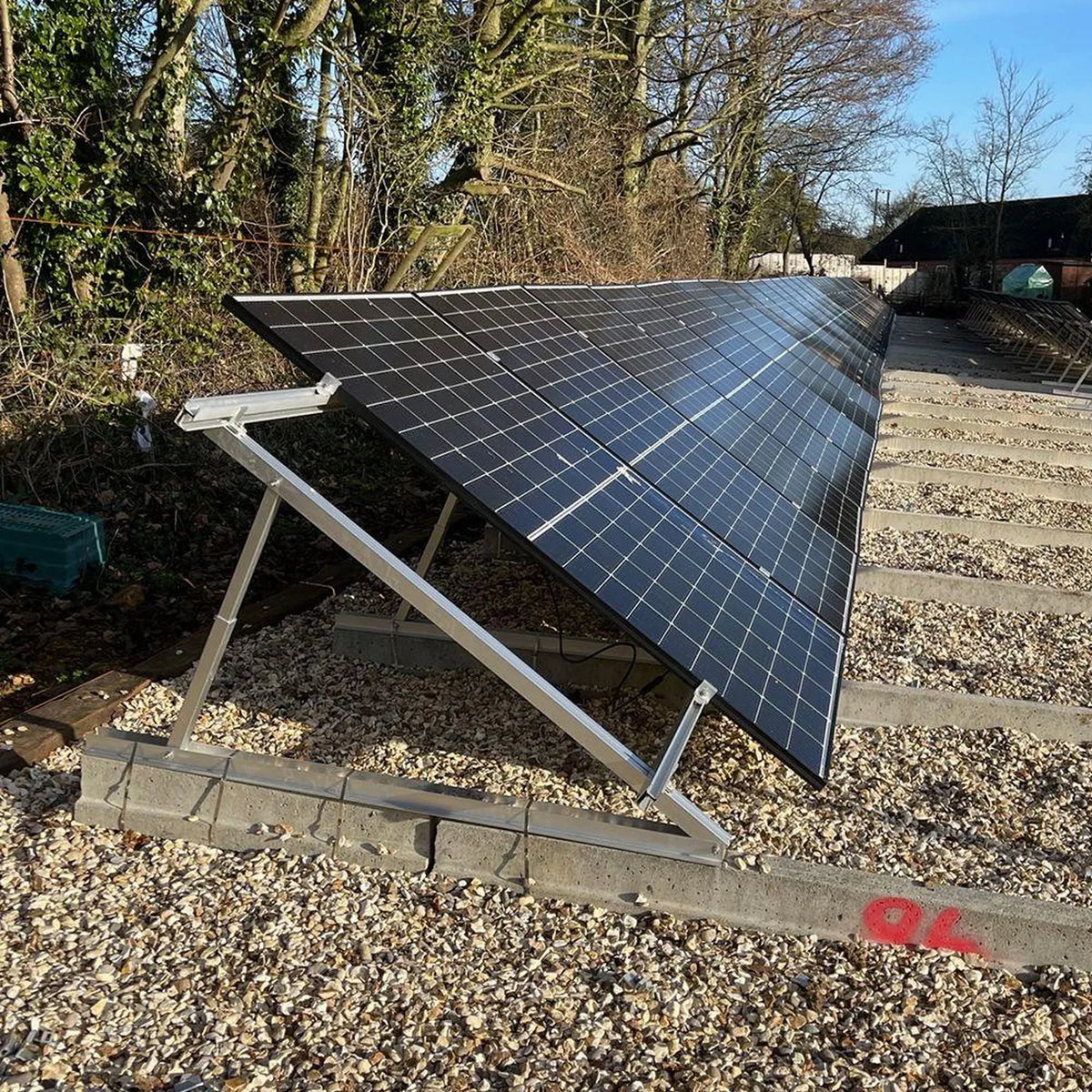

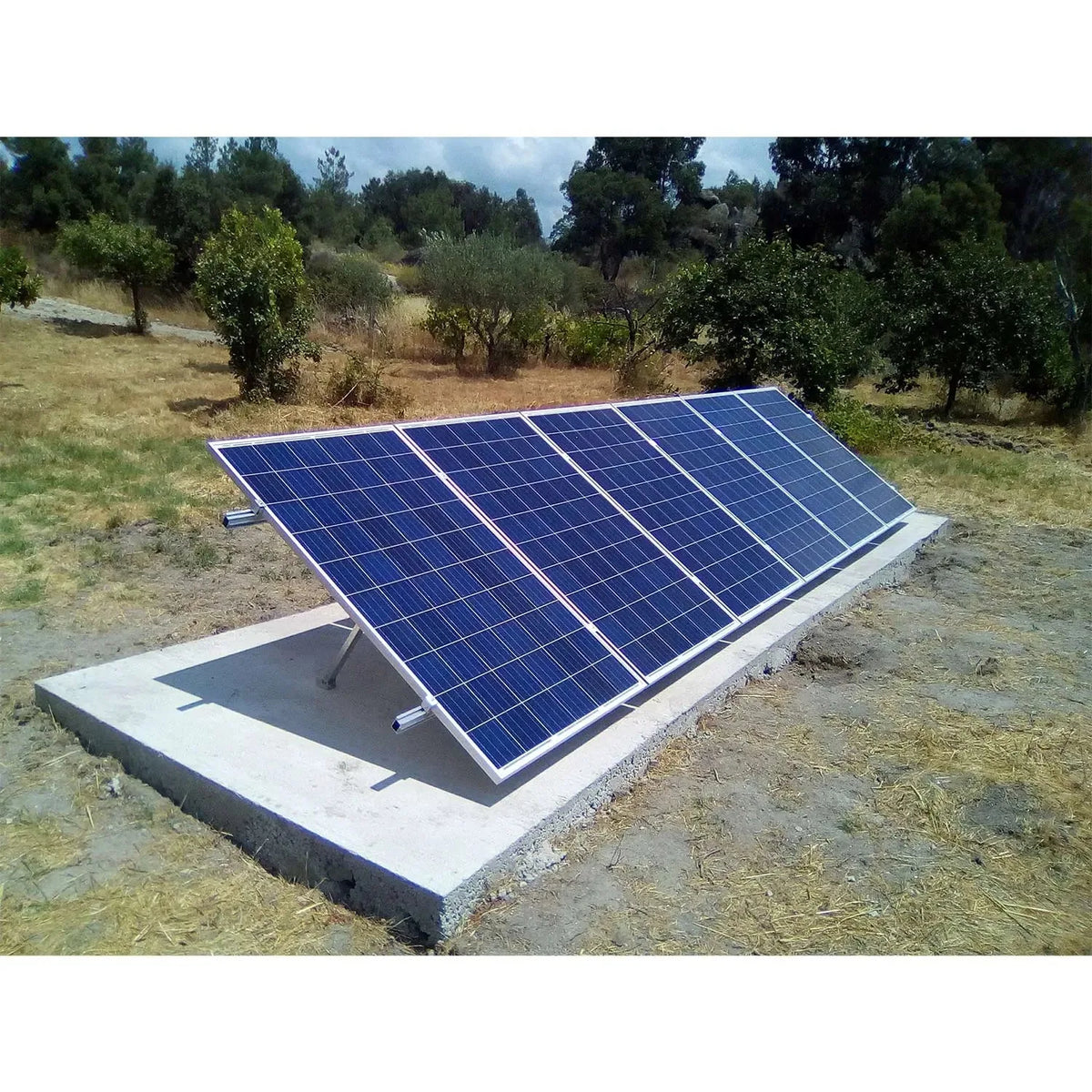

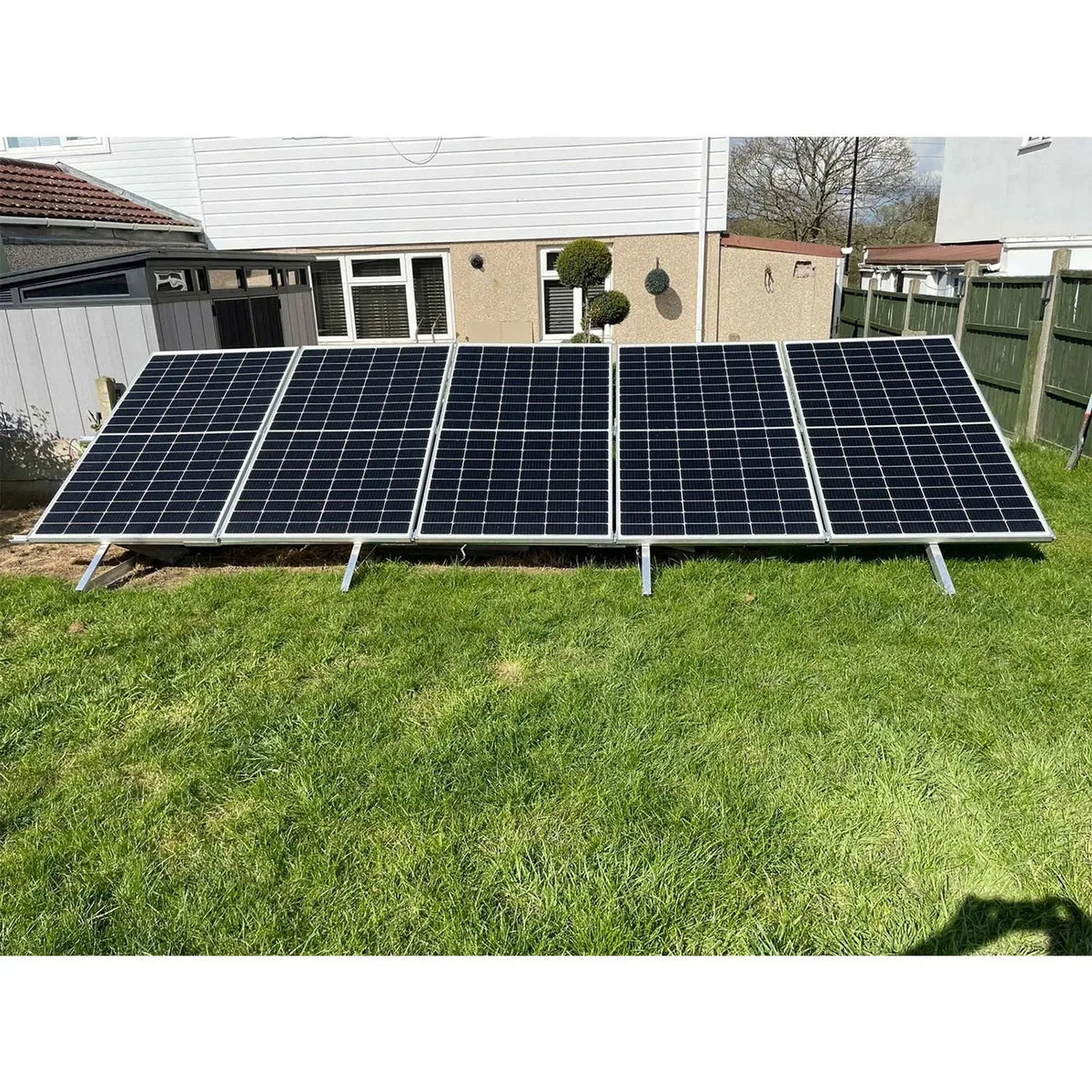

Built for flat roof, ground-mounted, concrete base, timber structure and metal frame installations, this kit suits residential, commercial, off-grid and DIY solar PV projects. Where roof penetration isn't an option, the aluminium frames can be held down with concrete ballast blocks instead.

Orientation and panel sizing

The kit supports both portrait and landscape panel orientation, though portrait is the recommended layout for easier fitting and better support. It handles a wide range of framed panels, from small 100W modules through to large modern panels up to 715W.

Kit sizes and expansion

Pre-made kits are available for 1, 2, 3 or 4 solar panels, and multiple kits can be combined to build larger arrays. This makes the same mounting system workable for a single-panel installation or a much larger roof or ground-mounted array.

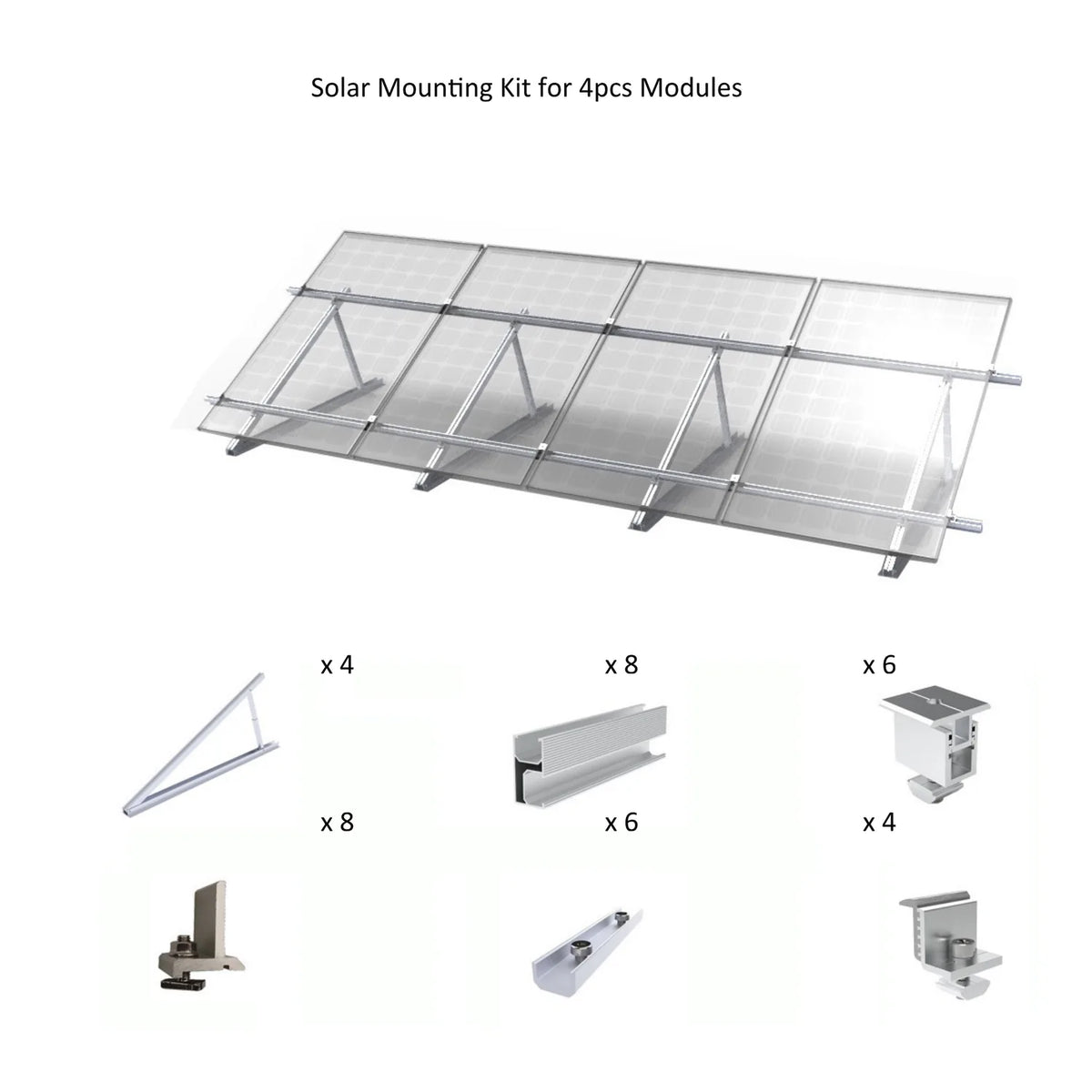

What's in the box

• Aluminium triangle mounting frame components
• Stainless steel fixings and adjustable end and middle clamps
• Installation instructions
