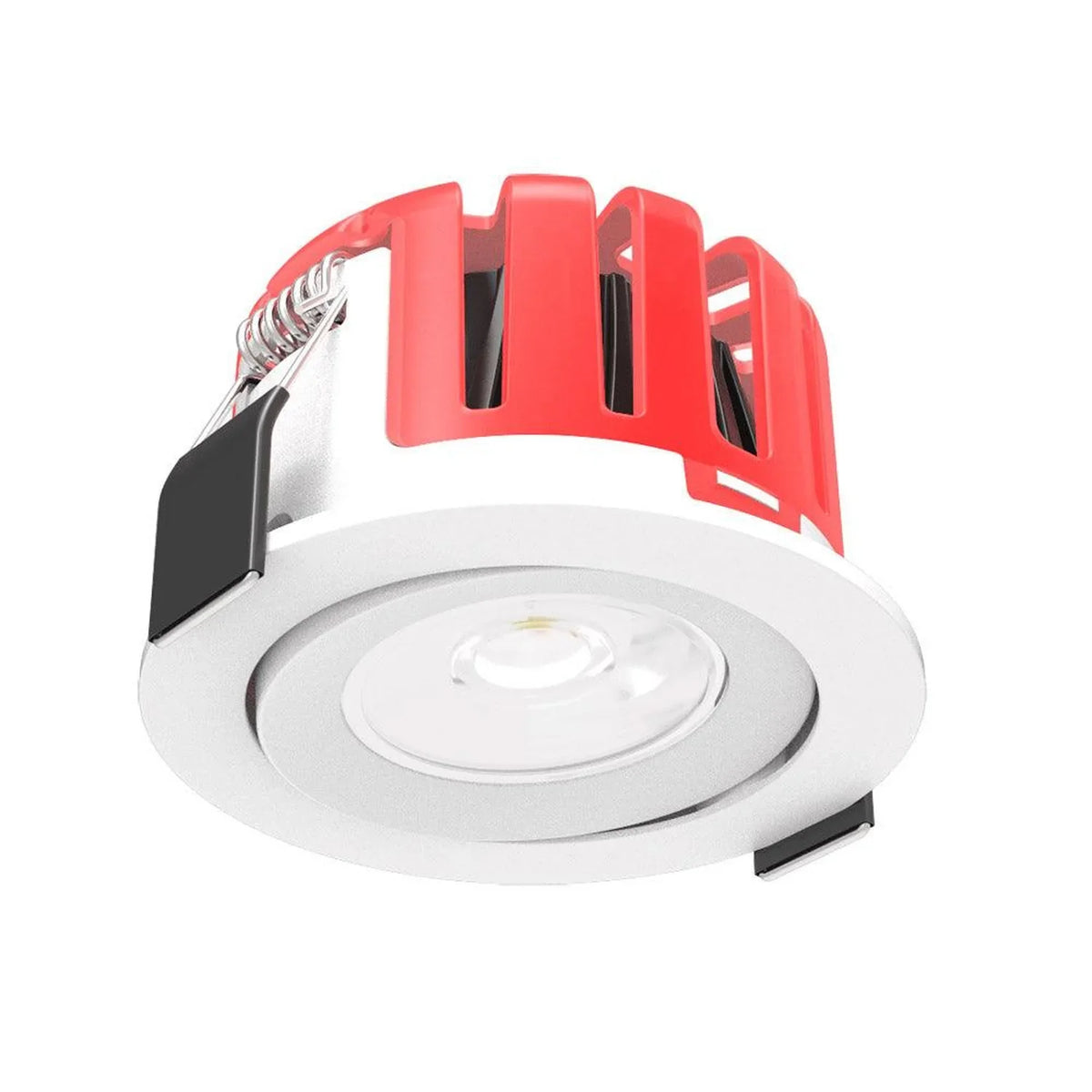

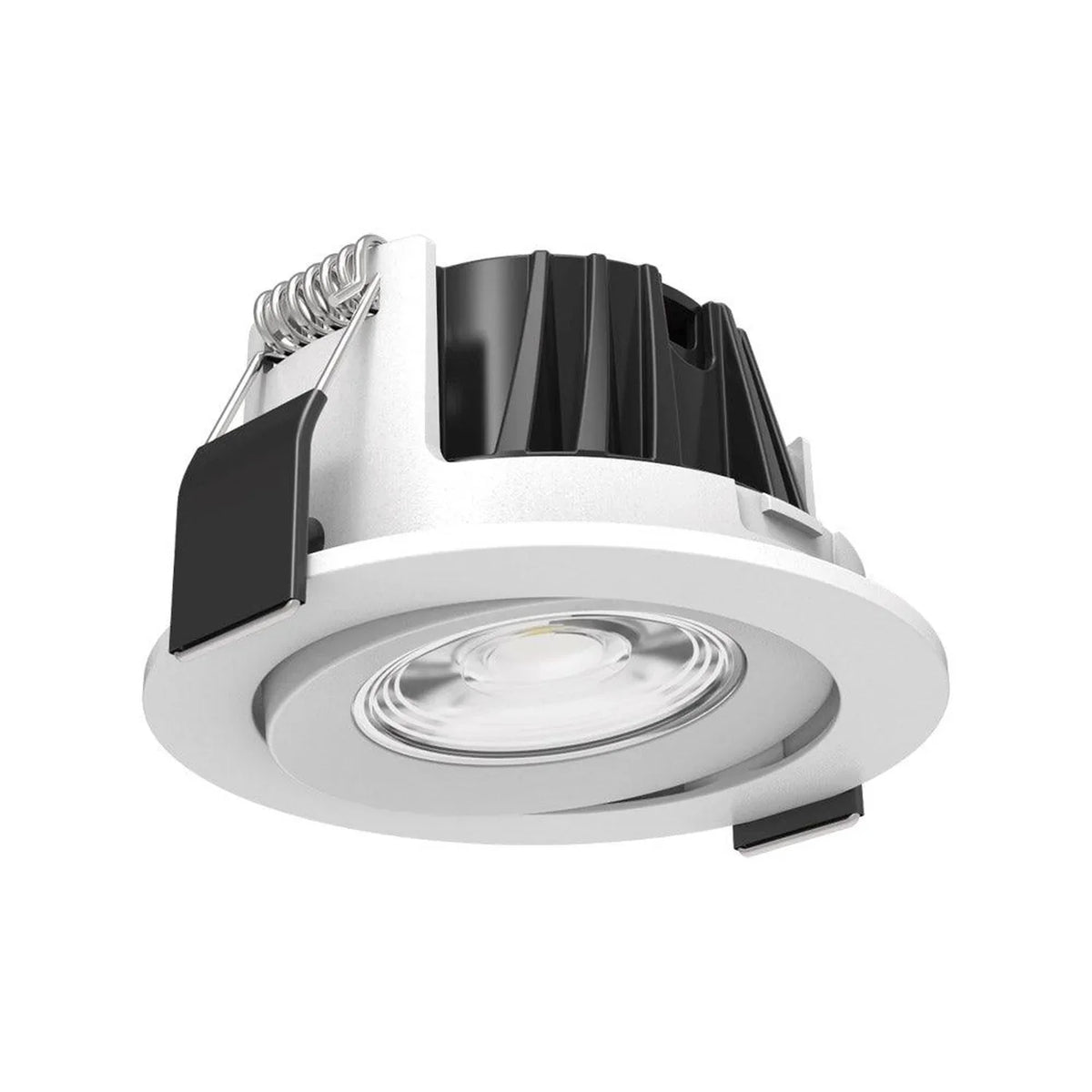

The Ledison SD2022 is a 7-watt dimmable LED downlight with a 36 degree beam angle and a 15 degree vertical tilt for field fine-tuning. It fits ceilings between 5mm and 25mm thick and sits at just 48mm overall height, making it suitable for narrow ceiling voids.

Key features

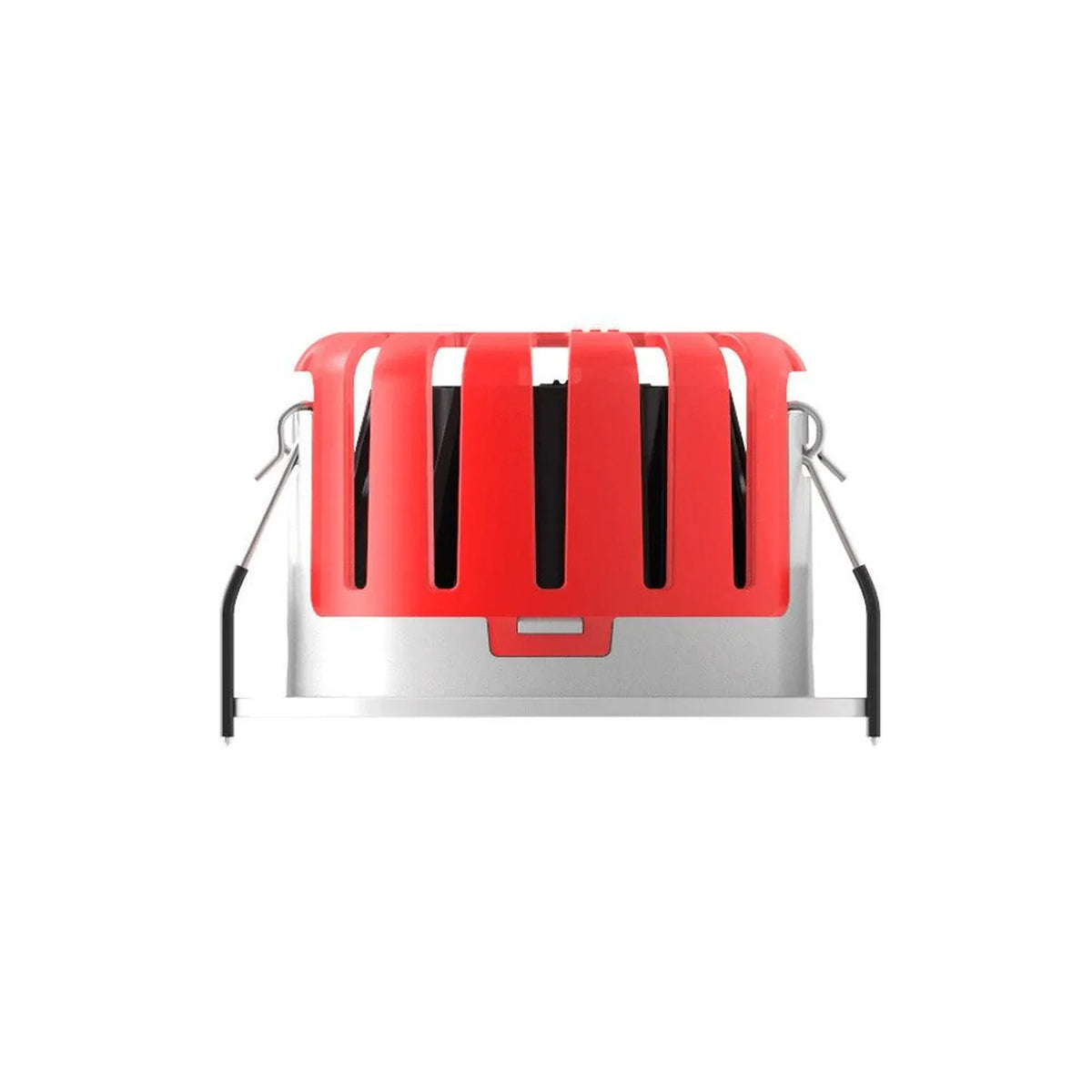

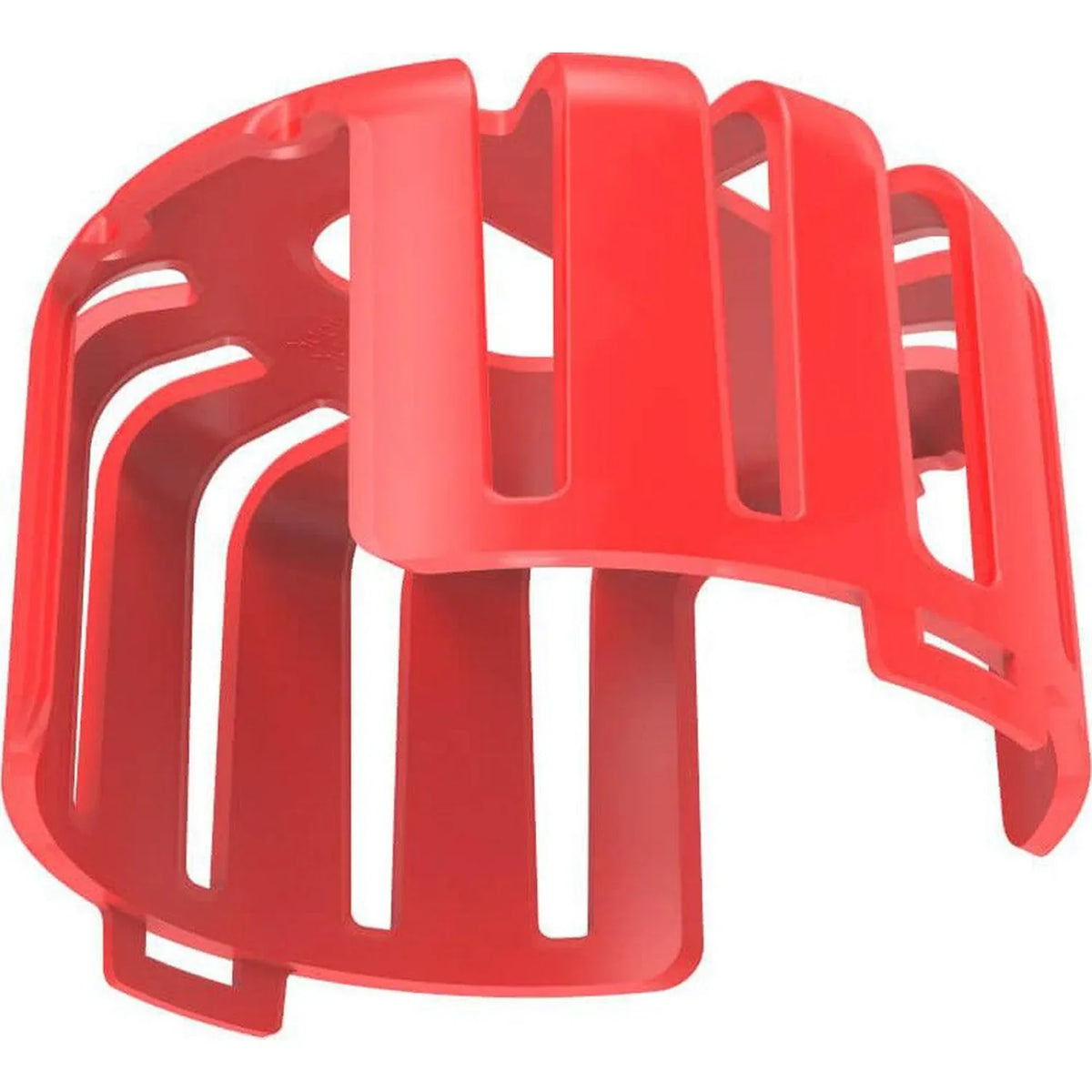

• Fire rated downlight with a fireproof cover and ventilated internal driver for safe operation.

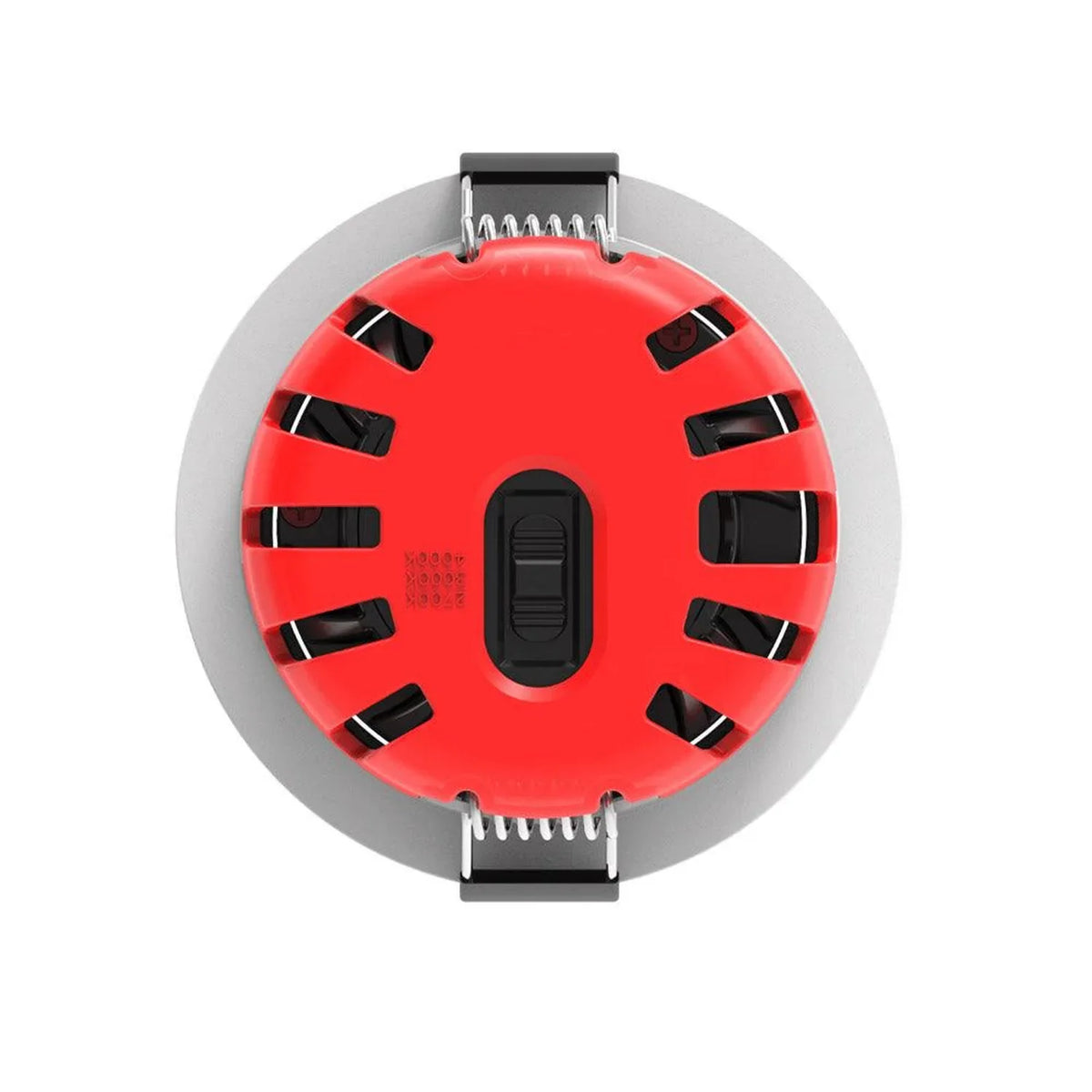

• DIP switch colour temperature selectable across 2700K, 3000K and 4000K.
• Tilt angle adjustable by 15 degrees vertically.
• Insulation bracket to maintain air convection around the heatsink.

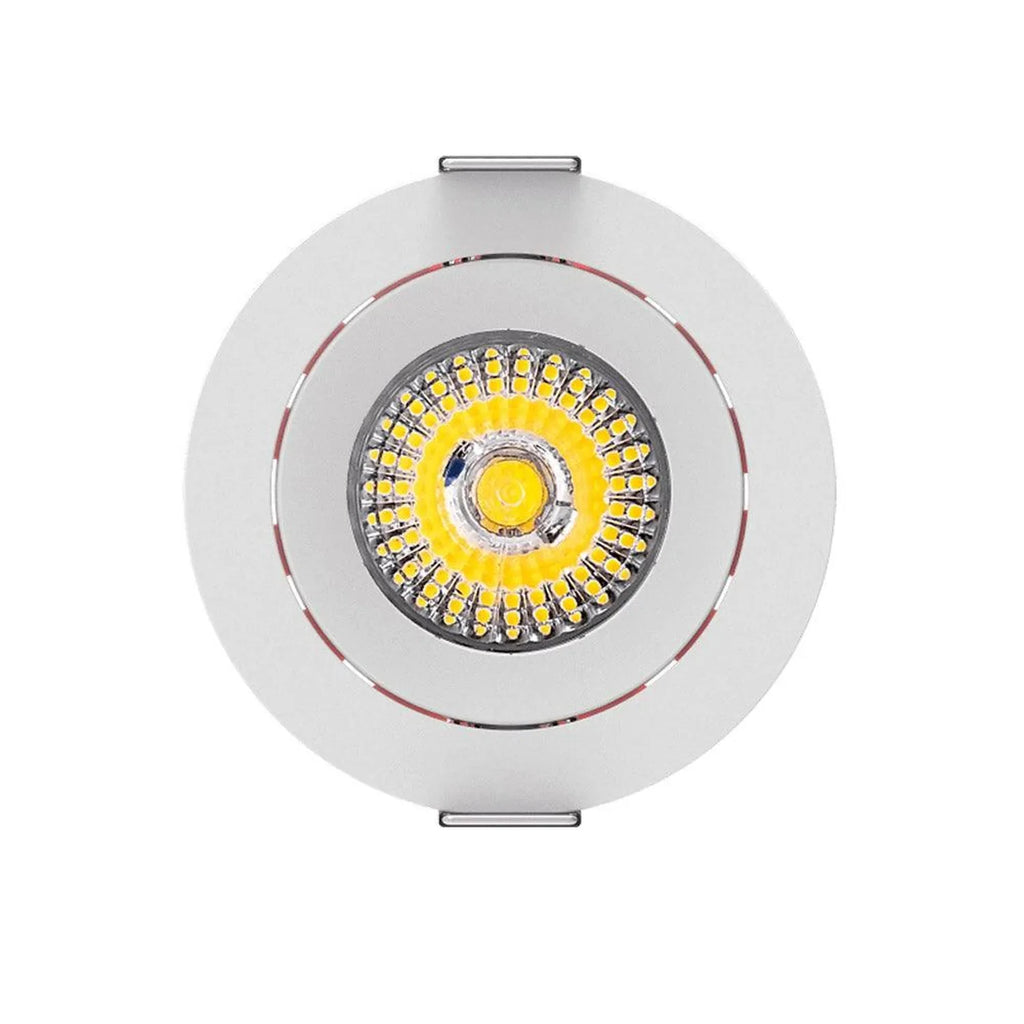

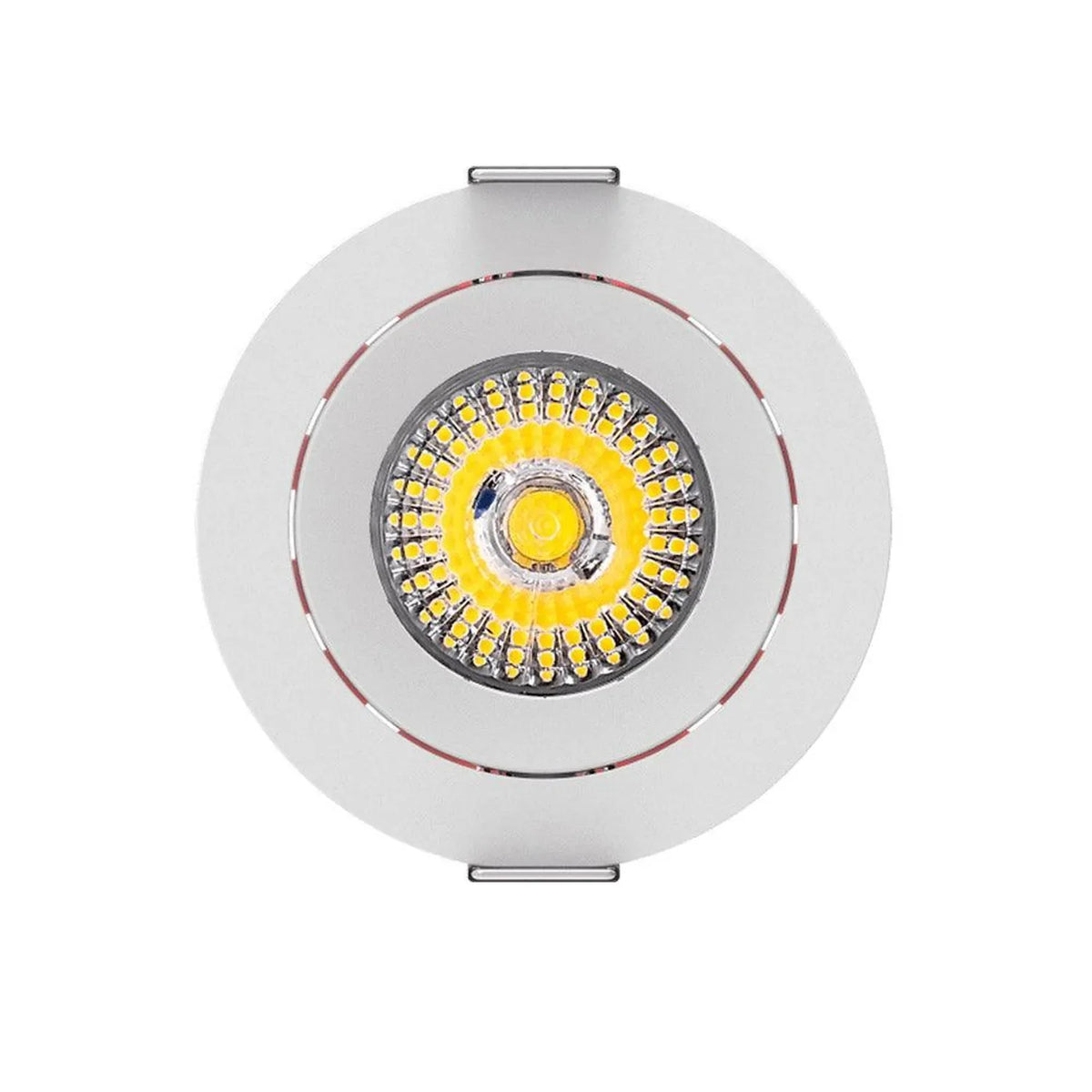

• Die-cast aluminium heatsink paired with a PMMA lens for light distribution.
• Potted driver built into the fitting.

Applications

This downlight replaces older GU10 halogen fittings and works as a ceiling recessed or wall recessed light. It suits kitchens, bedrooms, bathrooms, dining areas and hospitality spaces such as shops, hotels and restaurants. Add a compatible dimmer switch to vary the light output, or use the DIP switches to change the colour temperature without extra wiring.

Installation

Designed for plasterboard and other standard ceiling types, it installs with minimal hassle thanks to its slim 48mm profile and the 5 to 25mm ceiling thickness range it accepts.

Certification

Carries CE, ERP and RoHS certification. Finished in white and intended for ceiling recessed or wall recessed mounting.
