Renewables are a big part of the future, Electric Vehicle’s (EV) go hand in hand with this philosophy which is why we’ve created a system for those that are going off grid that also have an electric vehicle. This system is designed to charge one electric vehicle over night and a second electric vehicle can be charged during the day. This is a powerful off grid system that can run a regular to large household including (not all at once) TV, gaming consoles, LED lights, microwave, kettle, toaster, water pump, washing machine, dishwasher, fans, reverse cycle air conditioner and other smaller drawing items.
Schneider is one of the longest standing electrical companies in the world, 183 years of experience is hard to go past. Also by far the biggest off grid manufacturer in the world. One of my favourite points about Schneider is that they invest 5% of revenue back into research and development which is no surprise when you’ve used their products they are so well thought out, functional, future proofed and most importantly reliable.

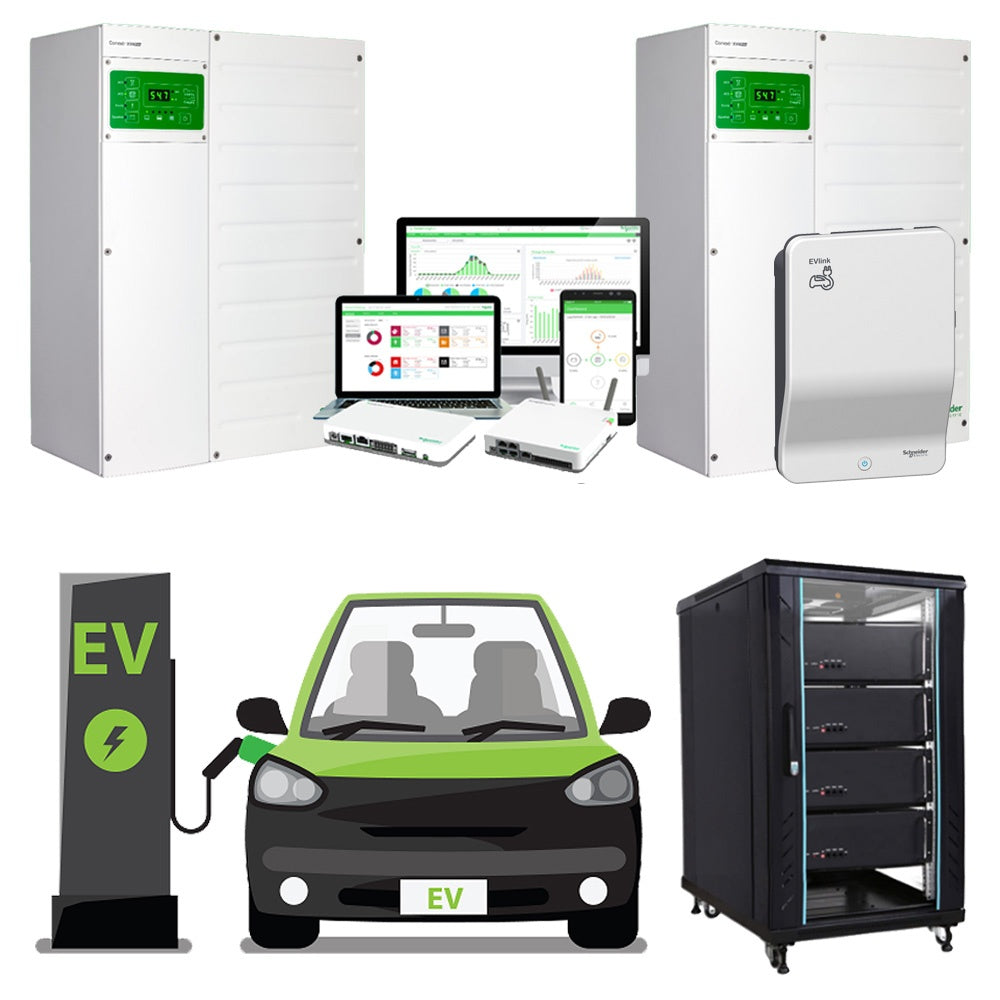

Package includes:
- Schneider Conext XW Pro 8.5 kW 48v Inverter Chargers x 2
- 42.6kWh Pylontech 48v Lithium Battery Bank (12 x 3.55kWh battery modules = usable storage of 25.4kWh)
- 5 Battery Cabinets x 3
- Schneider Conext MPPT 600v/100 Amp Charge Controller DC coupled
- Fronius 8.2kW Solar Inverter AC coupled
- Insight Home Monitoring (physical screen and check on your phone app)
- 16.38 Solar Array – 42x 390W JA Mono Solar Panels
- Solar Panel racking to suit Tin roof (Tile roof & Tilt frame options available)
- Cables, fuses, isolators, etc to suit the system including string fuses.
- 20m cable runs to the solar array and 2m cable distance to the battery bank as standard
- Safety Sticker Kit
- Connection guides

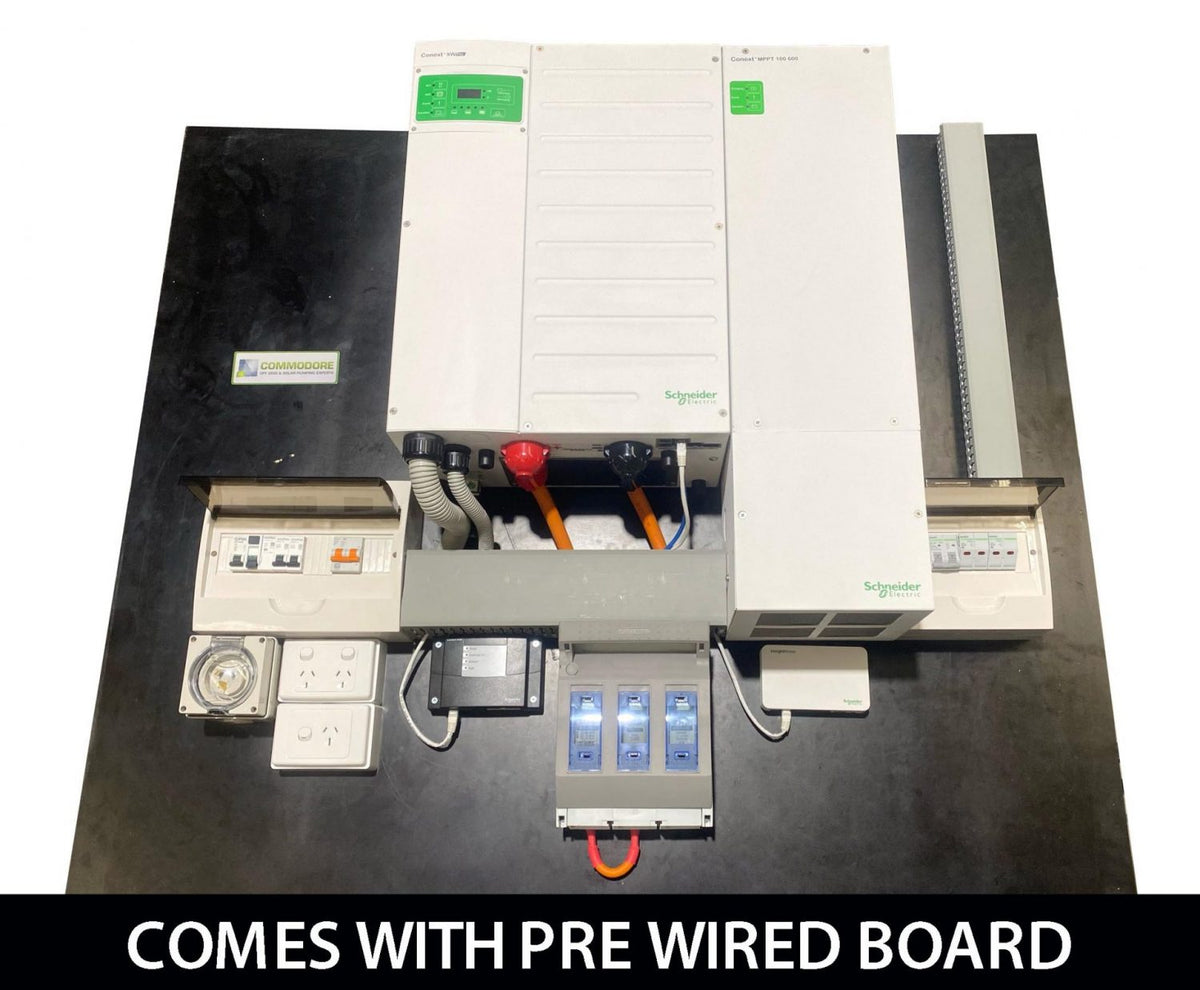

- Pre-wired and configured system board – see photos (this makes a much faster and simpler install on-site)
- *** For a limited time we are including a Schneider EV charger (EVlink Wallbox 7.4kW T2 Socket outlet with shutter charging station) worth $1800
JA Solar. For a long time JA Solar have been one of the biggest names in the solar industry, there panels have truly passed the test of time and they continue to offer some of the highest efficiency panels on the market. This listing features the 330W modules, which have a 12 year workmanship warranty, and 25 year output warranty.
Pylontech Lithium LiFePO4 batteries
Welcome to the future of a fully modular, expandable, off-grid & energy storage battery bank. Grow your battery bank as your needs demand, and also benefit from the following improvements:
- More usable energy up to 96% can be used without adversely compromising battery life
- More Charge / Recharge cycles 6000 or more cycles, depending on depth of discharge
- Better constant high current Charge / Discharge performance – a 10kWh bank can handle a 10kW load, and a surge of 20kW
- Greater charge efficiency up to 97% ! this means far less energy wasted during charging and more power available to you in less time
- More energy stored in less space
- Internal intelligent management means each battery module can operate to its potential, rather than performing only as well as the weakest battery
Based on the rated performance and upfront cost, the Pylontech Lithium batteries deliver an exceptional cost of ownership. The rated 6000 cycles to 80% dictates a max of around 16 cents per kWh, and typical real word usage scenarios can far exceed the guaranteed minimum.
Schneider XW Inverter
Designed for the ultimate backup power performance and product quality, the XW Pro builds on Schneider Electric’s extensive track record in solar + storage applications. The XW Pro includes enhanced controls for evolving utility interconnect requirements, as well as BMS integration with compatible Li-ion batteries. 6.8kW continuous power, 8.5kW of power for 30 minutes, 12kW of power for 60 seconds.
Schneider Conext 600/100 Charge Controller
Installers love the 600v open circuit voltage charge controller meaning that you can string more panels together and hence save a lot of time on wiring up whilst up on the roof. Suitable for 48v and 24v systems, pairs perfectly with the XW Pro inverter.
System Performance
Solar array performance varies with location, the annual daily average in Australia is between 4 to 5 hours equivalent of full power from the array per day, with more in summer and less in winter. A large solar PV array design principle reduces the amount of time the batteries will be low on charge, which maximises their life expectancy & provides you with far more reliable power.
Average daily input figures for the 17.16kW solar array:
Typical worst month ~ 48kWh per day | Typical best month ~ 100kWh per day
Warranty Information
- All Schneider components have a 5 year full warranty (2 + 3 warranty)
- Pylontech lithium batteries have a 10 year warranty (Note they do need to be registered online for full 10 year warranty when installed)
- Solar Panels feature a 25 year output warranty to 80 percent rated power, 12 year manufacturers warranty
- All other items come with a minimum 12 month warranty.
