The Euchips EUP30A-1HMC-1 is a constant current LED driver built for indoor lighting where smooth 1-10V dimming and steady output matter. Output current is adjustable from 550mA to 700mA using a DIP switch, so one driver can suit a range of fittings and project needs.

Key features of this 1-10v led driver

• Output current, adjustable 550mA to 700mA via DIP switch
• Dimming compatibility, works with 1-10V active signal, PWM signal, or adjustable resistance
• Dimming performance, linear, fully proportional, and free of flicker even at 10% dimming steps
• Input voltage, 220V to 240V AC
• Efficiency, up to 87%
• Power factor correction, built-in active PFC

When no dimming signal is present, the driver runs at 100% output, so it also works as a standard constant current supply where dimming is not needed.

Protection and operating conditions

Built-in protection covers short circuit, overload, and over temperature. The driver runs without power derating at ambient temperatures up to 45°C, which suits enclosed fittings and warmer installation spaces.

Applications

This LED driver is intended for indoor lighting installations. Typical uses include downlights, LED panel lights, LED T8 tubes, and LED T5 tubes. It fits both new installations and upgrade projects where dimming compatibility and stable output are the priority.

Model reference

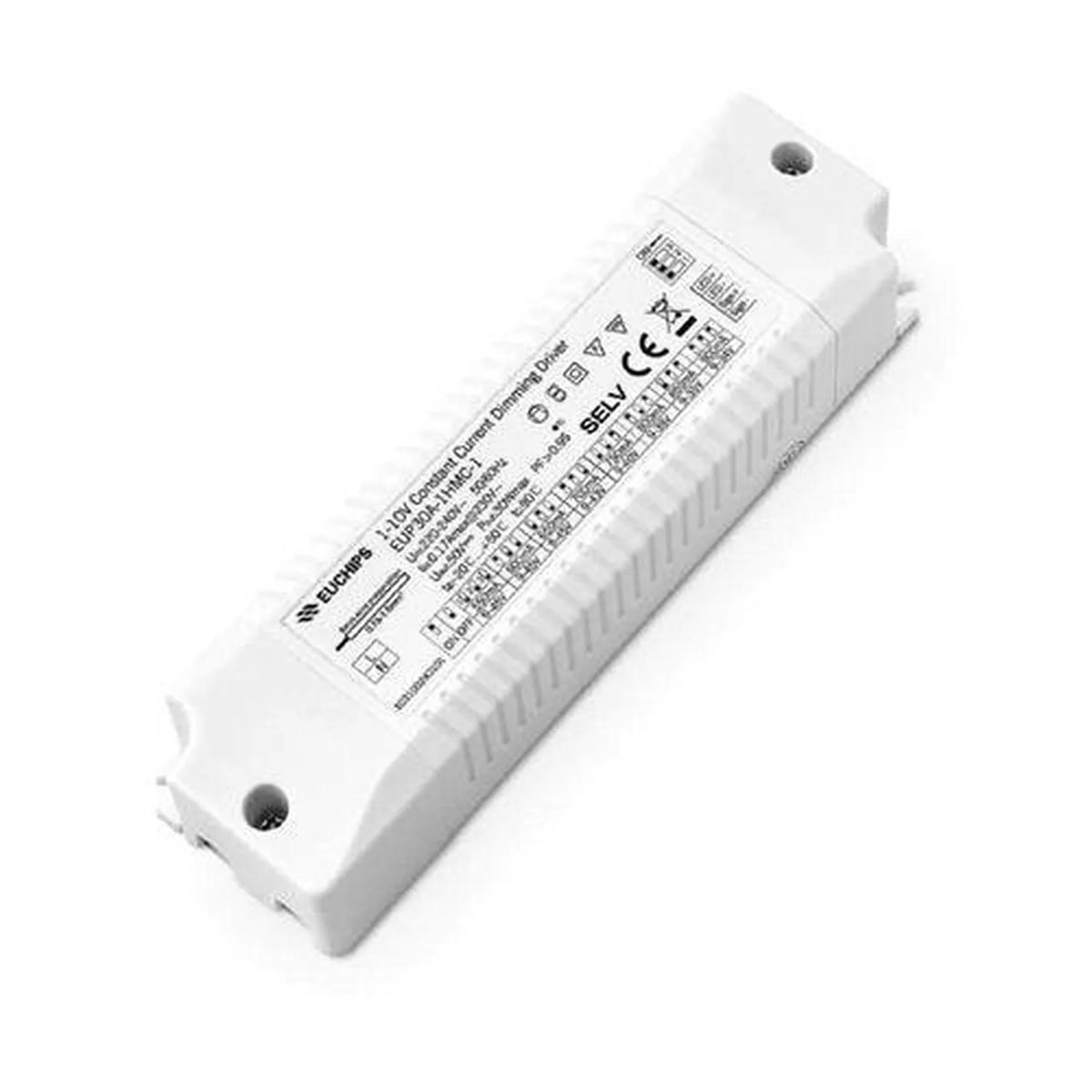

Model EUP30A-1HMC-1, a constant current driver from Euchips.
