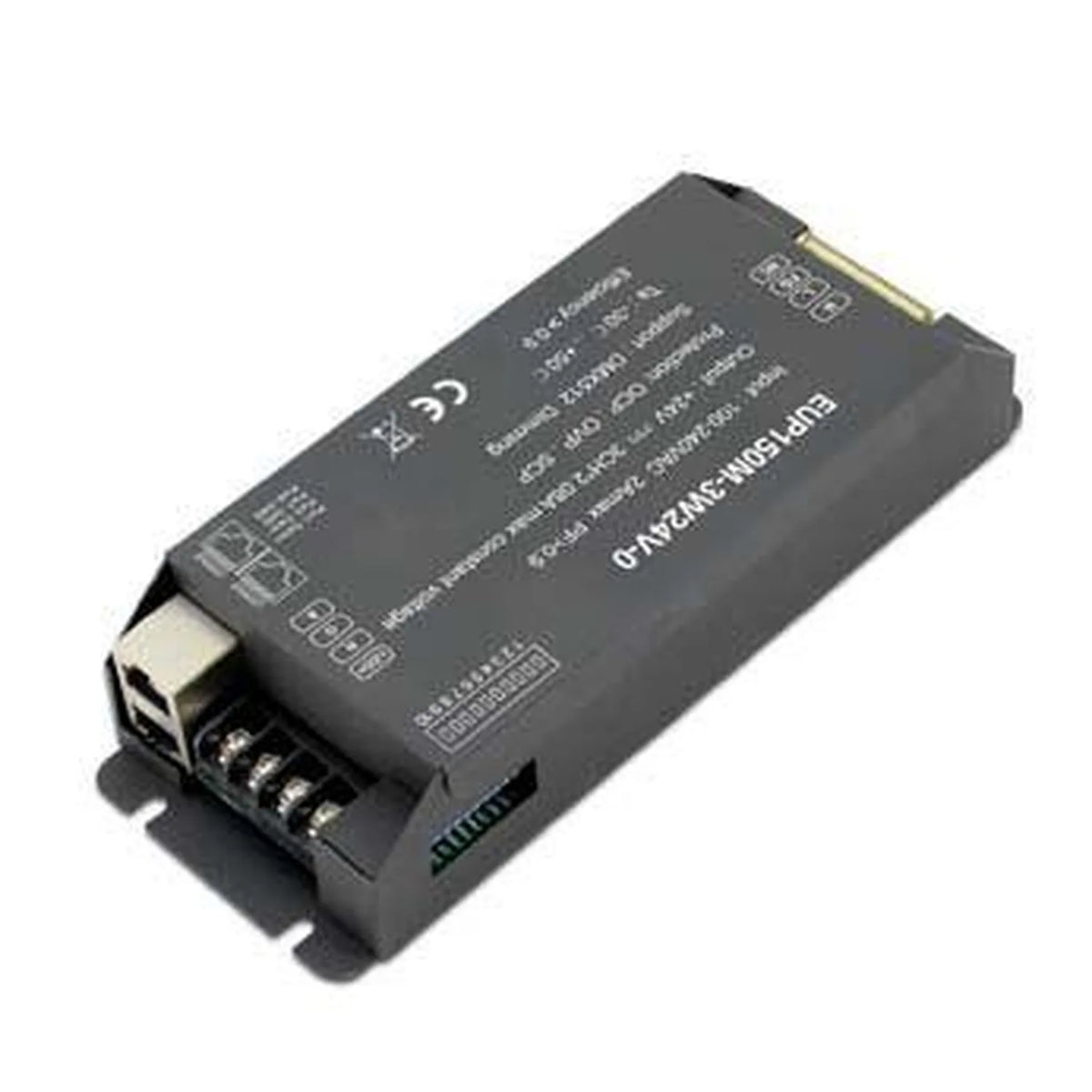

The EUP150M-3W24V-0 is a 150W constant voltage LED driver from Euchips, built for DMX512/RDM controlled lighting projects. Output current is set via a DIP switch, and the driver responds to DMX512/RDM signals for smooth, flicker-free dimming down to 1%.

Euchips LED driver features

• Output, three channels constant voltage, 24VDC
• Control protocol, supports DMX512/RDM
• Dimming range, 0-100%, with LEDs able to start as low as 1%
• Input voltage, wide range 100-240VAC
• Efficiency, up to 90%
• Power factor, greater than 0.95 at 115VAC
• Protection, output short circuit, over current and over voltage protection built in

Applications

This driver suits LED lighting installations that need DMX-controlled dimming across three channels, such as architectural or feature lighting runs using LED strip or LED modules. Its wide input voltage range means it can be used across different mains supplies without needing a separate step, and it is a suitable match for LED strip, LED controllers and other 24VDC LED products in a single project.

Dimming performance

The DMX512/RDM interface allows smooth adjustment with no visible flicker, giving installers control over brightness levels without the stepping or flicker sometimes seen with lower quality drivers.

For trade and bulk orders

The EUP150M-3W24V-0 is well suited to bigger LED lighting projects, and Euchips also supports customised items across LED strip, LED controllers, LED power supplies and related products.
