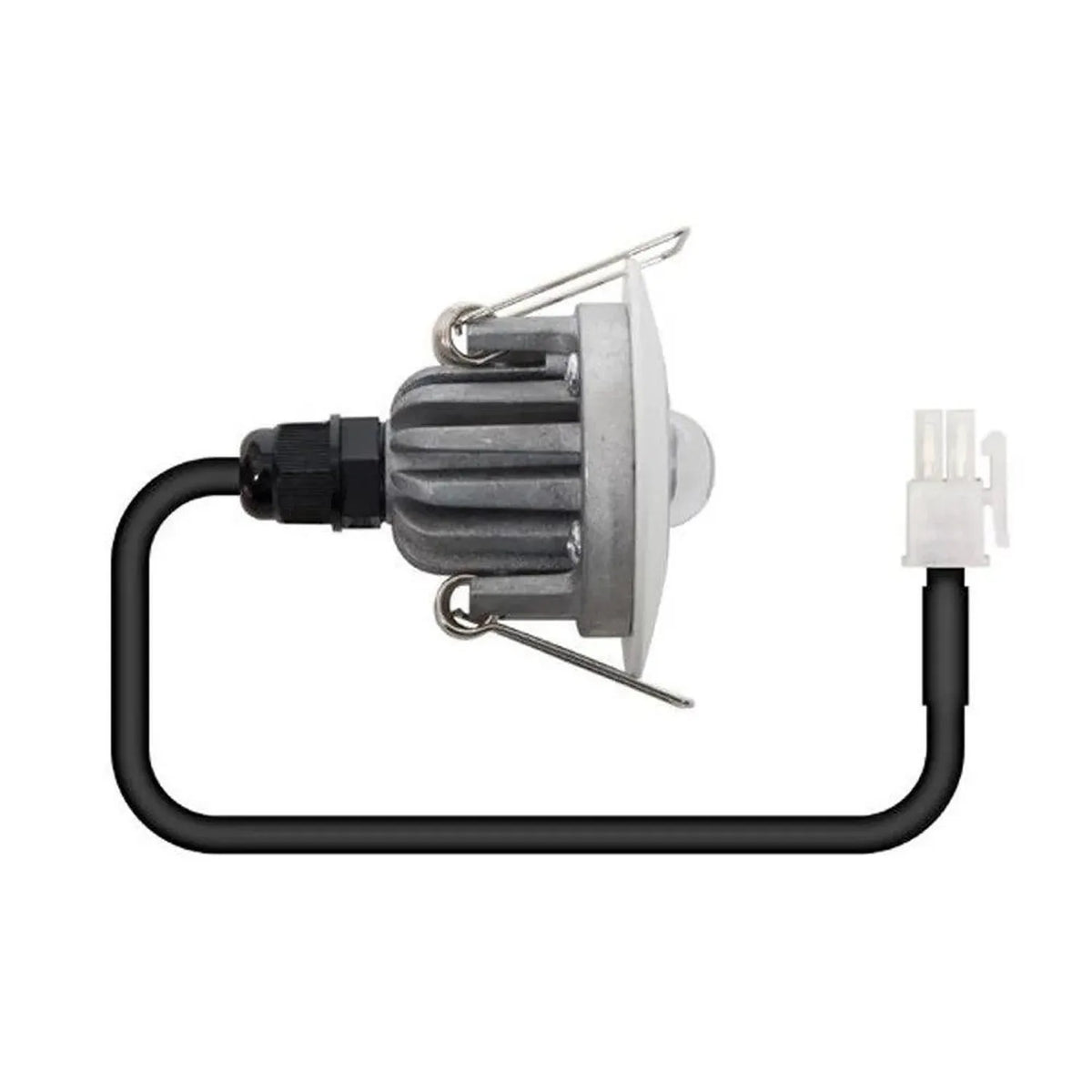

The S-HLP/1/43/FL is a non-maintained emergency recessed spot light with an illuminated dual-colour halo effect, built for ceiling recess installations through a 43mm aperture. It delivers 186 lumens at its 550mA output and runs for 3 hours on emergency power once mains supply fails.

Key features of this emergency spot light

• Rated power, 3 Watt
• Battery, 3.2V 3.6Ah LiFePO4 pack in a moulded housing
• LED emitter, Samsung LH315B with flood lens to illuminate points of emphasis
• Colour temperature, 6500K
• Beam angle, 110°
• Bezel finish, white to RAL9016

Applications

Designed for ceiling recess applications where a discreet emergency fitting is needed alongside a visible point-of-emphasis indicator. The circular halo signals fitting status, useful in corridors, stairwells and escape routes where staff or occupants need a quick visual check.

Wiring and connection

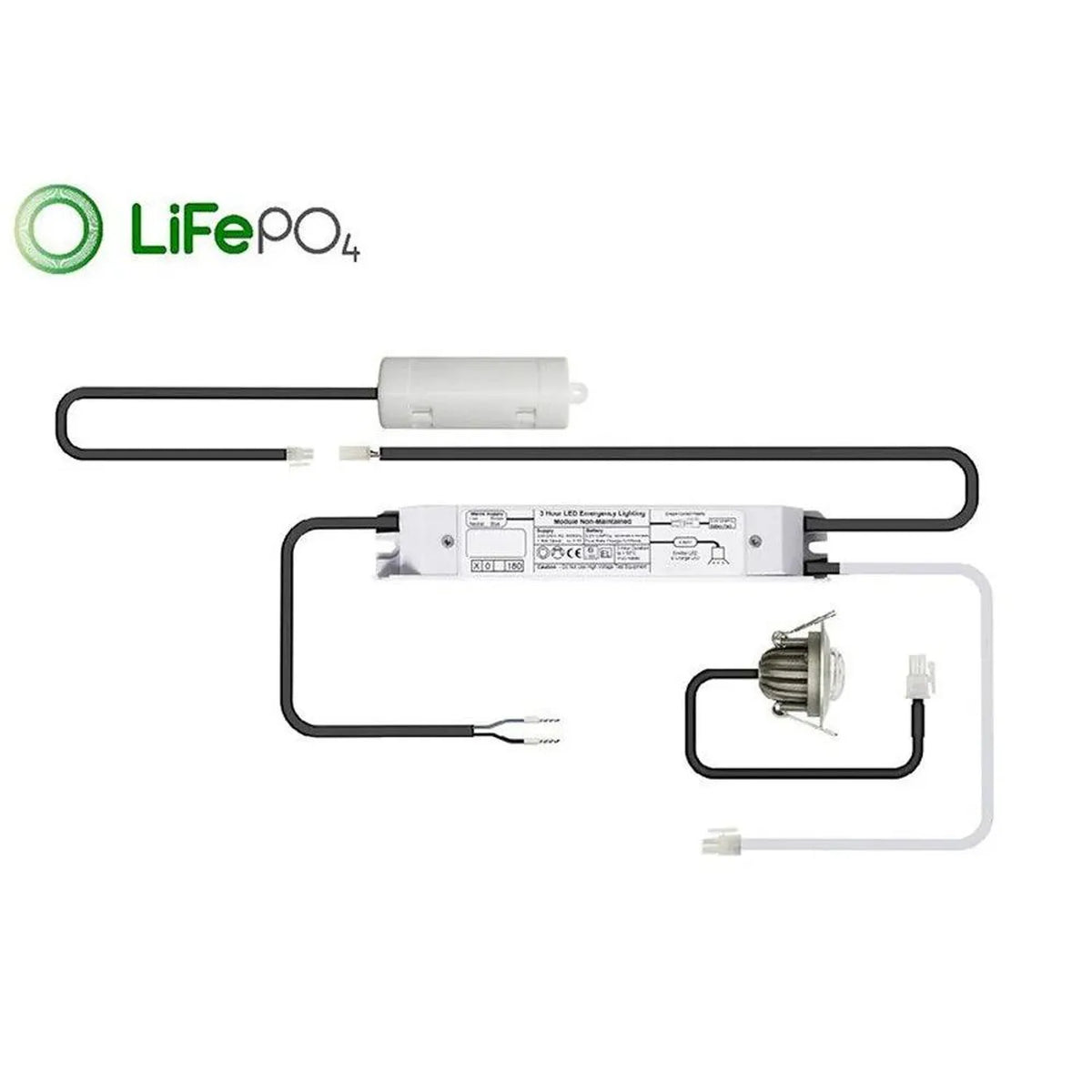

The non-maintained emergency driver is supplied with strain relief cables and interconnecting leads, wired in series connection via the C4201 plug, simplifying installation across multiple fittings on the same circuit.

Output at different currents

Lumen output scales with drive current: 118 delivered lumens at 350mA, 186 delivered lumens at 550mA, and 237 delivered lumens at 700mA, giving installers flexibility depending on driver configuration.
