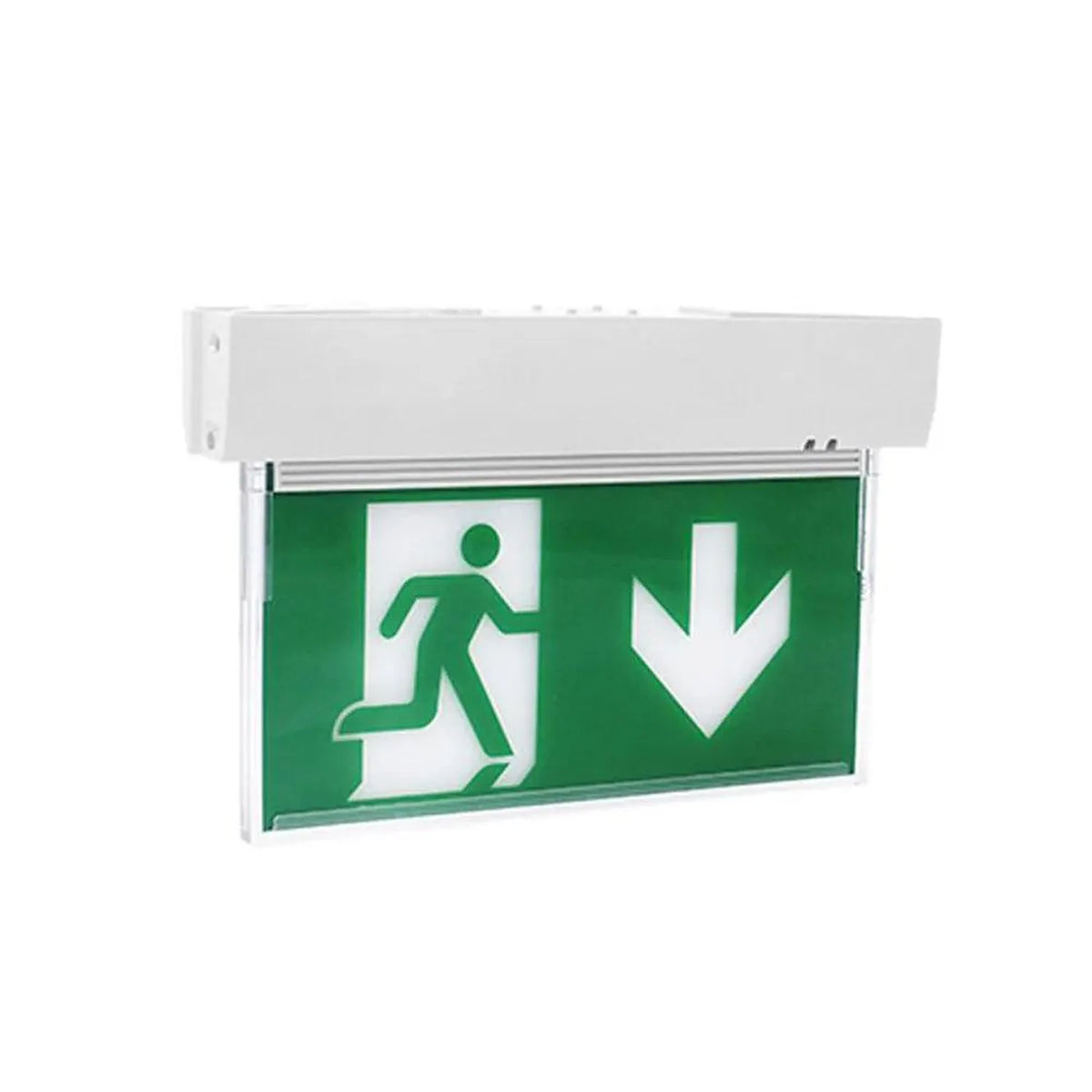

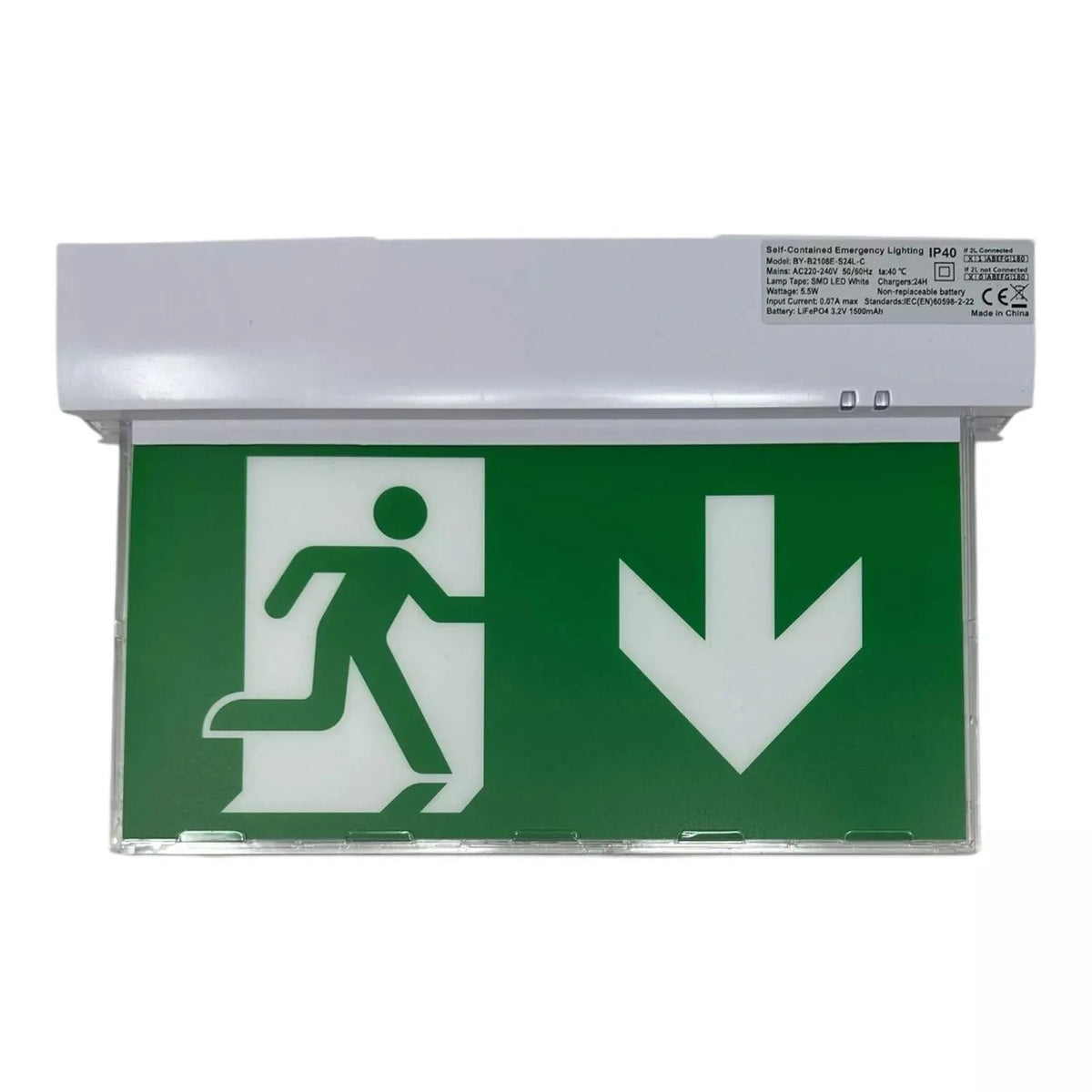

This LED emergency exit sign gives clear directional guidance during a power failure, with a white trim and a polycarbonate arrow down legend. It runs at 6W and is built for roof mounting in indoor spaces where a reliable illuminated fire exit sign is needed.

Key features of this emergency exit sign

• LED power, 5.5W LED for maintained mode operation.
• Battery backup, 3.6V 1.5Ah Ni-CD battery gives up to 3 hours of illumination during a power cut.
• Test button, a test button at the bottom allows quick, easy checks.
• Arrow legend, supplied with an arrow down direction; up, left and right legends are also available.
• Protection rating, IP20, suited to indoor use only.
• Viewing distance, readable up to 30m away.

Construction and fitting

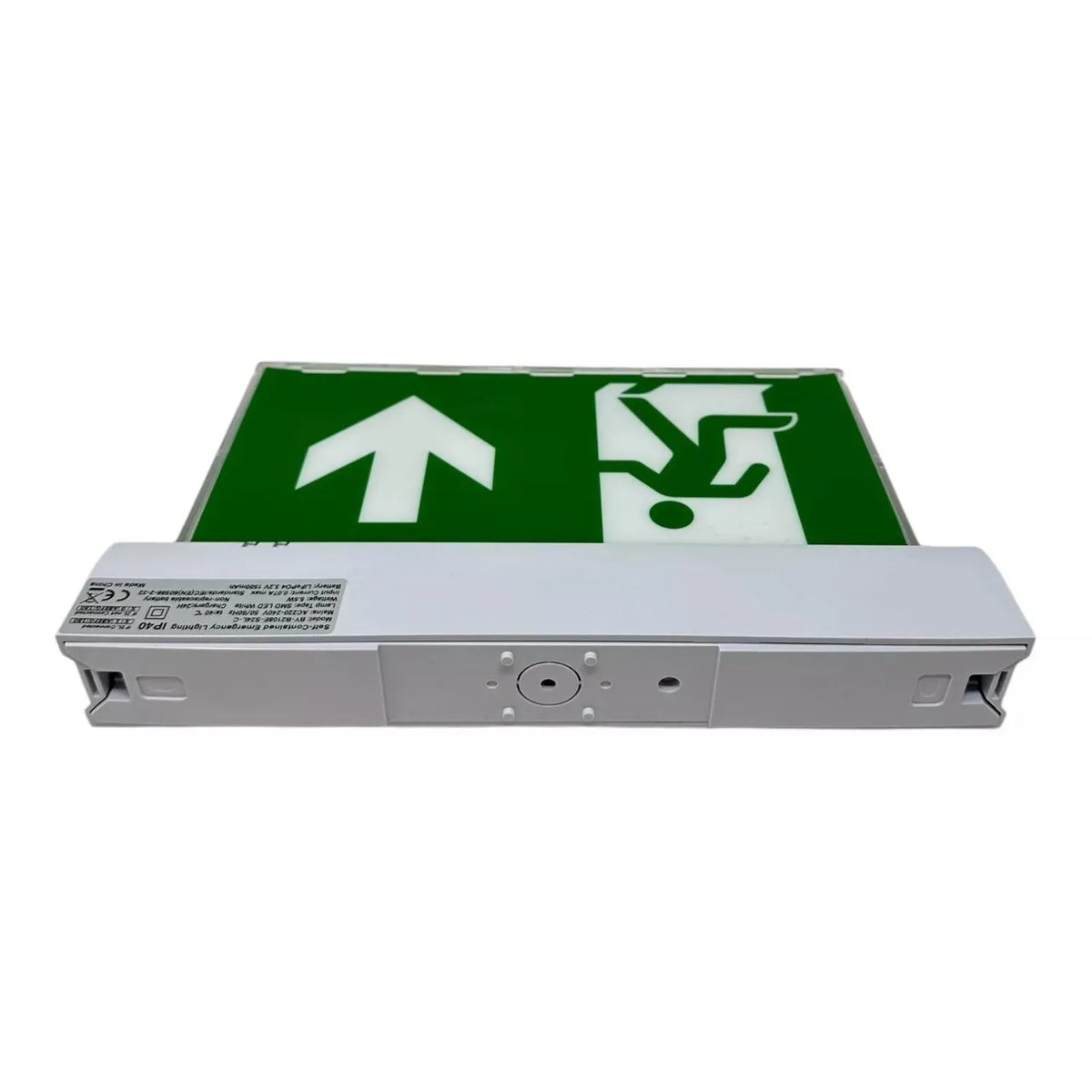

The housing is powder-coated white mild steel, fitted with 20mm cable entries and a BESA box fixing for a secure roof-mounted installation. The legend panel is polycarbonate for durability against knocks.

Optional legends

Additional arrow directions are available if you need a different orientation for your layout. A running man through door design is also offered, ordered with the /v2 suffix.

Applications

Suited to offices, retail units and industrial buildings where an emergency exit led light is required to mark escape routes clearly when the mains supply fails.
