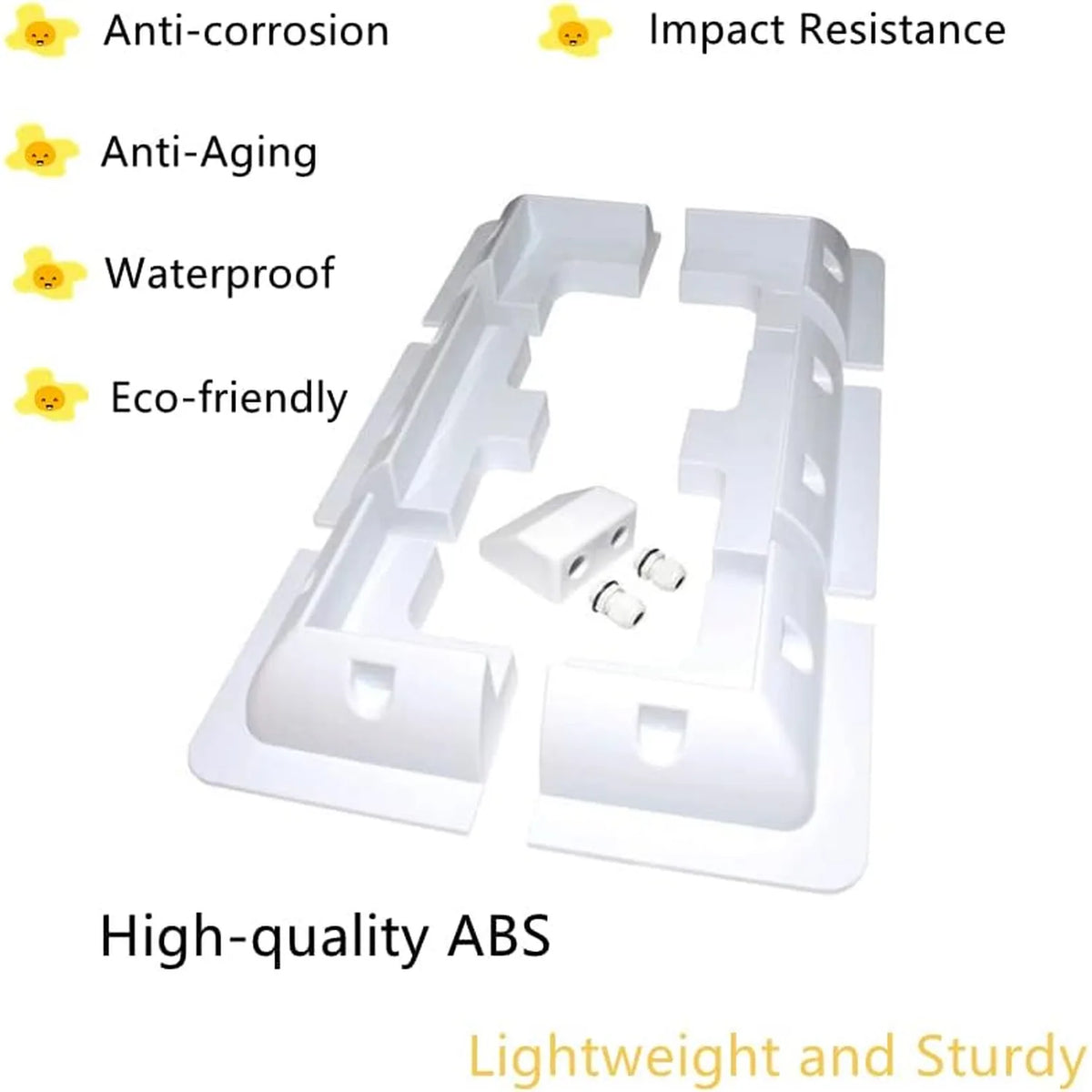

This drill-free mounting kit fixes a solar panel to any flat surface without putting a hole in it. Made from white ABS plastic, the 7-piece set bonds to the roof or surface with structural adhesive, then holds the panel frame in place with self-tapping screws. No penetration of the roof skin, vehicle body or surface is needed.

Key features of this solar panel mounting kit

• No drilling, brackets bond to the surface using structural adhesive (not included)
• 7-piece kit, 4 corner mounting brackets, 2 side spoiler brackets, 1 cable entry gland
• Compatible fit, works with any standard aluminium-framed solar panel
• Pre-drilled brackets, align with standard panel frame fixing holes
• Panel fixing, self-tapping screws (not included) attach brackets to the panel frame
• Airflow gap, raises the panel above the surface
• Bracket size, 15 x 15 x 6.5cm per unit

Applications

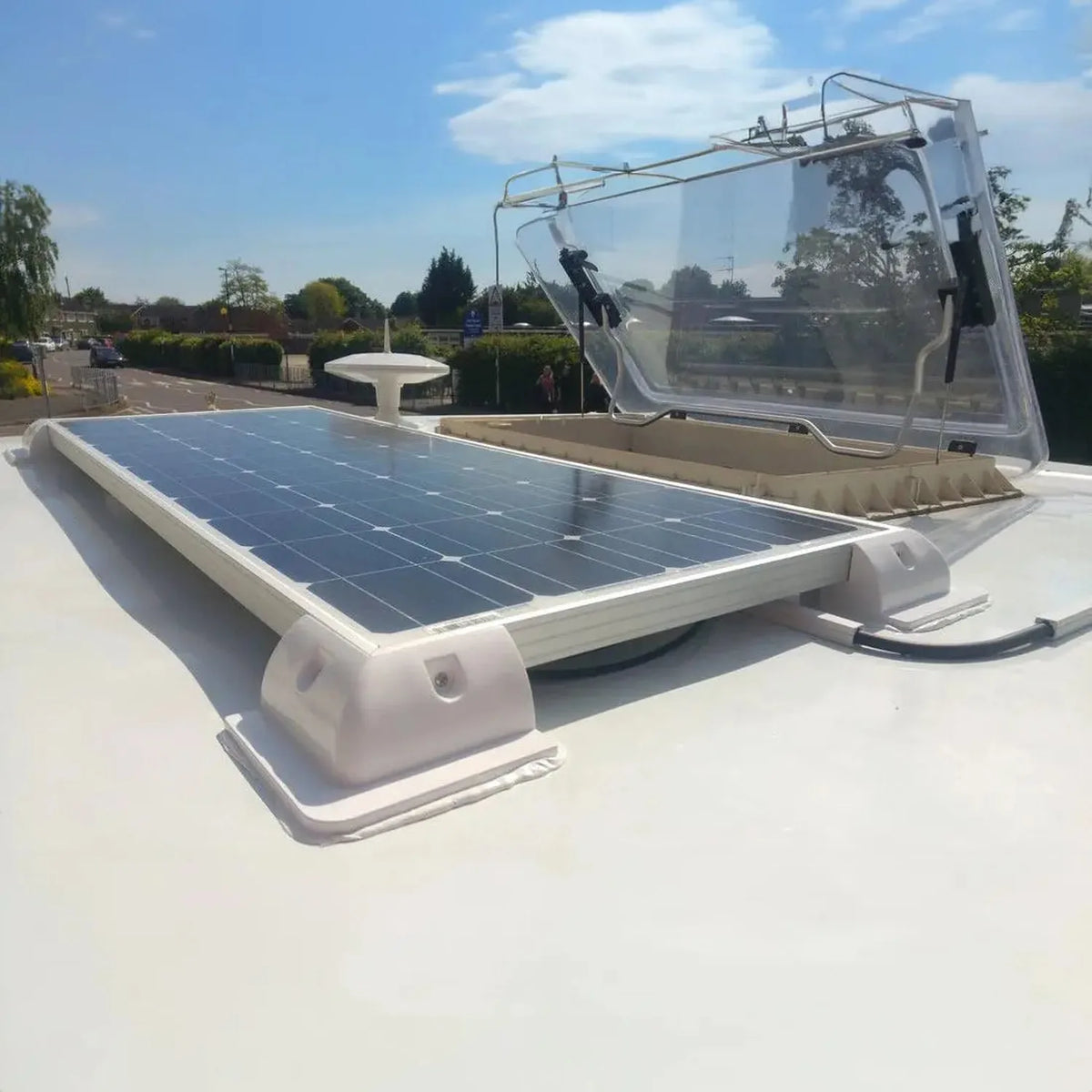

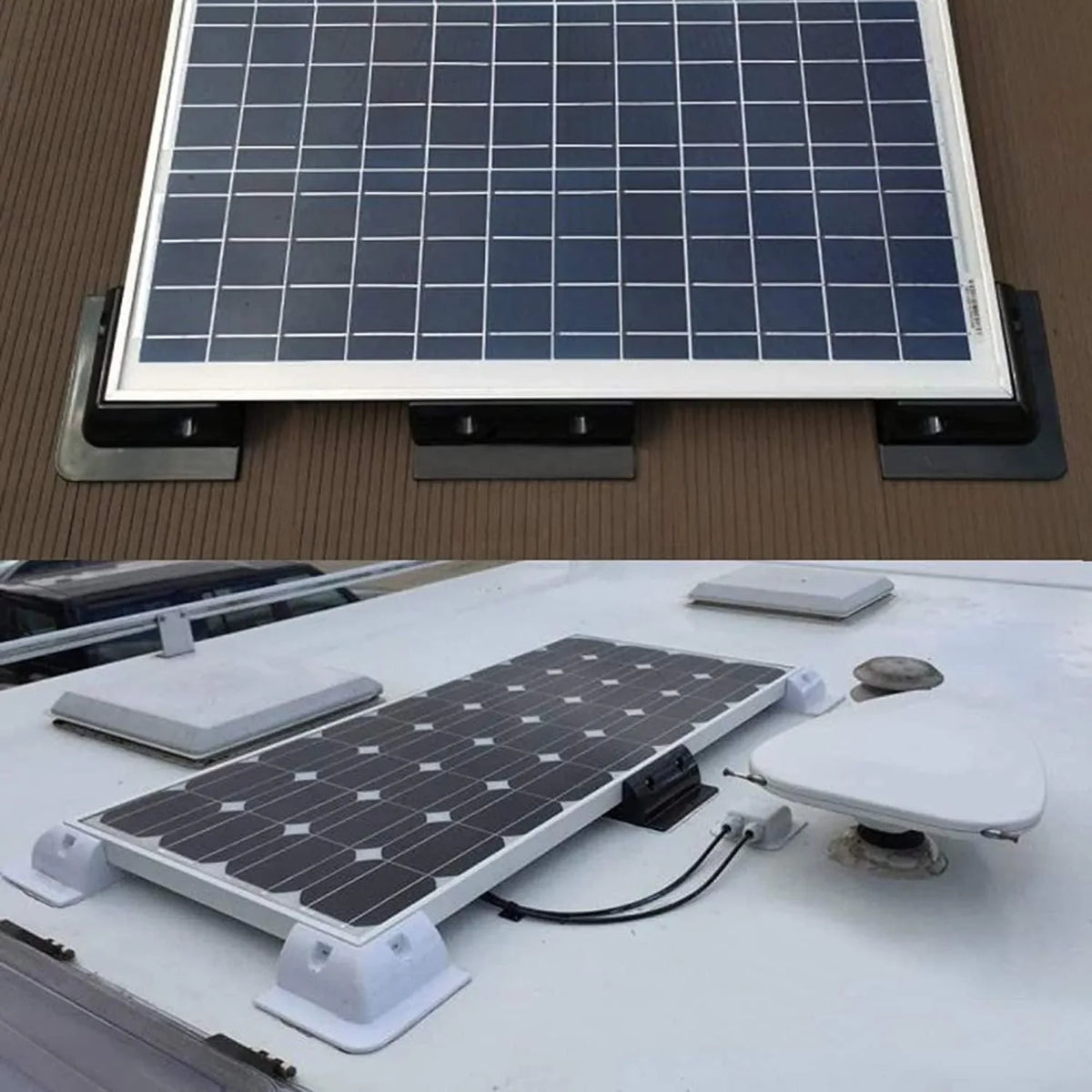

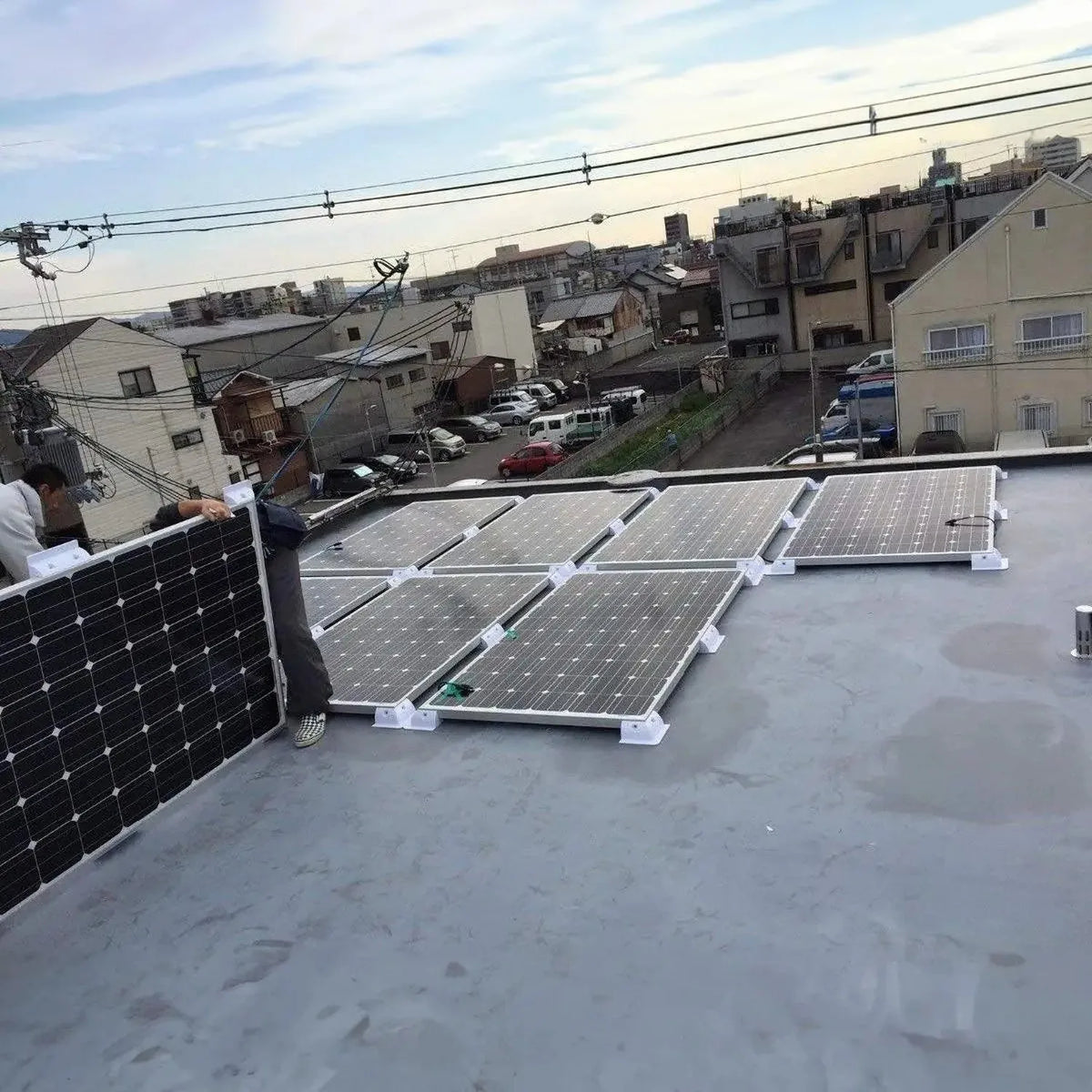

Suited to caravans, motorhomes and campervans, vans, lorries and buses, boats and yachts, and flat roofs on sheds, garages and outbuildings. Useful anywhere drilling into the surface isn't practical or allowed.

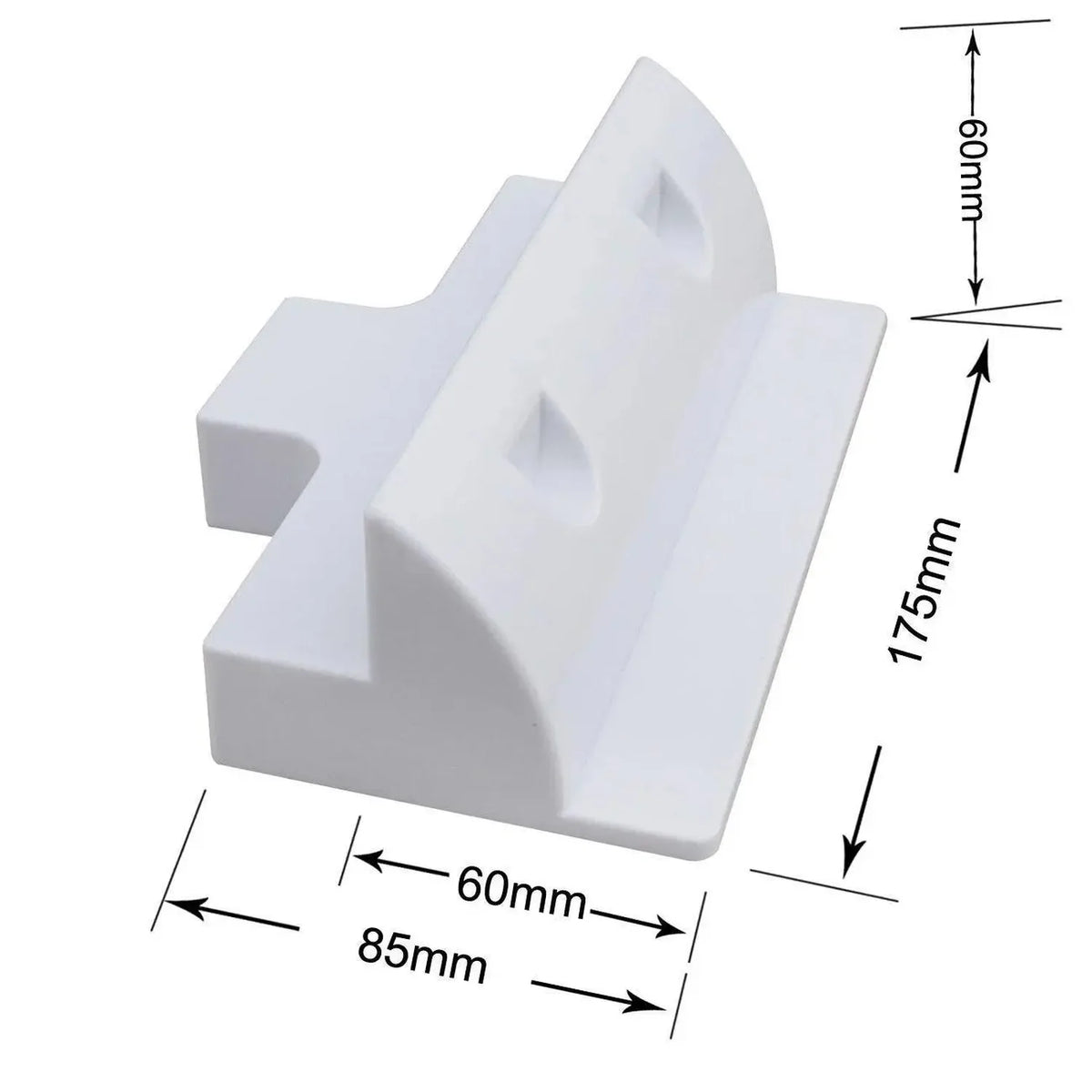

Fitting the side brackets

The two side spoiler brackets add lateral support, which matters more on larger panels and on vehicles that travel at speed. For panels rated 100W or above fitted to high-speed vehicles, an extra pair of side brackets or a six-bracket kit is recommended.

Installation notes

Bond the assembly using a structural sealant rated for the surface, such as Sikaflex 252 or Sikaflex 521 UV, and let it cure fully before exposing it to wind or movement. Screws and adhesive are sold separately. If you're unsure, get advice from a qualified installer or vehicle converter.

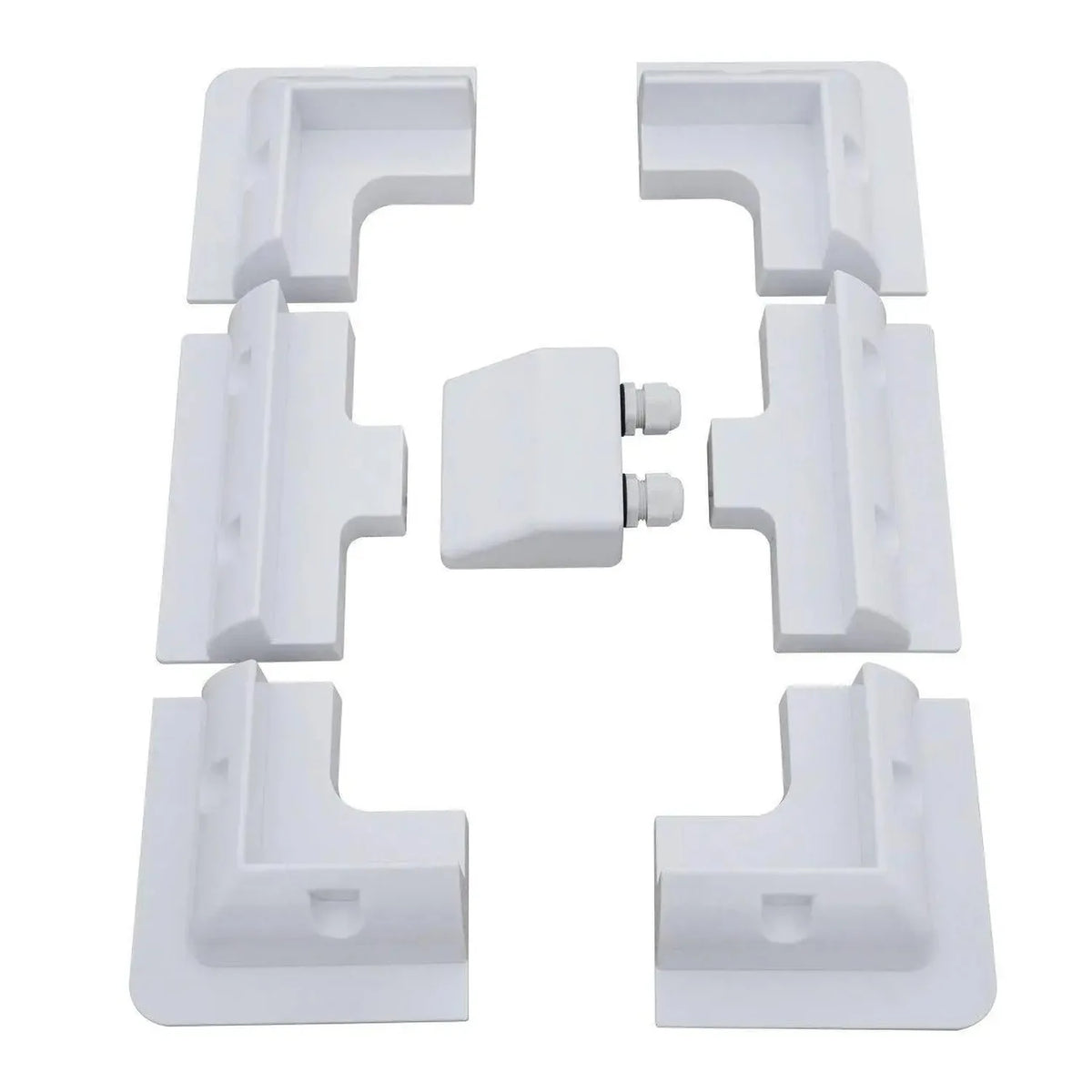

What's in the box

• 4x ABS corner mounting brackets
• 2x ABS side spoiler brackets
• 1x PV cable entry gland
