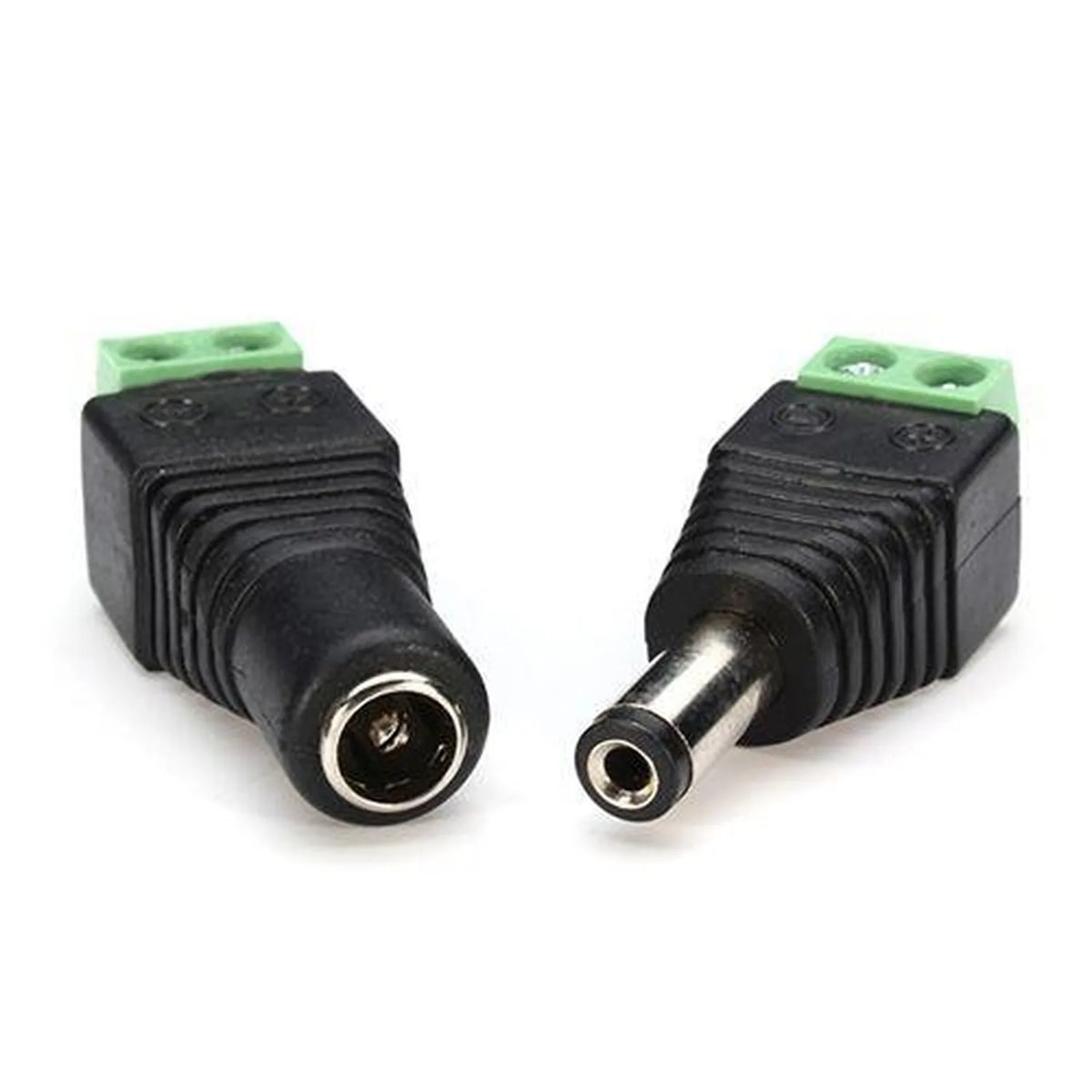

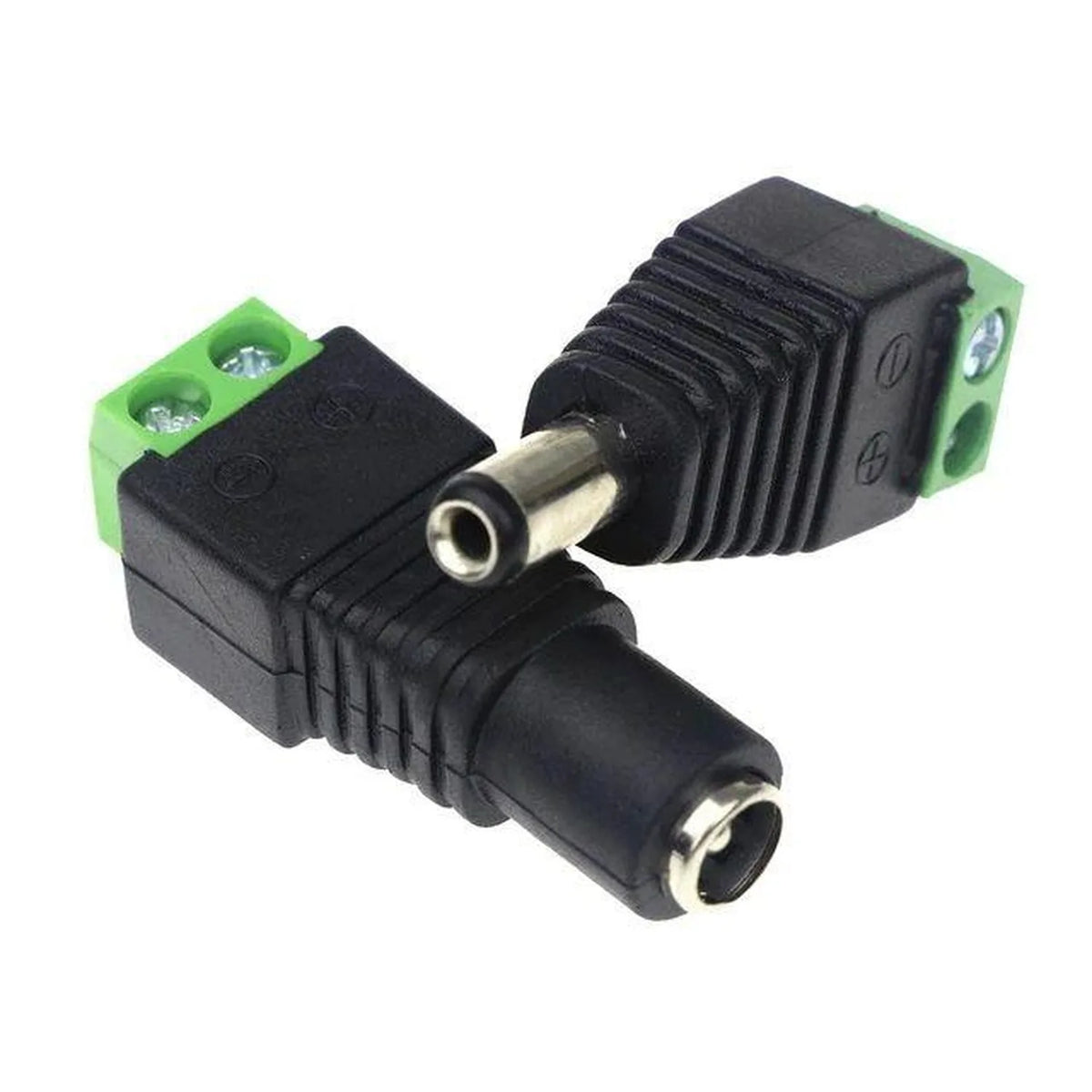

Male and female DC connectors for LED strips with twin-cable output, designed to link a DC power supply to an LED board. Each connector is fitted with small screw terminals for a tool-light fit.

12v dc jack plug with screw-down fitting

• Connector type, male and female DC-tip connectors, 2.1mm
• Fitting method, screw-down terminals, no crimping tool required
• Power range, 12V to 36V DC
• Male connector size, 5.5mm x 2.1mm
• Female connector size, 38 x 13 x 11mm, internal diameter 2.1mm, external diameter 5.5mm, overall size 38.4 x 14.8 x 11.5mm
• Build, high-conductivity metal contacts with a plastic outer housing

Applications

Use this pair to join twin-cable DC power to an existing 2.1mm DC-tip input, whether on an LED strip, a CCTV camera or another common DC-only device. The screw posts let you fit figure-8 cable directly with just a small screwdriver, which suits installers who need a quick connection on site without special tooling.

Compatibility

Works with common 2.1mm DC connector inputs found on CCTV cameras and LED strip power supplies, and with other DC or AC camera setups that use the same tip size.
