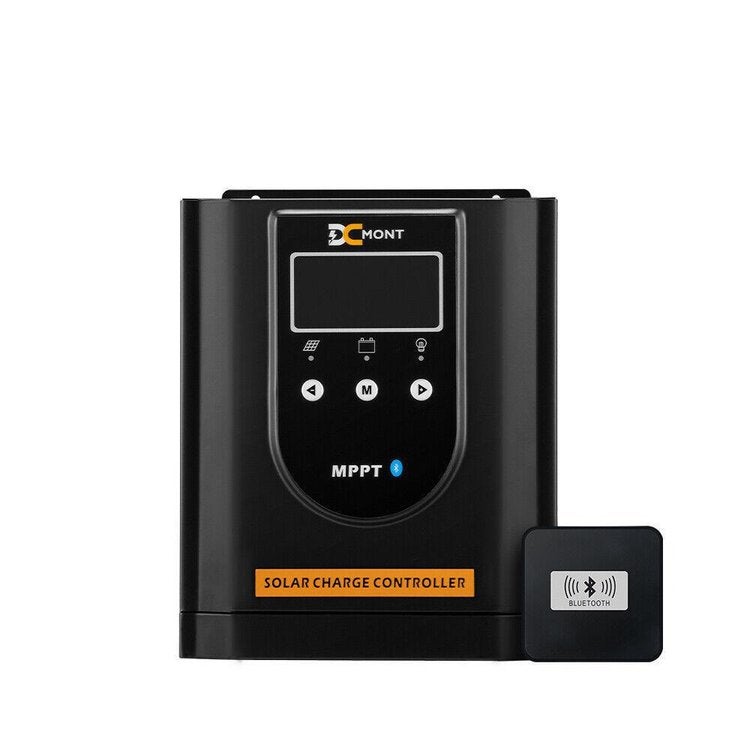

An MPPT solar charge controller enables the panel to operate at the optimum voltage & current for maximum power output and is 30% more efficient than a PWM solar charge controller. This DC MONT 40A Bluetooth MPPT solar controller features a high tracking efficiency of up to 99.5% & peak conversion efficiency of 98%. The solar controller is compatible with various lead acid & lithium-ion batteries. And the solar regulator features 4-stage charging (bulk, absorption, float & equalization) of lead acid batteries and 2-stage charging (bulk & absorption) for lithium batteries & lithium reactivation, thus prolonging the battery’s lifespan. With the backlit LCD display, you can easily view the charge status, progress & discharge of your setup. The Bluetooth module allows you to monitor your system and change parameters from your cell phone. The MPPT solar controller can harvest more power out of your panel especially when the sky is partially clouded and is ideal for camping, boating, RV use, etc.

Features

Innovative MPPT Tech: This 40A MPPT solar charge controller features a high tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%.

Temperature Monitoring & Compensation: The remote temperature sensor measures battery temperature in real time for accurate temperature compensation.

Automatic Voltage Detection: This Bluetooth MPPT solar controller automatically detects 12V / 24V / 36V / 48V DC system voltages.

Highly Compatible: This MPPT solar controller is compatible with lead acid batteries such as flooded, AGM & gel batteries, and lithium-ion batteries.

Multi-Stage Charging: This solar regulator features 4-stage charging of lead acid batteries and 2-stage charging for lithium batteries as well as lithium reactivation.

Full Protection: This MPPT solar regulator can protect against reverse polarity, over-charge/discharge, overload/temperature, short circuits & reverse current.

Diverse Load Control: You can connect DC appliances to load terminals of this DC MONT solar charge controller and set up different load working modes.

Backlit LCD Display: With the TFT colour LCD screen, you can easily view the charge status, progress and discharge of your setup.

Remote Monitoring: The included Bluetooth module allows you to monitor your system and change parameters directly from your cell phone.

Rapid Heat Dissipation: This solar controller features a fan and ventilation openings which ensure excellent heat dissipation for smoother operation. Note: For Bluetooth Connection, set the baud rate to 9.6kbps, see manual for more info.

SPECIFICATIONS

Max Solar Input Power: 12V / 520W, 24V / 1040W, 36V / 1560W, 48V / 2080W

Self-Consumption: ≤35mA @ 12V/24V/36V/48V

Temp Compensation: -4mV/°C/2V

Max Terminal Size: 25mm² / 3AWG

Working Temperature: -20~+55°C

Storage Temperature: -30~+80°C

Humidity Range: 10%~90% No Condensation

Enclosure: IP32

Altitude: < 3000m

Communication: RS485, RJ45 Port

Network Cable Type: Cat5

Certification: FCC Part 15 Class B; CE; RoHS

Package Size: 28.5x25x16cm

Gross Weight: 2.84kg

Package Includes

1 x MPPT Solar Controller

1 x Bluetooth Module

1 x Remote Temperature Sensor

1 x User Manual

Warranty

2 Years Warranty
