DC Circuit Breaker Box
£83.00
Sale price
£83.00
Regular price
£121.00
Shipping calculated at checkout.
RDCCBBMN5PMC2P-US
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
DESCRIPTION
【Centralized Management】 Enables sectional system control.
【Safety Protection】 Built-in DIN rail and mount holes.
【Easy Installation】 Simple setup with DIN rail design.
【Reliable Quality】 Steel box with copper busbars.
【Worry-Free Use】 IP54 rated with 1-year warranty.
The Renogy DC Circuit Breaker Box is an indoor-rated enclosure that offers centralized installation and protection for devices in the residential and commercial solar system. For solar energy systems, we suggest combining two 1P miniature circuit breakers, one 2P molded case circuit breaker, one 2P surge protection device, and one 2P ground fault circuit breaker to provide comprehensive protection and disconnection methods for the system. The built-in DIN rail enables easy installation of the protection devices.
CENTRALIZED MANAGE
Realizing the disconnection of different devices in the solar energy system. Each pair of devices will be equipped with a circuit breaker to realize the system's section management and comprehensive protection.
When the equipment needs maintenance or inspection, the relevant circuit can be disconnected to ensure safety.

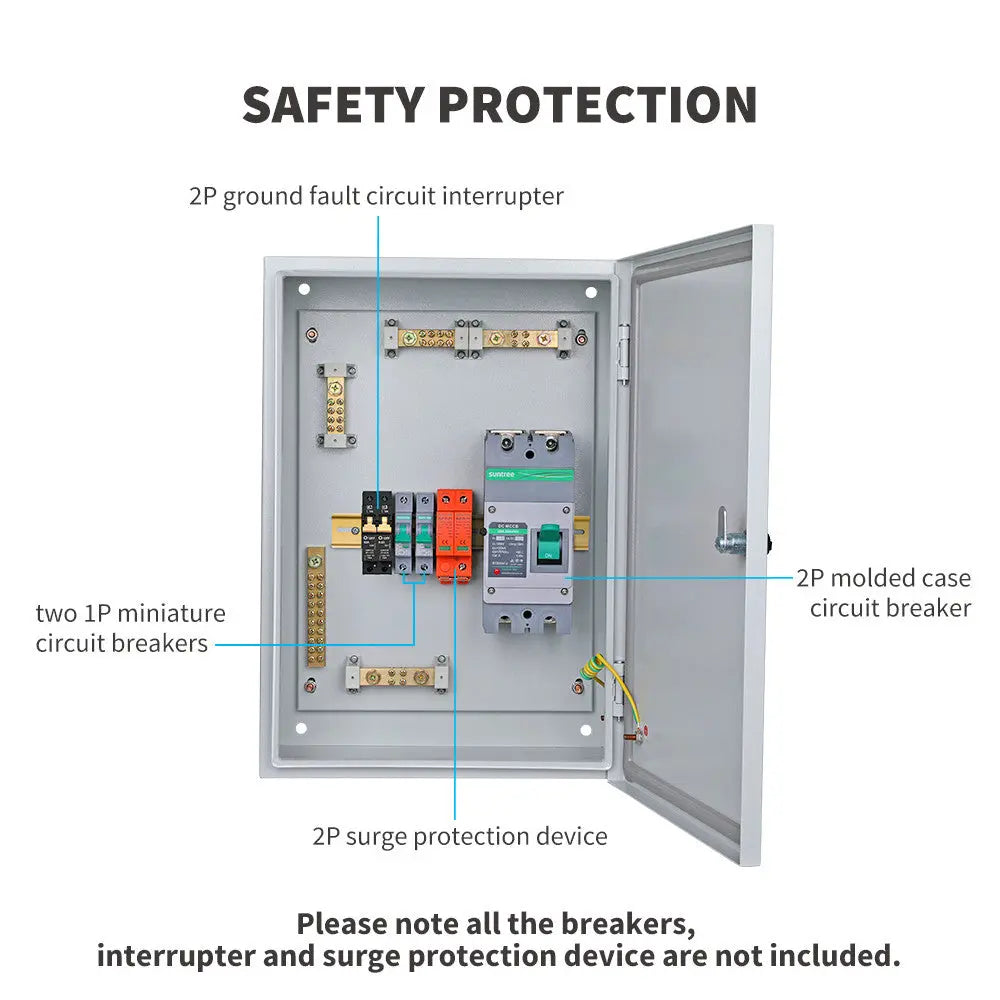

SAFETY PROTECTION
Surge protection devices and ground fault protection devices can be installed to protect equipment from lightning protection and ground faults.

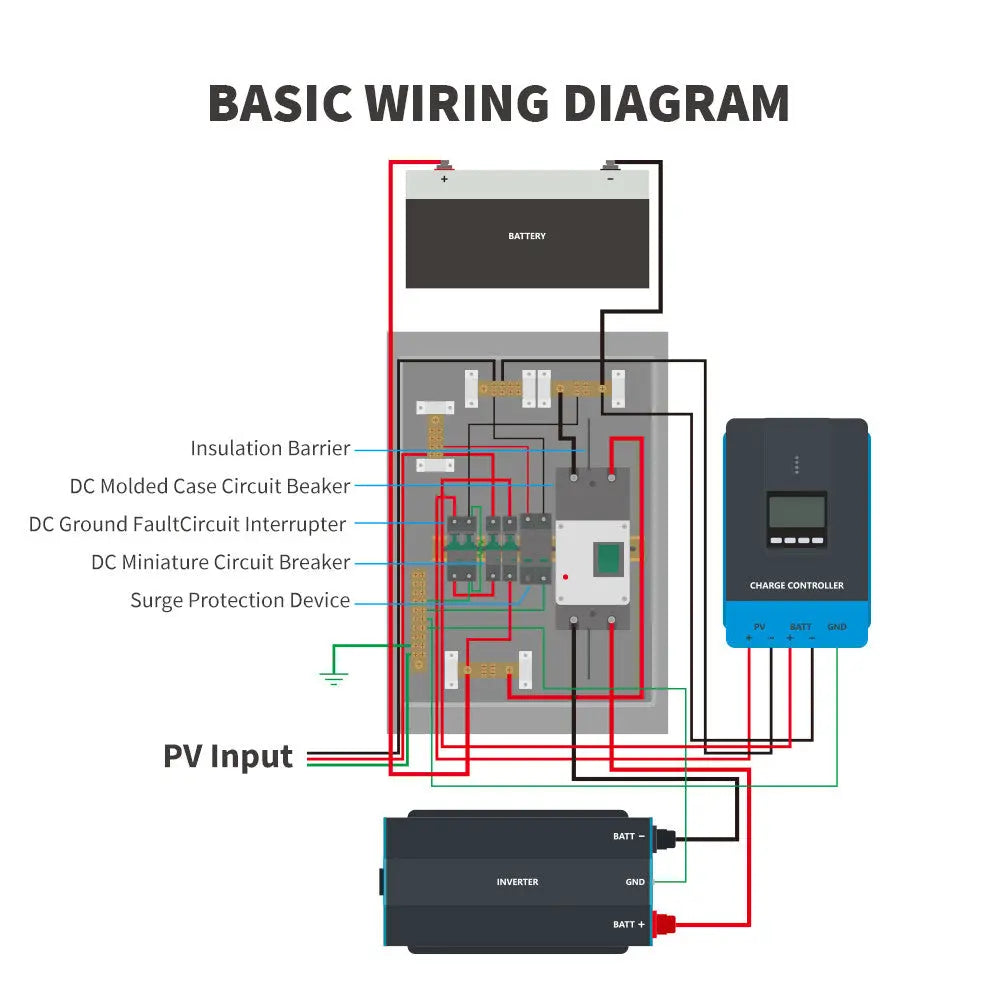

For solar panel system, we suggest the following combination:
two 1P miniature circuit breakers
one 2P molded case circuit breaker
one 2P surge protection device
one 2P ground fault circuit interrupter
Please note all the breakers, interrupter and surge protection device are not included.
RELIABLE QUALITY
The box is made of cold-formed steel which is durable and resistant to corrosion. Built-in Copper Busbars have good electrical conductivity to ensure the stable operation of the system.
Material and workmanship warranty for 1 year.
PRODUCT DISPLAY

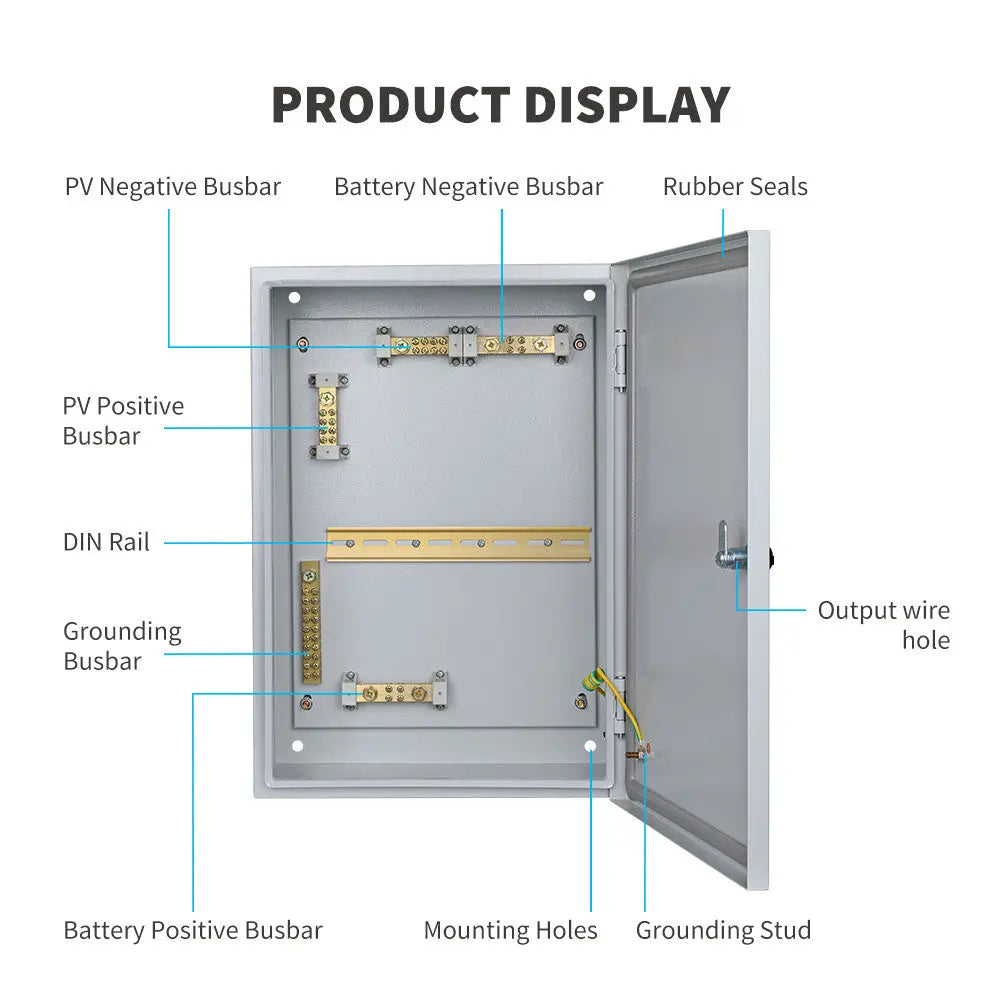

The diagram detailed shows all components of the box, besides these, waterproof strain reliefs or conduits are reserved for installation.
EASY TO USE
The product offers a built-in standard DIN rail for easy installation. Mounting holes are reserved on the back for fixationto make sure the box is firm and stable.
When you lock the door, screw the black ring first and then lock it with the key. When you open it, use the key first, and then twist the black ring.
WHAT'S IN THE BOX
The diagram shows all the accessories of a circuit breaker box.
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK

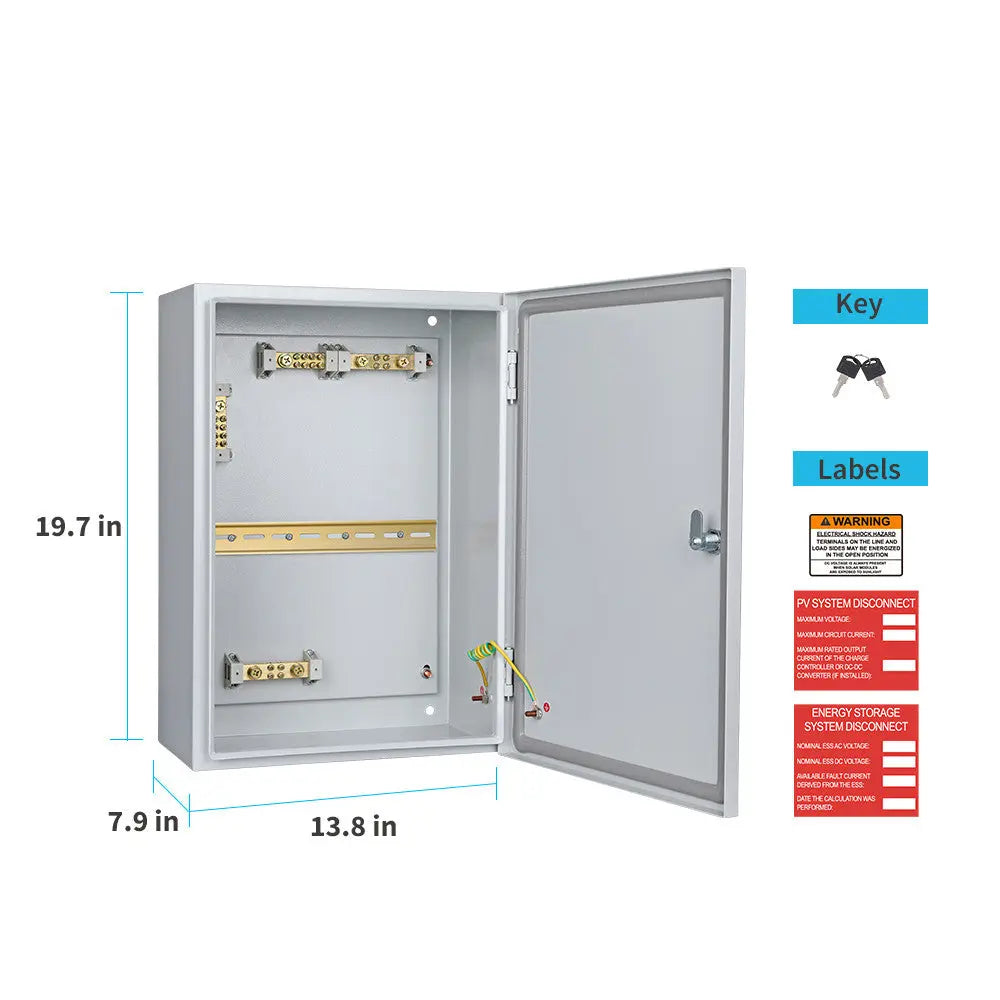

Package Includes
| DC Circuit Breaker Box
1 x
| Key
1 x
| Labels
3 x
|

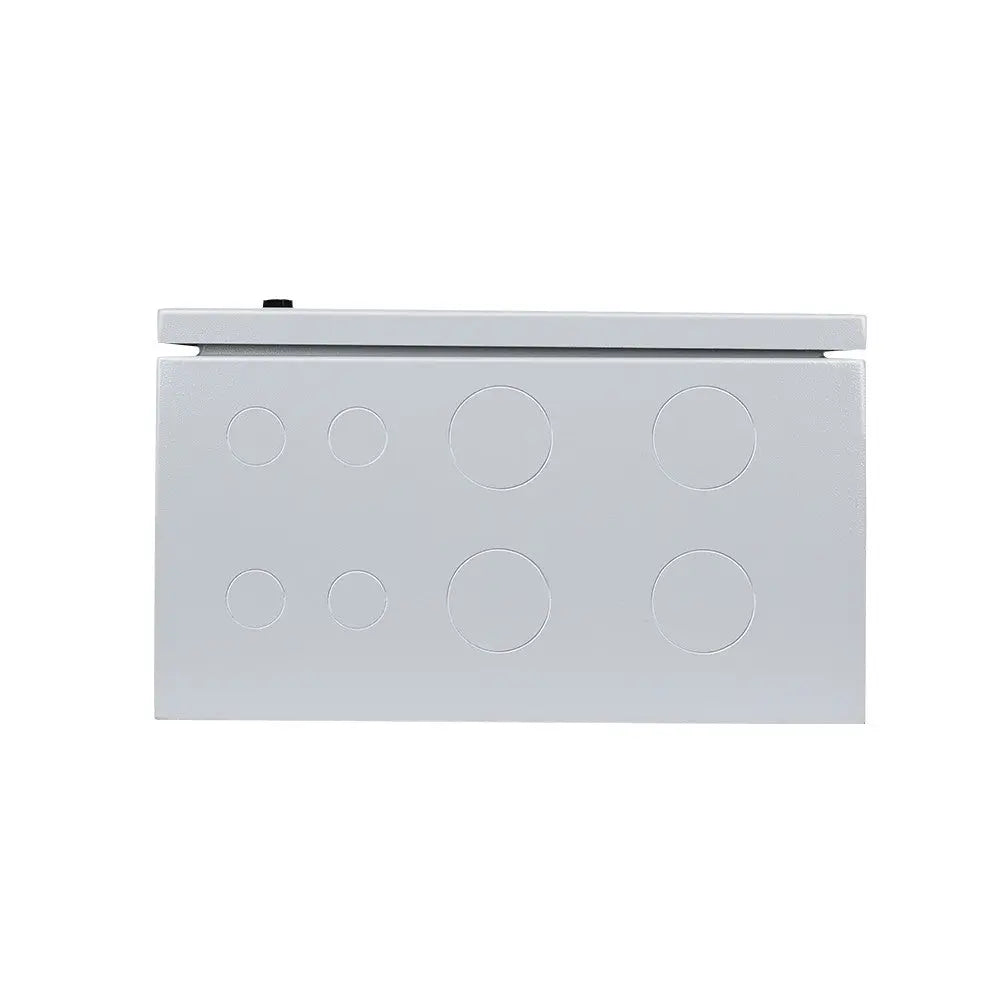

| 160A 2P DC Molded Case Circuit Breaker | |||
|---|---|---|---|
| Maximum PV Input/Output Voltage | 250VDC | Busbar Screw | M5 (Compression Terminal), M8 (Lug Terminal) |
| Maximum PV Input/Output Current | 63A/Circuit | Recommended Busbar Terminal Torque | 26 inch·lbs (2.9 N·m) (Compression Terminal), 106 inch·lbs (12 N·m) (Lug Terminal) |
| Maximum Battery Input/Output Voltage | 1000VDC | PV/Grounding Busbar Conductor Size | 14 AWG~6 AWG (Compression Terminal), 12 AWG~4 AWG (Lug Terminal) |
| Maximum Battery Input/Output Current | 250A | Battery Busbar Conductor Size | 14 AWG~6 AWG (Compression Terminal), 12 AWG~2/0 AWG (Lug Terminal) |
| Number of Poles | 5 (PV Positive Busbar, PV Negative Busbar, Battery Positive Busbar, Battery Negative Busbar, Grounding Busbar) | Enclosure Material | Cold-Formed Steel |
| Busbar Material | Copper | Enclosure Protection Rating | IP54 |
| Busbar Rated Current | 200A | Enclosure Security | Keyed Cam Lock |
| PV Busbar Terminal | Compression Terminals (8), Lug Terminal (1) | ||
| Battery Busbar Terminal | Compression Terminals (4), Lug Terminal (2) | Mounting Method | Vertical Wall Mount |
| Grounding Busbar Terminal | Compression Terminals (20), Lug Terminal (1) | Installation Environment | Indoor |
| Mechanical Specifications | Accessories | ||
| Dimensions | 19.7 x 13.8 x 7.9 inch (500 x 350 x 200 mm) | Key | 1 |
| Weight | 22.7 lb | Labels | 3 |
| Knockout Diameter | 1.99 inch (4), 1.12 inch (4) | Warranty | |
| Conductor Size | 4 AWG-4/0 AWG | Material and workmanship warranty | 1 Year |
1.Under what circumstances is this used?
It is mainly used in the home kits for comprehensive management and safety guarantees for the solar systems, and it should be installed indoors.
2. How to use a circuit breaker box？
The circuit breaker box is mainly used to realize the disconnection of different devices in the solar system, and each pair of equipment can be equipped with a circuit breaker to realize the system's section management and comprehensive protection.
For solar panel system, we suggest the following combination:
1. Solar panels and controllers
2. Controller and battery
3. Battery and inverter
3. Does a ground fault circuit interrupter have to be installed？
Yes, NEC is required to install it.
