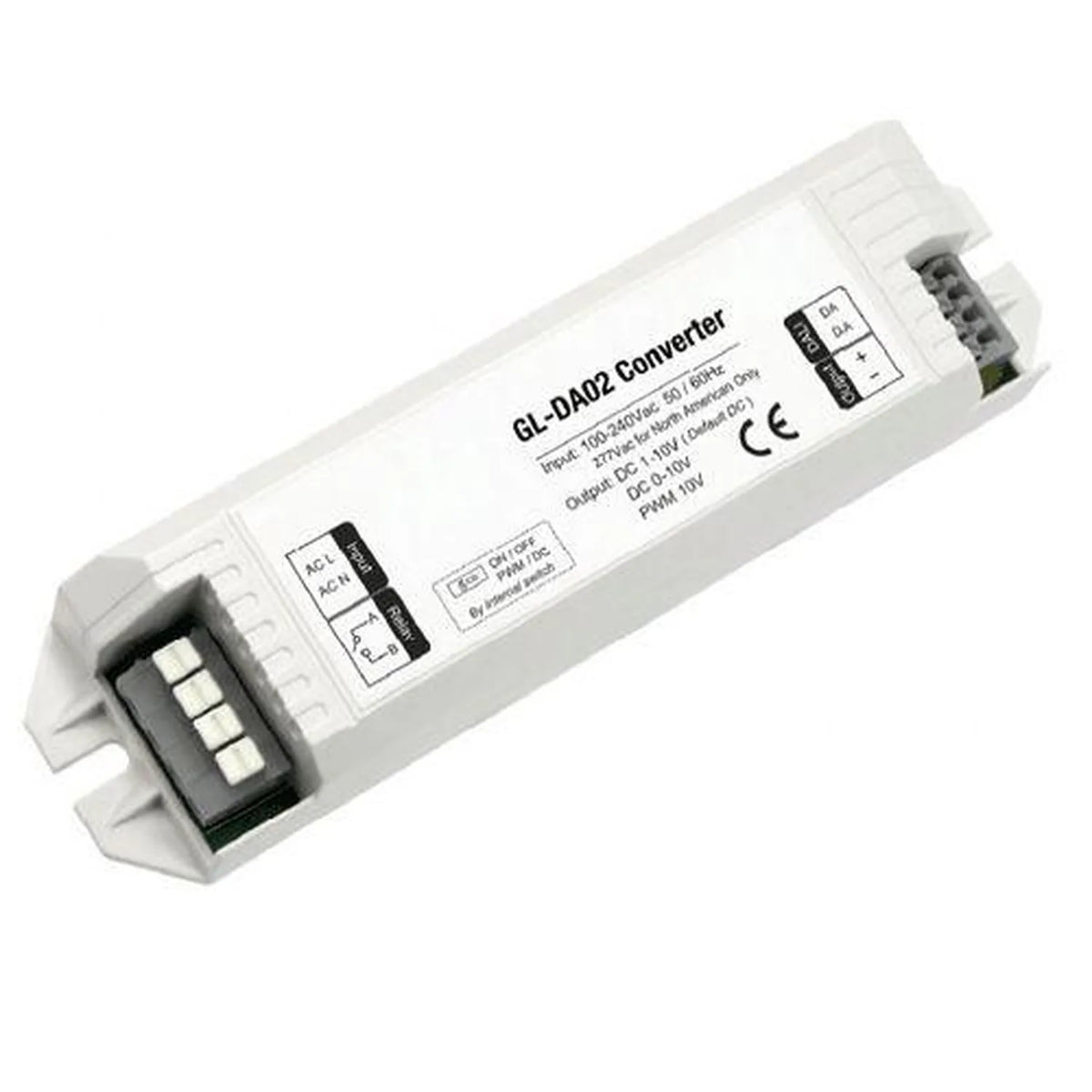

The Glacial DA02 is a DALI dimmable LED driver that converts a DALI signal into a 1-10V output, suitable for constant current LED drivers. It also supports PWM and 0-10V DC outputs, making it compatible with 3-in-1 (DC/PWM/Resistor) LED drivers widely used in panels, downlighters and T8/T5 LED tubes.

Built to the IEC62386 (Part 102 and 206) DALI standard, the DA02 takes a digital DALI signal and outputs an analogue signal that most constant current and constant voltage drivers can read. It works as a compact DALI bus power supply link between a lighting control system and standard dimmable drivers.

Key features of this dali dimmable led driver

• Standard, compliant with DALI IEC62386 Part 102 and Part 206
• DALI input, polarity insensitive, so wiring orientation does not matter
• Connector, screw-less terminals for quick installation
• Output options, selectable PWM-10V, DC 0-10V or DC 1-10V
• Dimming curve, selectable logarithmic or linear
• Relay, built-in relay to switch connected drivers off completely

Applications

As an indoor digital lighting control device, the DA02 (also referred to as LDN-DA02) suits office buildings, conference rooms, factories and intelligent home lighting. It sits between a DALI control system and downstream drivers, giving full on/off control as well as dimming, which also helps cut wasted energy when devices are switched off completely rather than left on standby.

Warranty

The DA02 converter carries a 5 year warranty.
