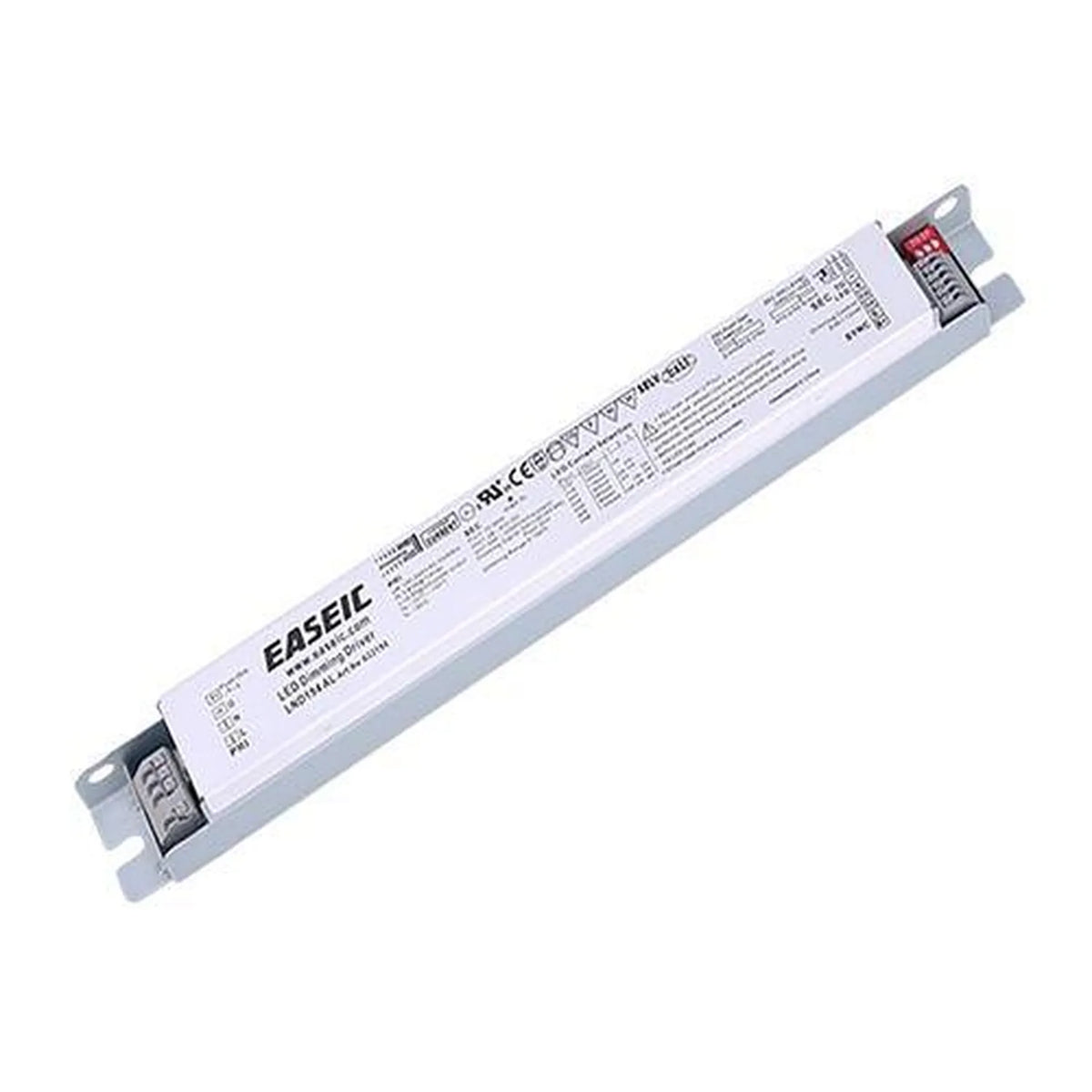

The Easeic LND154AL is a constant current LED DALI dimmable driver built for installers who need flexible current settings on one unit. Output current is adjustable between 200mA and 1050mA using onboard DIP switches, so a single driver covers a range of LED modules without swapping parts. Maximum output power is 54W.

Dali dimmable led driver features

• Dimming control, DALI 2 with DALI feedback, plus 1-10V, PWM and PUSH-Dim
• Dimming range, 0 to 100%, with LED start possible from 0.1% brightness
• Output voltage, 3V to 66V DC, maximum open circuit voltage under 75V
• Input, 100 to 277V AC, 50/60Hz
• Efficiency, up to 88%, power factor greater than 0.95, THD under 10%
• Protection, short circuit, over current, over voltage and open circuit

Applications

The DALI 2 protocol and analogue dimming options make this driver suitable for offices, retail fit-outs, hospitality lighting and architectural fittings where smooth, flicker-free control matters. The 1-10V and PWM inputs give installers a fallback where a full DALI network is not in place.

Housing and installation

An ultra slim housing measuring 280 x 30 x 26mm allows the driver to sit inside compact luminaires. Push-in terminals remove the need for a screwdriver during wiring, cutting installation time on both new builds and retrofit projects.

Reliability

Operating temperature is rated from -20°C to +50°C, and the driver carries a 5 year warranty. Built-in protection against short circuit, over current, over voltage and open circuit conditions supports long-term use in commercial installations.
