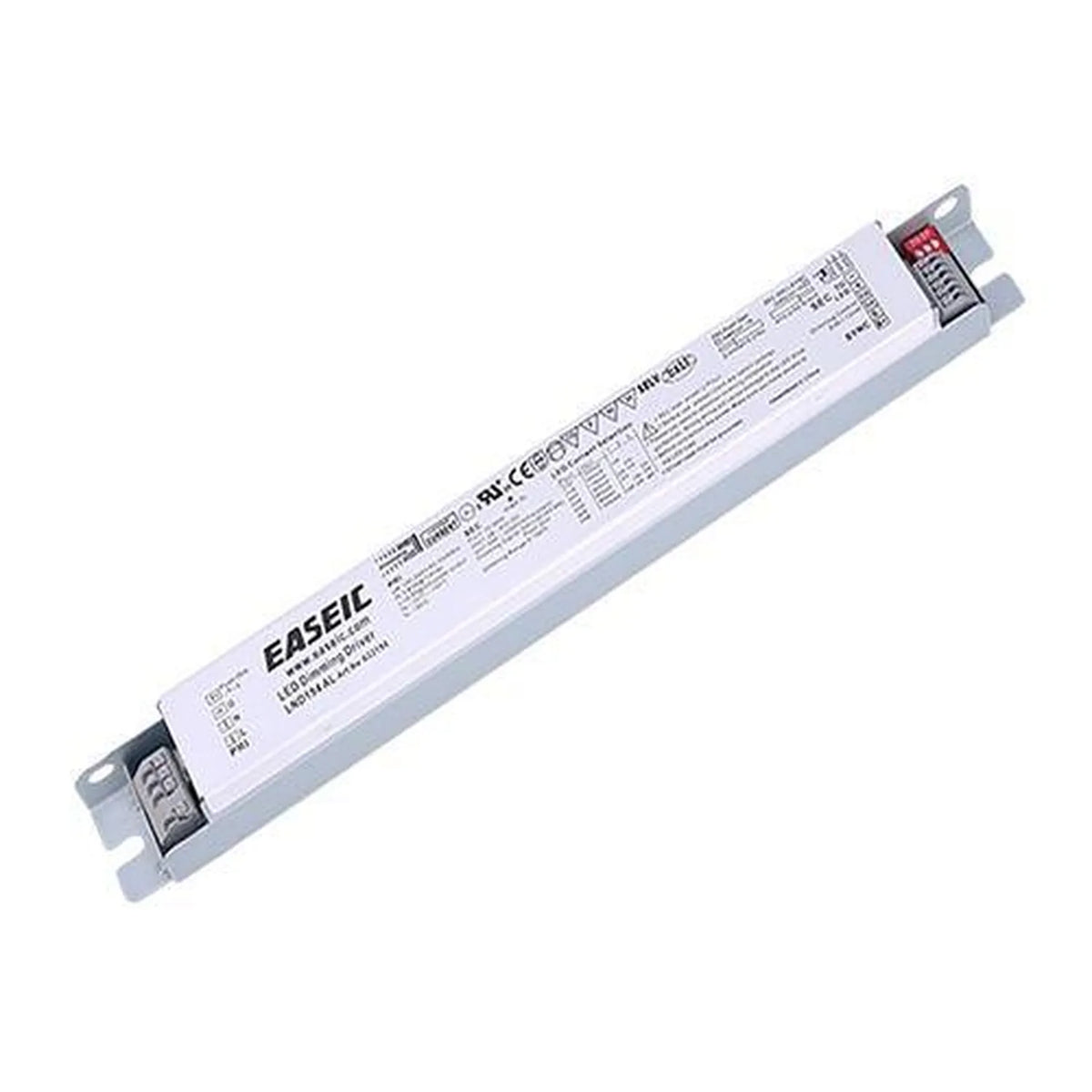

The Easeic LND136AL is a constant current LED driver with DALI-2 dimming control, built for commercial, architectural and OEM lighting projects. Output power reaches up to 36W, with adjustable output current from 200mA to 1050mA set via integrated DIP switches.

Dali dimmable led driver control

• Dimming interfaces, DALI-2, 1-10V, PWM, resistance and PUSH-Dim, all supported on the same unit.
• DALI standard, complies with IEC62386, covering ON/OFF switching, dimming, scene control and feedback communication.
• Dimming range, flicker-free dimming from 0% to 100%, with LED start possible from as low as 0.1%.
• Output current, adjustable from 200mA to 1050mA via DIP switches to match the connected LED load.
• Output voltage, 3V to 66V DC, up to 36W.
• Input voltage, 100V to 277V AC, for use across residential, commercial and industrial supplies.

Performance and protection

Efficiency reaches up to 88%, with a power factor greater than 0.95 and THD below 10%. The driver includes protection against short circuit, over voltage, over current and open circuit conditions.

Housing and installation

The slim 280 x 30 x 26mm housing suits recessed luminaires, LED panels, battens and compact architectural fittings where installation space is limited. Push terminals are fitted to simplify wiring and improve reliability.

Applications

Suited to offices, hotels, retail spaces, galleries and other commercial lighting projects that need DALI-2 or analogue dimming control alongside a compact linear driver.
