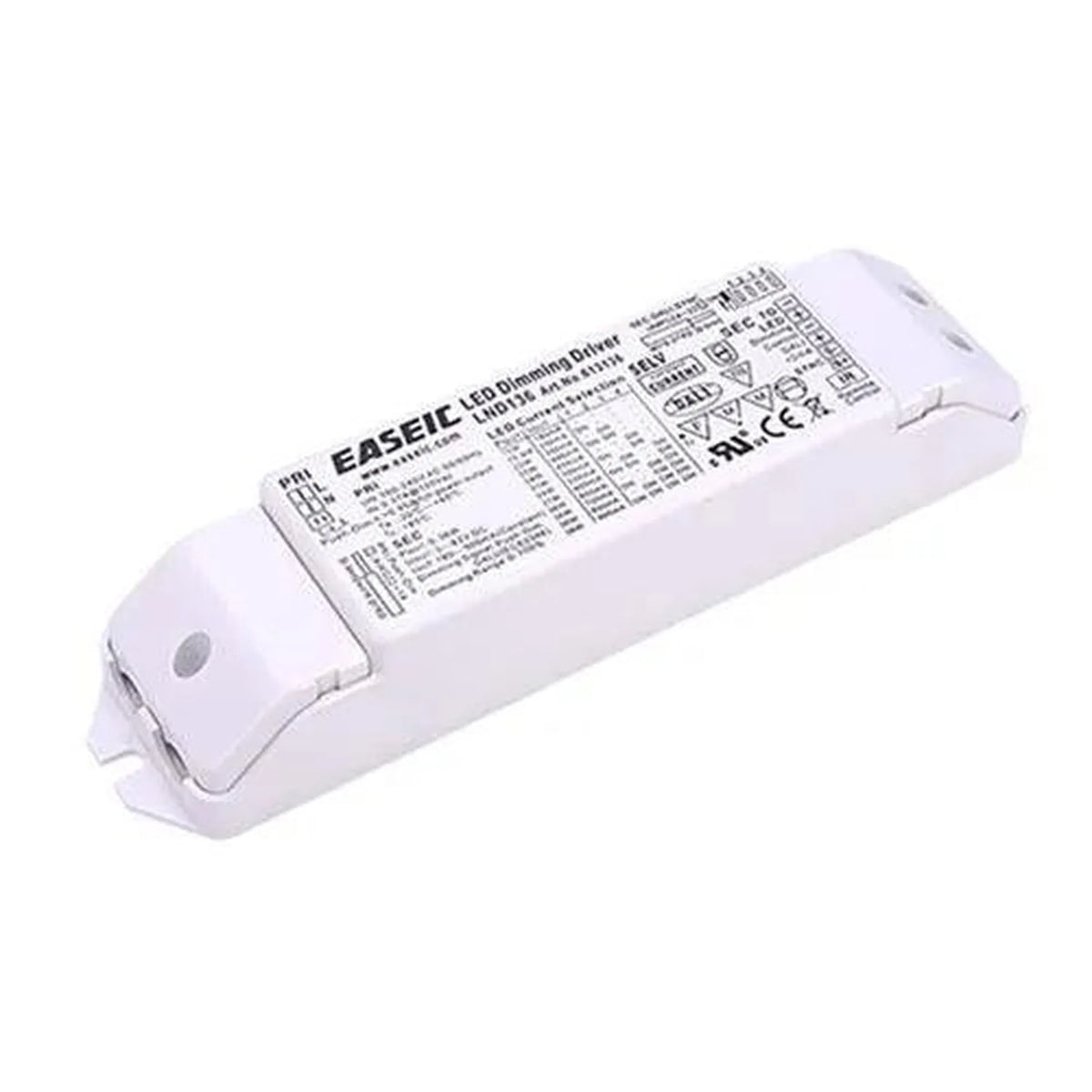

The Easeic LND136 is a constant current DALI dimmable driver built for LED arrays, panels and architectural luminaires that need flexible output current and smooth dimming control. Output power reaches up to 36W, with output current adjustable from 200mA to 1050mA via built-in DIP switches, so installers can match the driver to the LED load on site.

Key features of this dali dimmable led driver

• Output current, adjustable 200mA to 1050mA
• Output voltage, 3V to 66V DC
• Dimming protocols, DALI 2 with DALI feedback, 1-10V, PWM and PUSH-Dim
• Dimming range, 0% to 100%, with LED start possible from 0.1% brightness
• Input voltage, 100V to 277V AC
• Housing, compact low-profile design, 167 x 39 x 30mm

Dimming performance

The LND136 uses analogue flicker-free dimming for smooth adjustment across its full range. Because it supports DALI 2 with feedback alongside 1-10V, PWM and PUSH-Dim, it fits into professional smart lighting control systems as well as simpler analogue setups. This makes it suited to offices, hospitality, retail and architectural lighting where visual comfort matters.

Efficiency and protection

Efficiency runs up to 88%, with a power factor greater than 0.95 and THD below 10%. The driver includes protection against short circuit, over current, over voltage and open circuit conditions for safe long-term operation.

Installation

A terminal cover and cable retainer are included for installation safety. The compact housing allows fitting inside slim luminaires and confined fixtures, suiting both new builds and retrofit LED lighting projects.
