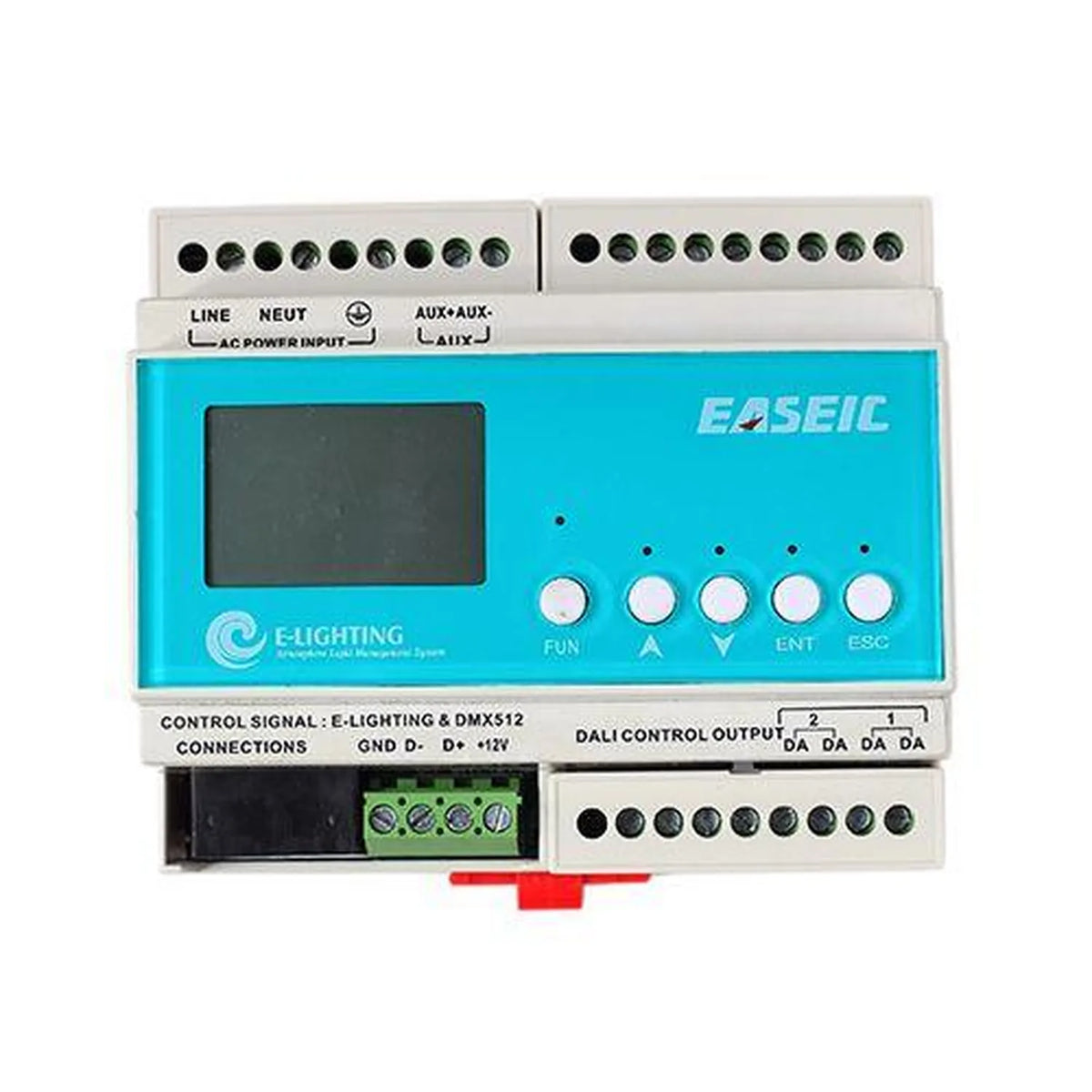

The Easeic DBC202D is a 2 channel DALI bus management module built to control up to 128 addressable LED drivers across two independent DALI lines of 64 addresses each. It gives installers a compact way to run scene based lighting control without a full building management system, and works as an alternative to systems such as the Lutron Grafik Eye.

Key features

• Channels, 2 channel DALI bus management, each channel handling 2 x 64 independent DALI addresses
• DSI mode, can drive 2 x 25 DSI protocol LED drivers when switched to DSI operation
• Relay outputs, 2 channel passive relay output rated 2A per channel, switching the main power to slave equipment
• Bus power, integrated 2 x 250mA DALI bus power supply
• Protocol, compliant with IEC62386, supporting slave state feedback and single, group or all-slave control on the same bus
• Scenes, up to 99 predefined lighting scenes across 99 areas with 16 lighting effects, named and edited through the LCD display

Applications

Suited to commercial and residential installations where multiple DALI or DSI LED drivers need to be grouped, scened, or switched manually. The manual on/off override lets an installer or user operate the slave equipment directly at any time, independent of the programmed scenes.

Status and display

An LED status indicator shows operating state in red or green as standard, with other colours available. The LCD dynamic display is used to name and manage each scene or area.
