These systems are perfect for non-permanent dwellings, workshops & remote sheds where power is needed to run appliances, tools, chargers etc while you’re there but have no need for 240v power to be left running while the premises in unattended

This package has the added advantage of 928Ah at 12v battery bank!

There is really not much you cannot do with kit because of the 3000w/9000w surge inverter, you just have to use some things in moderation.

Use our 12v/24v lights with this kit.

.

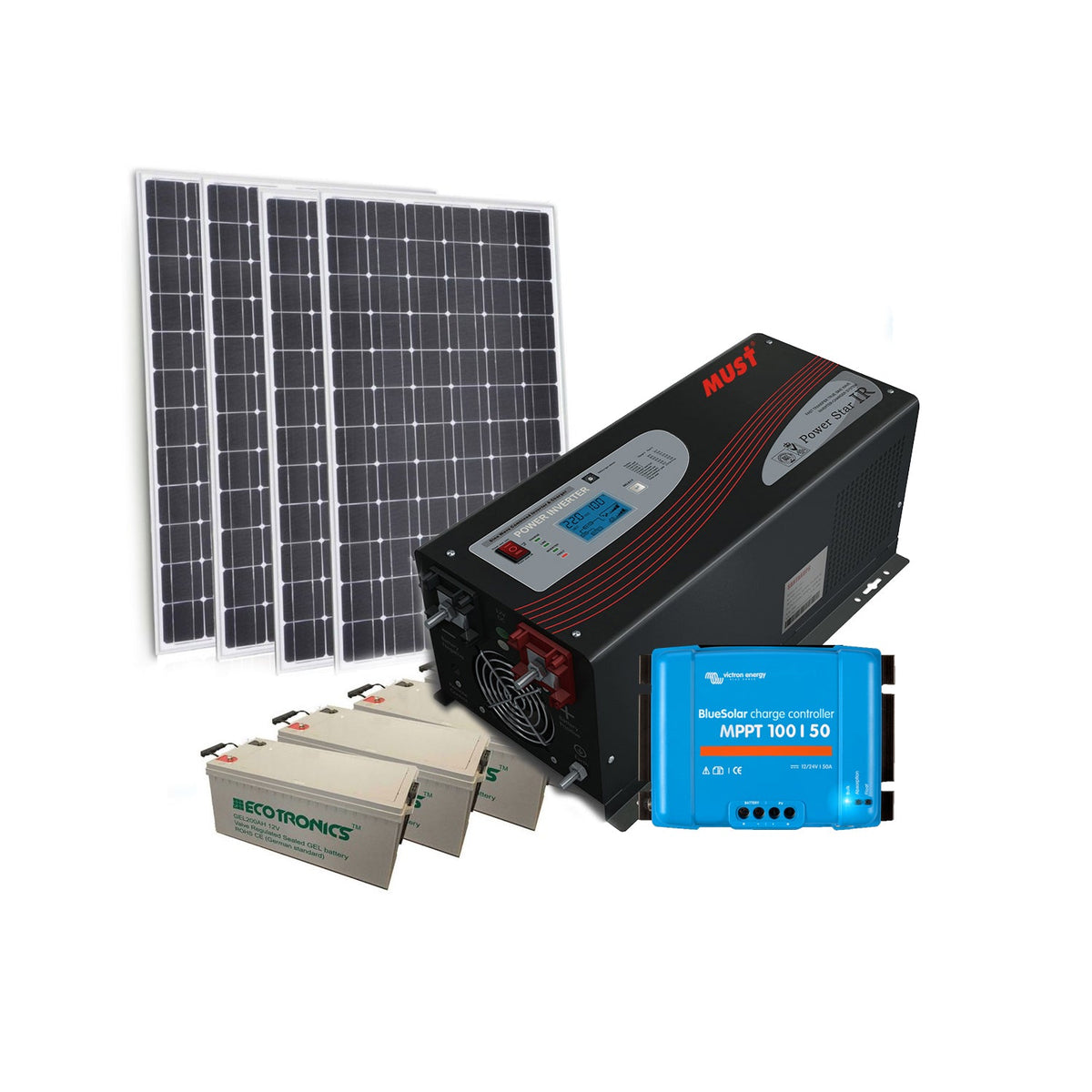

THIS PACKAGE INCLUDES

• 4x 250w Solar Panels (EX DISPLAY) 10 years warranty
• BlueSolar MPPT 100/50 (12/24V-50A)
• DC 12V Sine wave Inverter / charger | 3000 /9000W surge and UPS | 40amp Charger
• Delkor Deep Cycle 6 Volt 232ah Wet cell x 8 = 12v 928ah
• DC Disconnect / Battery Breaker
• DC Solar PV breakers
• 5 Metres of Battery Cabling 25mm2 – 4x 1.25m Lengths with lugs fitted
• 20 Metres of Solar Cable
• Solar Panel racking to suit Tin roof (Tile & Tilt upgrades available)
• Safety Sticker Kit

INVERTER CHARGER

Features

• Designed and build with the highest standards
• Power save mode with lower power draw of 25W (the inverter waits for a load of >100w before turning on)
• High Surge capacity – 9kVA max for 20ms (with a fully charged battery)
• 40A charger with absorption and floating modes to reduce gassing & charging time
• Automatically switch from inverter mode to bypass/battery charge mode when connected to 240v (selectable mode on inverter)
• Capable of starting an electric motor rated at up to 2HP (with a fully charged battery)
• Works with most generators proving they have a stable output frequency

Specs

• Idle current draw around 75w – 90w with inverter on
• Continuous power: 3000W Peak Power 9000W
• Input voltage: 24V DC
• Output voltage and frequency: 240V AC, 50Hz
• Low voltage trip 184V – re engage at 194V
• Efficiency +95%
• 12 Months Warranty

DELKOR DEEP CYCLE 6 VOLT 232AH WET CELL X 8 = 12V 928 Ah
