Power Hub 10 | Simple Installation | 10kVa Victron Inverter | 10 kW Solar | 20kWh Pylontech
£19,668.00
Sale price
£19,668.00
Regular price
£26,122.00
Skip to product information
Power Hub 10 | Simple Installation | 10kVa Victron Inverter | 10 kW Solar | 20kWh Pylontech
£19,668.00
Sale price
£19,668.00
Regular price
£26,122.00
Shipping calculated at checkout.
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Power Hub 10
Designed as a turn-key solution, Commodore’s Power Hub 10 is ready for large power users and Australian families. You can install the Power Hub outdoors due to our IP55 rating which will keep the dust and all of the nasties out which makes it a fantastic solution for off gridders who want to increase the longevity of their Off Grid System by keeping dust and other objects out of the components which are commonplace in many Australian sheds.
Power Hub 10 Suitability Criteria
- Going to normally run less than 8000W worth of appliances at the one moment
- Average less than 20kWh of power use per day
- Have room for 24 Solar Panels that are 1.05m wide and 1.8m long each, or are willing to ground-mount the solar panels
- Powerhub Dimensions 1650mm tall x 800mm wide x 600mm deep
Power Hub 10 Features & Benefits
| Features | Benefits |
|---|---|
| Pre-wired and pre-configured system | Reduced installation costs due to less work for your electrician |
| 20kWh lithium battery bank | Unlike AGM and lead carbon, lithium batteries are fully expandable. The batteries in the Power Hub 10 allows you to add on at any time |
| Power Hub cabinet | Protects your system from dirt, dust, oil, water and other things you don't want in your system such as mice |
| 10kVA Victron Inverter | Allows you to continuously run 8000W of appliances at once, and surge up to a huge 20000W! |
| Comprehensive online system monitoring | You can view your system anytime on your phone as long as your system is connected to the internet. This saves a lot of stress |
| Lifetime Support | You aren't left in the dark with Commodore. You can instead call or email our support team with any questions or queries when you need to |
| Either manually start, or automatically start your generator | If you have an automatic start generator, perfect, this system will easily accept it through TBB's Nova. However, if you don't and need to manually start the generator, you can easily do that too |
| 27 page owners manual is included | Our 27 page owners manual covers everything from A-Z with your Off Grid System |

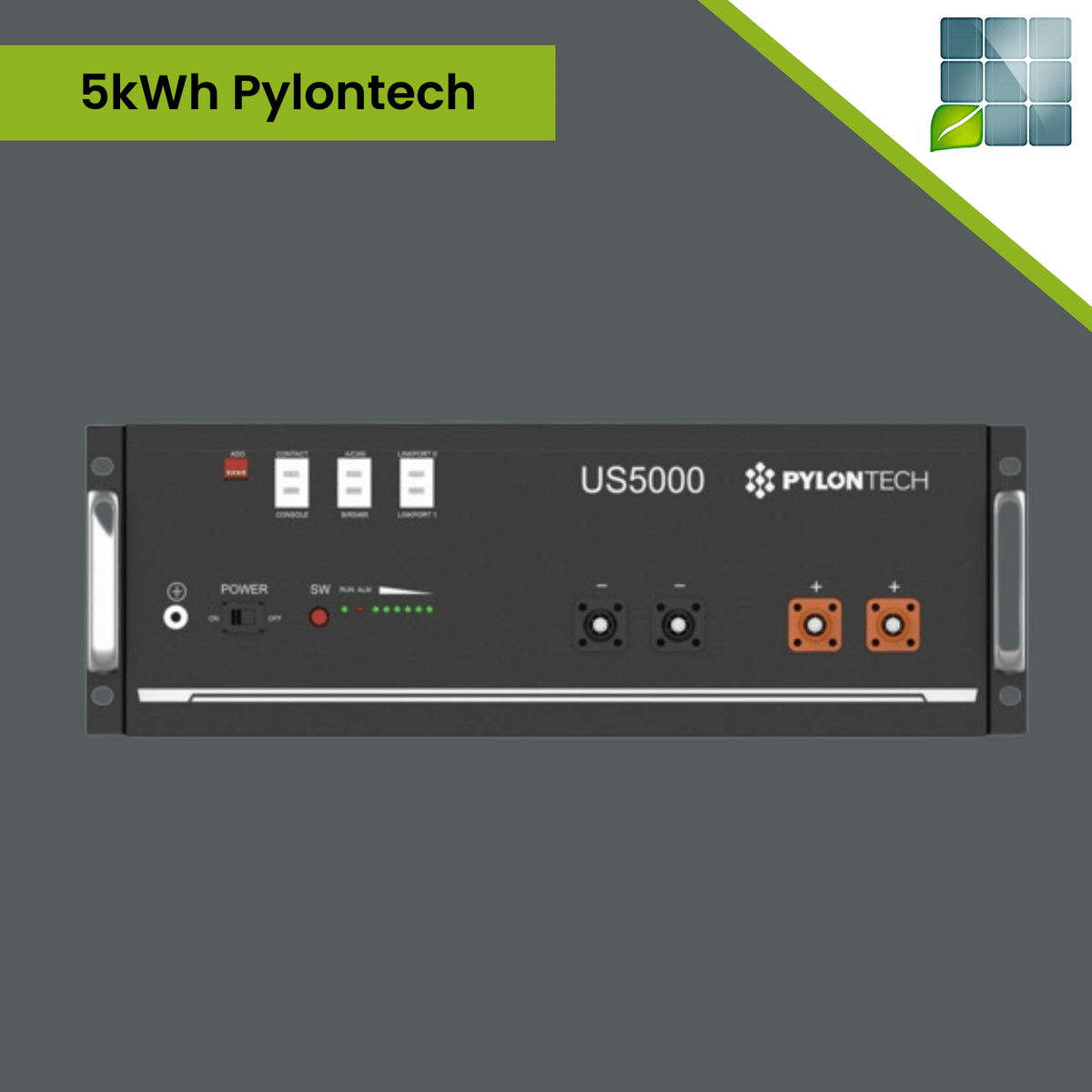

US5000B Pylontech Battery Information
- Up to 90% can be used without adversely compromising battery life
- Rated to 6000 cycles to 80% depth of discharge/use, which equals over 15 years of life
- High surge capacity, a 15kWh bank can handle a 15kW load, and a surge of 30kW
- Charge efficiency of 97%, this means far less energy wasted during charging and more power available to you in less time
- Internal intelligent management means each battery module can operate to its potential, rather than performing only as well as the weakest battery
- Additional batteries can be added, 5kWh at a time

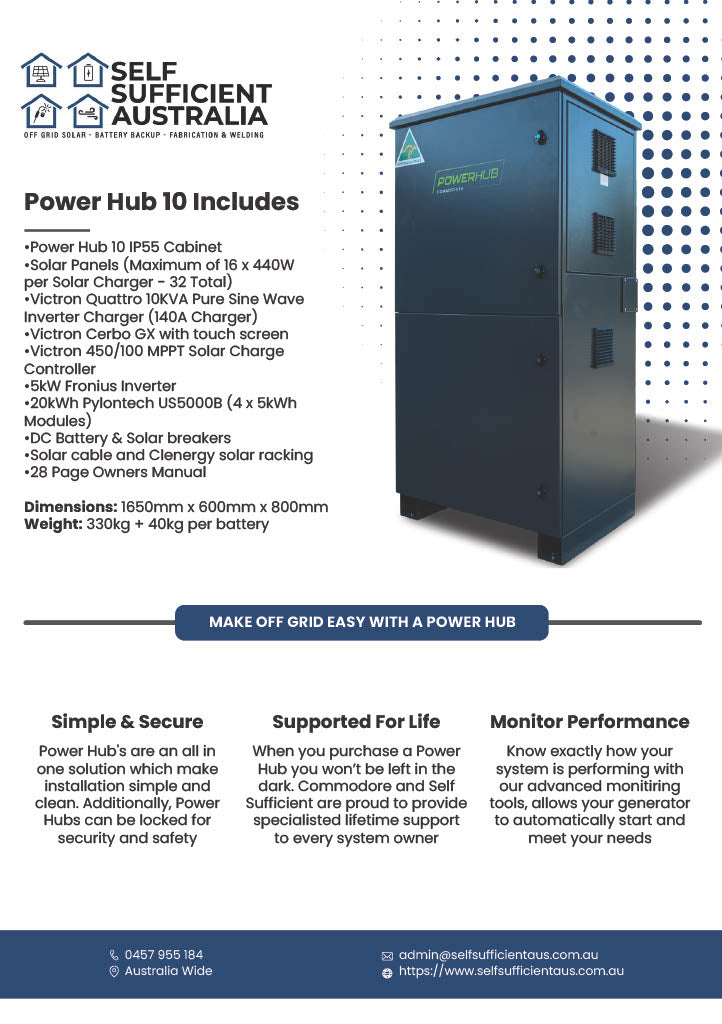

System Package Includes:

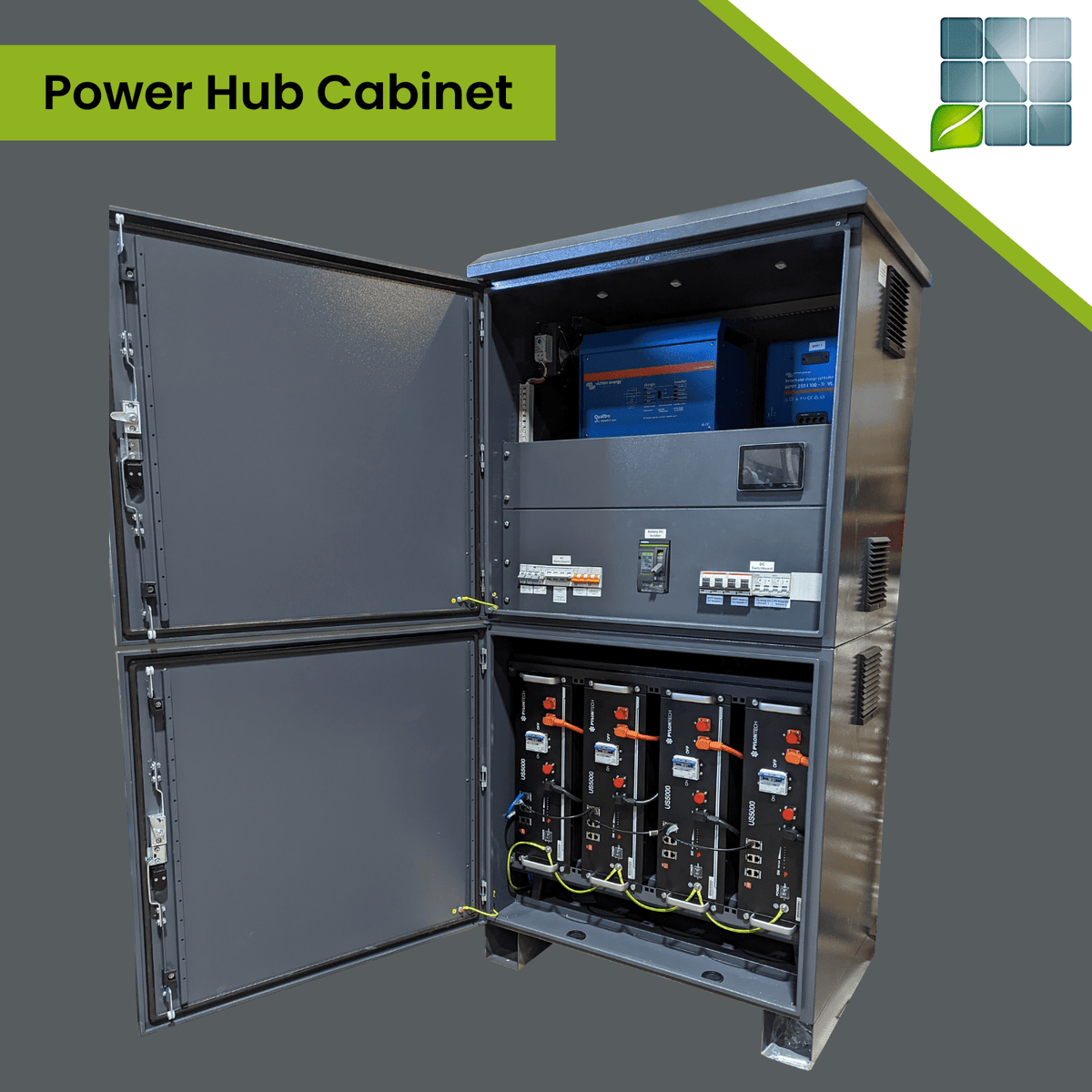

- Power Hub Cabinet fully pre-wired and pre-configured
- Victron Quattro 10KVA Pure Sine Wave Inverter 48v

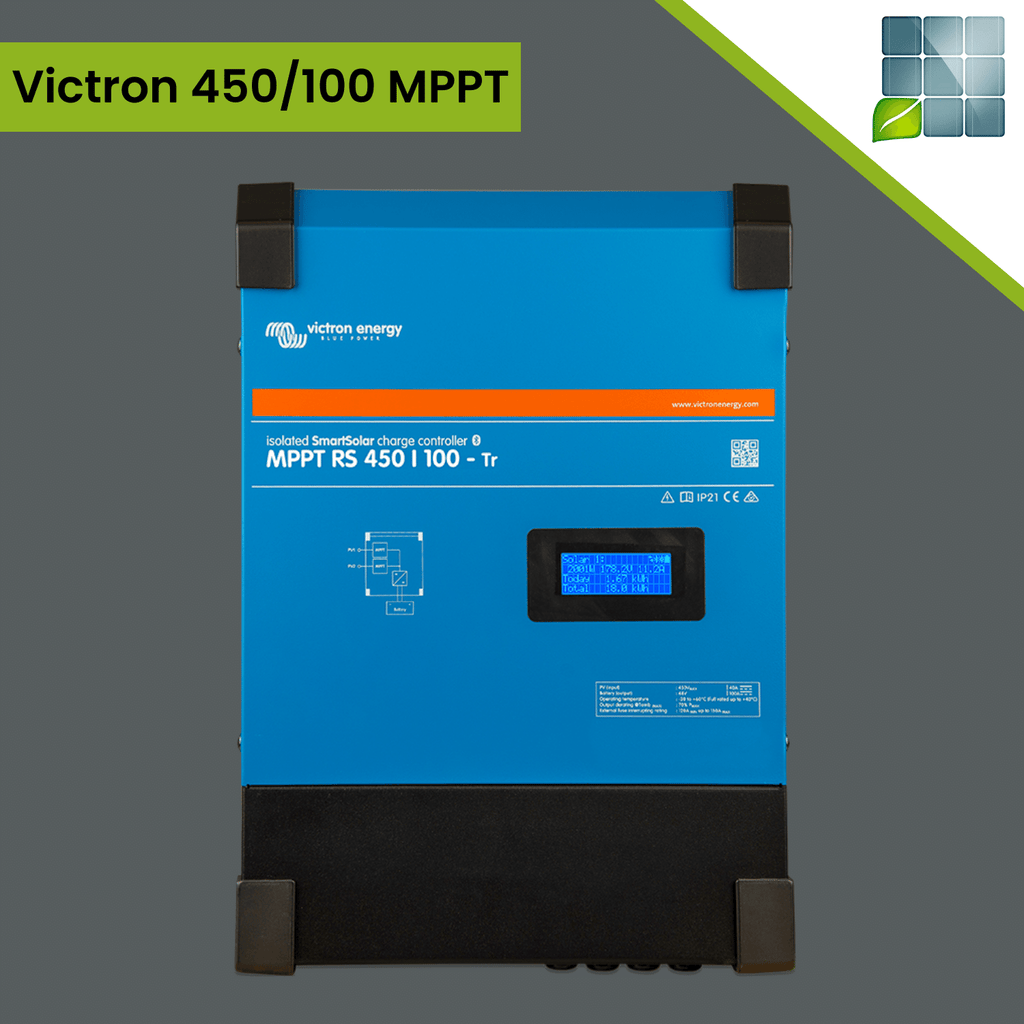

- 10kW Solar Array with 24 x 440w JA Solar panels with a Smartsolar 450/100 charge controller DC coupled

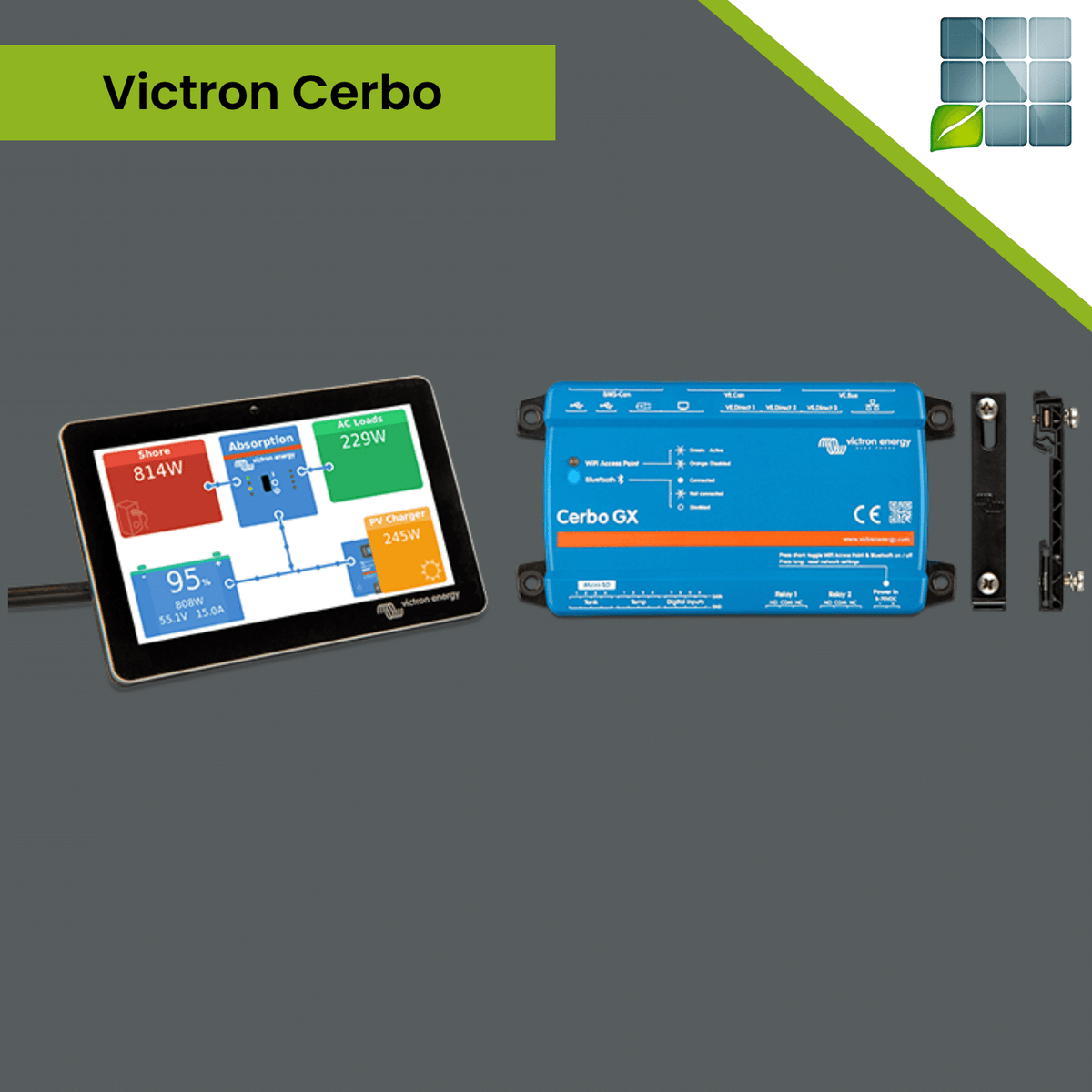

- Victron Cerbo GX with touch screen and online access
- 20kWh Pylontech US5000B (4 x 5kWh Modules)
- DC Disconnect / Battery Breaker & Fuses
- DC Solar PV breaker
- 20 Metres of Solar Cable fitted with solar connectors on one end
- Solar Panel racking to suit Tin roof (Tile & Tilt upgrades available)
- Safety Sticker Kit
- 28 Page Owners Manual
Warranty Information
- JA Solar panels feature a 15 year product warranty & 25 year linear power output warranty
- All Victron Energy components include a full 10 year warranty
- Pylontech US5000B batteries include a full 10 year warranty
- All other items come with a minimum 12 month warranty
- For details on our battery warranties please see our Battery Warranties page
