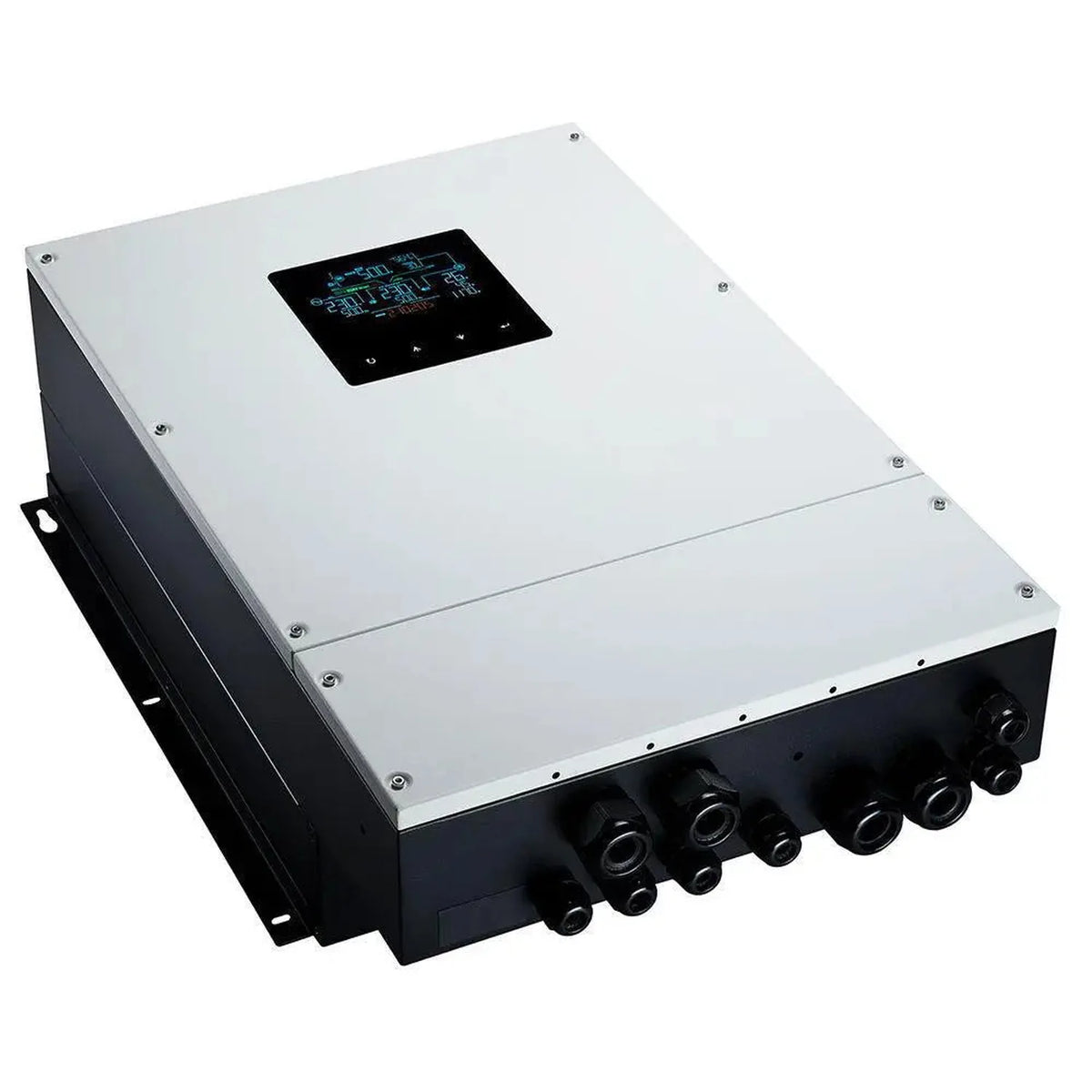

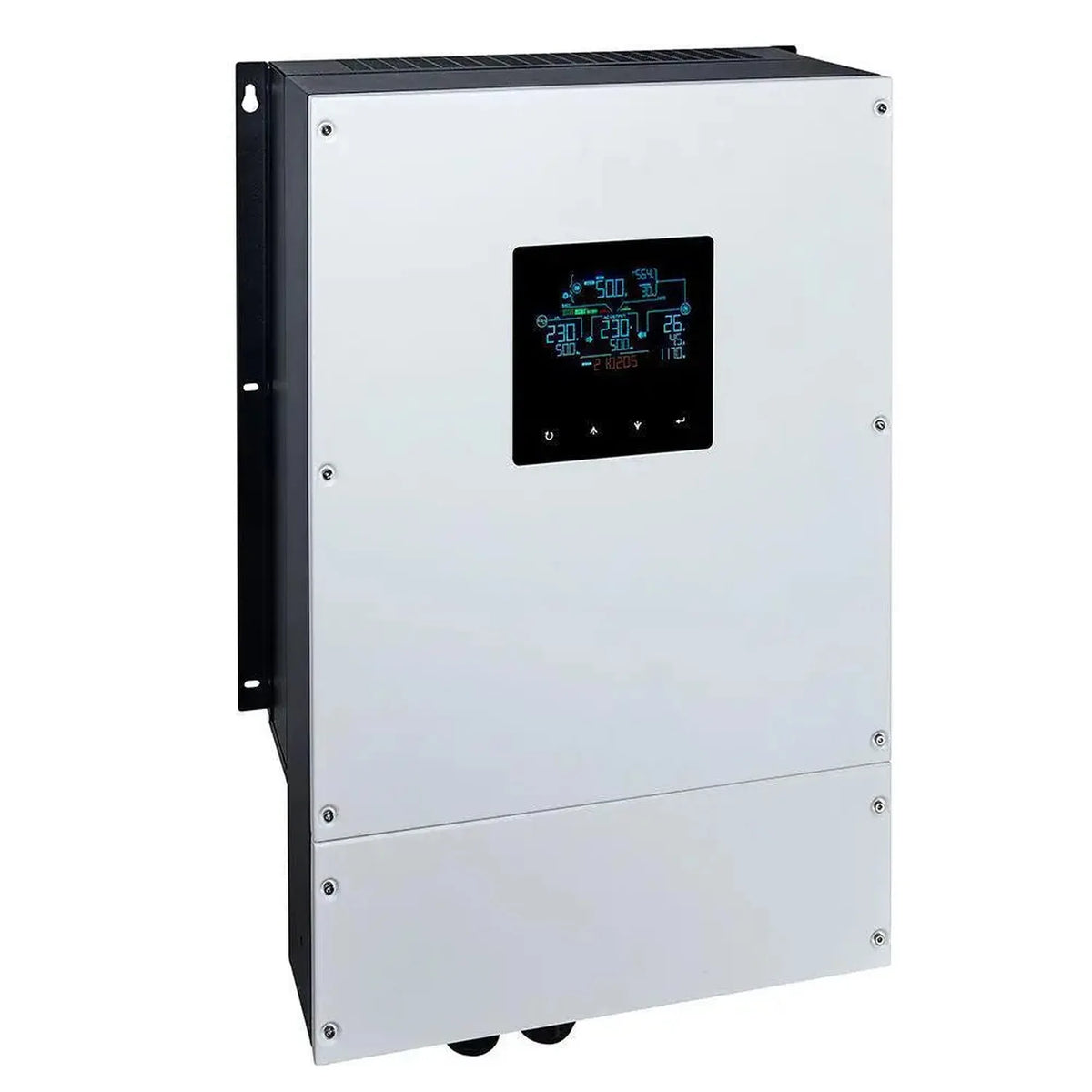

The Conversol 8kW MAX-II Waterproof is an off-grid inverter and charger rated IP65, built for installations exposed to dust and moisture. It delivers 8kW continuous output with dual MPPT solar input, and up to six units can run in parallel for larger off-grid systems.

Key features of this 48v inverter

• Output, 8kW continuous, 16kVA surge capacity
• Enclosure, IP65 waterproof, suited to outdoor and harsh-environment mounting
• Solar charging, dual MPPT, up to 8kW total PV input
• Battery, 48V bank, up to 150A combined charging current
• Parallel operation, up to 6 units
• Waveform, pure sine wave
• Communication, USB, RS232, RS485, Wi-Fi, dry contact

Product overview

The IP65 enclosure is what separates this unit from a standard indoor inverter. It can be wall-mounted in plant rooms, outbuildings and exposed locations where a conventional unit would be at risk. The dual MPPT charger accepts strings up to 500VDC open circuit and works across a 90V to 450VDC MPPT range.

Pure sine wave output means it plays well with sensitive loads: variable speed drives, medical equipment, communications gear. With 48V battery input and up to 150A of combined charging, it can support large lead-acid or lithium battery banks.

Applications

Suited to outdoor and exposed off-grid installations, agricultural buildings, remote commercial sites and workshops, marine and waterside setups, and backup systems in harsh environments.

What's in the box

• Conversol 8kW MAX-II IP65 inverter/charger unit
• Communication cable and accessories
• User manual

Installation and safety notes

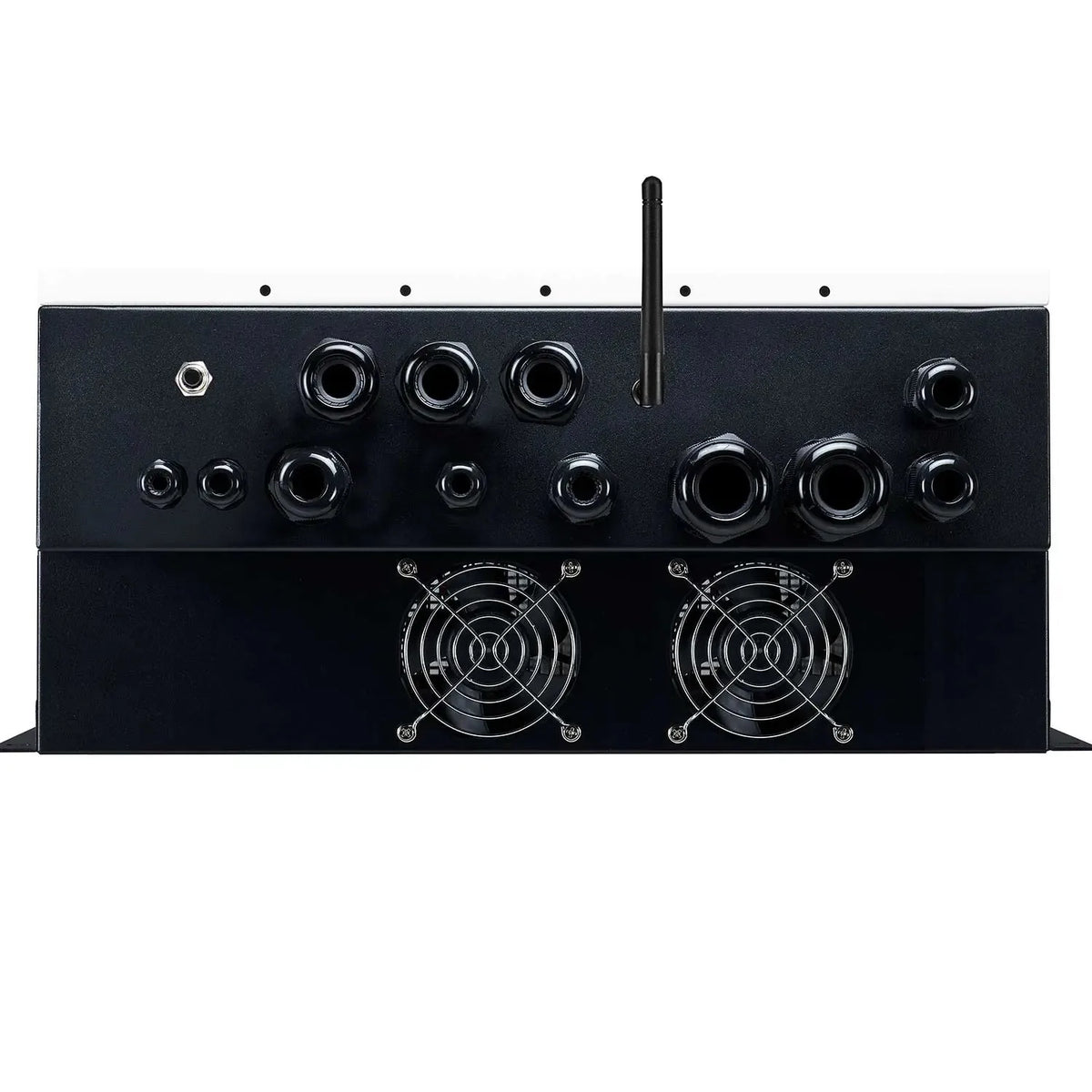

Installation must be carried out by a qualified electrician or accredited solar installer. The IP65 rating applies to the enclosure only, so cable entries need correctly sealed glands to maintain it. Battery cabling, DC fusing and isolators must be sized for 48V high-current operation, and battery voltage and charge settings should be verified before use.
