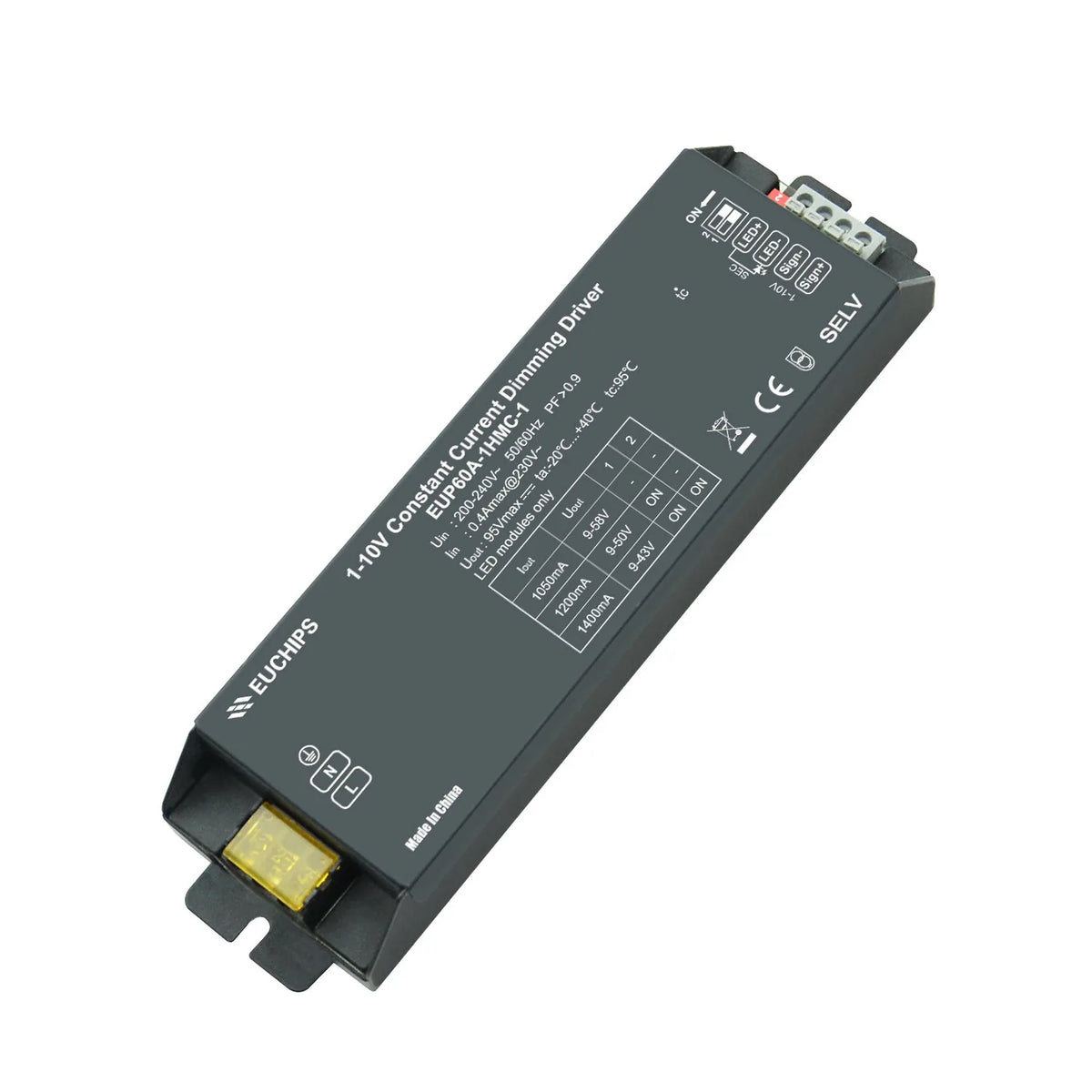

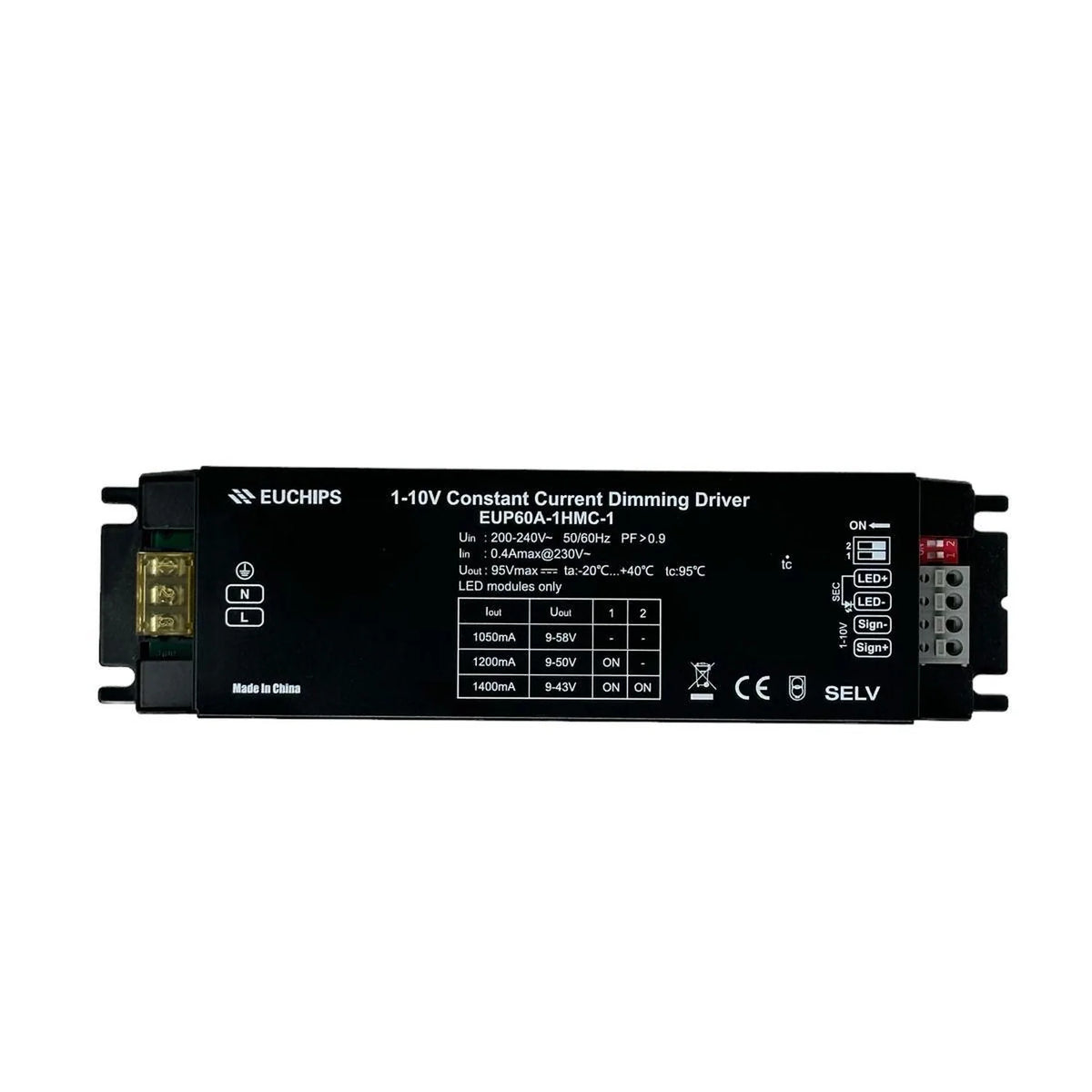

The Euchips EUP60A-1HMC-1 is a 60W constant current LED driver built for indoor lighting where dimming needs to be smooth and dependable. Output current is selectable by DIP switch, so one driver can be matched to different luminaires without swapping parts.

Key features of this constant current LED driver

• Output, selectable via DIP switch: 1050mA / 9-58VDC / 60.9W, 1200mA / 9-50VDC / 60W, or 1400mA / 9-43VDC / 60.2W
• Dimming, 1-10V active signal, PWM signal, or adjustable resistance (3-in-1 control)
• Efficiency, up to 86%, with built-in active PFC
• Full output fallback, runs at 100% output when no dimming signal is connected, so it can also work as a standard power supply
• Protection, over voltage, short circuit and over power protection
• Input, 200V to 240V AC, 50/60Hz

Applications

This driver suits downlights, panel lights and similar indoor LED fittings in offices, retail spaces, residential interiors and commercial projects. Because the current can be reset through the DIP switch, it also works well for maintenance and replacement work where the original driver's output needs matching.

Setting the current

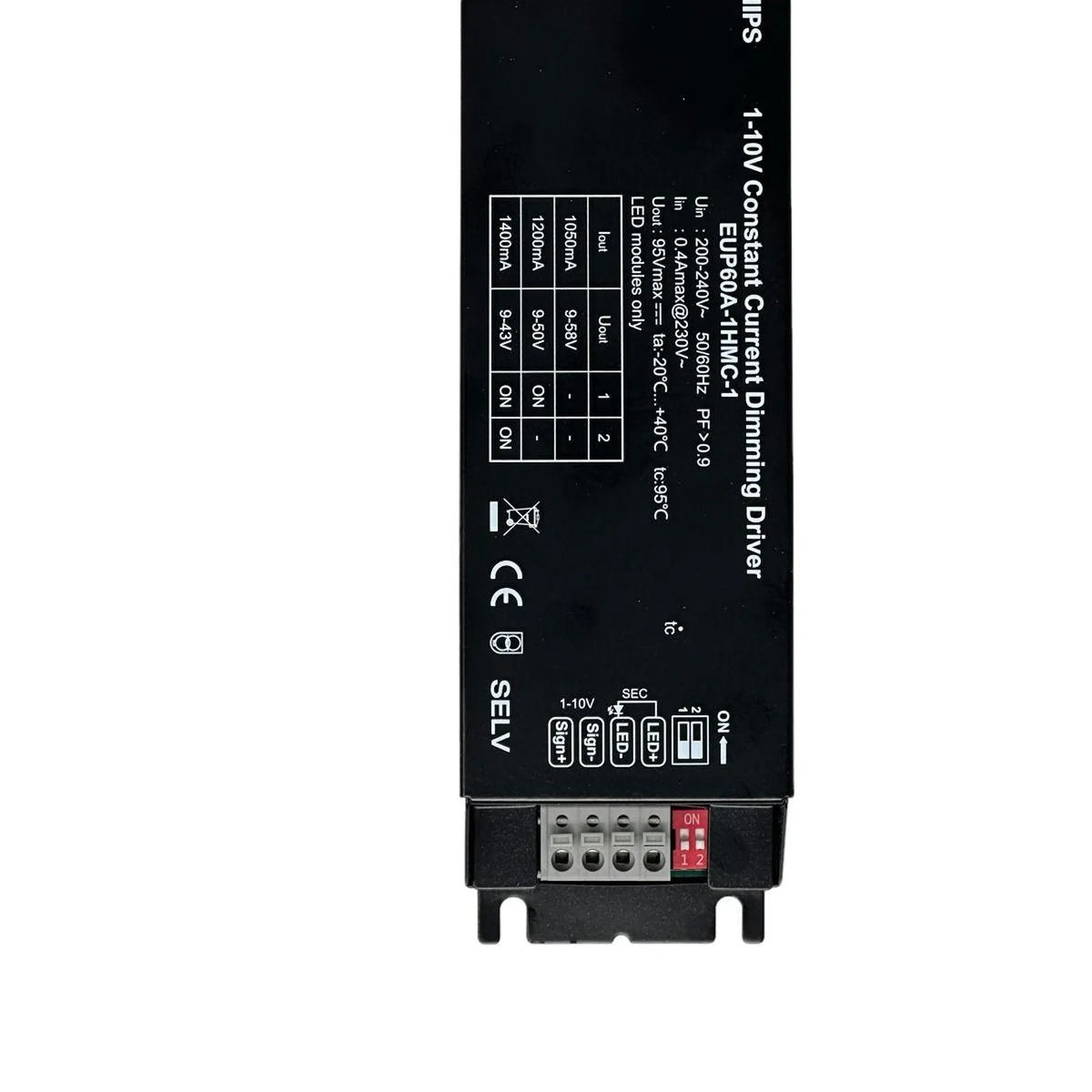

The default factory setting is 1050mA with both DIP switches in the OFF position, according to the current select table in the manual. Installers can move between the three current settings to suit the luminaire being driven.

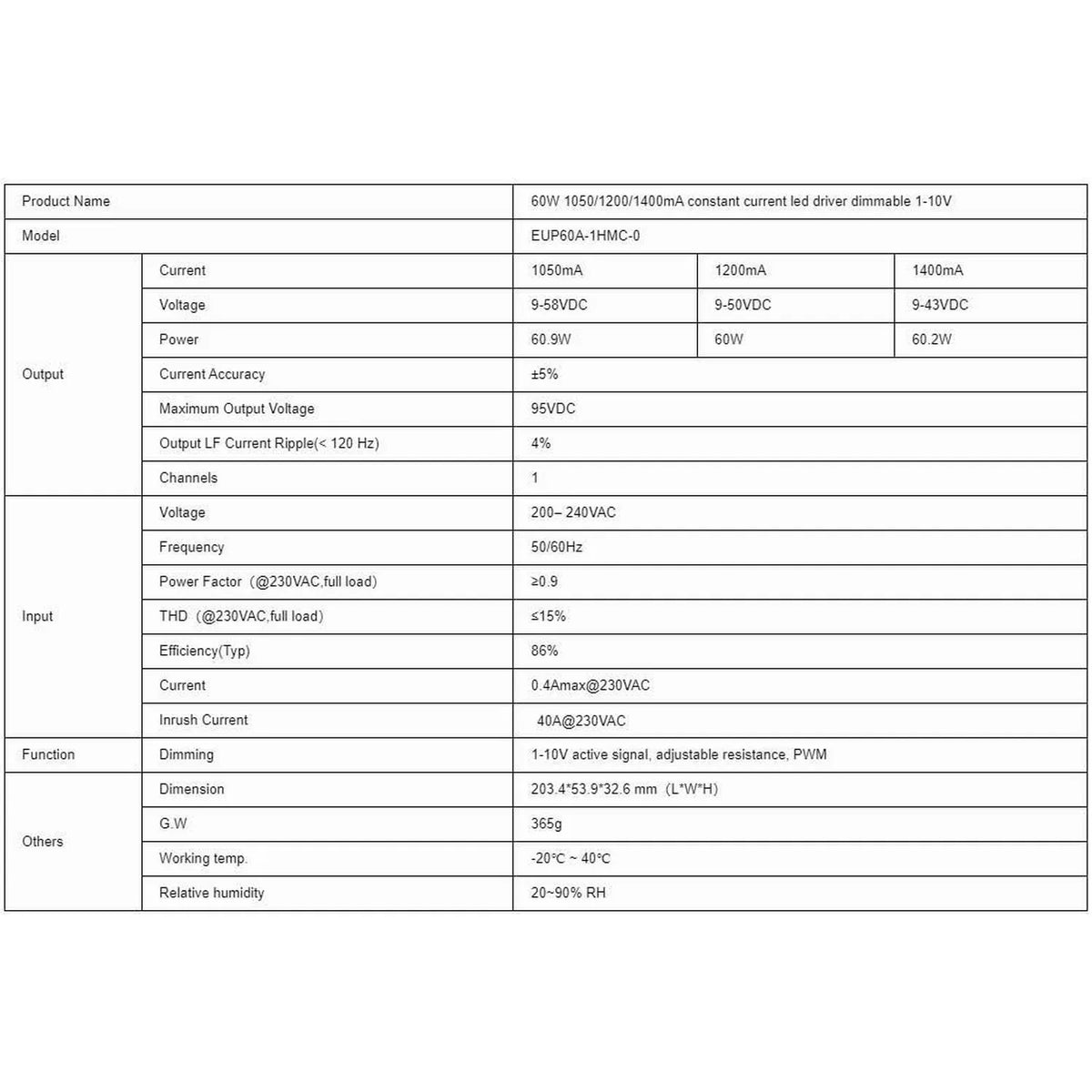

Technical overview

• Model / item code: EUP60A-1HMC-1
• Maximum output voltage: 95VDC
• Current accuracy: ±5%
• Output LF current ripple: 4%
• Power factor: ≥0.9, THD ≤15%

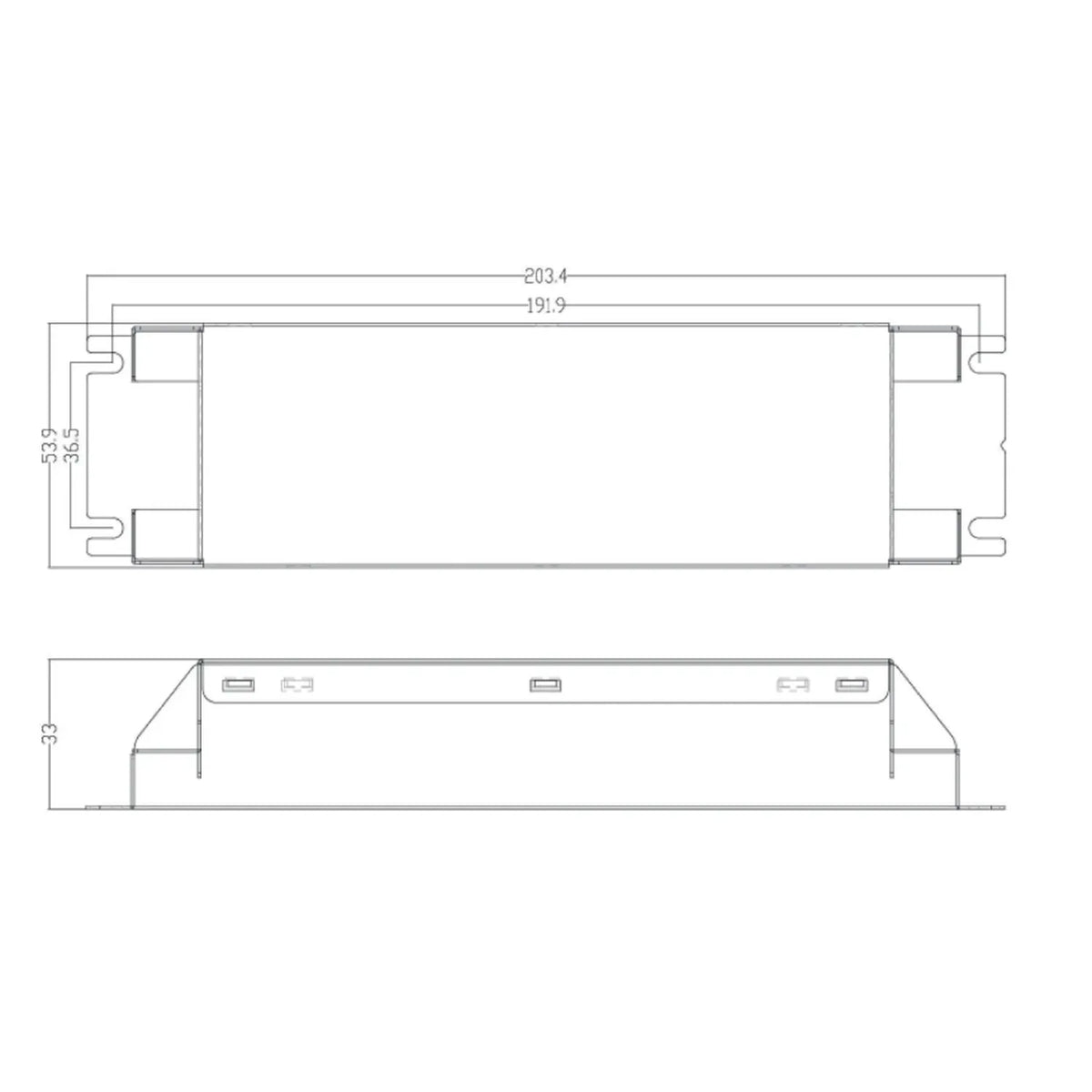

• Dimensions: 203.4 x 53.9 x 32.6mm, gross weight 365g
• Working temperature: -20°C to 40°C, relative humidity 20 to 90% RH
• Channels: 1
