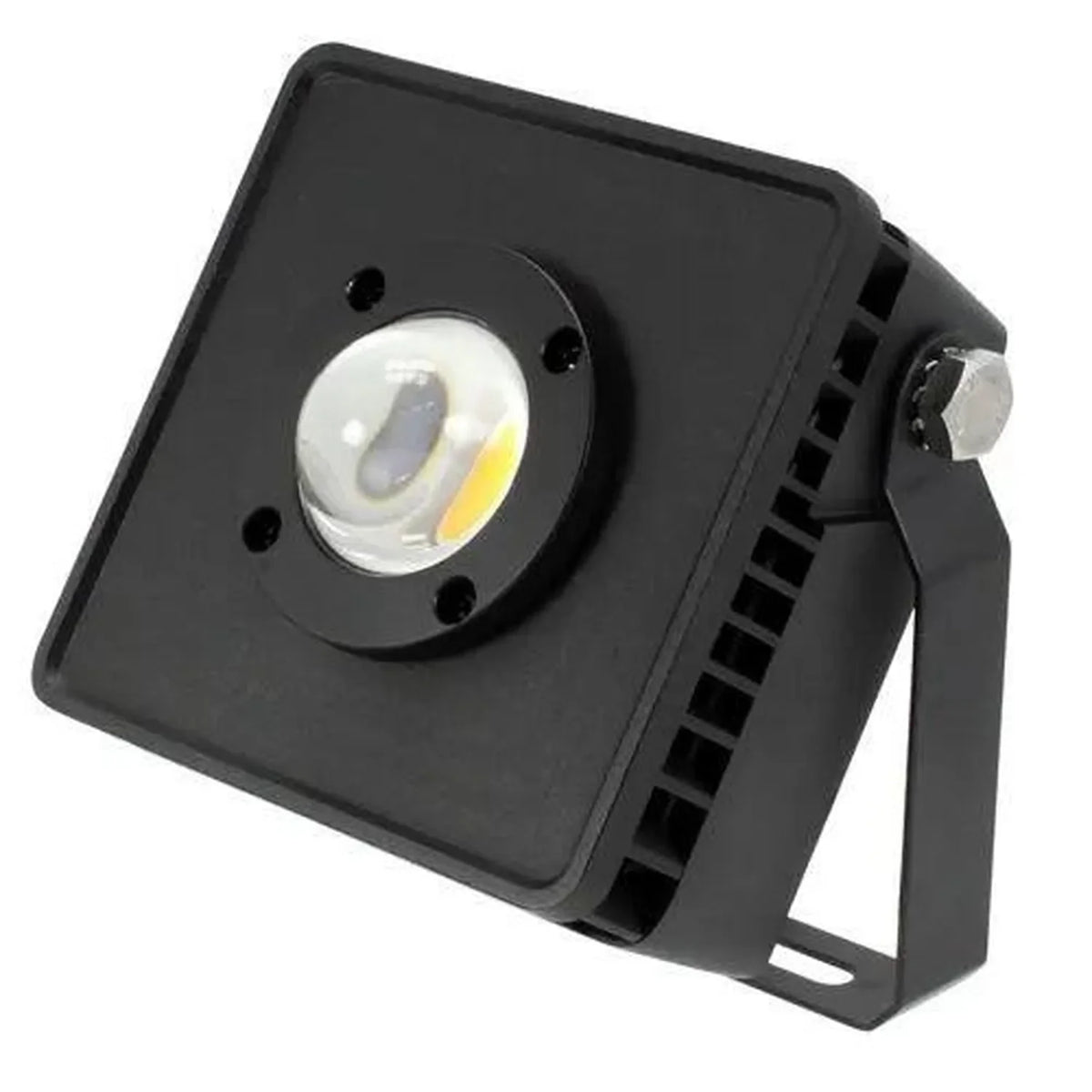

The Ledison FL15-CT is a 15W LED flood light built around a CITIZEN Japan chip on board, rated IP66 for outdoor use and delivering a complete fitting efficacy of 115lm/watt.

CoB LED flood light features

• Chip on board, CITIZEN Japan CoB LED
• Efficacy, 115lm/watt complete fitting
• Weatherproofing, IP66 rated for extreme weather conditions
• Beam angle, 120 degrees, with a 60 degree option
• Mounting, adjustable bracket that moves through 360 degrees
• Lifespan, rated to achieve 50,000 hours
• Operating range, reliable operation from -40°C to +45°C

The heat sink uses cold forging technology with anodized AL1070 aluminium and a pin fin design, giving a large surface area for heat transfer away from the LED chips. This is the part of the fitting most responsible for long-term reliability, since poor heat dissipation is what shortens the life of high power LED luminaires.

Applications

Suited to small and large surface buildings, garages and gardens where a compact, weatherproof security or flood light is needed. The adjustable bracket allows the beam to be aimed after mounting, and the option of a 60 degree beam suits more directional lighting needs alongside the standard 120 degree spread.

Special installation accessories

A metallic outdoor Stake Light Bracket is available, letting the fitting be mounted directly into the ground without special tools. The fixture mounts on the post, which suits architectural lighting layouts and avoids the need for lifting equipment when the light is later serviced or replaced.
