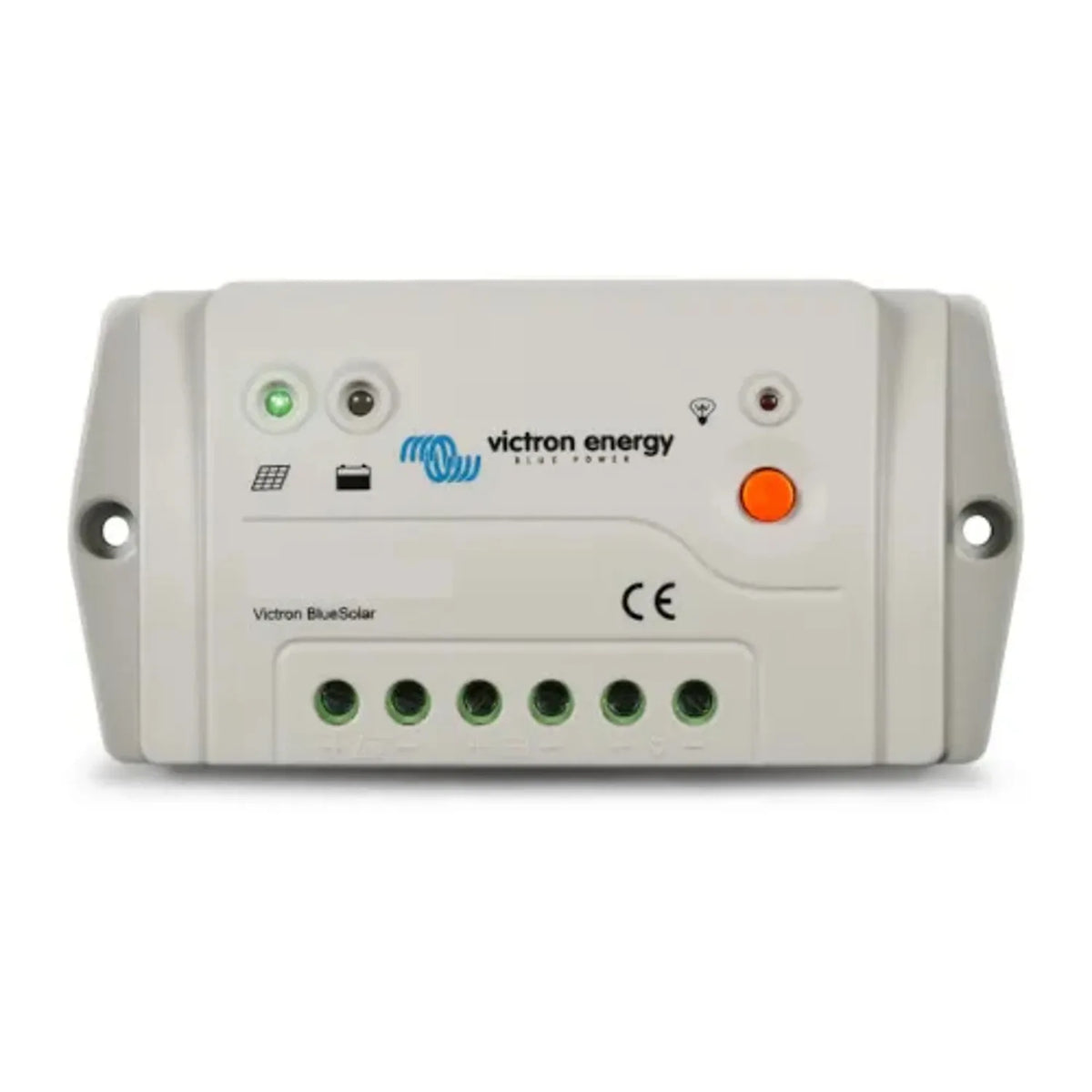

The Victron BlueSolar PWM-Pro is a pulse-width modulation solar charge controller rated at 20A for 12V and 24V battery systems. It suits small to medium off-grid solar installations where reliable battery charging and load control are needed without the cost of MPPT technology. Installers use it on caravans, boats, cabins and remote power sites.

Key features of this Victron charge controller

• Charge current, 20A, automatic 12V/24V detection
• PWM algorithm, reduces charge current gradually as the battery nears full charge
• Load output, low-voltage disconnect protects against over-discharge
• Street lighting function, programmable on/off times from sunset and sunrise detection
• Temperature compensation, adjusts charge voltage to suit ambient conditions
• Battery compatibility, sealed AGM and gel, flooded, and LiFePO4 chemistries
• VictronConnect, wireless monitoring and configuration via an optional VE.Direct Bluetooth Smart dongle
• Weight, 0.3 kg, suitable for panel or wall mounting

How the PWM-Pro works

A PWM controller connects the solar panel directly to the battery during bulk charging, then switches the connection on and off rapidly to hold the target voltage. It is a straightforward approach for systems where panel voltage is close to battery voltage. The PWM-Pro adds programmability on top of that, with adjustable charge algorithms and a load output with configurable disconnect thresholds.

Street lighting and automatic detection

The load can be switched on at sunset and off after a set number of hours, or dimmed mid-night, cutting energy use without manual intervention. These settings are configured through the VictronConnect app when paired with the optional VE.Direct Bluetooth Smart dongle. Battery voltage, 12V or 24V, is detected automatically on first connection.

Applications

Caravans and motorhomes with roof-mounted panels, narrowboats and sailing vessels, off-grid cabins and garden buildings, remote street and security lighting, agricultural telemetry, and small backup systems for sheds or gate automation.

What's in the box

• 1 x Victron BlueSolar PWM-Pro Charge Controller 12/24V-20A

Installation notes

Fit this controller with a competent electrician or qualified solar installer. Check the panel's open-circuit voltage stays within the controller's maximum input rating. Connect the battery before the solar panel, and disconnect in reverse order. The load output is for DC loads only. On LiFePO4 installations, confirm the correct charge profile in VictronConnect before commissioning. This controller is not for grid-connected systems and does not need G98 or G99 compliance.
