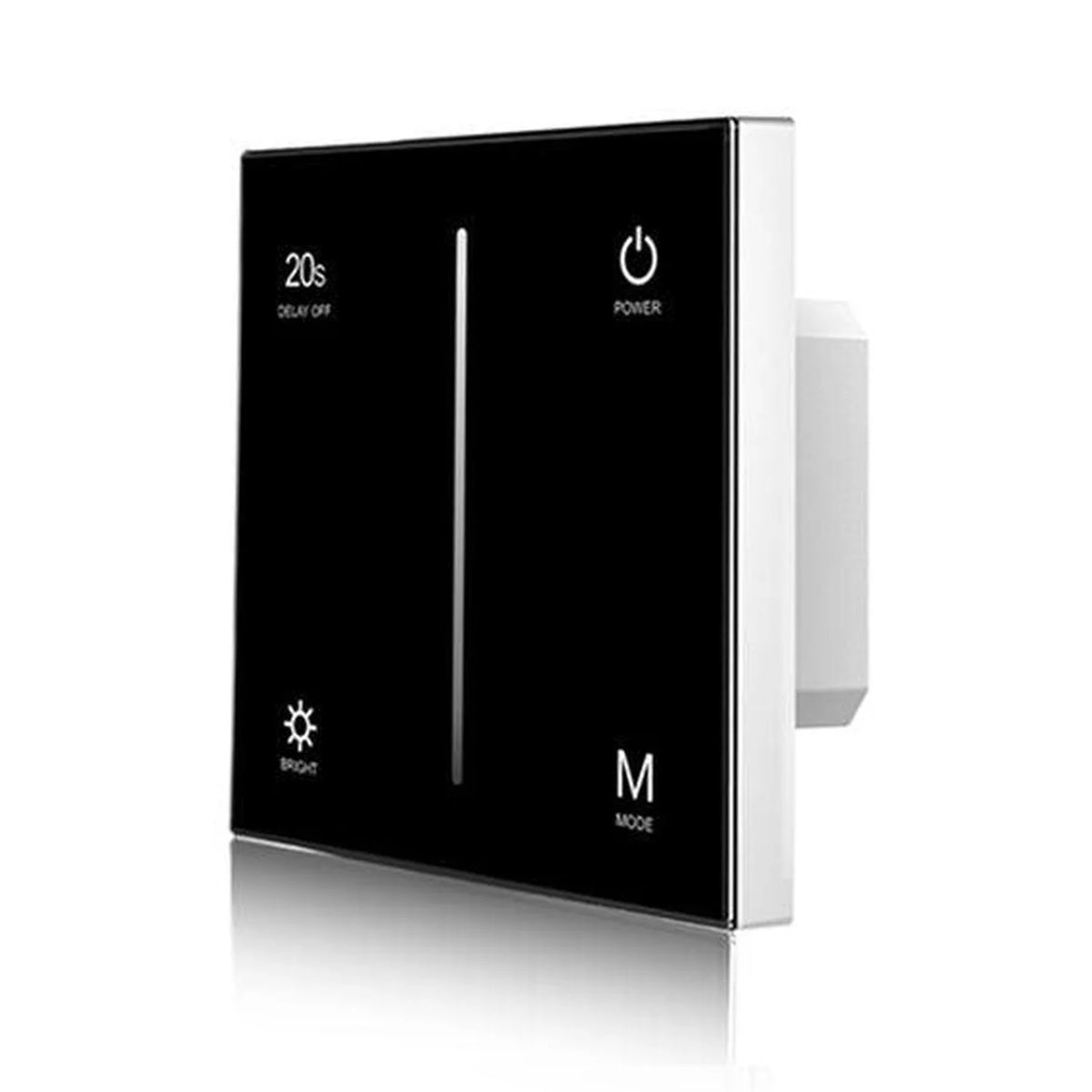

The Ledison S1-T is a black glass touch dimmer switch built around an AC Triac dimming engine, made for smooth control of dimmable LED, halogen and incandescent lighting. A tempered black glass front houses a virtual sliding bar so brightness is adjusted with a finger swipe rather than a mechanical knob.

LED touch dimmer switch features

• Touch control, capacitive slide bar with 256 dimming levels across a 0-100% range.
• Wireless RF, 2.4GHz control compatible with Skydance remotes at up to 30m.
• Dimming modes, leading edge and trailing edge dimming, selectable via internal DIP switch.
• Electrical rating, AC100-240V input and output, maximum output current 1.2A, output power 120W / 288W.
• Compatible loads, dimmable LED, halogen and incandescent lamps, or Triac dimmable LED drivers.

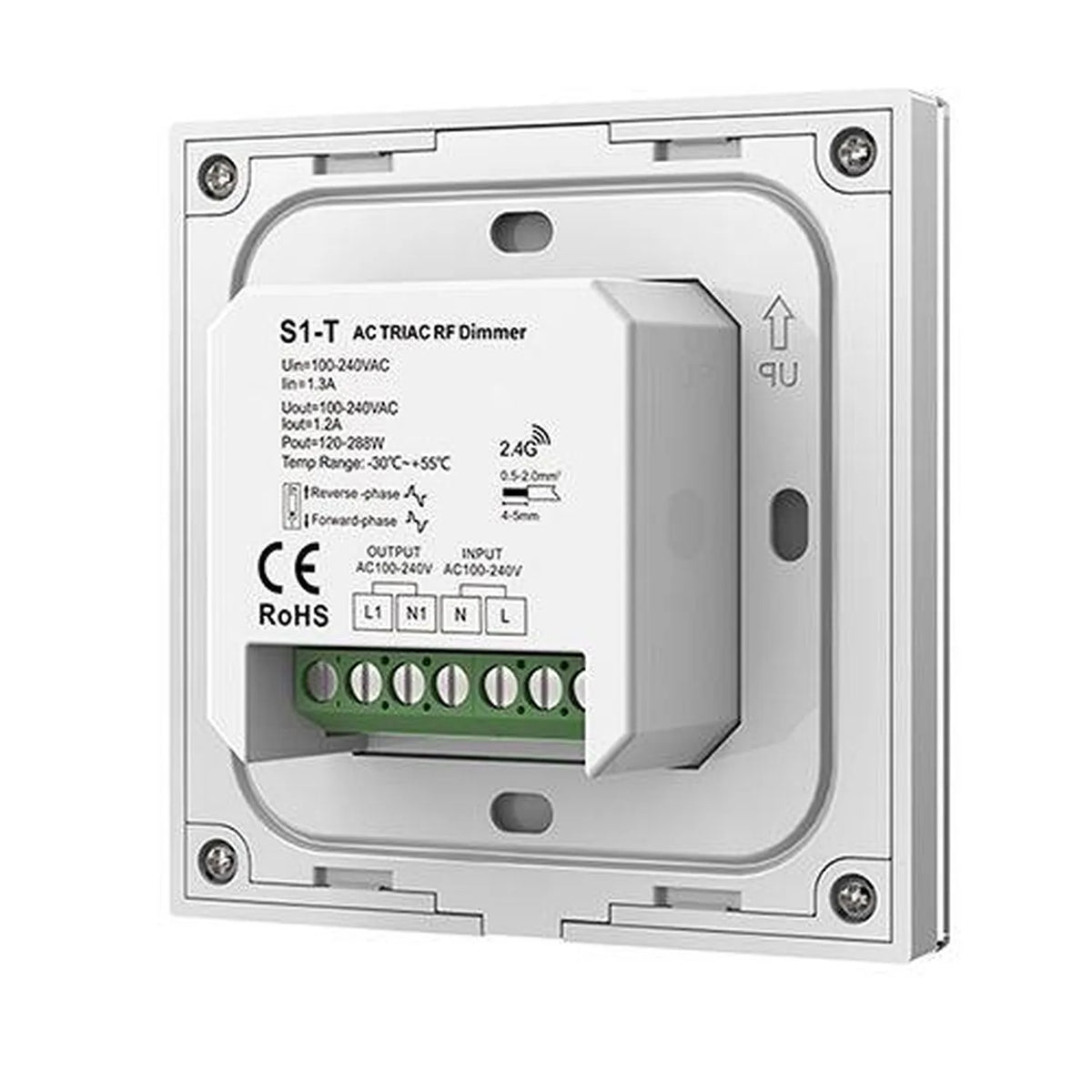

• Build, black tempered glass panel, IP20, 86 x 86 x 36.5mm, fits standard European 86-size back boxes.

Applications

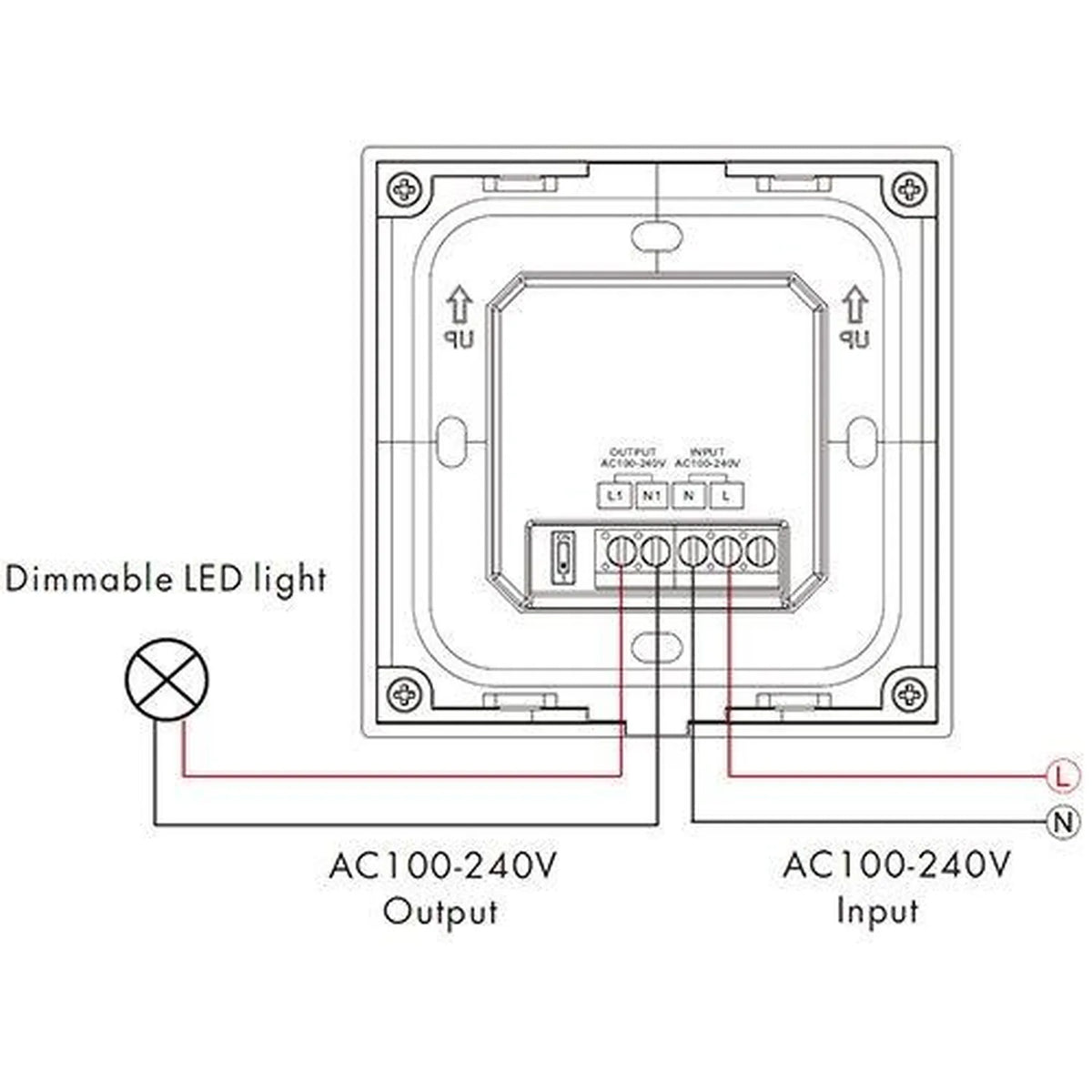

Suited to residential, hospitality and commercial interiors where a discreet black finish and touch operation suit the room. It wires directly to live and neutral supply plus LED output, and works either as a standalone wall control or paired with a compatible RF remote for whole-room dimming.

Backlit panel

The touch surface includes backlighting so the slider location is visible in low light, useful in bedrooms, corridors and hospitality settings.

Reliability and compliance

The switch is built to EN55015, EN61547 and EN61347 standards and is rated for operation from -30°C to +55°C, with a maximum case temperature of +85°C. It is backed by a 5-year manufacturer warranty.
