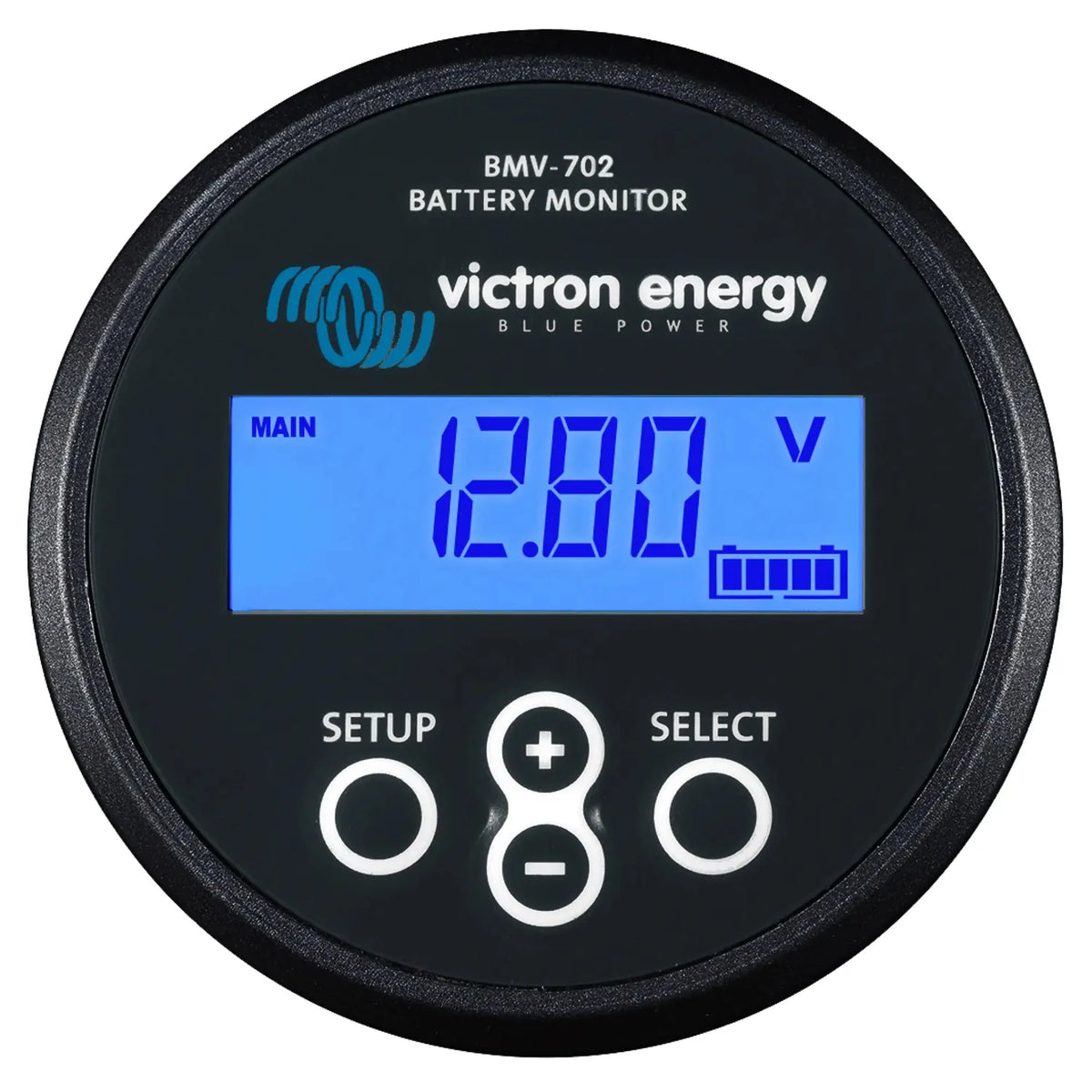

The Victron BMV-702 is a battery monitor for 12V, 24V and 48V systems, giving a live readout of state of charge, voltage, current, consumed amp-hours, power and time remaining. It suits off-grid solar, marine, motorhome and backup power setups where knowing exactly how much charge is left matters.

Key features

• Displays state of charge (%), voltage, current, consumed amp-hours, power (W) and time remaining
• Works with 12V, 24V and 48V systems, covering lead-acid (AGM, gel, flooded) and lithium batteries
• Includes a 500A/50mV shunt with 10mA resolution for accurate low-current readings
• Second voltage input for monitoring a starter battery or bank mid-point, no extra shunt needed
• Programmable relay for alarms or automatic load disconnect on configurable thresholds
• Backlit display with button navigation; no app required for everyday use
• VE.Direct port for connection to Victron GX devices and MPPT charge controllers
• Bluetooth monitoring available via the optional VE.Direct Bluetooth Smart dongle and Victron Connect app

Setup and accuracy

Getting an accurate state of charge reading depends on setting the battery capacity and charge efficiency correctly. The BMV-702 lets you adjust these, including the Peukert exponent and charge efficiency factor, so the numbers stay meaningful whatever chemistry you're running. The shunt goes on the negative conductor, with all loads and charge sources wired to its load side; get that wrong and the readings won't mean much.

Applications

Fits off-grid solar arrays, yachts with separate house and starter banks, motorhomes and campervans, backup power systems, and 48V telecom or remote site installations. On a Victron system with a Cerbo GX or Venus GX, its data sits alongside solar yield and inverter status on the same overview screen.

What's in the box

• BMV-702 display unit (black)
• 500A/50mV shunt
• 10-metre RJ12 cable connecting display to shunt
• Temperature sensor
• Mounting hardware
