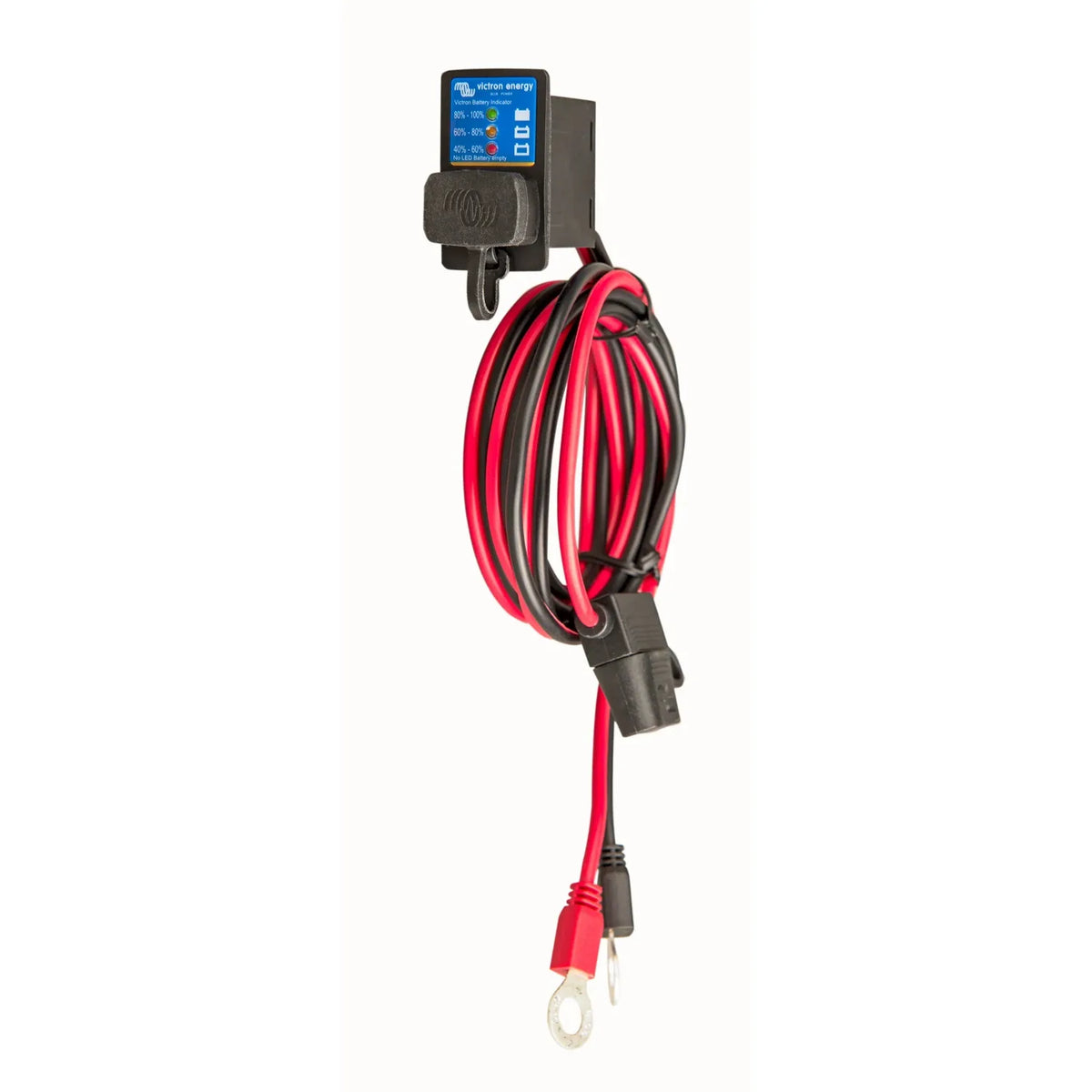

The Victron Battery Indicator Panel gives a simple visual read-out of battery state of charge for Blue Power IP65 chargers. It connects to the battery via an M8 eyelet connector and is protected by a 30A ATO blade fuse, so there's no extra wiring or interface hardware needed to add a local charge status display.

Key features

• M8 eyelet connector, bolts directly to the battery terminal for a secure, vibration-resistant termination.
• 30A ATO fuse, a standard automotive blade fuse, protecting the indicator circuit and panel wiring.
• Visual state of charge display, shows battery status directly at the panel.
• Compatible accessory, designed for use with Victron Blue Power IP65 chargers.
• Weight, 183 g, easy to fit into confined spaces.

Product overview

The M8 eyelet suits standard battery terminal bolt sizes, so there's no need for extra crimp connectors or adaptors. It holds firm under vibration, which matters on boats and vehicles. The 30A ATO fuse is a common automotive type, so replacements are easy to source from most electrical trade suppliers. Keep the fuse rating matched to the wiring gauge used in the installation, and never fit a higher-rated fuse than the cable can carry.

Applications

• Charge status display for Blue Power IP65 charger installations.
• Marine and leisure vehicle charging setups needing a local visual indicator.
• Workshop or static battery charging stations.
• Off-grid and backup power systems where charge status needs checking at the battery.

What's in the box

• 1 x Battery Indicator Panel with M8 eyelet connector and 30A ATO fuse.

Installation notes

Fit the M8 eyelet to a clean, corrosion-free terminal and torque it to the terminal manufacturer's specification. Check the wiring between panel and battery is rated for at least 30A continuous current before connecting. Replace a blown fuse only with one of the same rating, never a higher one.
