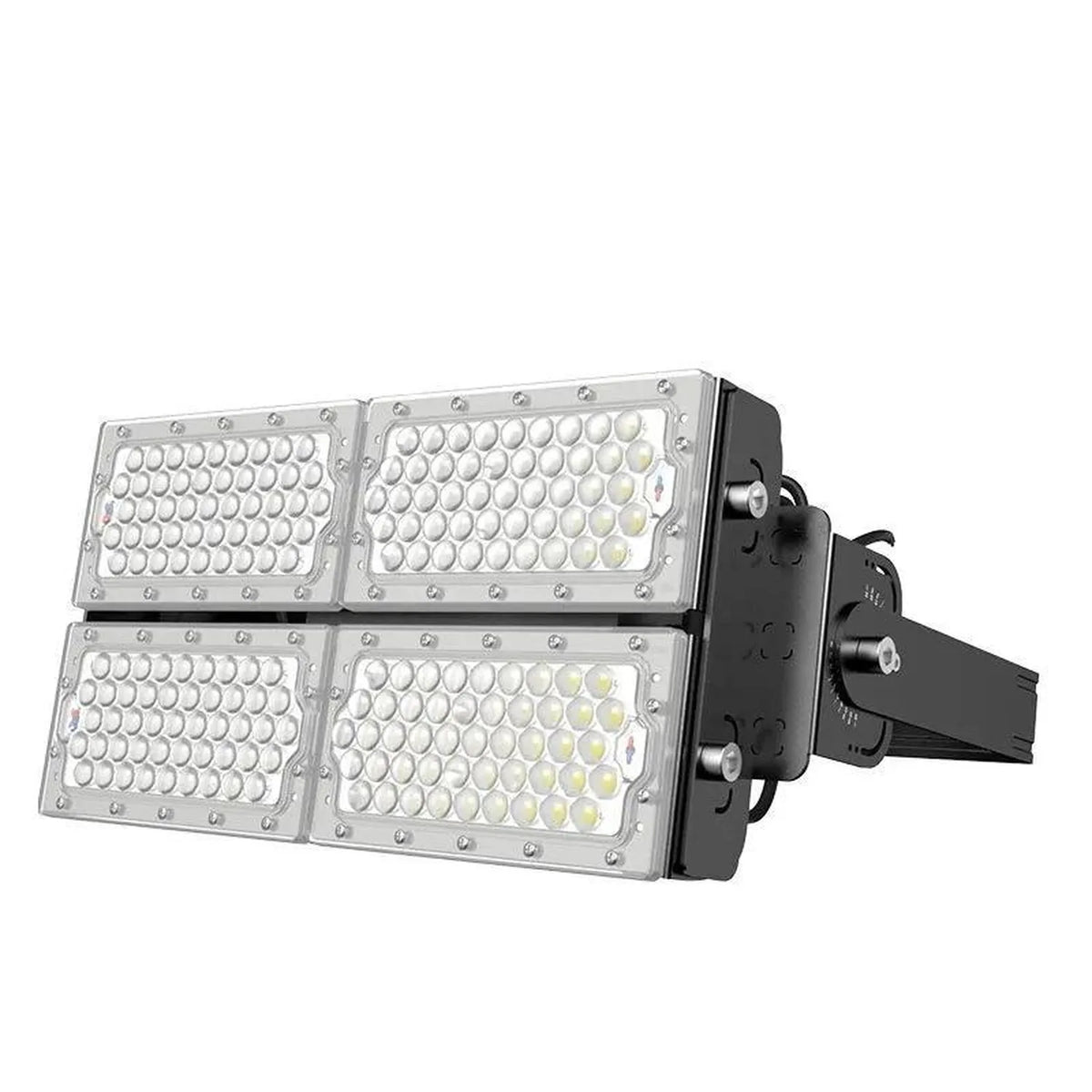

The Athled 300W LED Flood Light is built for tennis courts, sports grounds and other large outdoor areas that need strong, even light. It produces 45,000 lumens at an efficacy of 150 lm/W, running on the T300A modular platform (model CO-T300A-300W).

LED flood light for tennis court use

Uniform coverage matters on a court, where shadows and dark patches affect play. The optical system spreads light evenly across the surface while cutting stray light spill, which also suits warehouses, loading yards and other commercial sites.

Adjustable modular design

Each LED module rotates up to 180°, and the mounting bracket adjusts through 360°, so installers can aim the fitting precisely once it's in position. A replaceable lens system supports beam angles of 45°, 75° and 120° for narrow-beam or wide-area setups.

Key features

• Luminous flux, 45,000 lumens ±5%
• Efficacy, 150 lm/W ±5%
• CRI, Ra >70 / >80
• Colour temperature, 2700K to 6500K
• Input voltage, 100-240VAC / 277VAC, 50/60Hz
• Power factor, >0.95
• IP rating, IP65
• Operating temperature, -40°C to +60°C
• Service life, 50,000+ hours
• Warranty, 5 years

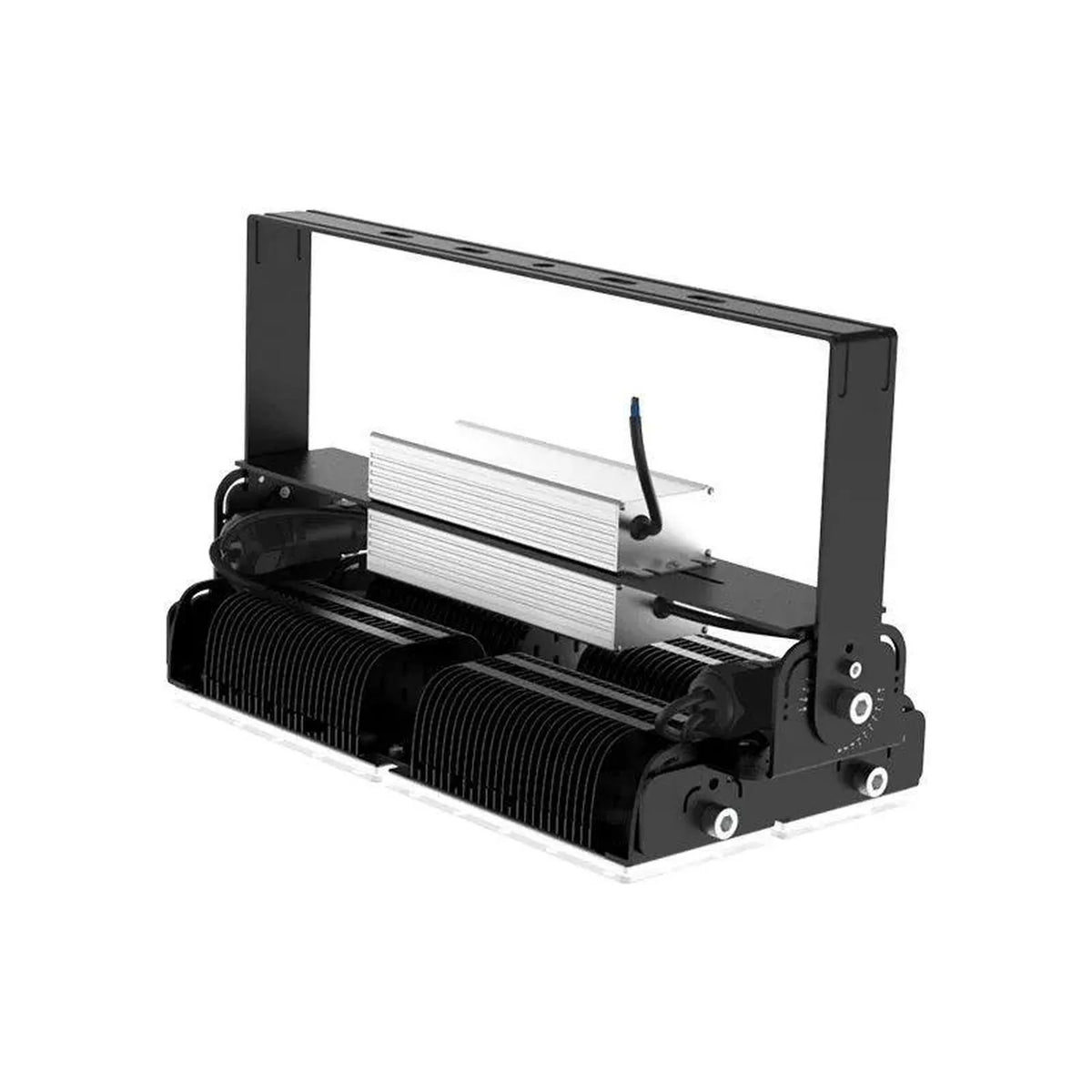

Build and dimensions

An aluminium cooling fin heat sink handles heat dissipation, and each unit is tested for water resistance, vibration, temperature extremes and corrosion. Dimensions are 488 × 210 × 274mm, weight 6.3kg ±5%.

Applications

Suited to tennis courts, football pitches, industrial yards, logistics depots and other large commercial areas needing IP65-rated outdoor lighting with adjustable beam options.
