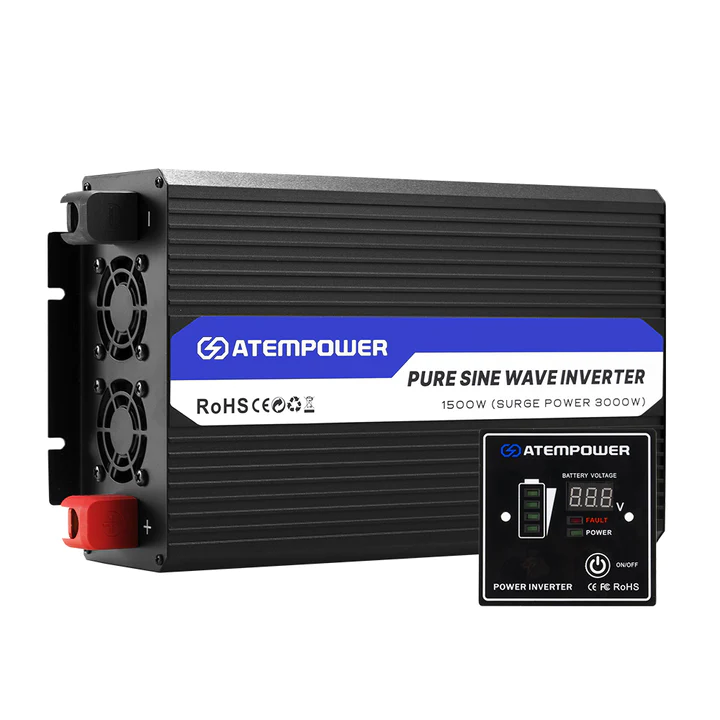

1500W continuous / 3000W peak pure sine wave inverter for suitably matched 12V caravan, 4WD, boat and off-grid battery systems. This ATEM POWER model provides two Australian 240V outlets, a USB port and a wired LCD remote for convenient monitoring and control.

Key specifications

• Continuous output: 1500W
• Peak output: 3000W
• Input: 12V DC
• Output: 240V AC ±5%
• Frequency: 50Hz
• Waveform: pure sine wave
• Total harmonic distortion: 3% or less
• Maximum listed efficiency: 90%
• Static current: 0.6A or less
• Two Australian-standard AC sockets
• USB output: 5V, 2.1A
• Wired LCD remote with 4.5m cable
• Low-voltage alarm: 10.5V ±0.5V DC
• Low-voltage protection: 9V ±0.5V DC
• High-voltage protection: 15.5V ±0.5V DC
• Operating temperature: -10°C to 40°C
• Mounting points: 300 × 110mm
• Package size: 430 × 220 × 140mm
• Gross weight: 3.42kg

Battery and appliance matching

The 1500W figure is the continuous output; 3000W is the short-duration peak rating. Add the running wattage of appliances that may operate together and check any start-up surge from motors or compressors. At full continuous load, this inverter can draw roughly 140A from a 12V battery system after typical conversion losses.

Confirm that the battery or battery bank, BMS, cables, fuse, isolator and connections can safely supply the required current. Battery chemistry compatibility does not guarantee that every battery has a sufficient discharge rating. Check the battery manufacturer’s limits before use.

Installation and protection

The aluminium housing contains two temperature-controlled cooling fans. Built-in protection functions cover under-voltage, over-voltage, overload, over-temperature and short circuit conditions. Mount the inverter in a dry, ventilated location, keep DC cable runs short and follow the supplied manual for cable and fuse requirements. Permanent or high-current installations should be completed by a suitably qualified person.

Download the ATEM POWER user manual.

Compare the 2500W continuous inverter, or browse all 12V pure sine wave power inverters. Explore lithium batteries and AGM deep-cycle batteries when planning the complete battery system.

Frequently asked questions

Is this inverter 3000W continuous?

No. Its stated continuous output is 1500W; 3000W is the peak rating.

Can it run a fridge or other motor-driven appliance?

It may be suitable when both the appliance’s running demand and start-up surge remain within the inverter’s ratings and the battery system can supply the required current. Check the appliance specifications before purchase.
