Adventurer Li- 30A PWM Flush Mount Charge Controller w/ LCD Display
£44.00
Sale price
£44.00
Regular price
£63.00
Skip to product information
Adventurer Li- 30A PWM Flush Mount Charge Controller w/ LCD Display
£44.00
Sale price
£44.00
Regular price
£63.00
Shipping calculated at checkout.
RNG-CTRL-ADV30-LI-US
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description
The new and improved Renogy Adventurer-Li adds two great features. The first is Lithium battery charging capability. The programmable Lithium charging voltage allows the Adventurer-Li to charge most Lithium batteries on the market. The second is the RS232 port that is used to communicate with the new Renogy BT-1 Bluetooth module. The Bluetooth module will be used to pair the Adventurer-Li with the upcoming Renogy APP. The Renogy Adventurer-Li is a 30A PWM solar power charge controller that is designed to be used with 12V or 24V photovoltaic systems. This advanced negative-ground controller is designed for aesthetically clean flush mounting on RV or camper walls, however if flush mounting does not appeal to you, the included Adventurer-Li Surface Mount Attachment give you the option to forget it. Integrating highly efficient PWM charging, the Adventurer-Li increases battery longevity by regulating the charge flowing from the solar panels to the battery bank. It features an LCD screen for displaying system operation information and data, and allows for full control of parameter settings. This charge controller comes equipped with a fully comprehensive self-diagnostic system and electronic protection functions to prevent damage from installation mistakes or system faults.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features
Unique
- Unique USB port on the front display
- The only Renogy controller with flush mount capabilities.

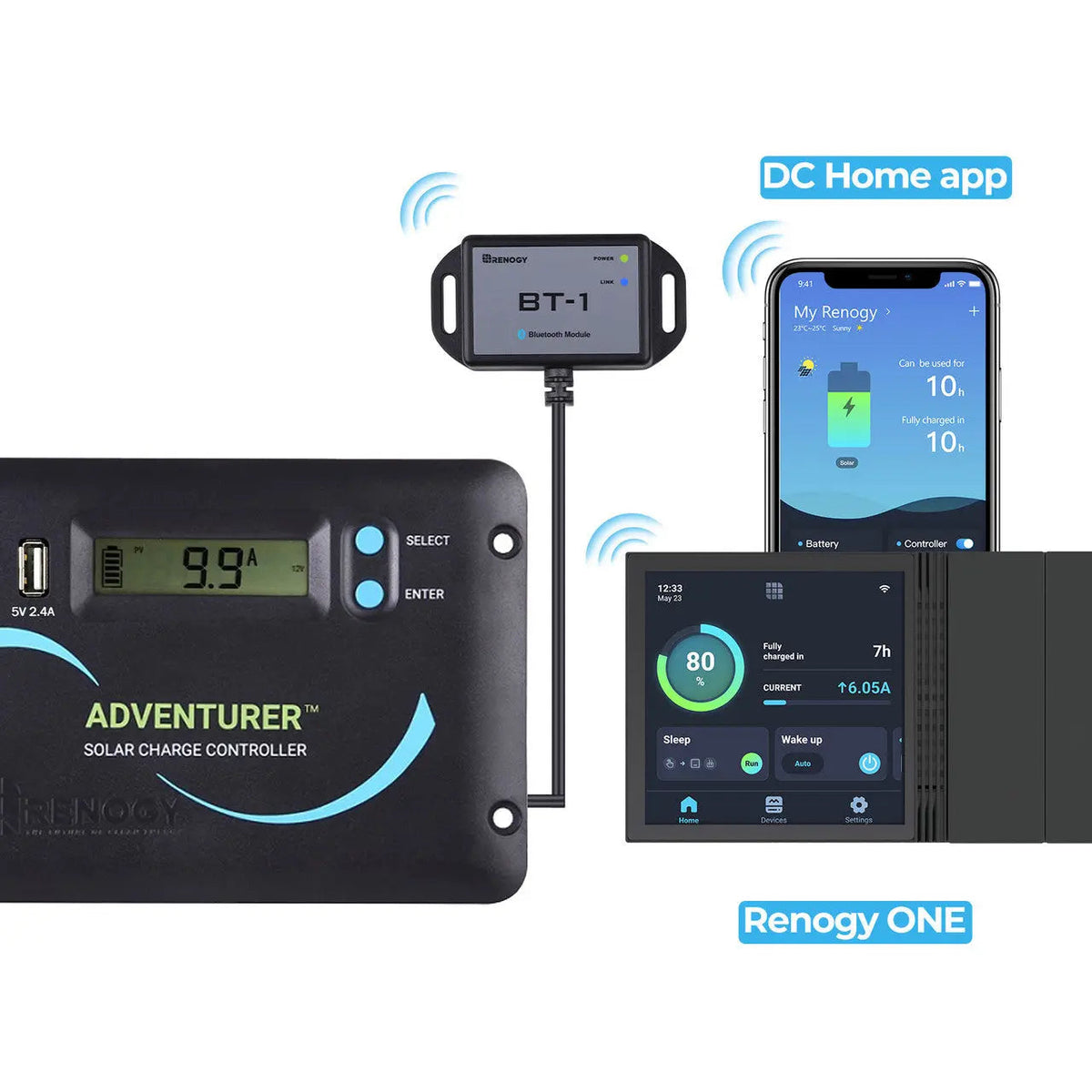

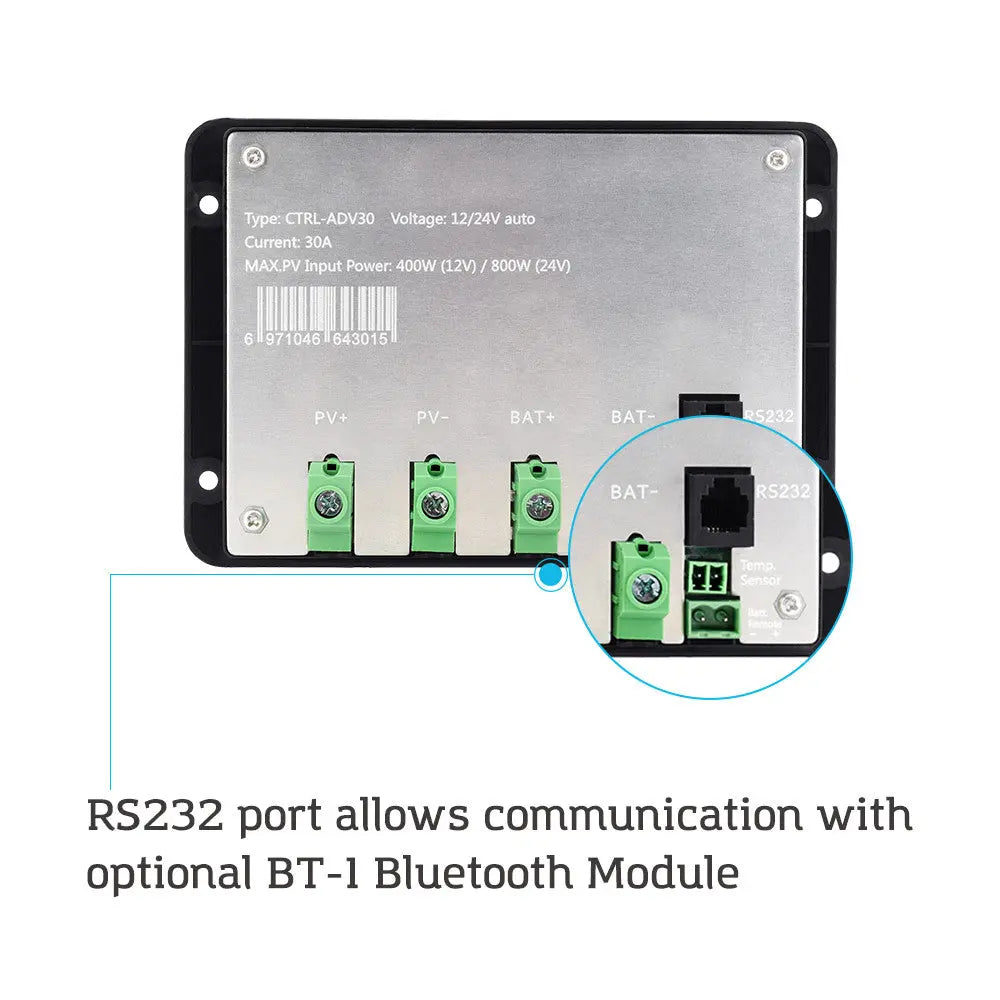

- RS232 port allows communication with the BT-1 Bluetooth module and the Renogy DC Home App.
- Negative-ground controller
- Protection against: overcharging, overload, short-circuit, and reverse polarity
- 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) prevents batteries from over-charging and over-discharging
- 12V and 24v compatibility

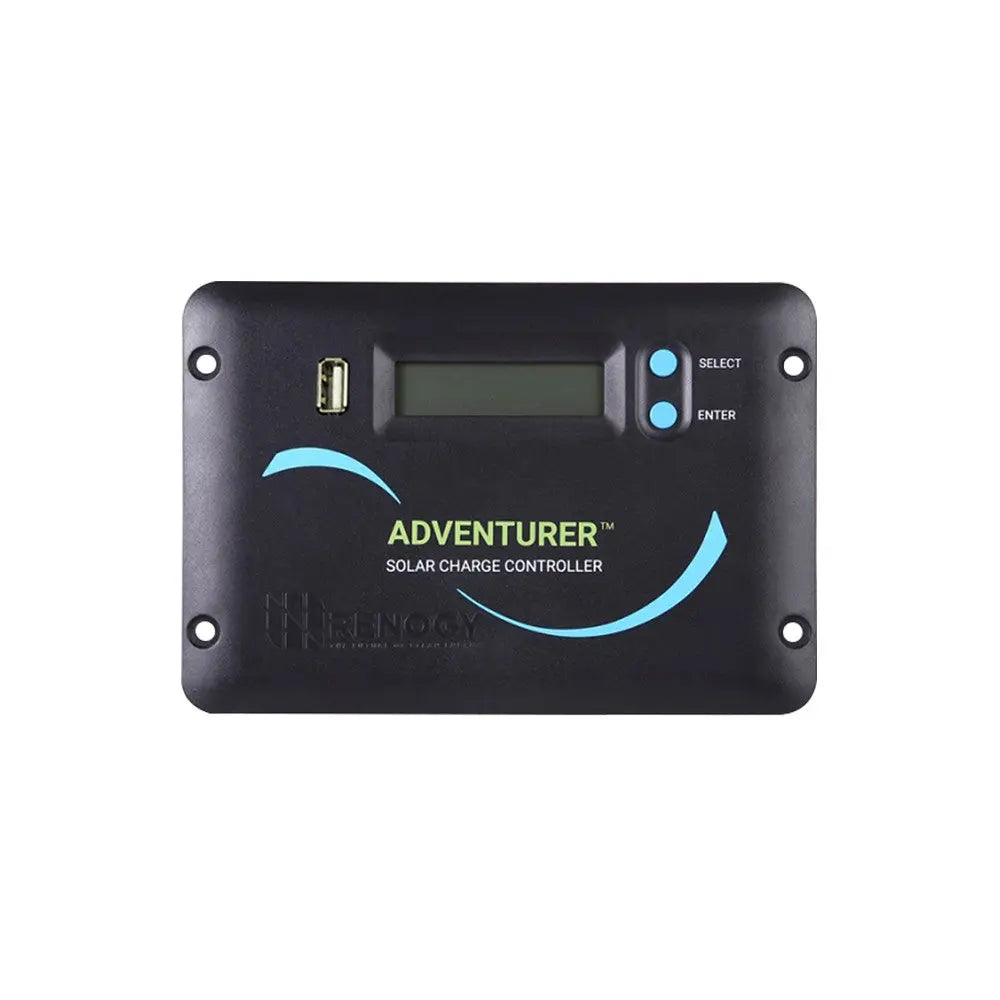

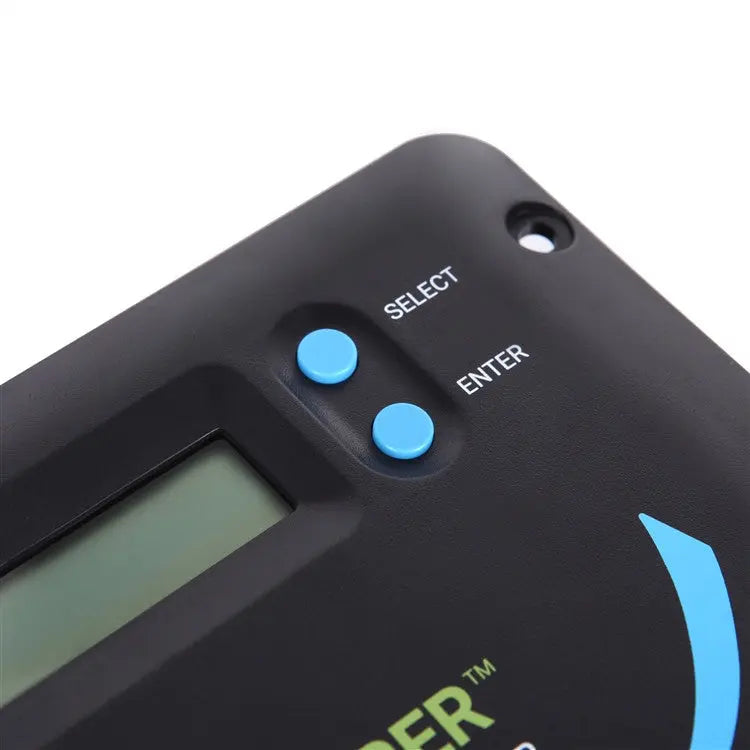

- LCD screen for displaying operating information and data
- Compensates for temperature, automatically corrects charging and discharging parameters, and improves battery longevity
- Compatible with Sealed, Gel, Flooded and Lithium batteries

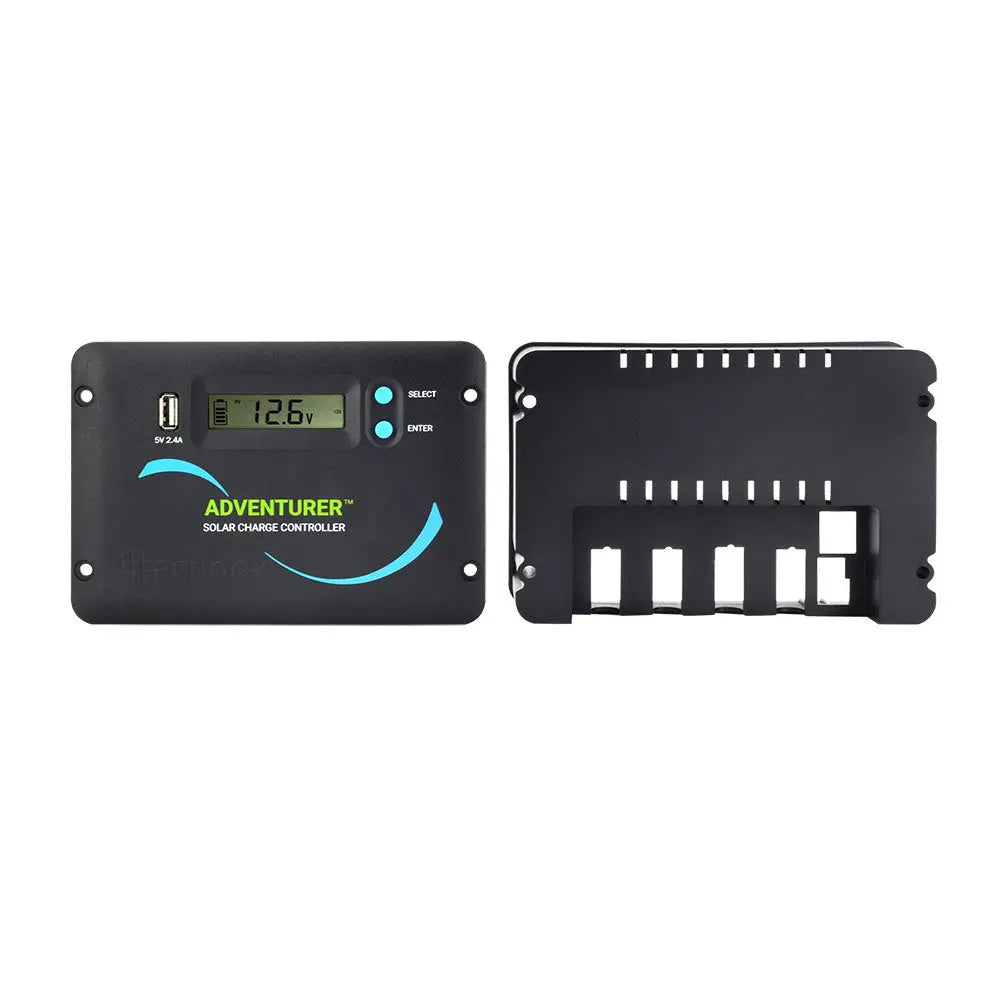

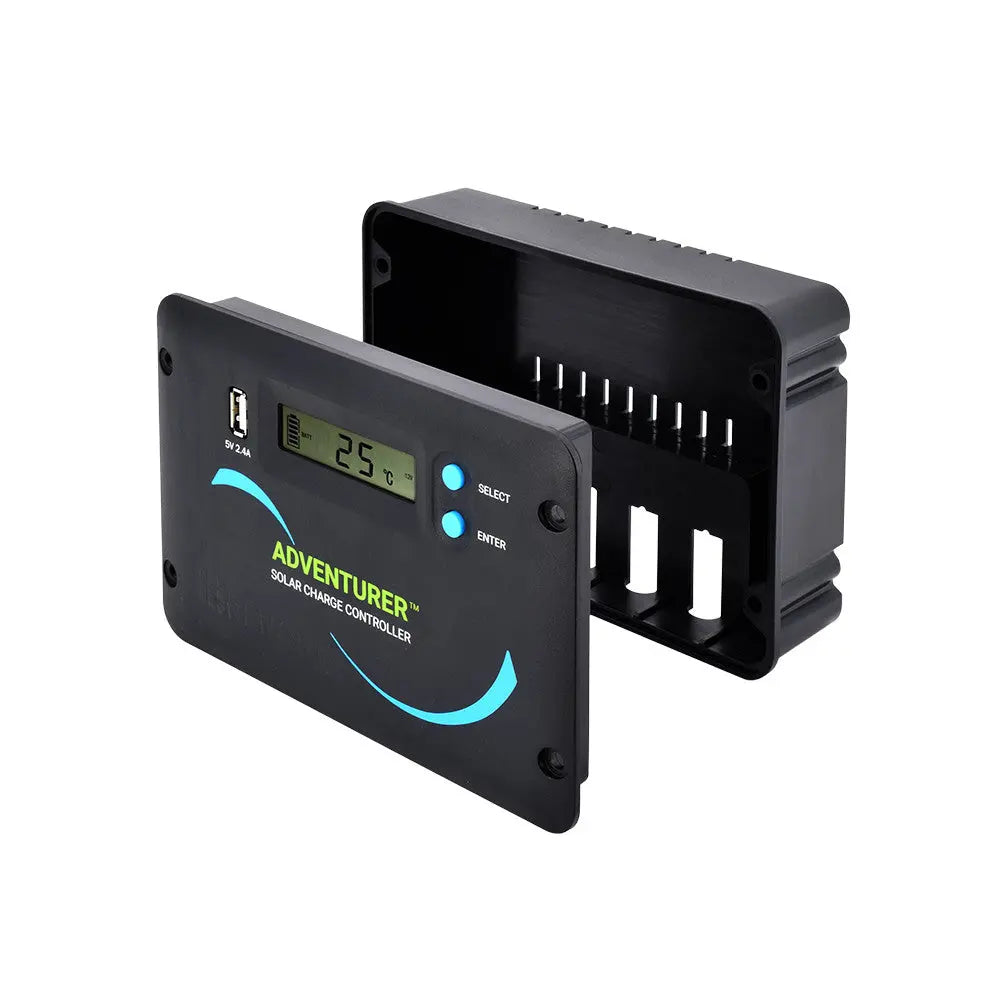

- The included Adventurer Surface Mount allows for versatility in mounting
Package Includes
| Renogy Adventurer Li 30A PWM Charge Controller
1 x | Renogy Adventurer Box
1 x |
| Renogy 30A PWM Flush Mount Charge Controller | |
|---|---|
| Nominal Voltage: 12 VDC/ 24 VDC | USB Output: 5V, 2.4A Max |
| Rated Charge Current: 30A | Max. PV Input Voltage: 50 VDC |
| Equalization Voltage: Sealed: 14.6 V; Gel: None; Flooded: 14.8 V | Boost Voltage: Sealed: 14.4 V; Gel: 14.2 V; Flooded: 14.6 V; Lithium: 14.2 V |
| Float Voltage: 13.8 V | Max. PV Input Power: 12V(400W) / 24V(800W) |
| Self-consumption: ≤13mA | Temperature Compensation Coefficient: -3mV/°C/2V |
| Operating Temperature: -13°F to 131°F | Storage Temperature: -31°F to 176°F |
| Enclosure: IP20 | Dimensions: 6.56 x 4.50 x 1.90 inches |

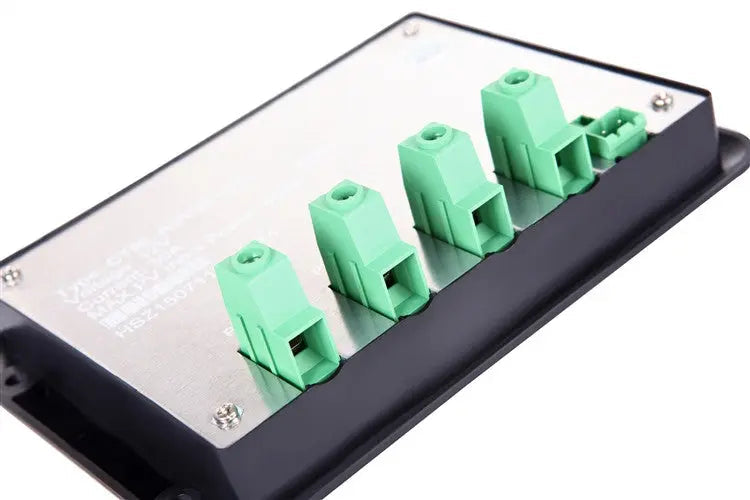

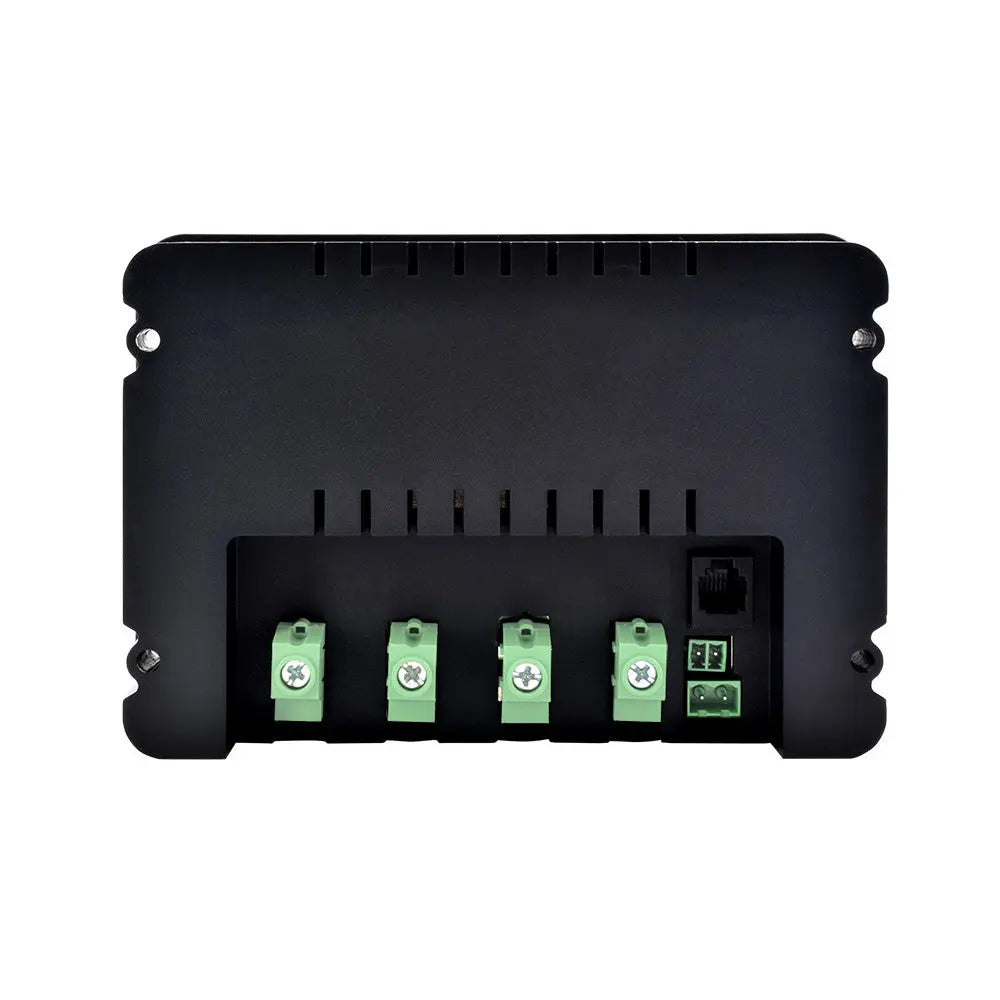

| Terminals: Up to 8 AWG | Weight: 0.6 lbs |
| Certification: CE | Compatible bluetooth: Renogy BT-1 Bluetooth module |
Warranty Information
| Accessories | 1-year material and workmanship warranty |
| Charge Controllers | Adventurer |
 | |||
 | |||
| Please click the links below to download Manual: | |||
| Renogy BT-1 Bluetooth Module | |||
| Renogy DC-Home App for Renogy products with communication ports | |||
