This adjustable solar panel mounting bracket is built for trapezoidal and sandwich panel metal roofs, letting you fix aluminium mounting rails without drilling through the roof sheet. It is made from SUS304 stainless steel with an anti-corrosive surface treatment and supplied as a complete set with screws, EPDM washer, rail nut and bolt.

Key features of this adjustable solar panel mounting bracket

• Material, SUS304 stainless steel construction throughout

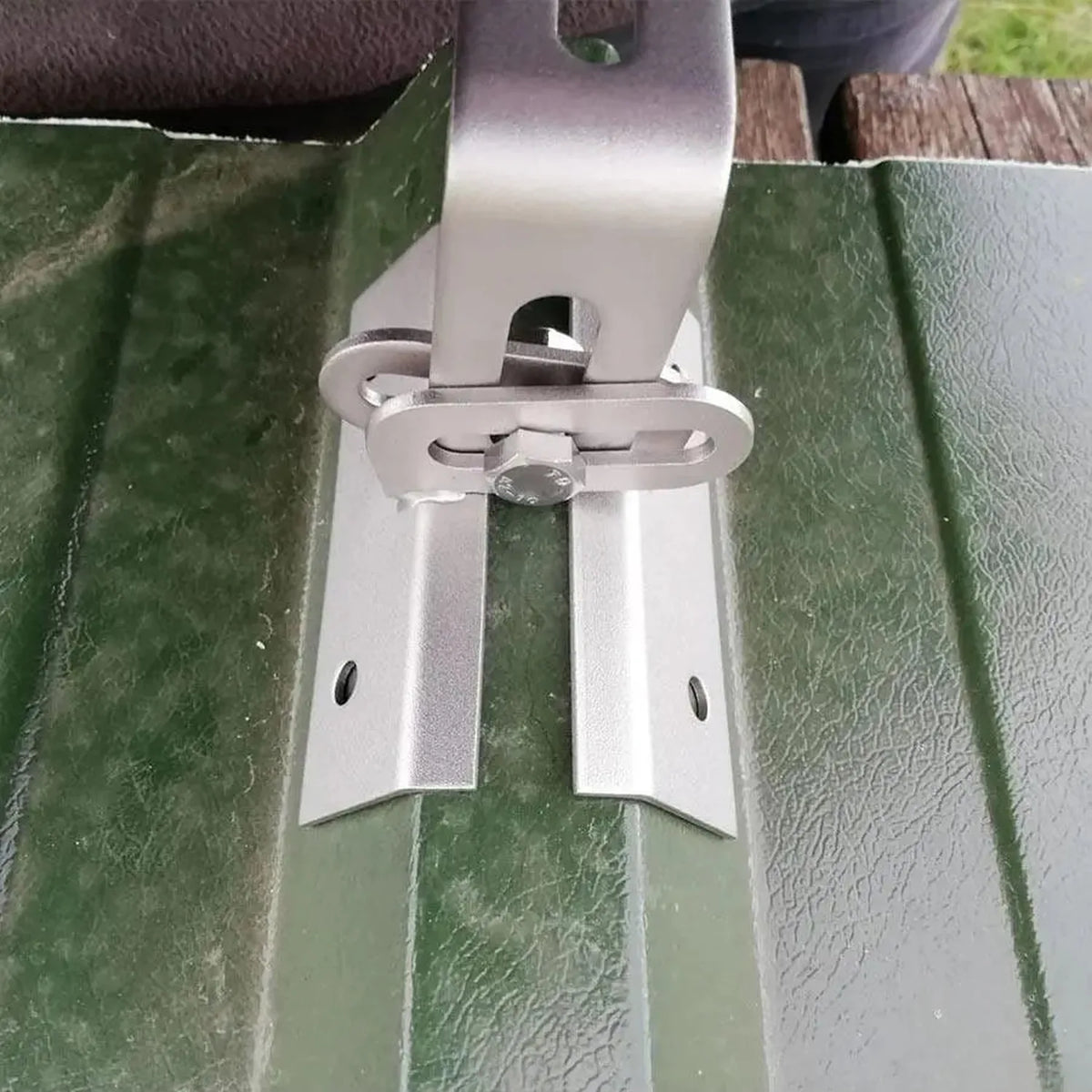

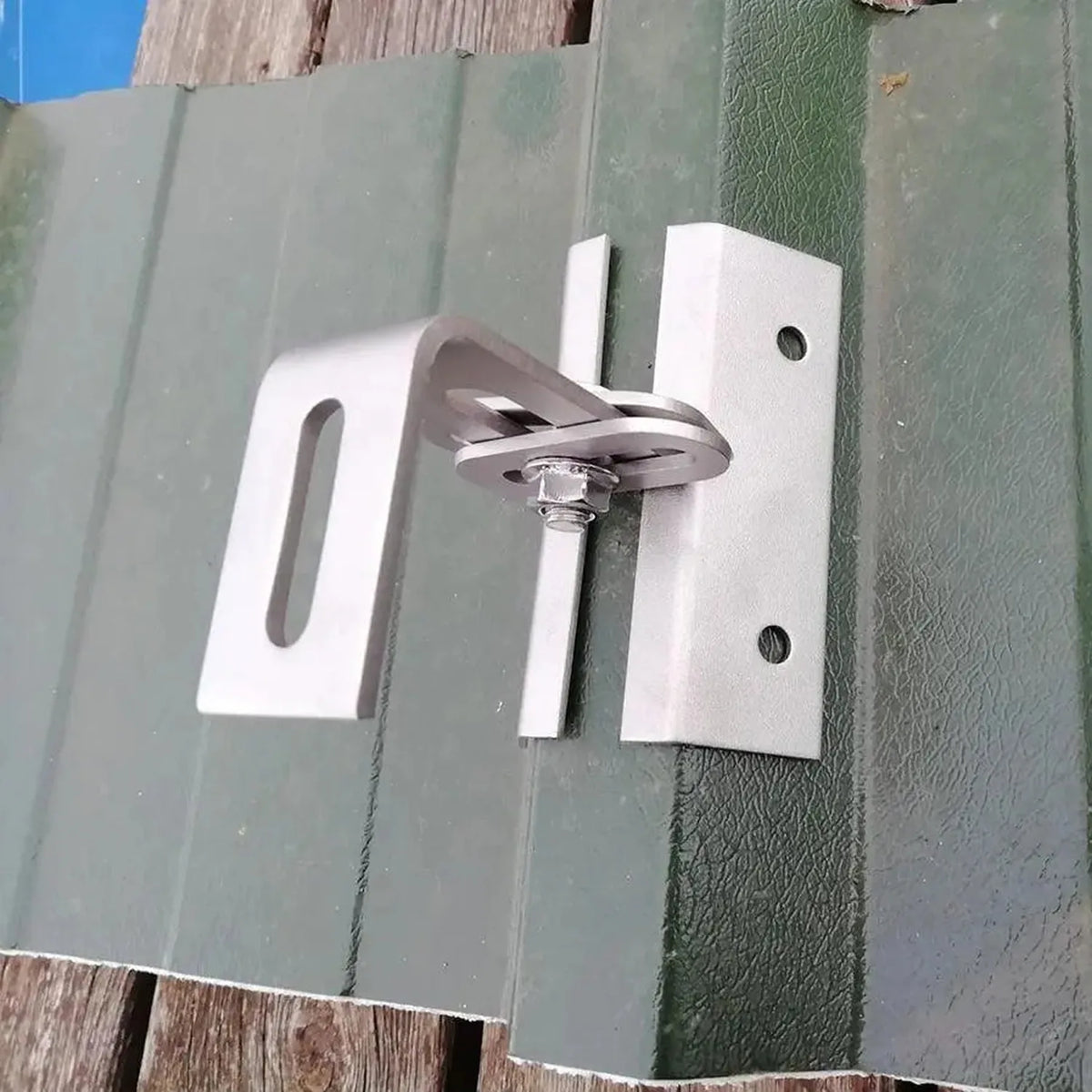

• Adjustable ends, two adjustable ends conform to the raised rib profile of trapezoidal roof sheets for a tight fit
• Weatherproofing, EPDM washer beneath the fixing screw seals the penetration point
• Rail orientation, mounts aluminium rails horizontally or vertically
• Complete set, includes bracket, fixing screw, EPDM washer, M8 bolt, rail nut and washer

Applications

Designed for the Easy-Click style of metal roof attachment, this bracket suits solar PV installations on trapezoidal and sandwich panel roofing found on agricultural buildings, industrial units and commercial premises. It works on any raised-rib metal roof profile where a non-penetrating rail attachment is needed.

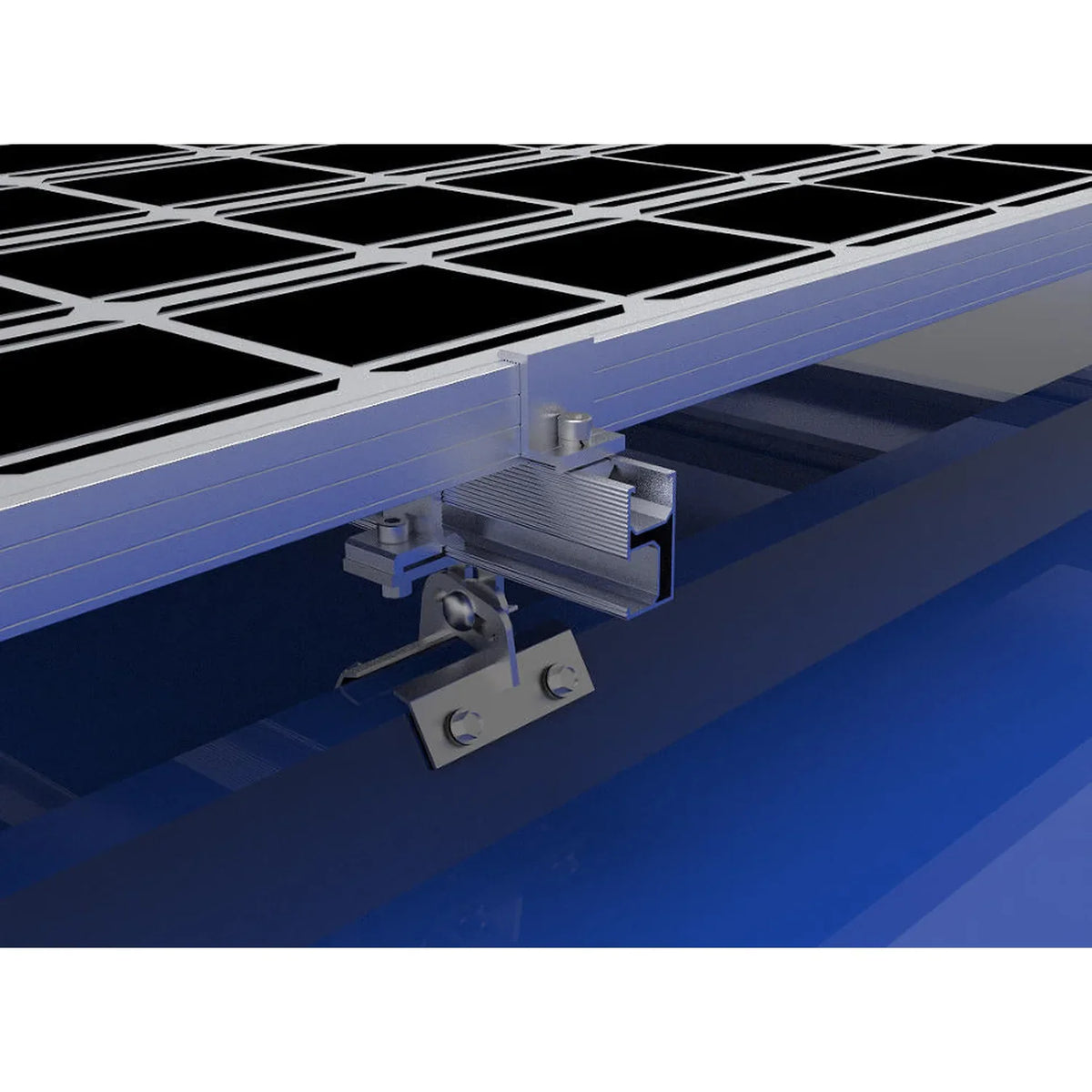

Completing the mounting kit

End clamps, middle clamps and 1.2m aluminium rails are needed alongside these brackets to build a full solar panel rail mounting system.

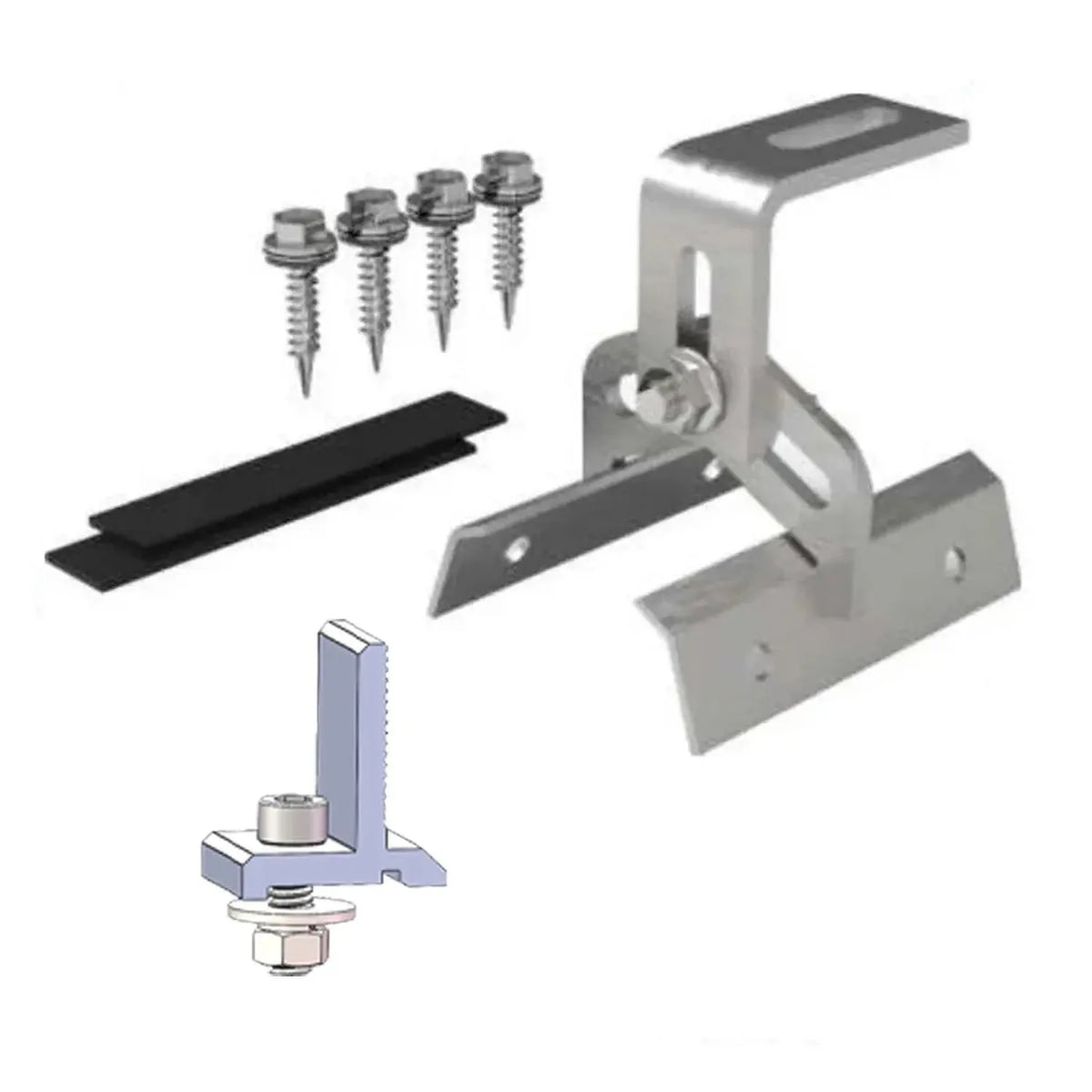

What's included

• 1x SUS304 stainless steel adjustable bracket
• 1x SUS304 Phi 6.3 x 25mm fixing screw
• 1x EPDM weatherproof washer
• 1x M8 x 25mm SUS304 bolt with rail nut and washer

Installation and safety notes

Metal roof solar panel mounting systems should be designed and fitted by a qualified solar installer or roofing contractor. Check the roof's load capacity before fitting, and make sure every penetration point is sealed properly to keep the roof waterproof.
