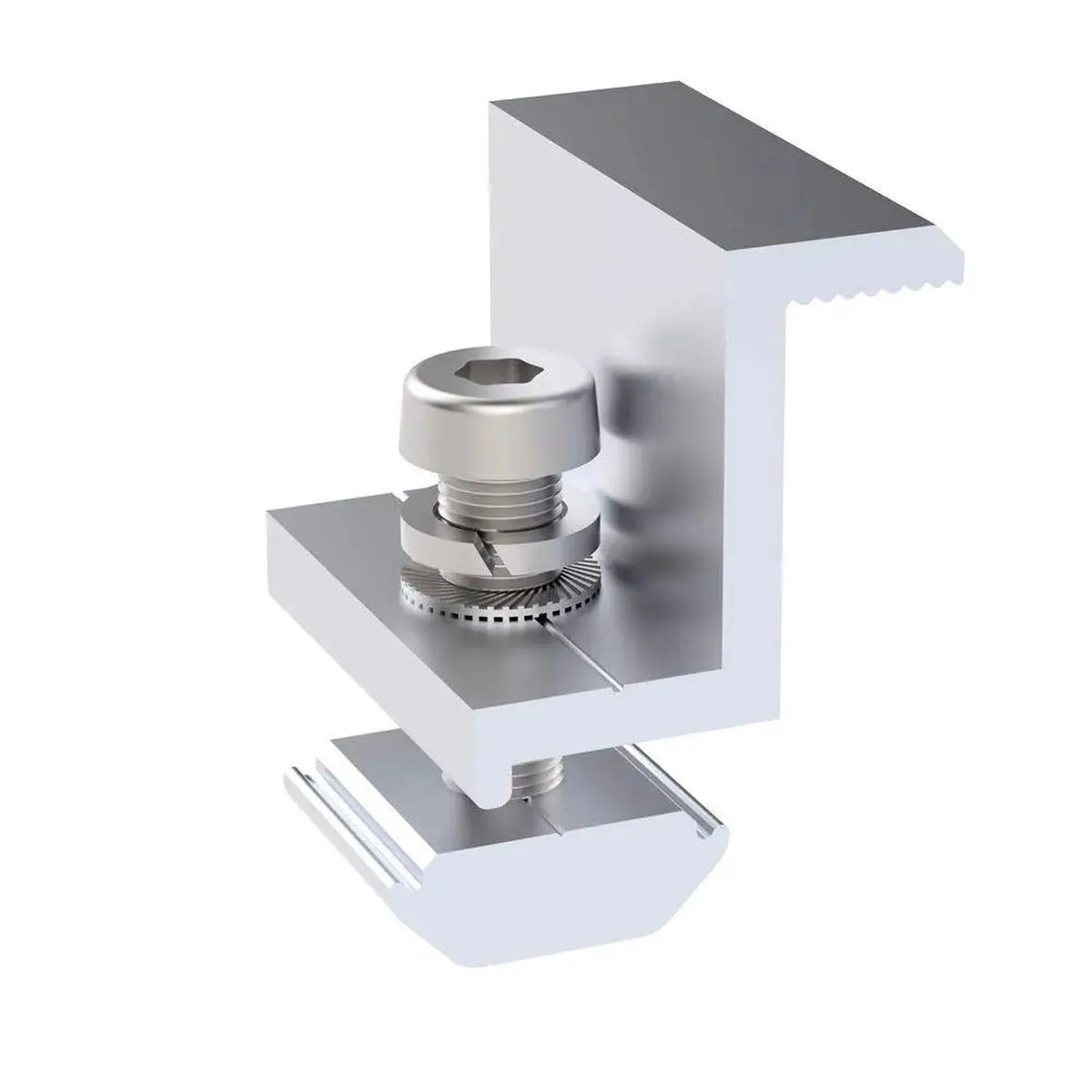

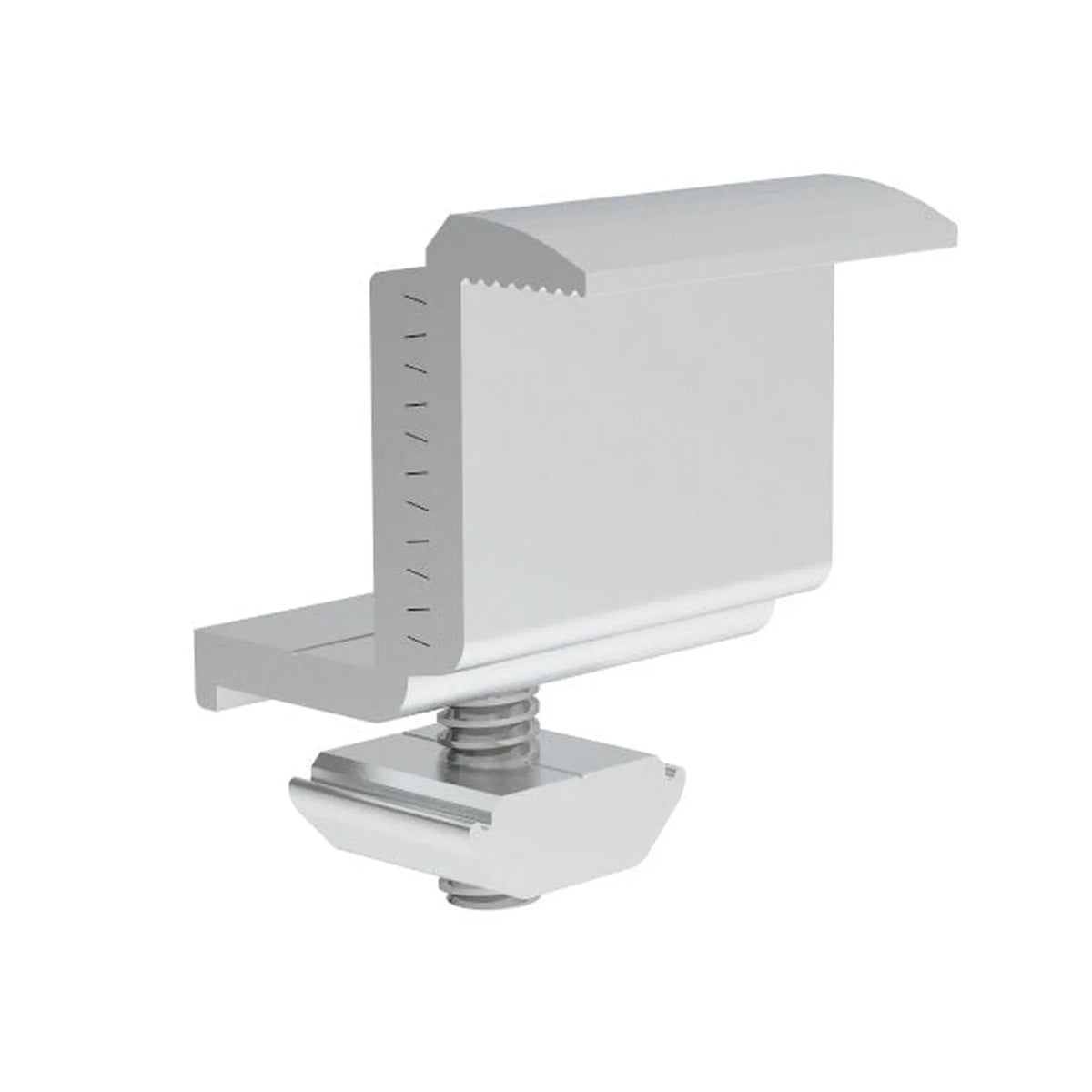

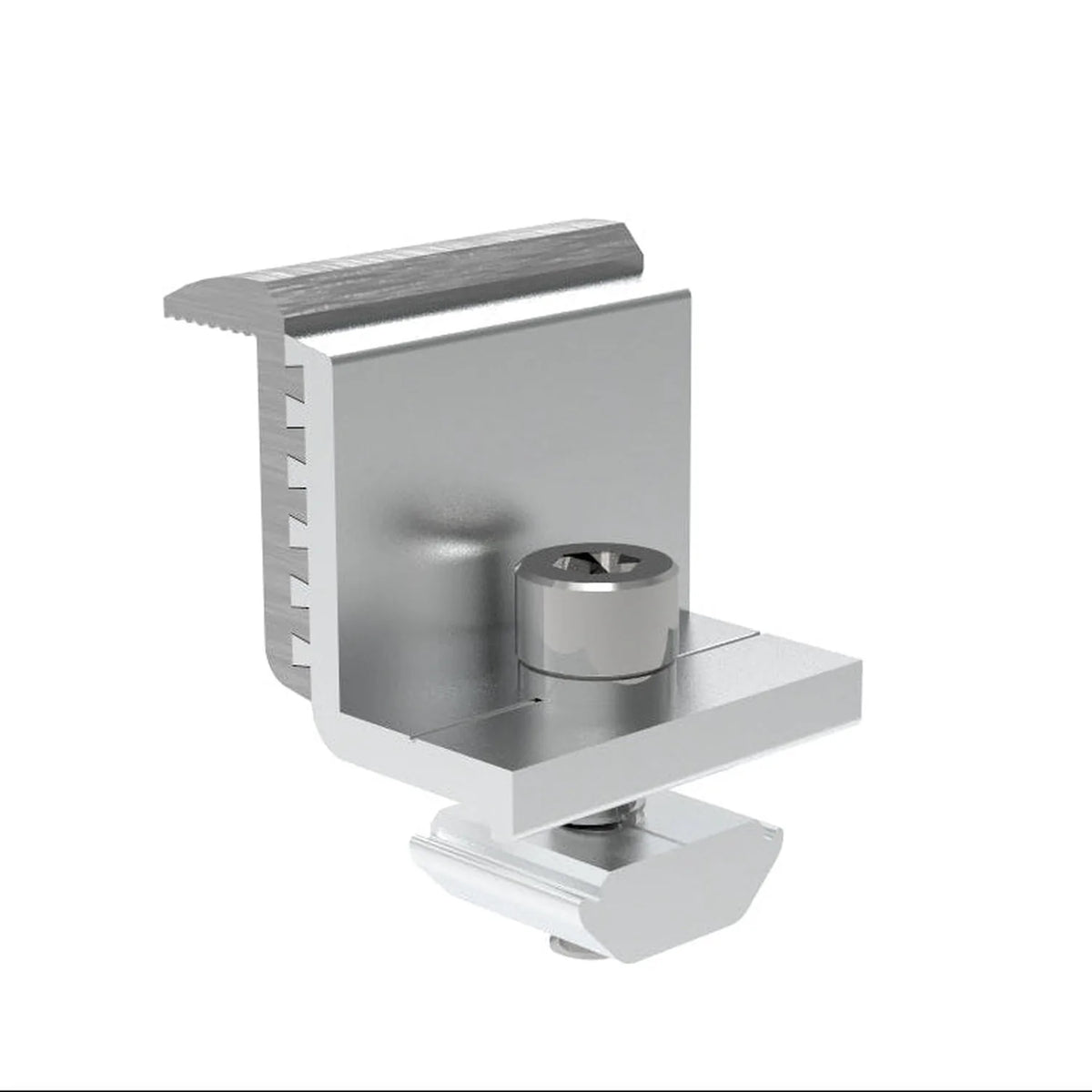

An adjustable aluminium end clamp for fixing the outer edge of solar panels to a mounting rail. The Z-shape body suits panel frames from 30mm to 45mm thick, so one clamp covers most standard aluminium-framed panels rather than needing a size-specific part. Sold per unit, with a stainless steel Allen bolt and washer included.

Key features of this solar panel mounting rail end clamp

• Adjustable range, 30mm to 45mm panel frame thickness
• Profile, Z-shape aluminium body
• Hardware included, stainless steel A2 Allen bolt and washer

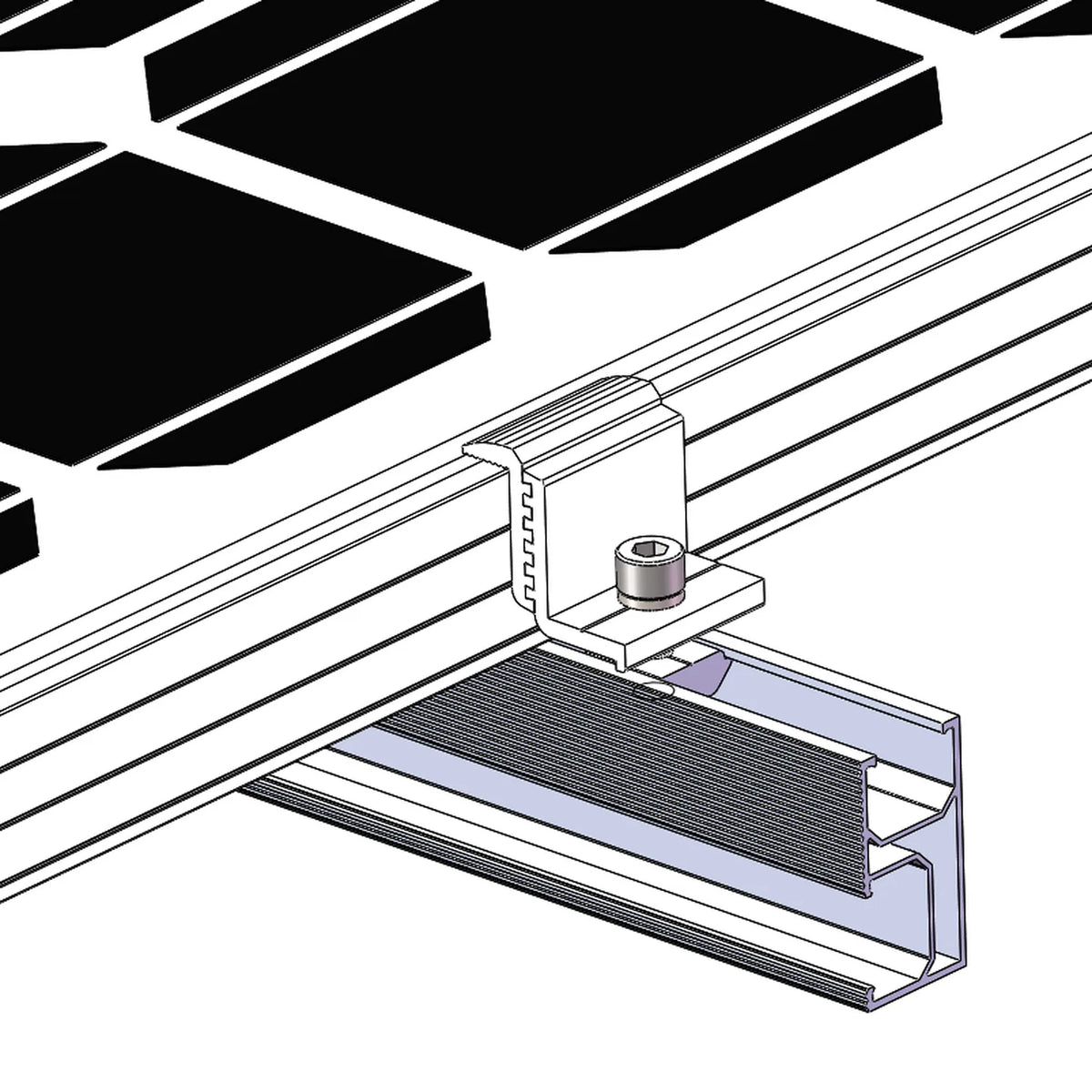

• Position on rail, used at the outer edge of a panel row to secure the first and last panel
• SKU, ING-ASEC
• Sold as, per unit

Applications

Fits residential and commercial rooftop solar PV installations using a standard aluminium rail mounting system. Works with panels in either portrait or landscape orientation, wherever an end clamp rather than a mid clamp is needed.

Installation notes

Fitting should be carried out by a qualified solar installer. Torque all fixings to the level specified by the mounting system manufacturer, and position the clamp so it does not sit over the active cell area of the panel frame.
