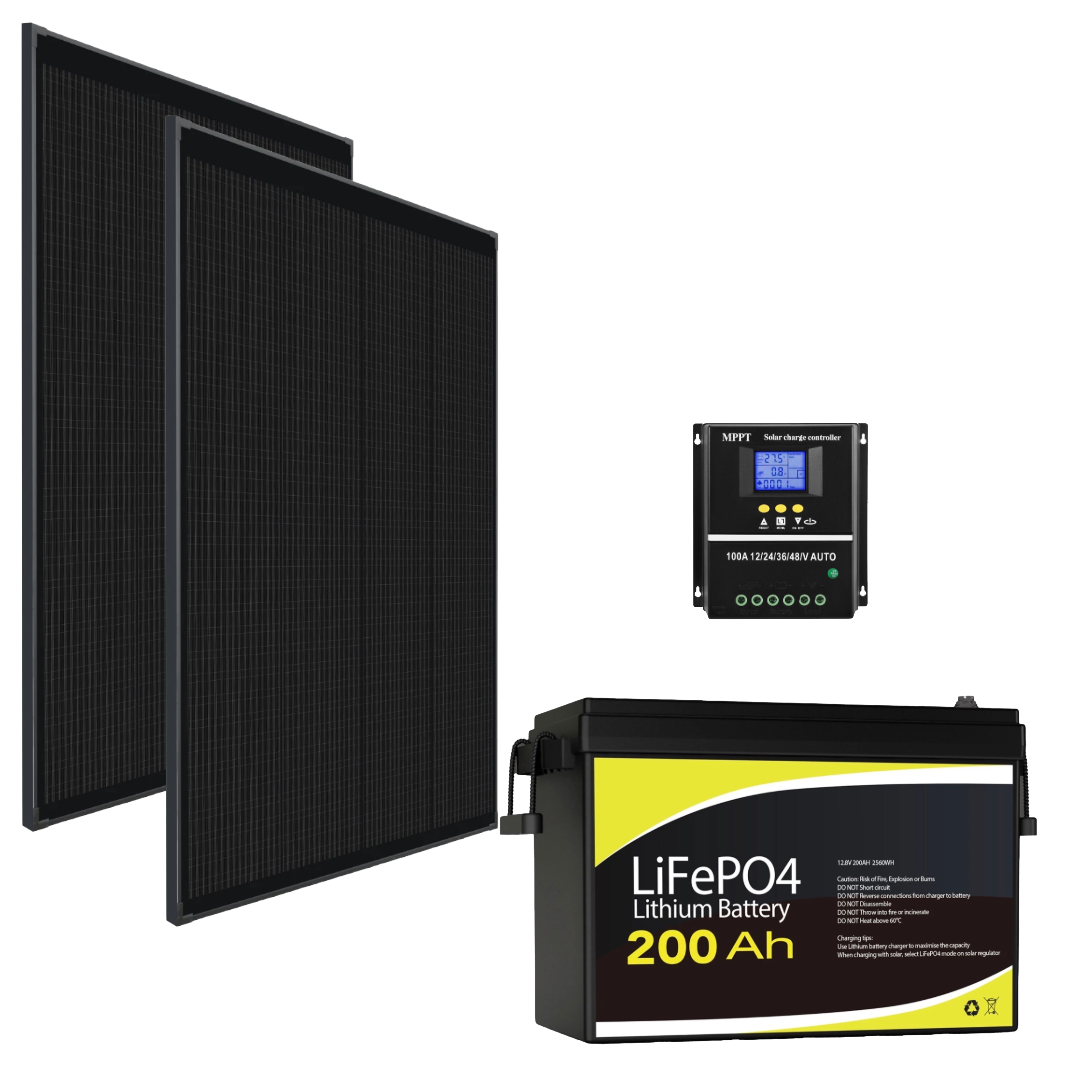

Harness reliable off-grid energy wherever you travel with this complete 800W 12V solar kit, combining two 400W 12V shingled monocrystalline panels, a Gentrax 200Ah LiFePO₄ battery, and a 100A MPPT solar charge controller. Designed for caravans, motorhomes, 4WDs, and off-grid cabins, this setup provides dependable power for lighting, fridges, pumps, tools, and inverters.

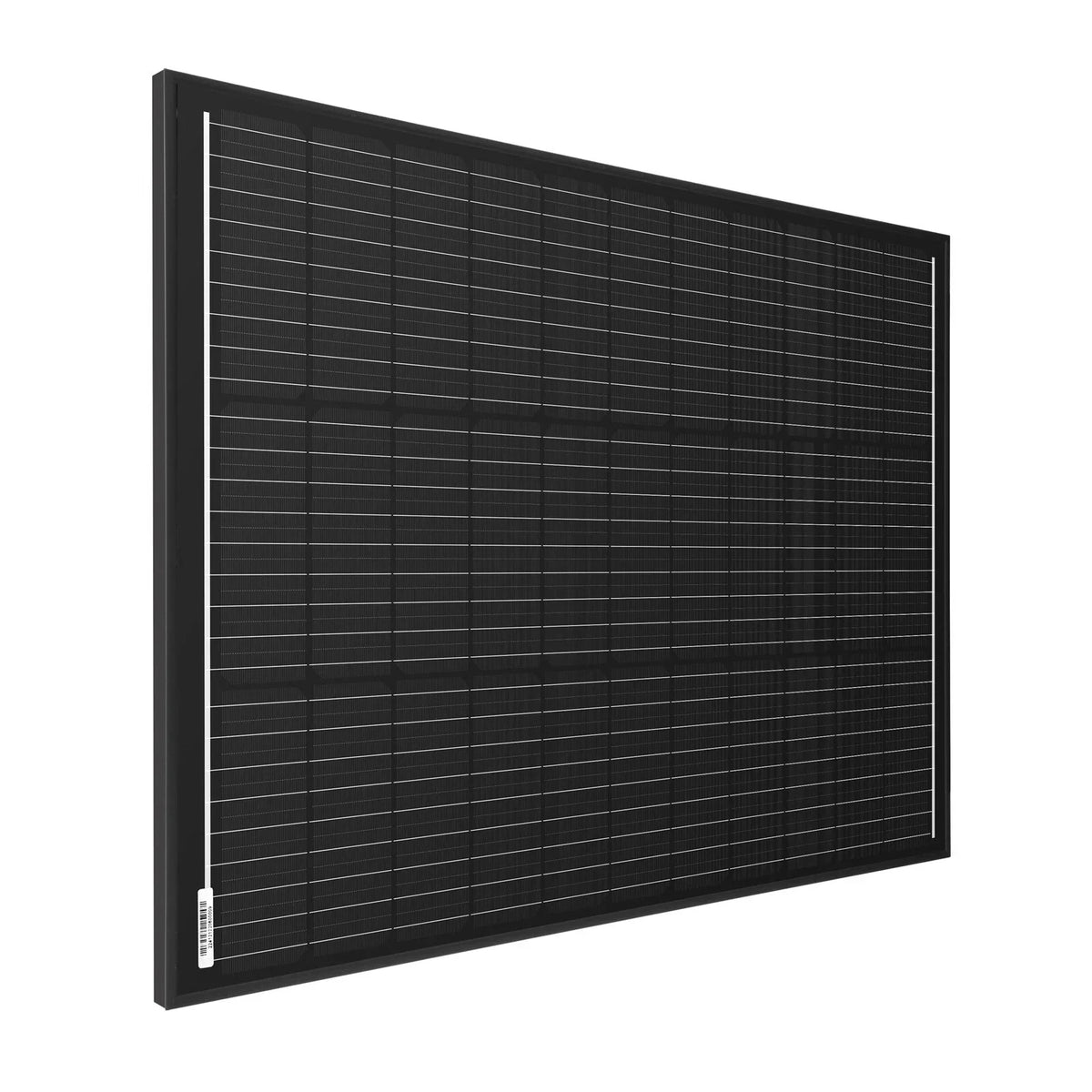

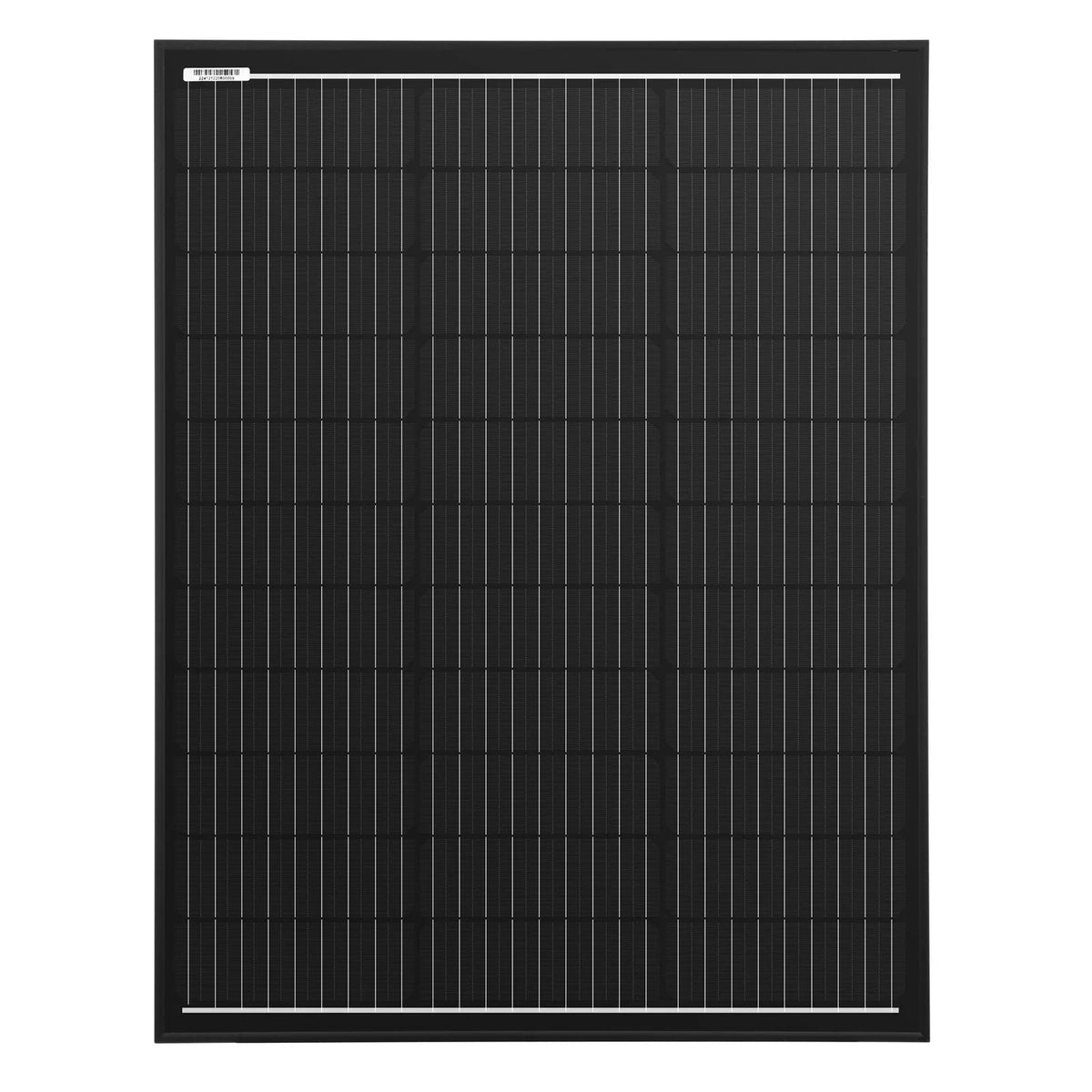

☀️ High-Efficiency Solar Generation

Each 400W 12V shingled panel delivers outstanding output thanks to overlapping A-grade monocrystalline cells, improving low-light performance and shade tolerance. With durable tempered glass and an anodised aluminium frame, the panels are built to handle harsh Australian conditions.

Solar Panel Specs (each):

• Maximum Power (Pmax): 400W

• Maximum Power Voltage (Vmp): 18V

• Maximum Power Current (Imp): 22.2A

• Open Circuit Voltage (Voc): 21.6V

• Short Circuit Current (Isc): 23.8A

• Size: 1070 × 770 × 30 mm

• Weight: 10.5 kg

• Warranty: 25 Years

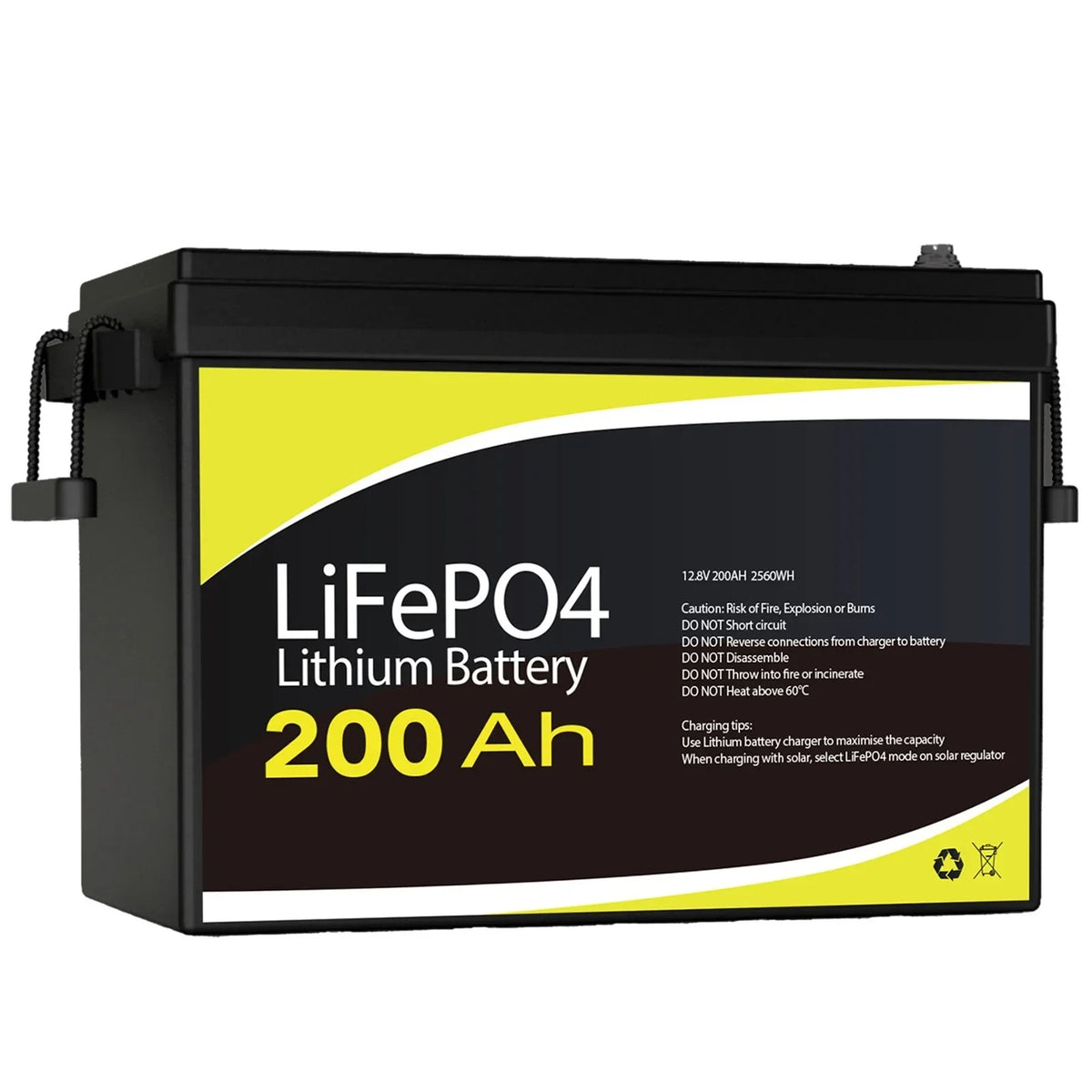

🔋 Gentrax 200Ah 12V LiFePO₄ Battery

The included 200Ah lithium iron phosphate battery provides safe, deep-cycle energy storage with over 4000 cycles at 80 % DoD. It’s equipped with an intelligent Battery Management System (BMS) for over-charge, over-discharge, and short-circuit protection—ideal for powering 12V systems and heavy-duty inverters.

Battery Specs:

• Nominal Voltage: 12.8 V

• Capacity: 200 Ah (≈ 2560 Wh usable energy)

• Max Continuous Discharge: 100 A

• Max Charge Current: 100 A

• Cycle Life: 4000+ cycles @ 80 % DoD

• Weight: 19.5 kg

• Warranty: 5 Years

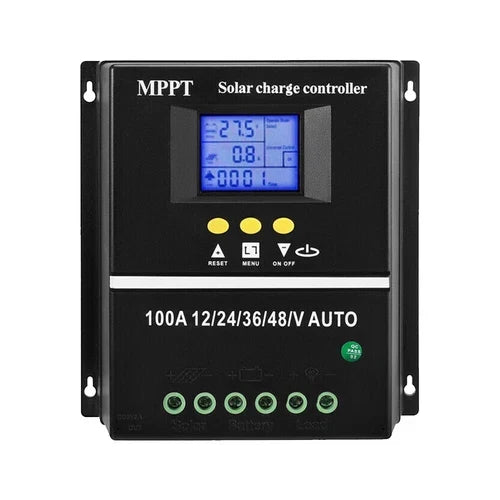

⚙️ 100A MPPT Solar Charge Controller

The included 100A MPPT controller maximises solar conversion efficiency (up to 98 %) for faster battery charging and minimal energy loss. It automatically detects 12 V / 24 V systems and provides full protection against reverse polarity, overload, and overheating.

Controller Highlights:

• Rated Current: 100 A

• Max PV Input Voltage: 150 V

• MPPT Tracking Efficiency: ≥ 98 %

• LCD Display + Remote Monitoring Option

• Full Electronic Protections

✅ Why Choose This Kit

• High-output 800 W solar system for caravans & off-grid setups

• Safe, efficient LiFePO₄ energy storage

• Smart MPPT controller for maximum charging efficiency

• Durable, weather-resistant construction

• Free delivery Australia-wide

Perfect for: caravans, campers, RVs, tiny homes, and remote power installations where reliability and performance matter most.
