Power your off-grid or hybrid solar setup with this complete 5 kW renewable energy bundle — designed for Australian homes, sheds, cabins, and caravans that demand reliable solar generation, smart energy control, and battery-ready flexibility.

This premium package combines eight high-efficiency 500 W 12 V Mono Shingled Fixed Solar Panels with a 5 kW Hybrid Power Inverter, giving you up to 4 kW total PV capacity and seamless hybrid operation for both off-grid and grid-connected systems.

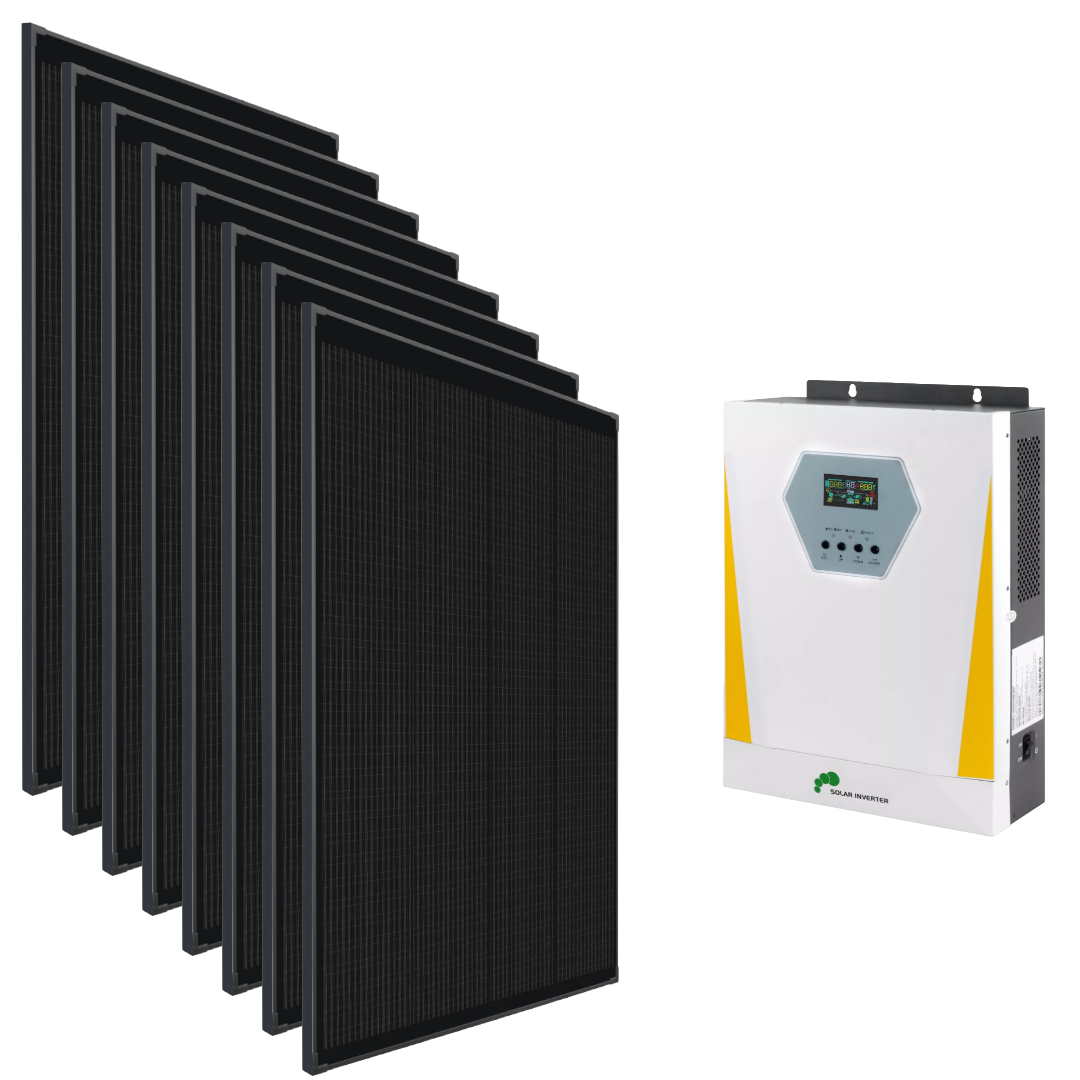

🌞 What’s Included

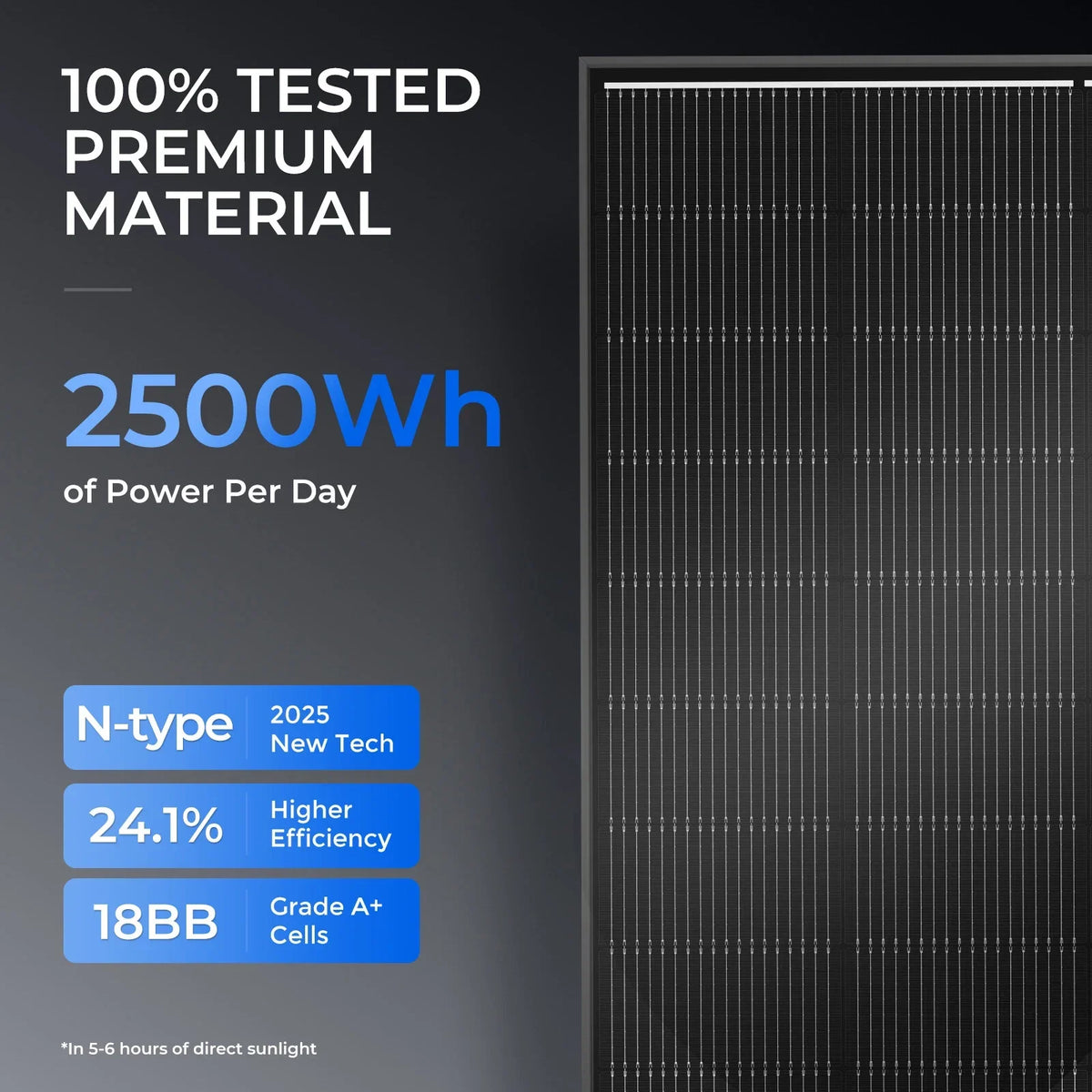

• 8 × 500 W 12 V Mono Shingled Fixed Solar Panels

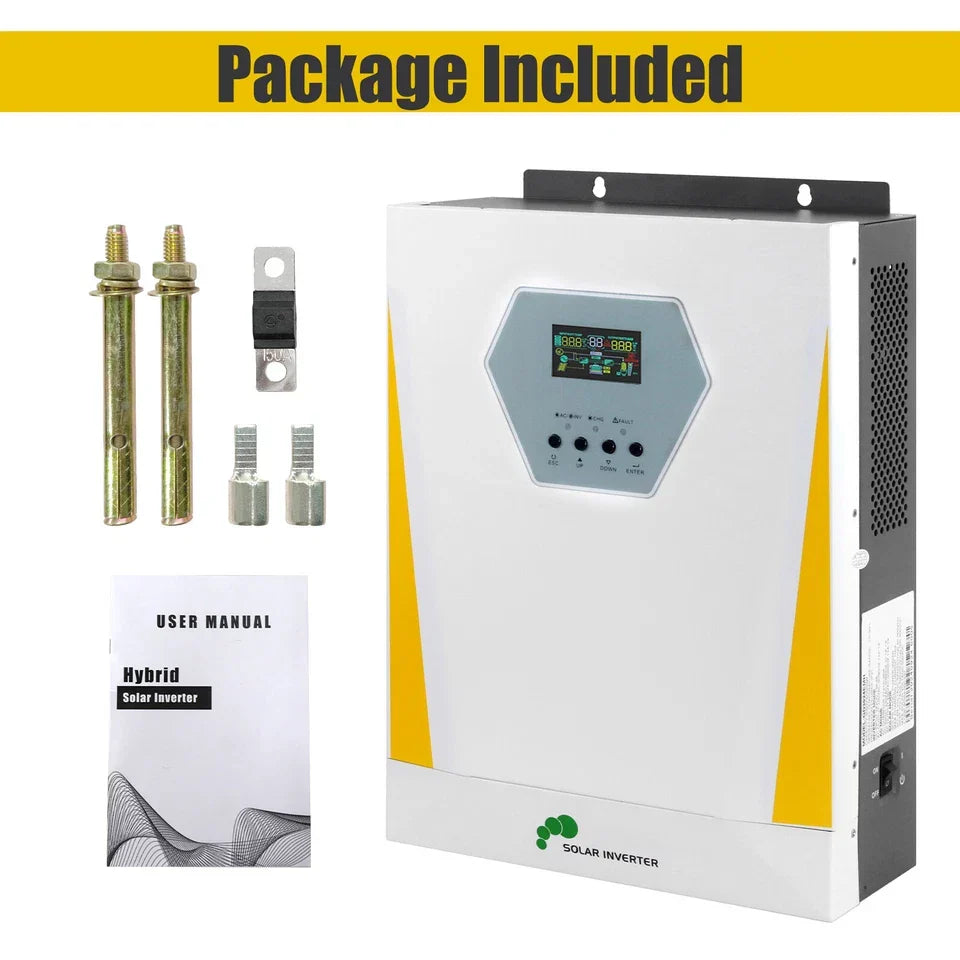

• 1 × 5 kW Hybrid Power Inverter (single-phase, battery-ready, PV + battery + grid input supported)

⚡ Key Features & Benefits

• High Solar Output (4 kW total): Eight A-grade 500 W panels deliver strong daily production, ideal for battery charging and self-consumption.

• Mono-Shingled Cell Efficiency: Shingled design maximises active area and improves low-light performance for early mornings, winter, and cloudy conditions.

• Built for Australia: Fixed-mount anodised aluminium frame and tempered glass construction for superior durability in heat, wind, and coastal climates.

• Smart Hybrid Inverter: Supports grid-tie, hybrid, or off-grid operation with dual MPPT inputs, Wi-Fi monitoring, and lithium/lead-acid battery compatibility.

• Expandable & Future-Proof: Add batteries or extra panels as your energy needs grow — perfect foundation for long-term solar independence.

• Installer-Friendly: CEC-approved inverter, IP65 weather-rated enclosure, and compliant with AS/NZS 4777.2 standards.

⚙️ Specifications

Solar Panels (each)

• Maximum Power (Pmax): 500 W

• Voltage at Max Power (Vmp): 25.2 V

• Current at Max Power (Imp): 19.85 A

• Open Circuit Voltage (Voc): 29.74 V

• Short Circuit Current (Isc): 21.44 A

• Cell Type: Monocrystalline Shingled

• Dimensions: 1340 × 670 × 30 mm

• Weight: 14.5 kg

• Warranty: 25 Years

Total Array Output: 8 × 500 W = 4,000 W (4 kW nominal output)

Hybrid Inverter (5 kW Example)

• Rated Output Power: 5,000 W (5 kW)

• Max PV Input Power: up to 7,500 W

• MPPT Inputs: 2 independent trackers

• Battery Voltage Range: 40 – 60 V (varies by model)

• Max Efficiency: up to 97.6% (Euro ~96.5%)

• Protection: IP65 rated enclosure, AC/DC surge protection, and smart load management

• Compatibility: Works with lithium or AGM batteries

• Warranty: 5 – 10 Years (depending on model)

🔋 Ideal For

• Off-grid cabins, tiny homes, and remote properties

• Caravan, 4WD, and RV solar systems

• Hybrid grid-tie installations with battery storage

• Reducing household electricity costs and grid reliance

🛠 Installation Notes

• Mount panels in a well-ventilated, unshaded location for maximum output.

• Ensure system wiring, MPPT inputs, and fusing match the inverter and battery specifications.

• Installation must be carried out by a licensed electrician or accredited installer per Australian standards.

• Hybrid inverter supports both DC-coupled and AC-coupled configurations.

• Wi-Fi or Ethernet monitoring allows live energy tracking and smart load scheduling.
