High-Output Off-Grid Solar for Australian Conditions

Power your caravan, RV, 4WD, tiny home or off-grid property with this premium 4 kW solar array.
This bundle combines eight A-grade 500 W 12 V monocrystalline shingled panels for serious generation capacity — perfect for large battery banks, inverter systems, or full-size off-grid and backup power setups.

Designed for reliability and long-term performance, these panels deliver exceptional efficiency, low-light output and heat resilience — ideal for real Australian conditions from the coast to the outback.

⚙️ What’s Included

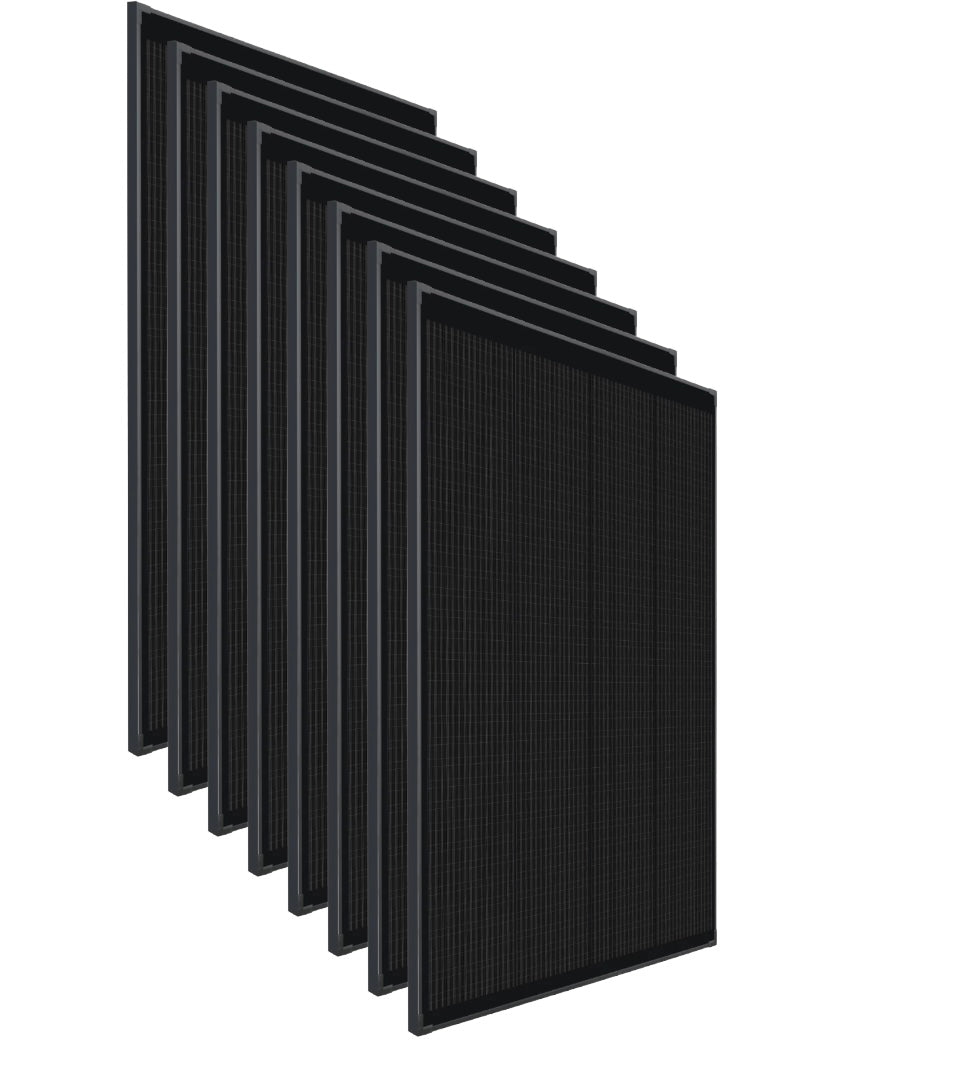

• 8 × 500 W 12 V Mono Shingled Fixed Solar Panels
  Total peak output: 4,000 W

☀️ Solar Panel Specifications (Each)

Model: 500 W 12 V Mono Shingled Fixed Solar Panel – Camping / RV

• Maximum Power (Pmax): 500 W

• Maximum Power Voltage (Vmp): 25.2 V

• Maximum Power Current (Imp): 19.85 A

• Open Circuit Voltage (Voc): 29.74 V

• Short Circuit Current (Isc): 21.44 A

• Cell Type: Monocrystalline Shingled (A-Grade)

• Dimensions: 1,340 mm × 670 mm × 30 mm

• Weight: 14.5 kg

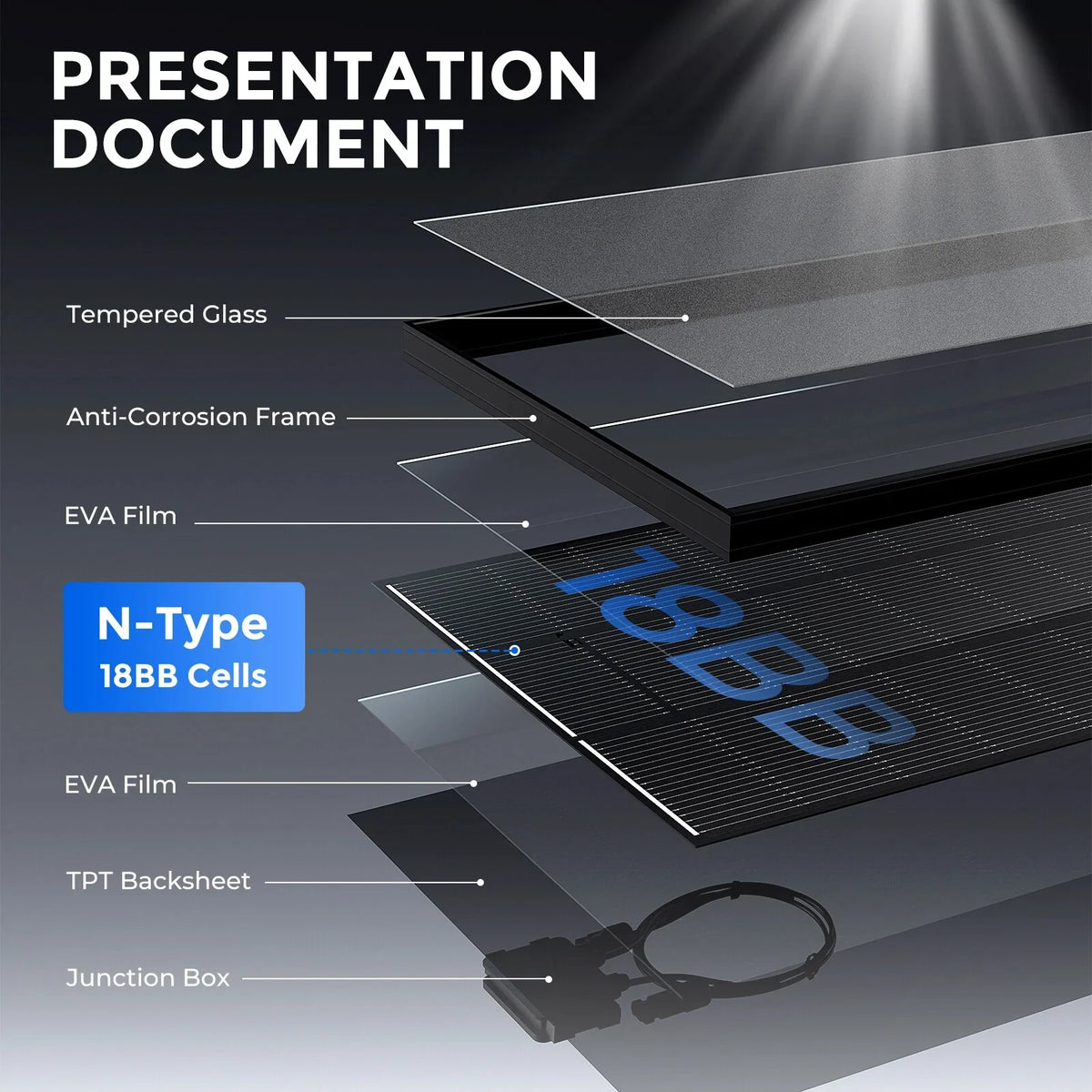

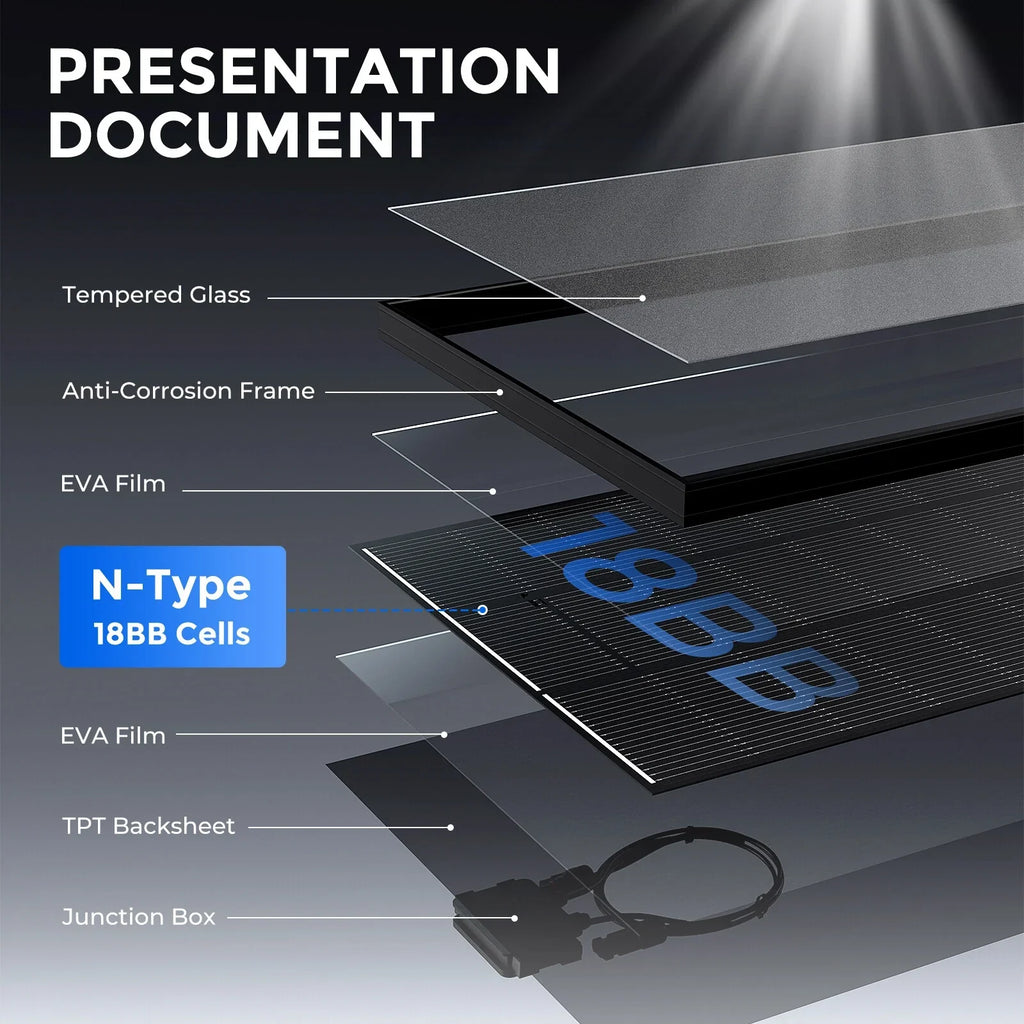

• Frame & Glass: Anodised aluminium frame, tempered low-iron glass

• Operating Temperature: −40 °C to +85 °C

• Warranty: 25 Years

Key Features

• Shingled Cell Efficiency: Increases active surface area, minimises resistance losses and eliminates gaps between cells for higher real-world output.

• Low-Light & Partial Shade Performance: Consistent generation even on cloudy days or during early morning/late afternoon.

• Built Tough for Australia: Wind-rated, hail-tested, and designed for extreme heat and coastal conditions.

• Maintenance-Free Power: High-grade materials resist corrosion and degradation for decades of service life.

🔋 Bundle Performance & Applications

This 8-panel 4 kW array delivers outstanding power for off-grid setups, offering enough energy for large battery banks, high-demand appliances, or small home and cabin systems.
Perfect for:

• Caravans & RVs needing full self-sufficiency

• Off-Grid Homes & Cabins running lighting, fridges, tools & pumps

• Marine & Boat Systems needing high-output 12 V solar arrays

• Remote Worksites or Sheds where reliable power is critical

• Hybrid Systems paired with lithium storage and MPPT charge controllers

⚡ Why Choose Shingled Mono Panels

• Higher Efficiency: Overlapping shingled cells maximise surface utilisation and reduce electrical resistance.

• Superior Durability: No front busbars means less stress and lower risk of micro-cracks.

• Better Heat Management: Enhanced performance in hot Australian conditions compared to standard PERC panels.

• Improved Longevity: Long-life encapsulation materials and tempered glass construction ensure consistent output for decades.

🔧 Installation & Wiring Notes

• Compatible with 12 V, 24 V, or 48 V systems (depending on configuration).

• Can be wired in series to increase voltage for MPPT controllers, or in parallel to increase current for 12 V setups.

• Use appropriately rated MC4 connectors, fuses and cabling for total array current.

• Mount with aluminium brackets or adjustable tilt frames for optimal sun exposure.

🌏 Perfect For

• Caravan & RV solar upgrades

• Tiny homes and off-grid cabins

• 4WD & camping setups

• Marine & boating installations

• Backup and hybrid systems
