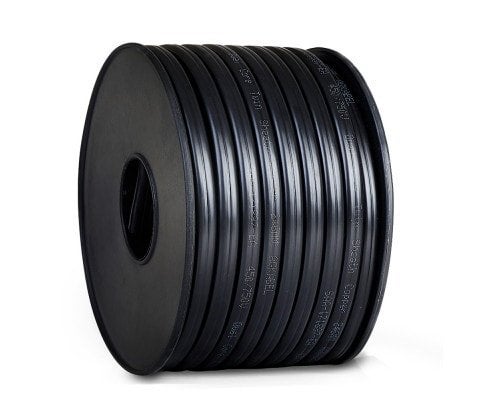

With its twin core design, our Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin-core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.

Features

* 6MM twin sheath automotive cable

* Oxygen-free copper core conductor

* Low eccentricity

* Reinforced PVC material

* SAA-certified

* RoHS

* Can normally work up to 450V AC/DC

Specifications:

* Conductor: Oxygen-free plain copper wire to AS/NZ 1125

* Insulation: V90 PVC to AS/NZ 3808

* Sheath: 5V90 PVC to AS/NZ 3808

* Amp rating: 38

* No. of cores: 2

* Cable Length: 30m

* Cable diameter: 6mm

* Wire Gauge:11AWG

* Strand no. diameter: 57/0.32mm

* Nominal area: 4.58mm²

* Nominal O.D.: 5.7mm x 9.6mm

* Colour: Black sheathing

* Conductor resistance < 4.01 ohm/Km(20 degree centigrade)

* Dielectric strength(kV/sec AC):2.5/60

* Unaged acceptable tensile strength = 12.5Mpa

* Unaged acceptable ultimate elongation =130%

* Assembly required: No

* Number of Packages: 1

Package Content

1 x Twin Core Cable

1 x Cable Spool
