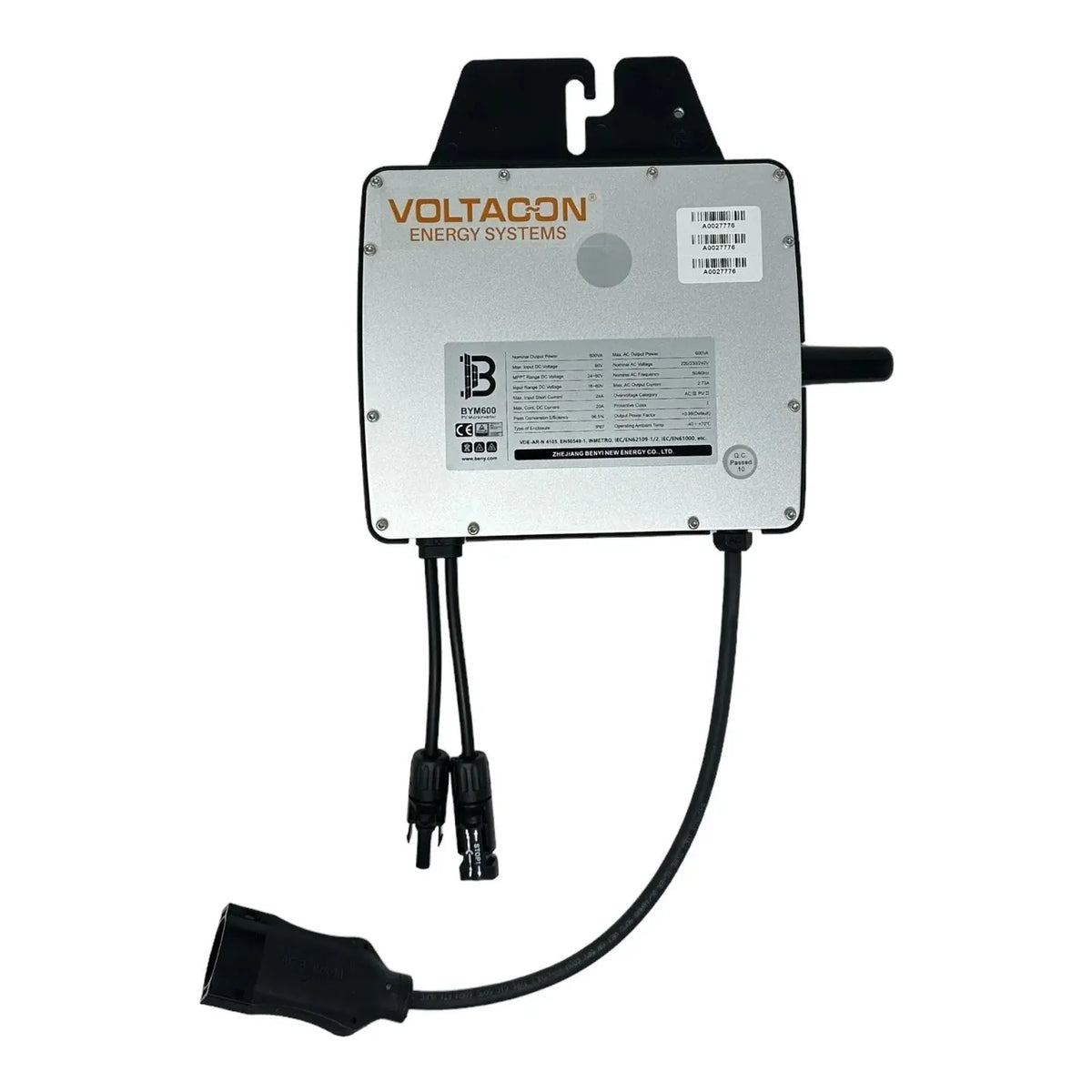

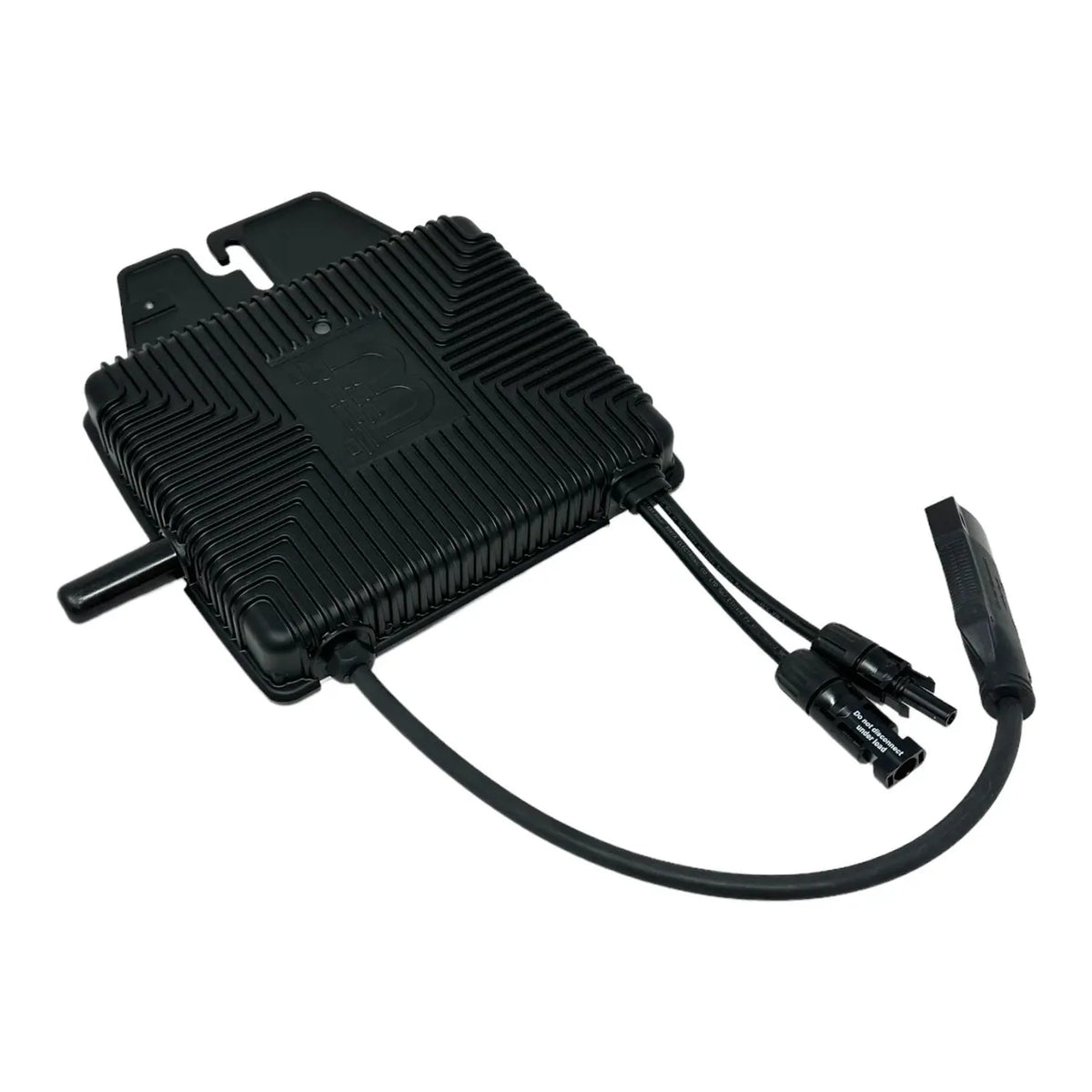

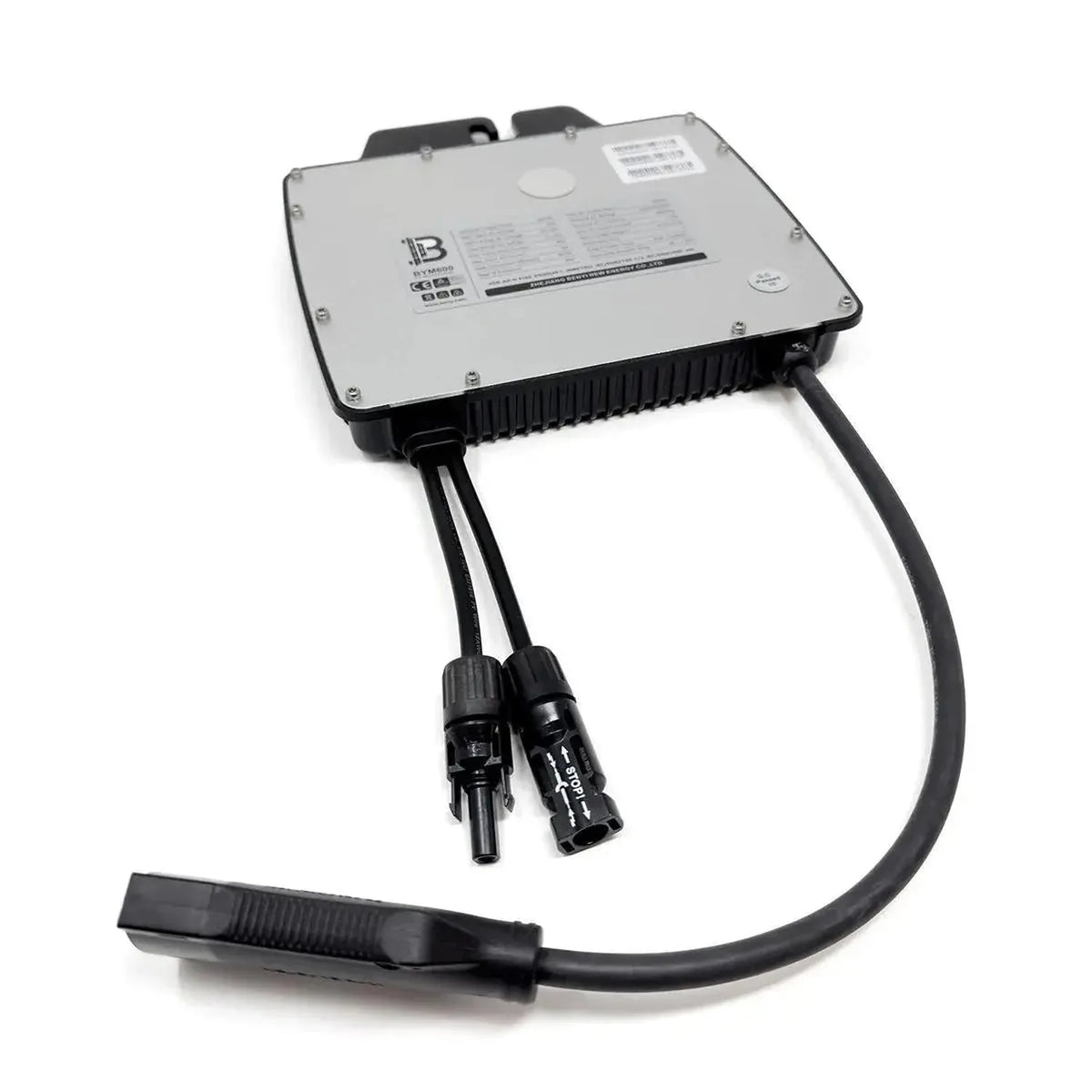

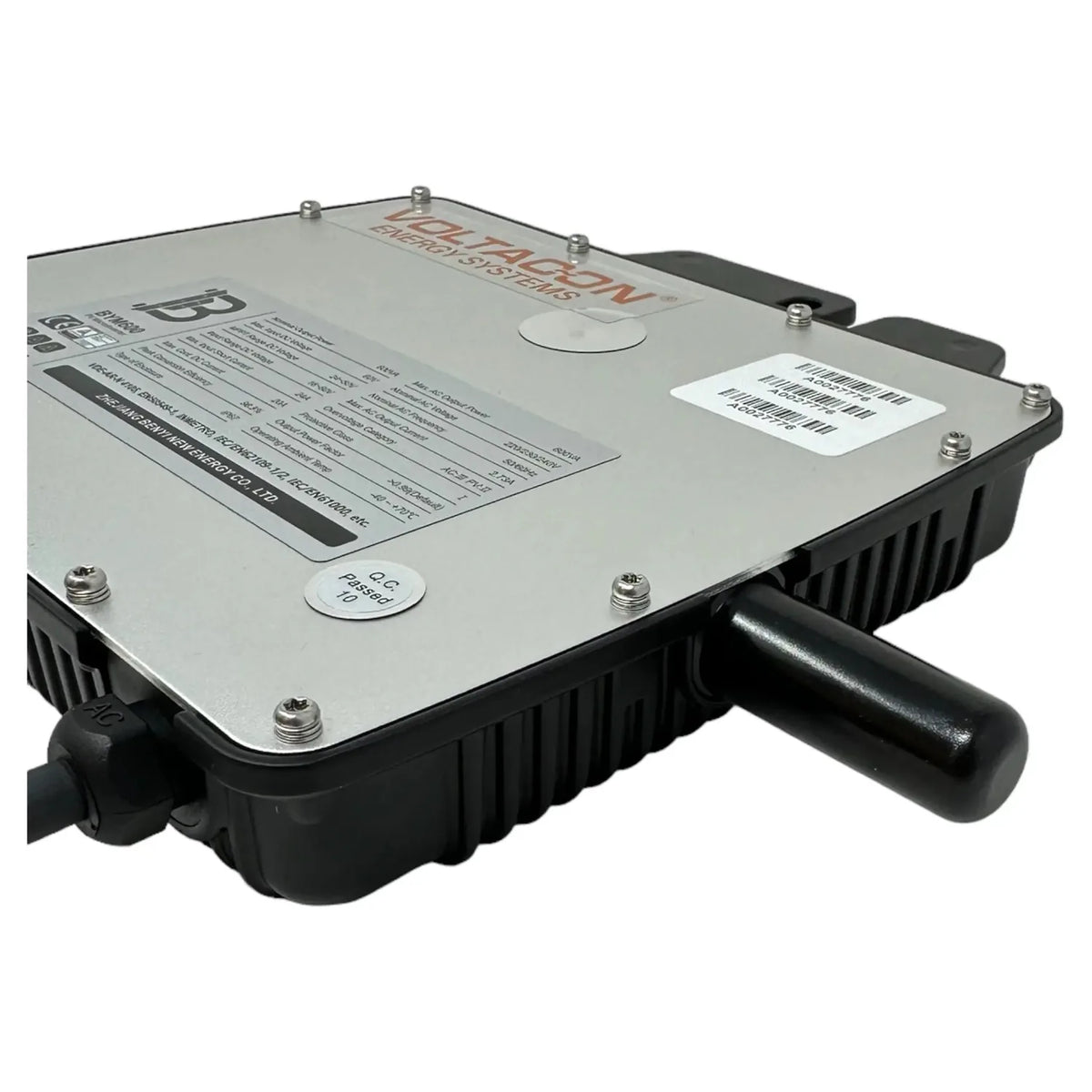

The Voltacon VMI600 is a 600W grid-tied micro solar inverter with integrated Wi-Fi monitoring, built for single-panel installations. It tracks the maximum power point of one module rather than an entire array, which helps recover lost yield when shading or mismatched orientation would otherwise drag down a whole string. It is G98 compliant and ENA registered (ZHEJI/15702/V1/A1) for UK grid-connected solar.

Key features of this micro solar inverter

• Output, 600W rated AC output, 620VA peak.
• MPPT range, 24-50V, with an operating range of 16-60V.
• Input current, 18A max input, 20A max short circuit current.
• Panel compatibility, 400-670W panels, 60-75 full cells or 120-150 half cells.
• Efficiency, 96.5% peak, 96% European.
• Power quality, power factor greater than 0.99, THD below 3%.

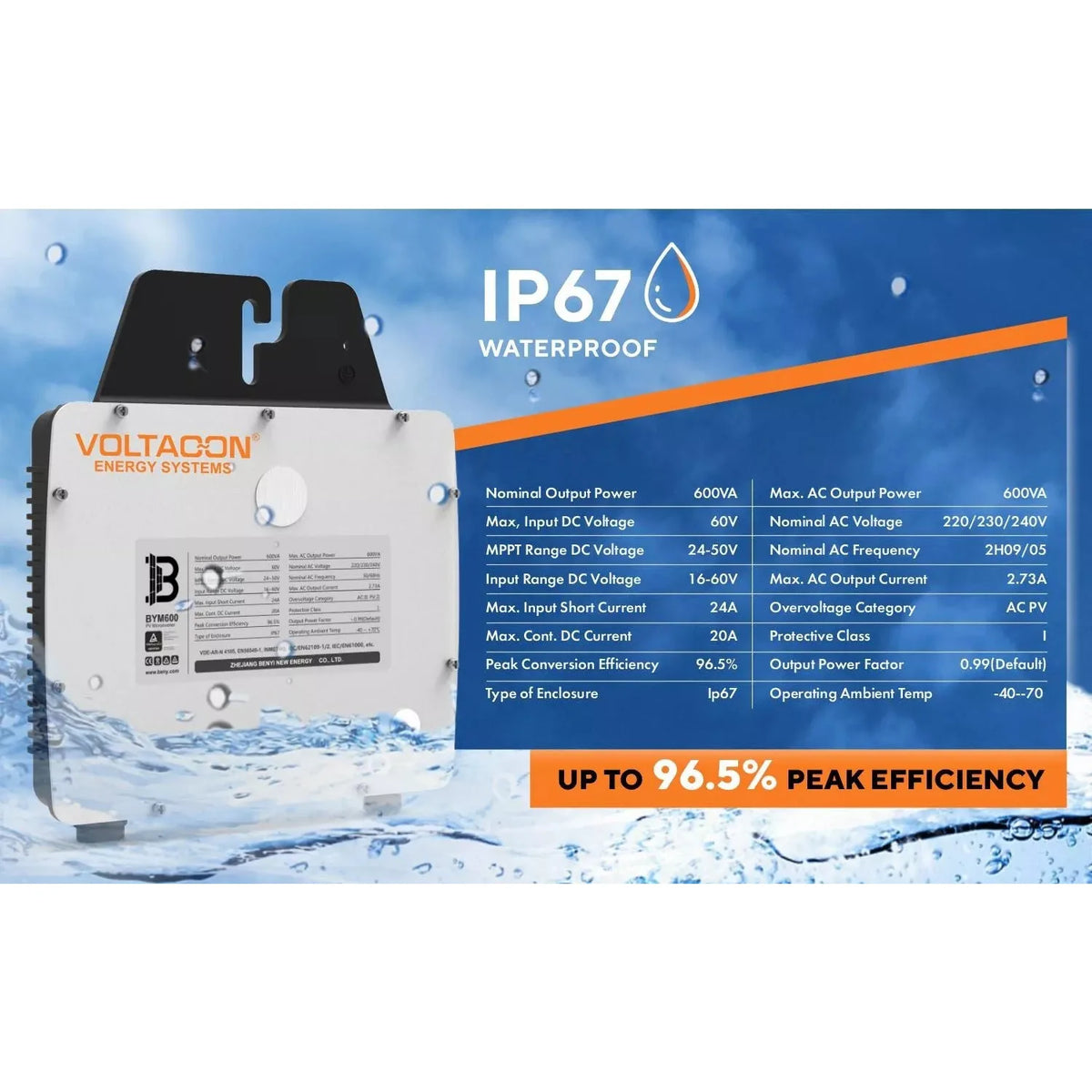

• Weatherproofing, IP67 enclosure.

How it works

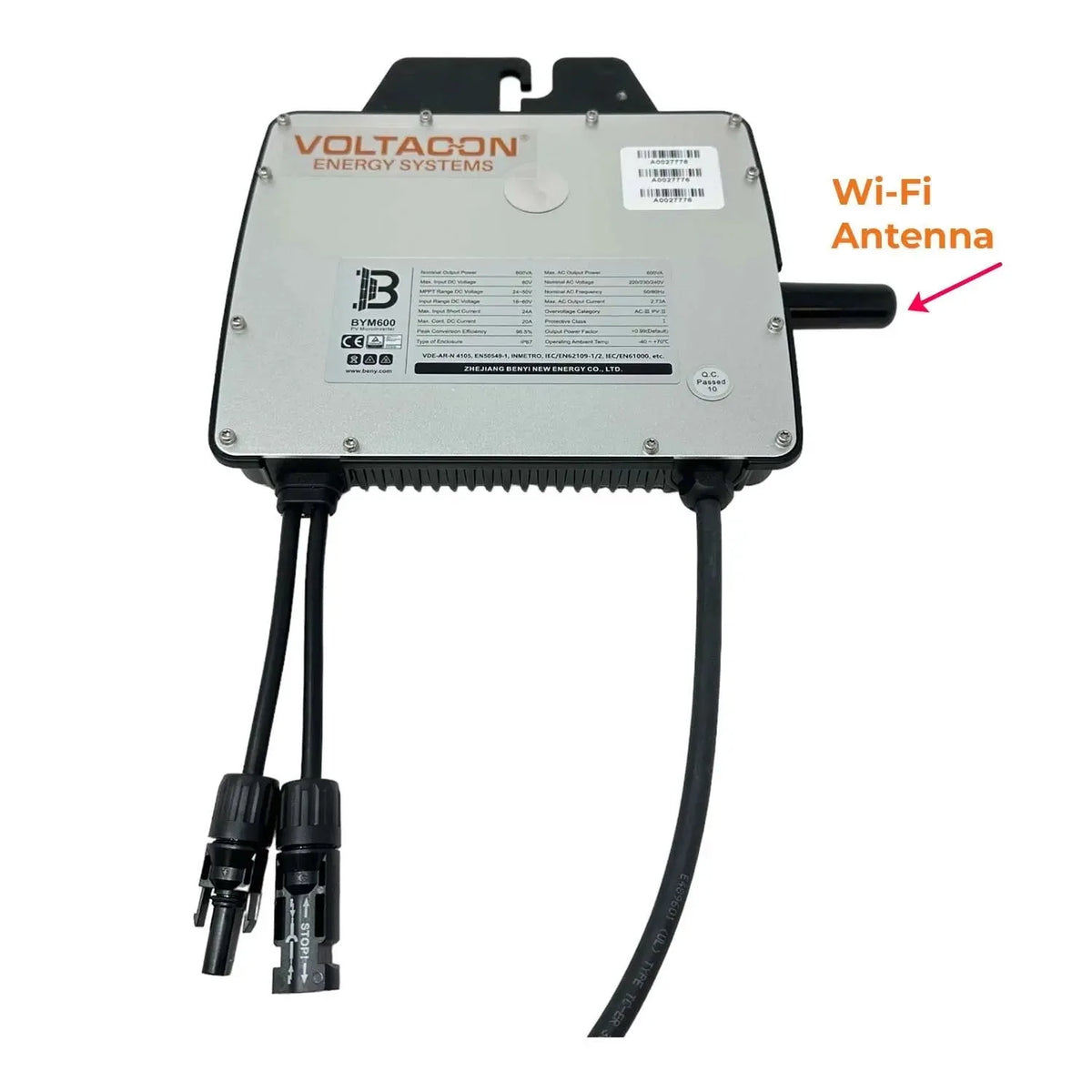

A string inverter reads the array as one combined signal, so a shaded or dirty panel pulls the whole line down with it. The VMI600 sits on a single module and tracks its own MPPT independently, so one underperforming panel does not cost the neighbouring ones their output. Built-in Wi-Fi reports generation and status directly from each unit, without a separate monitoring gateway.

Inside, the VMI600 uses GaN MOSFETs with no electrolytic capacitors and no cooling fan, cutting down on the parts most likely to wear out. A high-frequency transformer keeps the PV input electrically isolated from the AC output. Up to 8 units can be connected on a single string using a 24A circuit breaker and 10AWG cable.

Applications

Suits residential roofs with partial shading, roofs with more than one orientation, building-integrated PV on walls or awkward surfaces, and commercial arrays where module-level monitoring is worth having.

Installation notes

Installation should be carried out by a qualified electrician or MCS-accredited installer. G98 notification to the DNO is required before connection, and AC wiring, protection and earthing must follow IET Wiring Regulations. The VMI600 needs a live grid connection to operate and will not run off-grid or alongside off-grid inverters.

Warranty

Covered by a 10-year standard warranty, with a 25-year extended warranty available as an option.
