Power your off-grid or hybrid solar system with this complete 5 kW renewable energy bundle — designed for Australian homes, sheds, cabins and caravans that demand reliable solar generation, smart energy control, and battery-ready flexibility.

This premium package combines six high-efficiency 500 W 12 V mono-shingled fixed solar panels with a 5 kW hybrid power inverter, giving you up to ~3 kW nominal PV capacity and seamless hybrid operation for both off-grid and grid-connected systems.

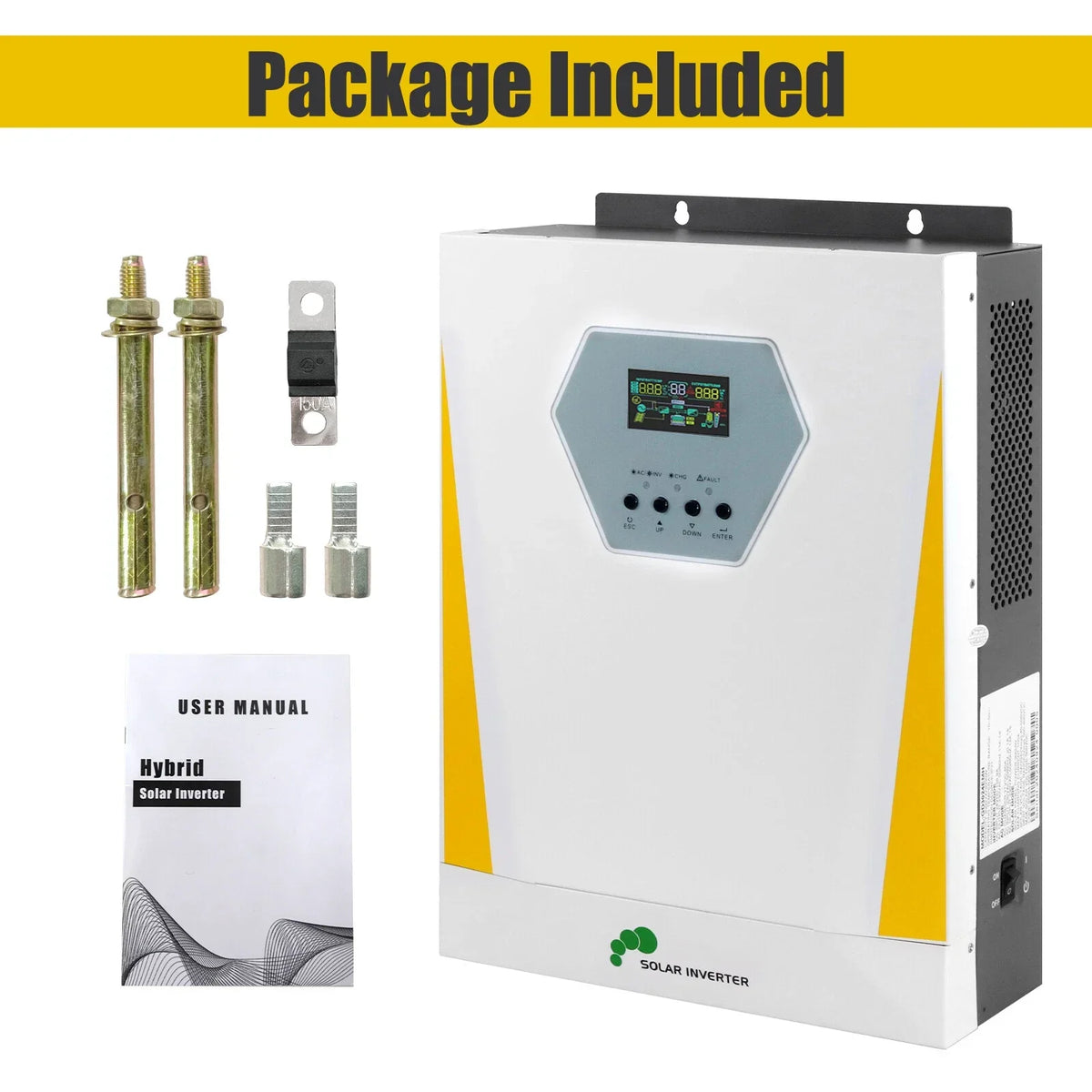

What’s Included

• 6 × 500 W 12 V Mono Shingled Fixed Solar Panels

• 1 × 5 kW Hybrid Power Inverter (single-phase, battery-ready, PV + battery + grid input supported)

⚡ Key Features & Benefits

• Strong Solar Output (~3 kW total): Six A-grade 500 W panels deliver consistent daily production — ideal for battery charging and household self-consumption.

• Mono-Shingled Cell Efficiency: The shingled design maximises active area and improves low-light performance — early mornings, winter and cloudy conditions all benefit.

• Built for Australia: Fixed-mount anodised aluminium frames and tempered glass construction ensure superior durability in our harsh conditions — heat, wind, coastal salt-air environments.

• Smart Hybrid Inverter: The inverter supports grid-tie, hybrid or off-grid configurations. With dual MPPT inputs, WiFi (or Ethernet) monitoring and compatibility for both lithium and lead-acid (AGM) batteries, this is a system built to grow.

• Expandable & Future-Proof: Start with a robust foundation now and add more panels or batteries later as your energy needs evolve — perfect for long-term solar independence.

• Installer-Friendly & Certified: CEC-approved inverter, IP65 weather-rated enclosure and full compliance with AS/NZS 4777.2 standards for Australian installations.

⚙️ Specifications

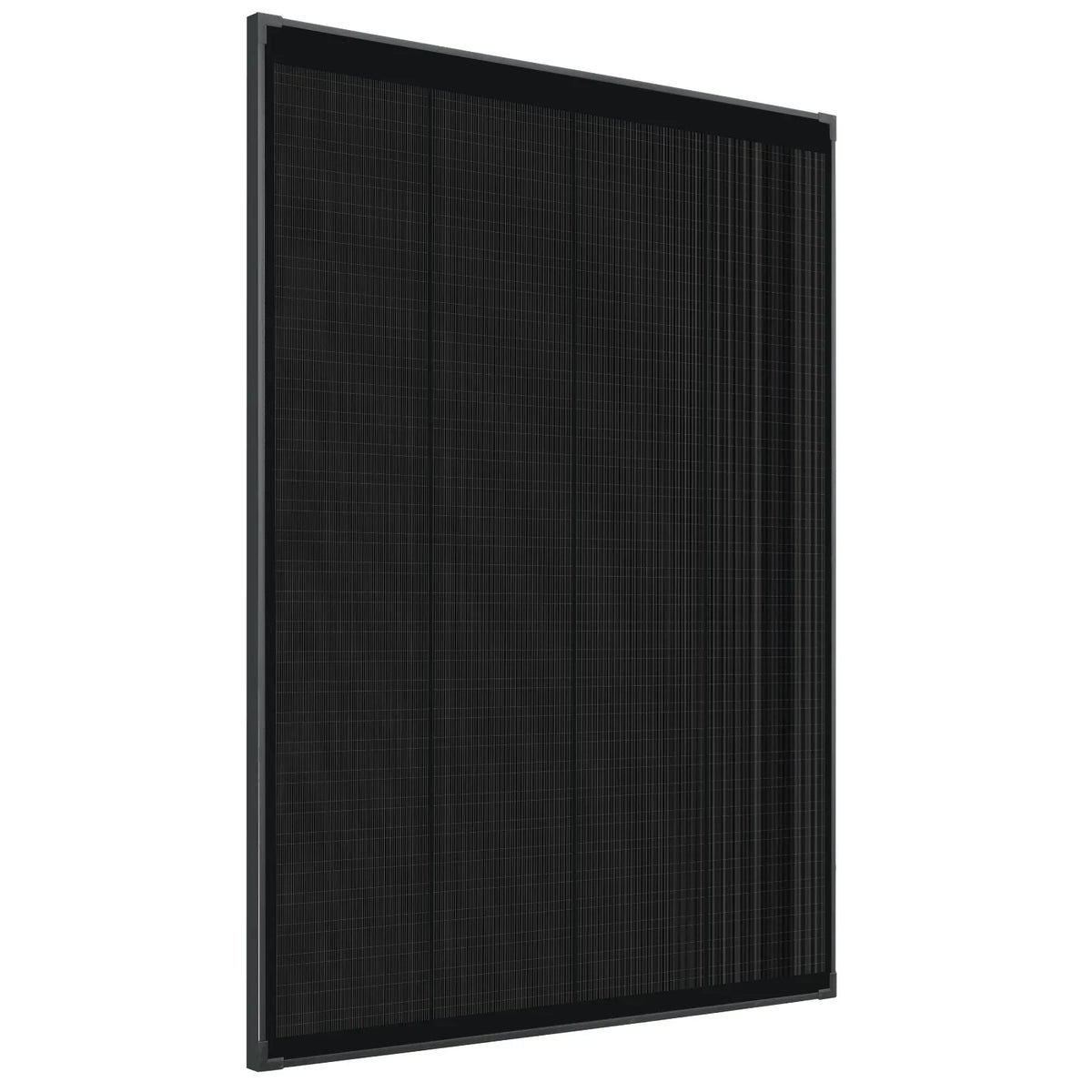

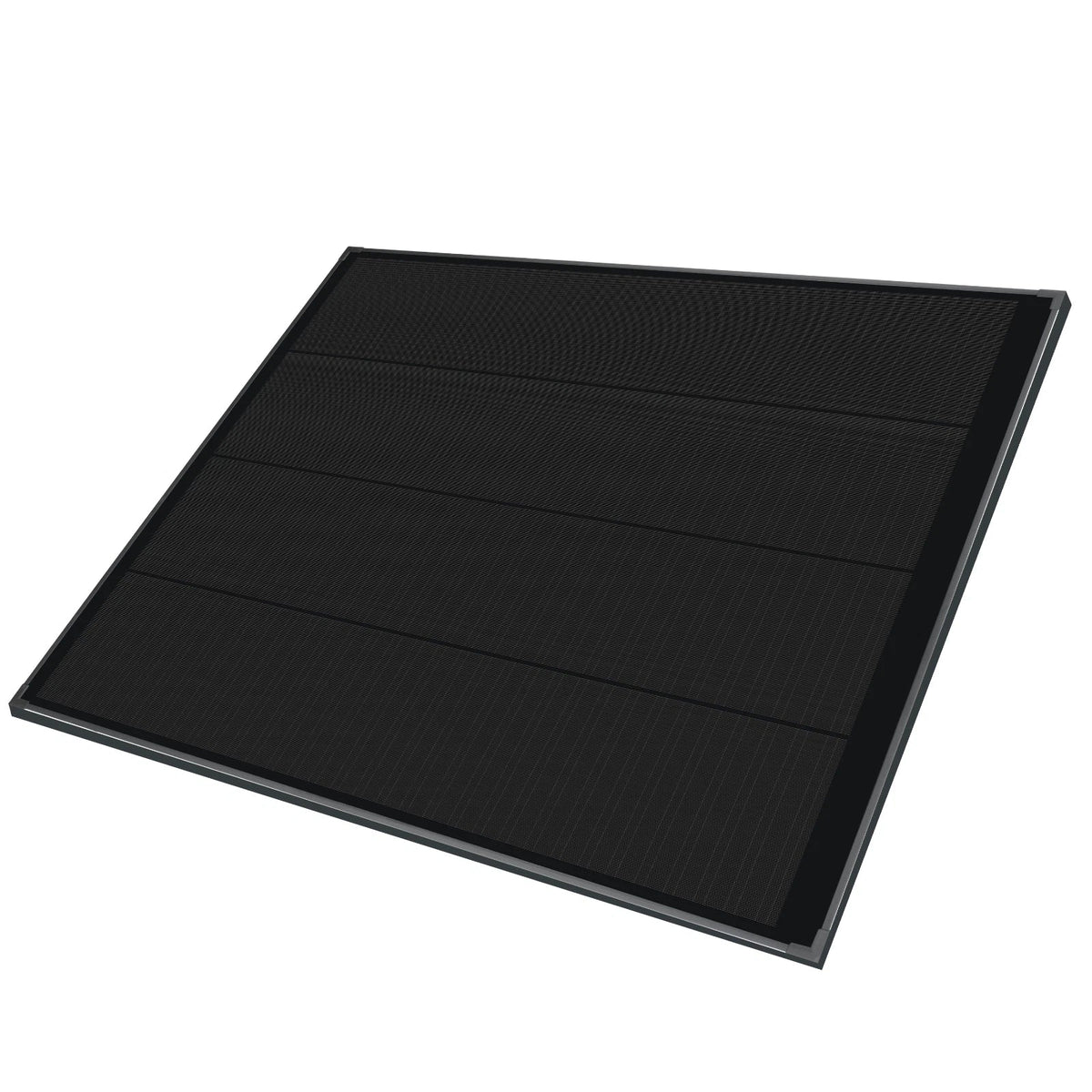

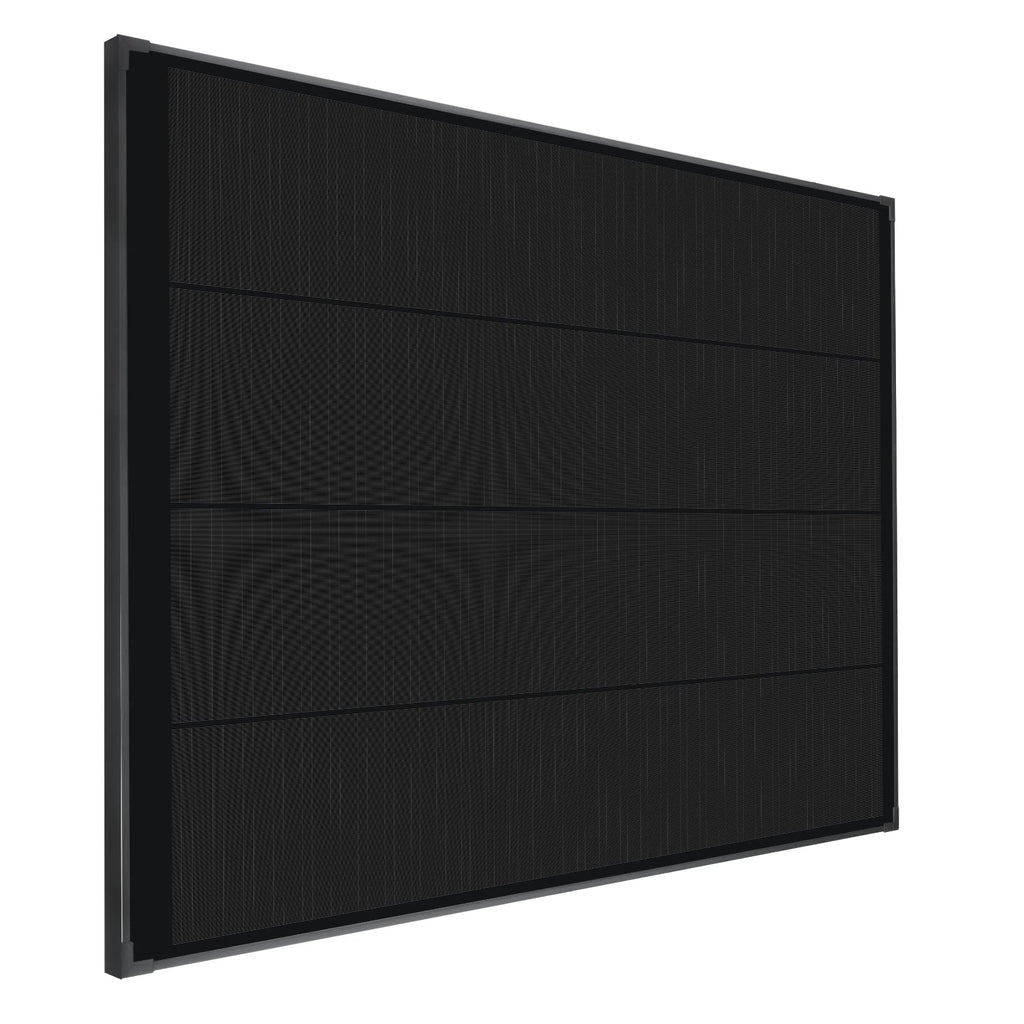

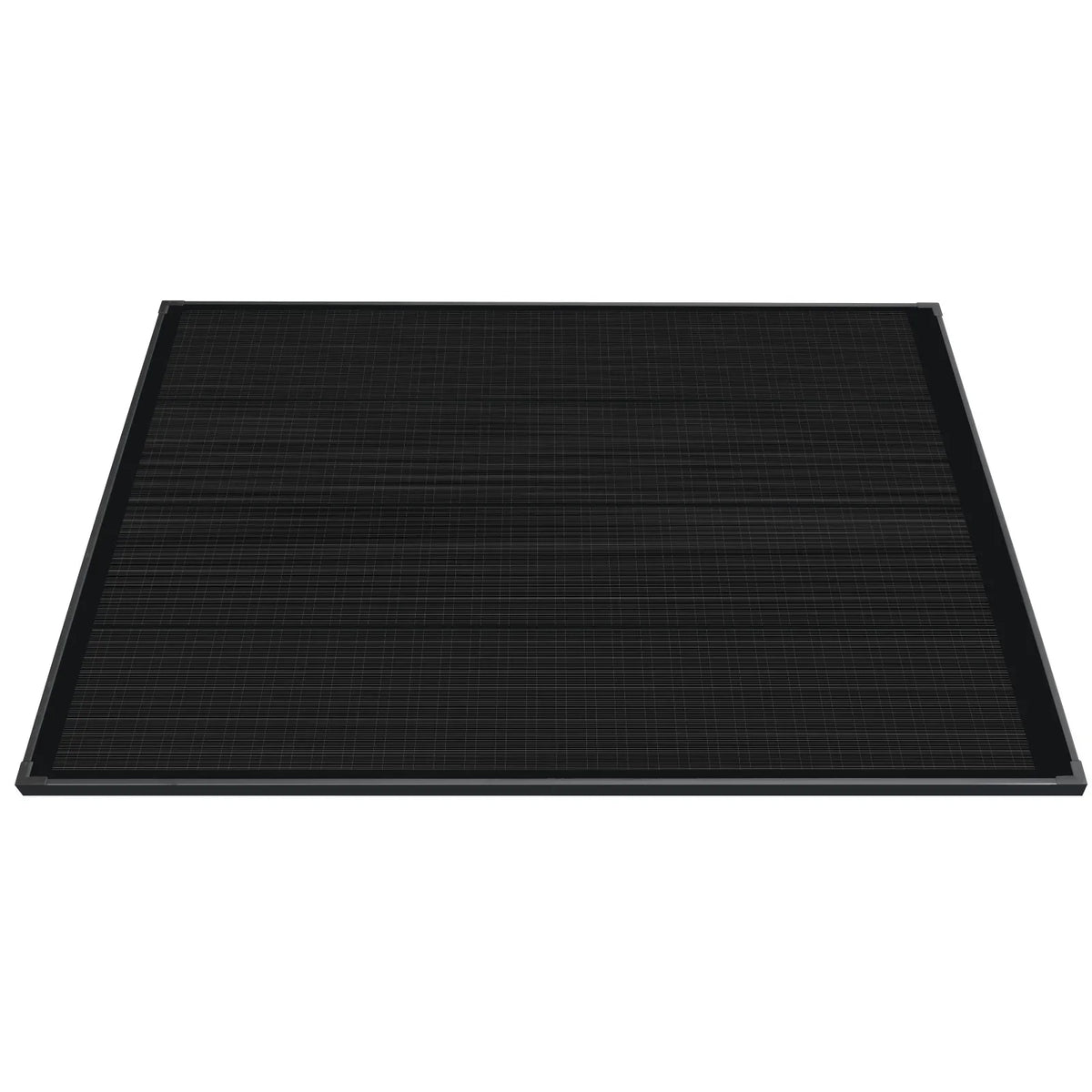

Solar Panels (each)

• Maximum Power (Pmax): 500 W

• Voltage at Max Power (Vmp): ~25.2 V

• Current at Max Power (Imp): ~19.85 A

• Open Circuit Voltage (Voc): ~29.74 V

• Short Circuit Current (Isc): ~21.44 A

• Cell Type: Monocrystalline Shingled

• Dimensions: ~1340 × 670 × 30 mm

• Weight: ~14.5 kg

• Warranty: 25 years (product/ performance)

Total Array Output: 6 × 500 W = ~3,000 W (3 kW nominal output)

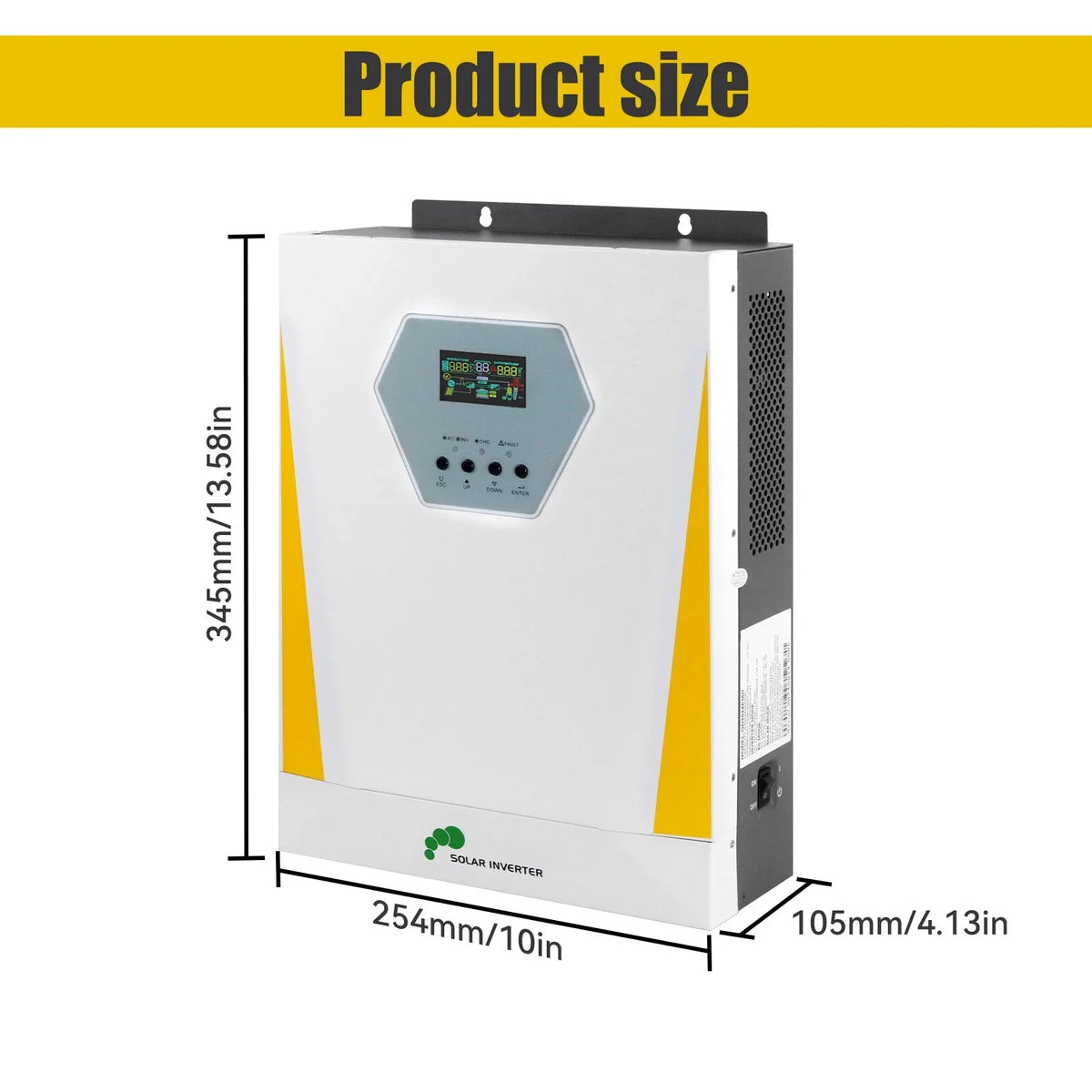

Hybrid Inverter (5 kW unit)

• Rated Output Power: 5,000 W (5 kW)

• Maximum PV Input Power: up to ~7,500 W

• MPPT Inputs: 2 independent trackers

• Battery Voltage Range: ~40–60 V (varies by model)

• Max Efficiency: up to ~97.6% (Euro ~96.5%)

• Protection: IP65 rated enclosure, AC/DC surge protection, smart load management

• Compatibility: Works with lithium or AGM deep-cycle batteries

• Warranty: 5–10 years (depending on manufacturer)

✅ Ideal For

• Off-grid cabins, tiny homes and remote properties

• Caravans, 4WD setups and RV-based solar systems

• Hybrid grid-tie installations looking for battery backup

• Users looking to reduce household electricity bills and grid-reliance

🛠 Installation Notes

• Mount the panels in a well-ventilated, unshaded location for maximum output.

• Ensure all system wiring, MPPT inputs and fusing are correctly sized for the inverter and battery bank.

• Installation must be carried out by a licensed electrician or accredited installer to comply with Australian standards (including AS/NZS 3000, AS/NZS 5033, and AS/NZS 4777.2).

• The hybrid inverter supports both DC-coupled and AC-coupled configurations — choose what fits your existing system.

• Use the inverter’s WiFi/Ethernet monitoring to track live energy production and optimise your system’s self-consumption.
