Description

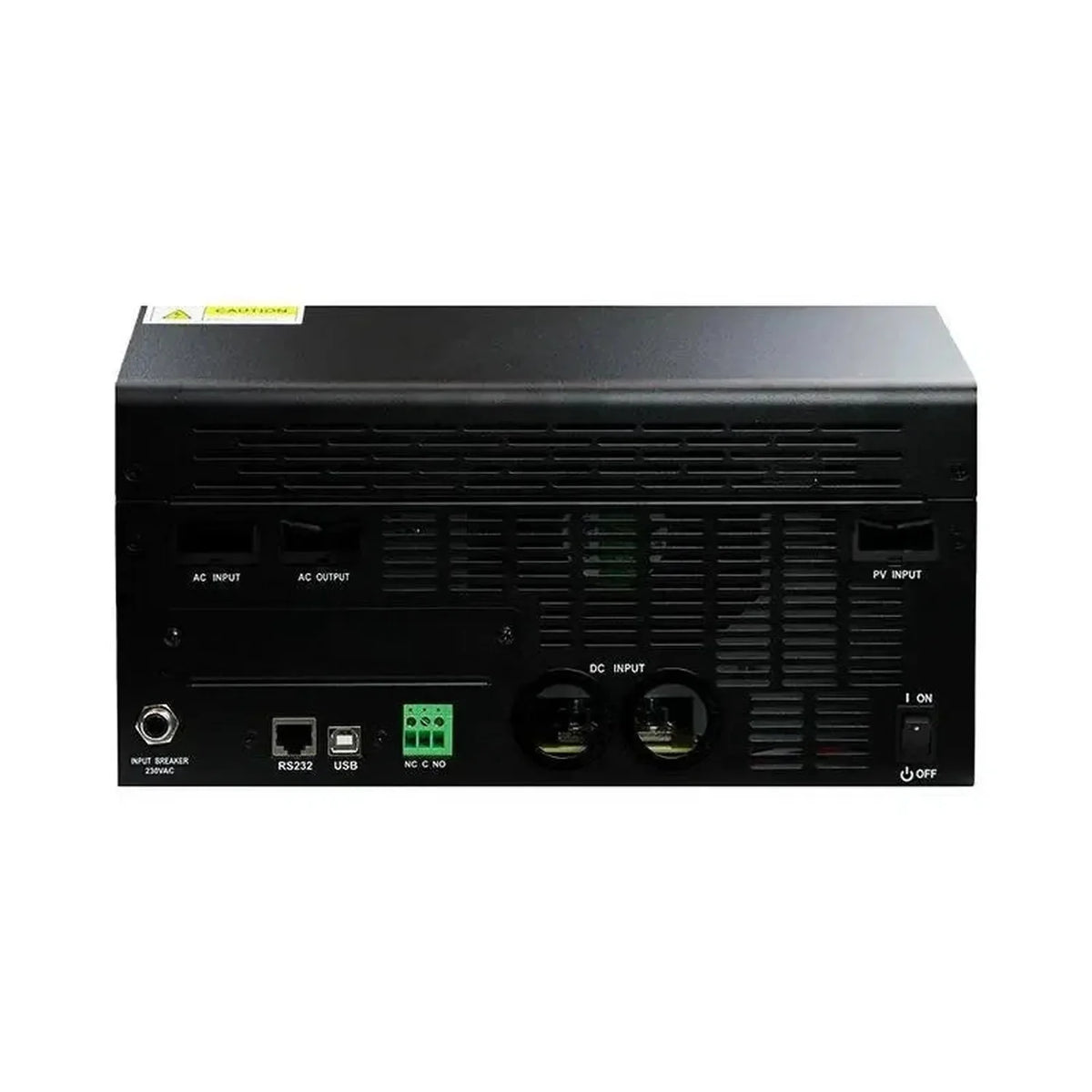

This complete off-grid solar kit combines a Conversol M-5K-24 all-in-one inverter, 5kWh of lithium battery storage and 6 x JA Solar 450W N-Type monocrystalline panels for a 2700W PV array. The inverter delivers up to 5000W continuous AC output and is built for homes, workshops, holiday cabins and remote buildings where mains power is unreliable or unavailable. A full wiring diagram is included to support a professional installation.
Key features of this solar off-grid kit
- Inverter output, 5000W continuous AC from the Conversol M-5K-24 all-in-one unit
- Battery storage, 5kWh total from 2 x 2.5kWh modules with active cell balancing
- Solar array, 2700W from 6 x JA Solar 450W N-Type monocrystalline panels
- Expandable storage, battery modules can be paralleled up to 16 units
- Battery enclosure, IP65 aluminium, suitable for indoor or outdoor installation
- Protection included, DC fuses, 100A isolator switch and PV combiner box

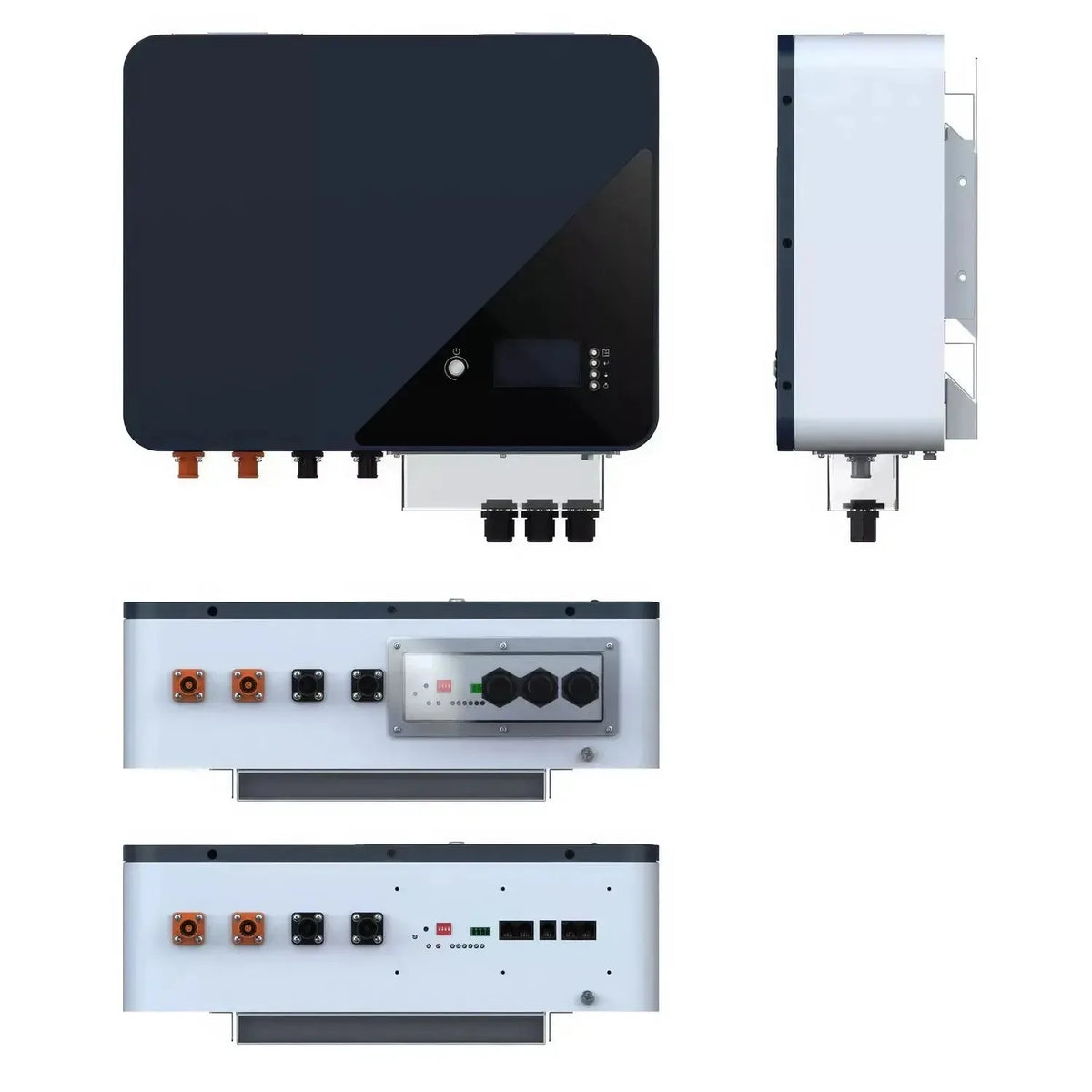

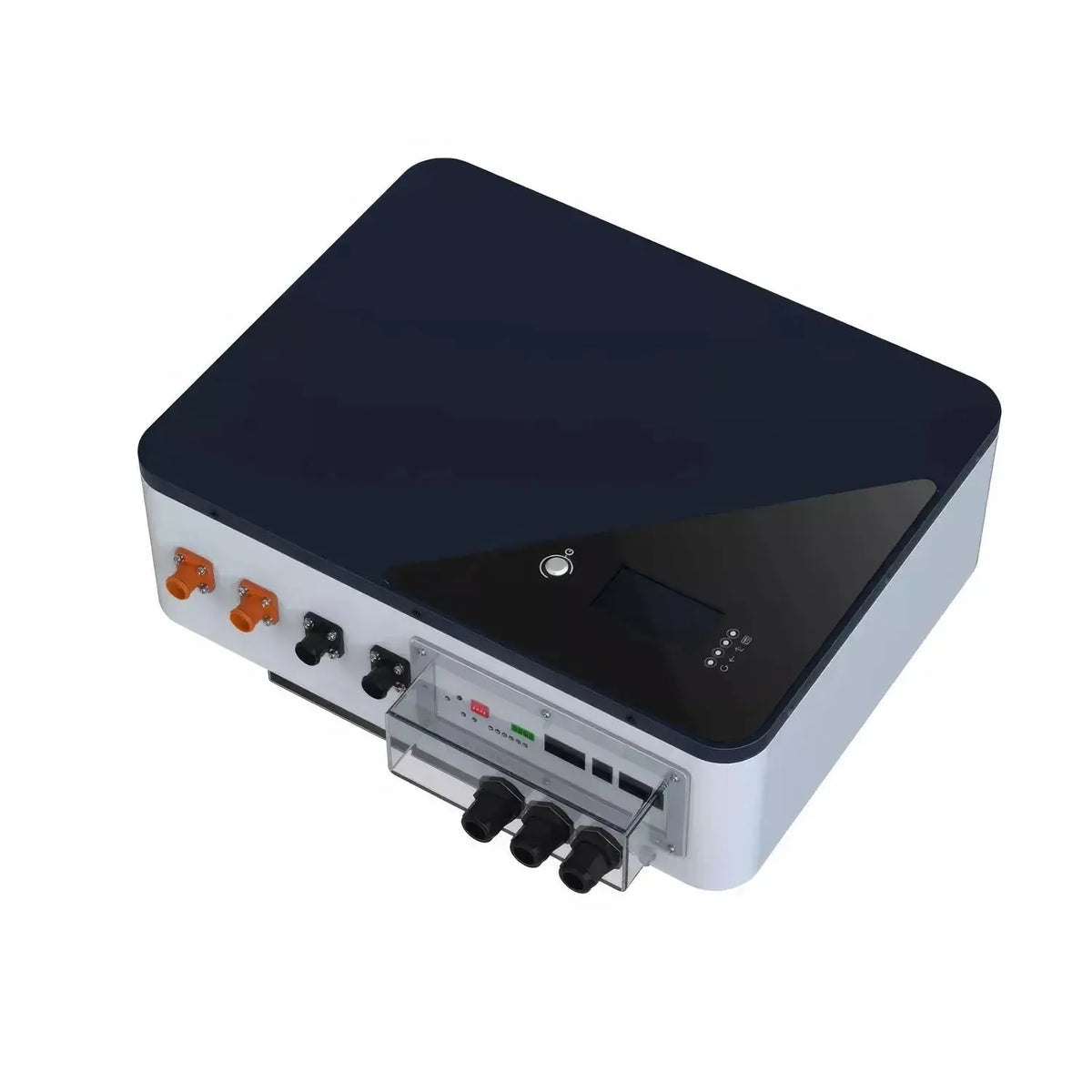

Battery specifications
| Parameter | Value |
|---|---|
| Model | LIO-II-2410 |
| Nominal capacity | 2.5kWh / 100Ah |
| Nominal voltage | 25.6V DC |
| Continuous discharge current | 50A |
| Peak discharge current | 100A |
| Built-in BMS | Yes |
| Compatible inverters | 3000W to 5500W hybrid and off-grid |
| Enclosure | IP65 aluminium |
| Dimensions | 165 x 375 x 400mm |
| Weight | 26kg |
| Max parallel modules | Up to 16 |

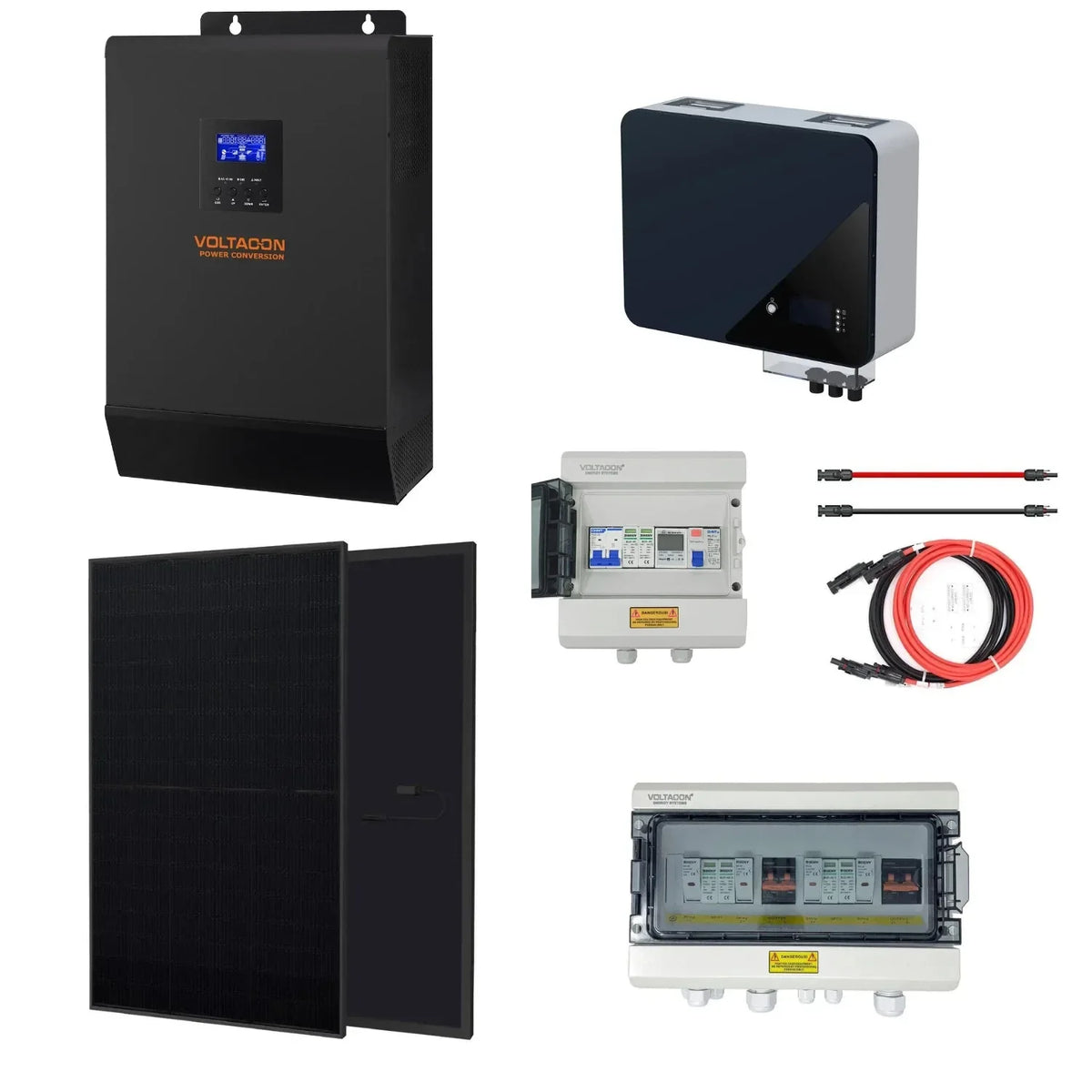

What's in the box
- 1 x Conversol M-5K-24 5000W all-in-one solar inverter

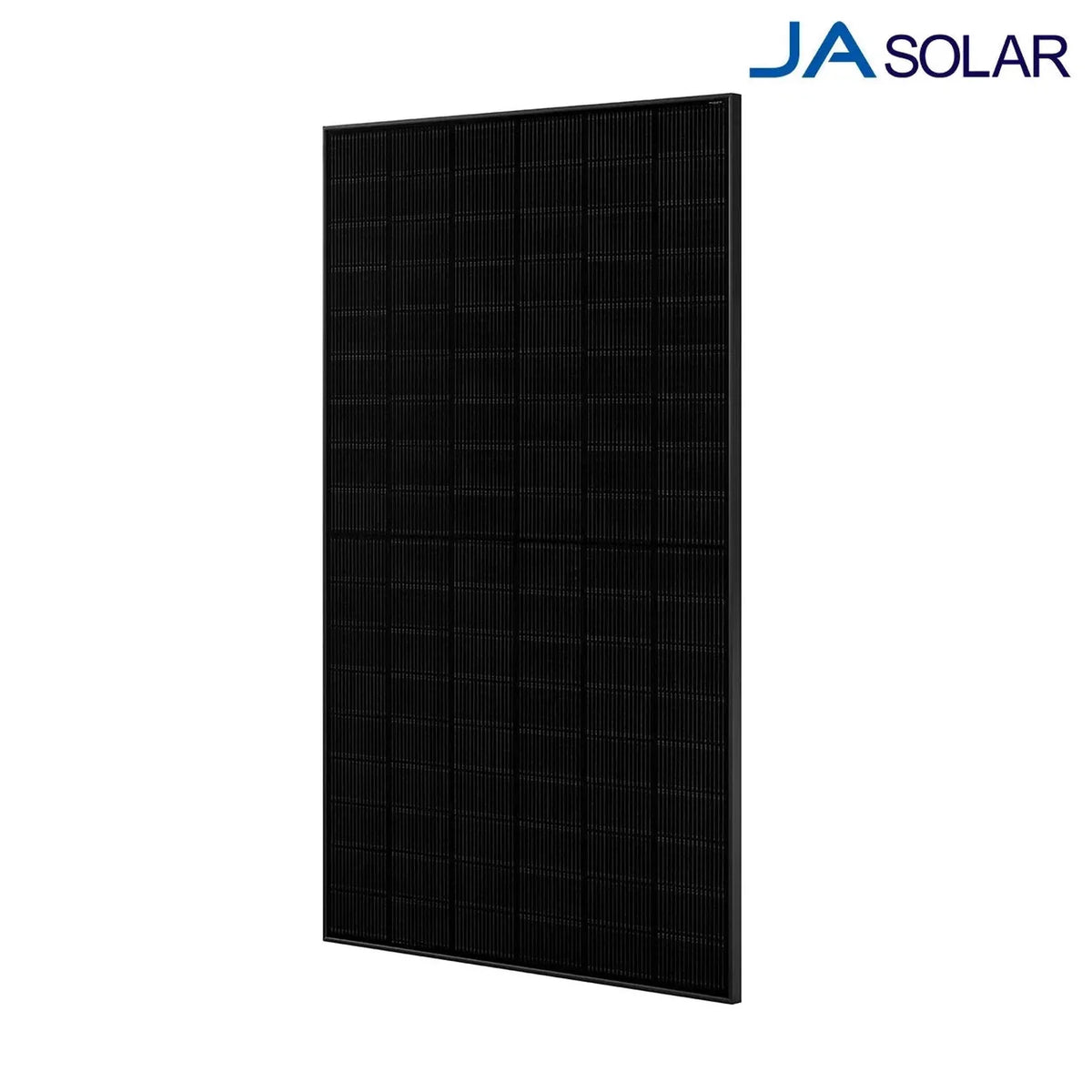

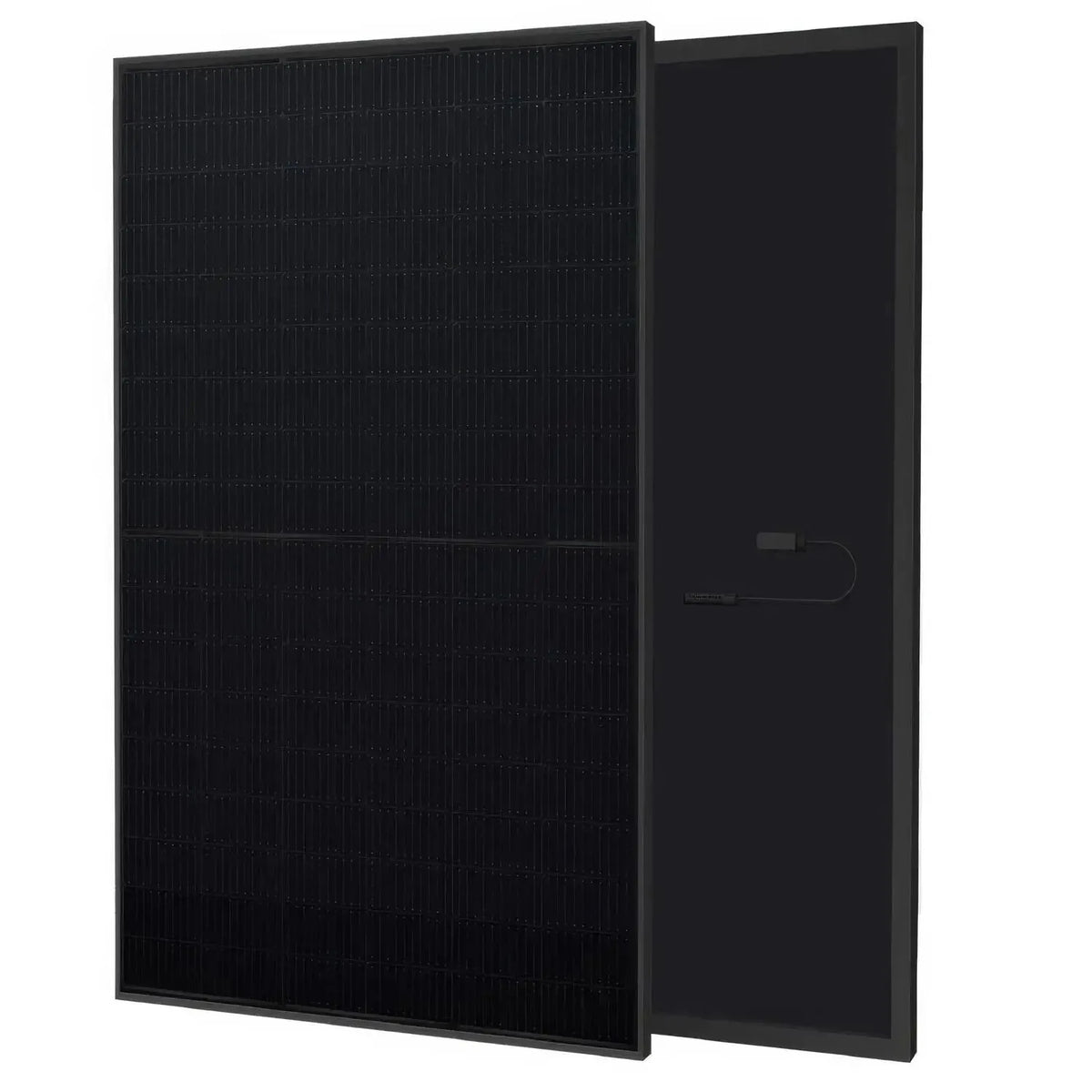

- 6 x JA Solar 450W N-Type monocrystalline panels (2700W total)
- 2 x 2.5kWh lithium batteries with active cell balancing (5kWh total)

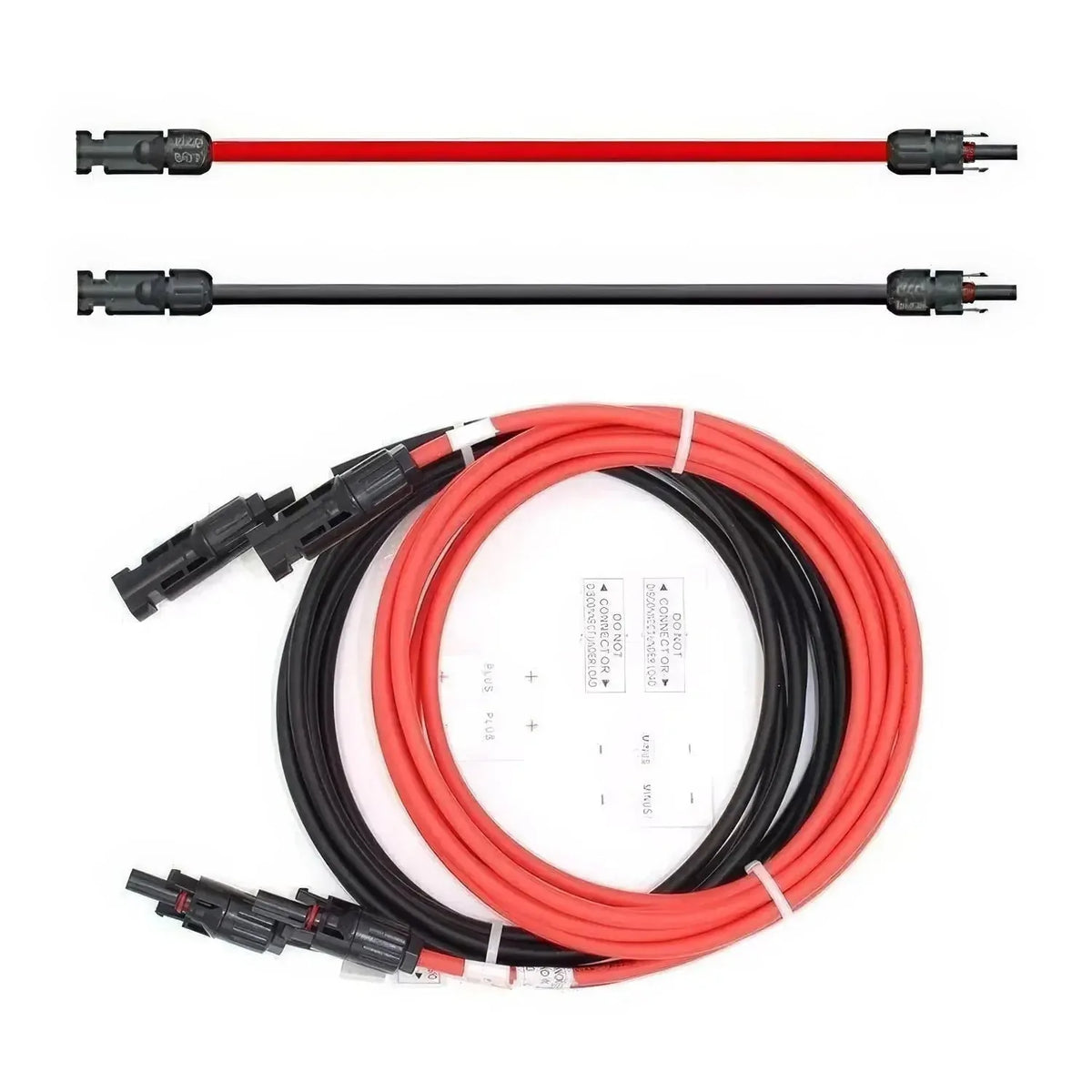

- 25 metres of 6mm² solar cable pair (red/black)
- DC fuses 100A and isolator switch
- PV combiner box (2 inputs / 1 output)

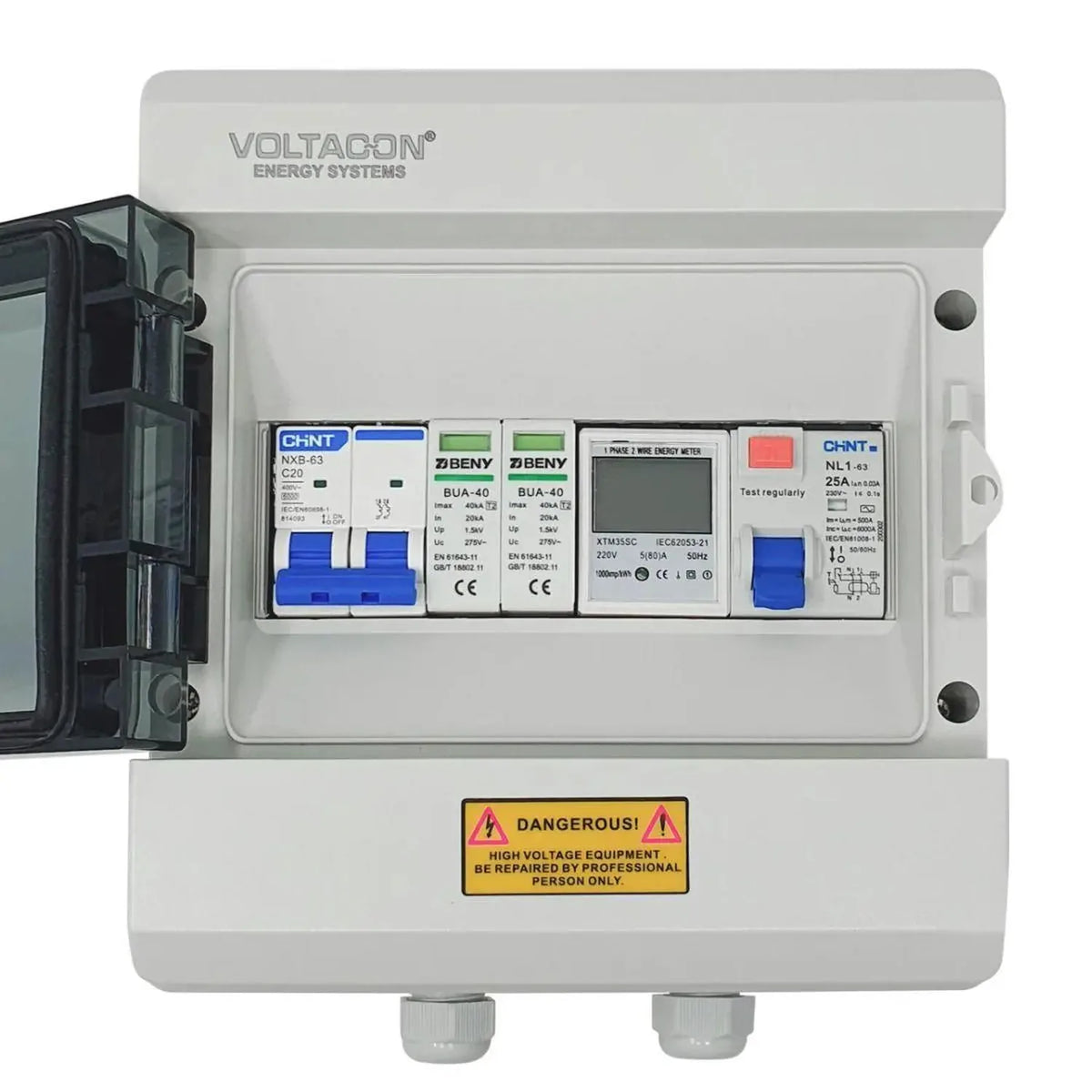

- Consumer unit with energy meter and MCB protection
- 5 metres of 3-core AC cable
- Warranty certificates: 1 year inverter, 5 years batteries, 35 years panels
- Comprehensive wiring diagram
Applications
Suited to remote homes without a reliable mains supply, holiday cabins and summer houses, workshops and outbuildings, and as backup power for essential household circuits.
Installation notes
Installation should be carried out by a qualified installer. Correct cable sizing, fusing and earthing are required for both the DC and AC circuits. Comply with local wiring regulations for any grid backup connection. Contact us for technical support before and during installation.
