5kVA Victron Off Grid Solar System | 10kWh Lithium | Add your own panels

The 5kVA off grid system is designed for those that are looking to for a system for a house whether living full time or a weekender where you can expand onto later on if you would like to. The 5kVA Victron inverter is a great size as it will run all of your every day appliances (not all at once) like your fridge, microwave, toaster, kettle, dishwasher, washing machine you can even run a small to medium air conditioner off it meaning you can live comfortably. Pylontech lithium batteries offer flexibility because you can add more battery modules into the system at a later date.

System Package Includes:

• Victron MultiPlus II 48V 5kVA Inverter Charger
• Victron Cerbo GX system monitor with online access
• 10kWh Battery Bank Pylontech 48v Lithium 5kWh modules x 2

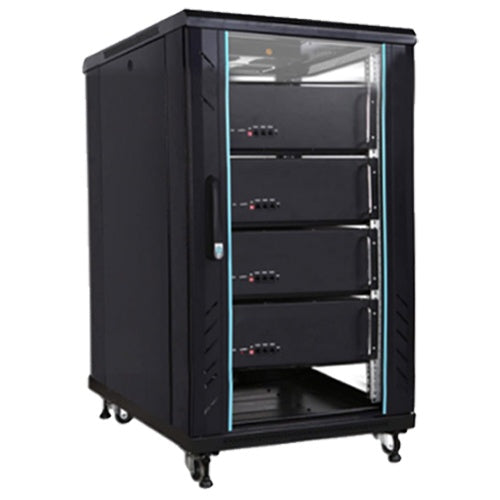

• Battery cabinet to fit 4 batteries
• Smartsolar 450/100 Charge Controller with earth fault protection (can handle up to 7kW of Solar)
• DC Fuse Disconnect / Battery Breaker & Fuses to suit
• DC Solar PV breakers & Housings
• 5 Metres of Battery Cabling 50mm2 – made up with lugs to suit
• Solar Safety Label Sticker Kit
• Connection guides

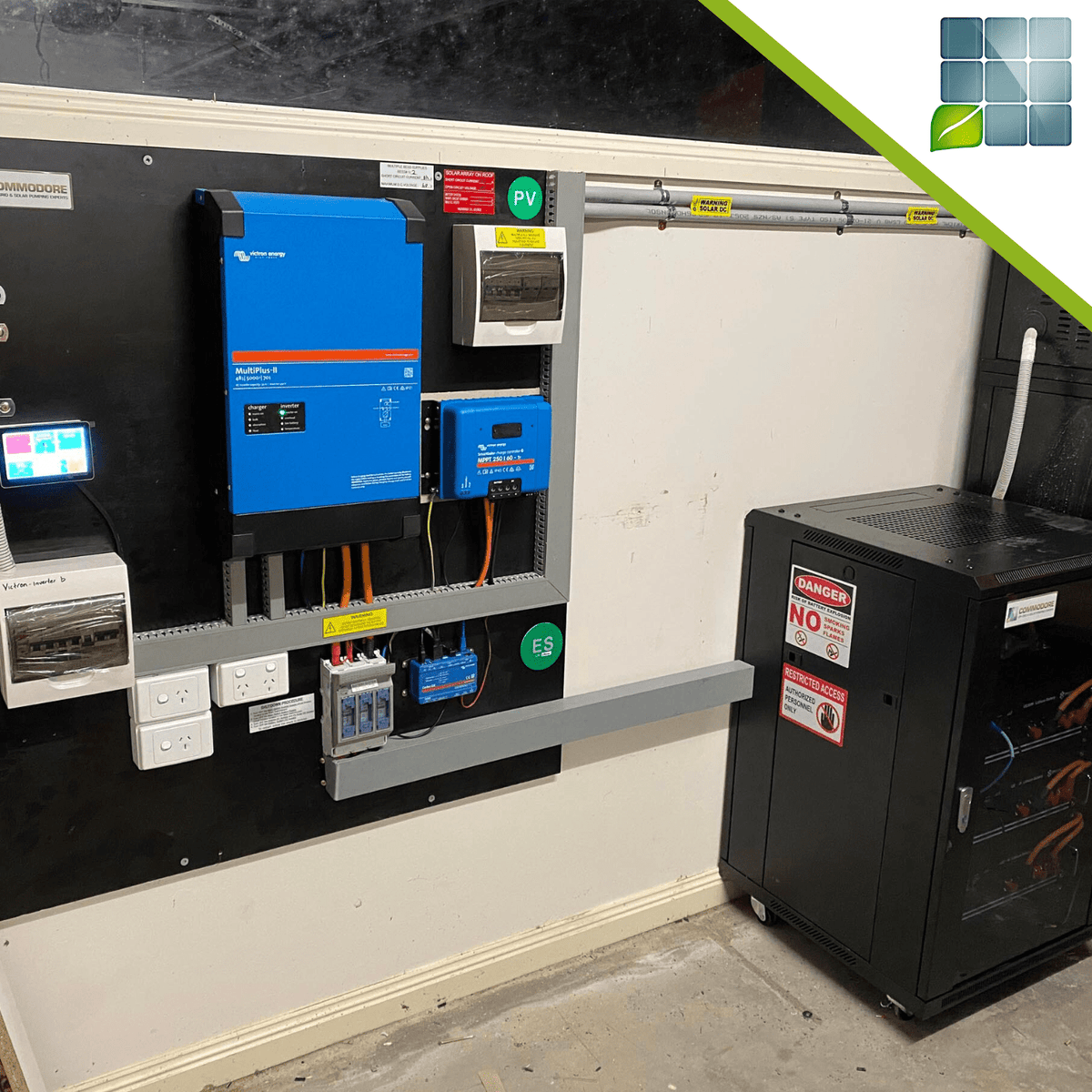

• Pre-wired board
• Lifetime Support and System Monitoring

Pylontech US5000b Lithium battery modules

Welcome to the future of a fully modular, expandable, off-grid & energy storage battery bank. Grow your battery bank as your needs demand, and also benefit from the following improvements:

• More usable energy up to 90% can be used without adversely compromising battery life
• More Charge / Recharge cycles 6000 or more cycles, depending on depth of discharge
• Better constant high current Charge / Discharge performance a 15kWh bank can handle a 15kW load, and a surge of 20kW
• Greater charge efficiency up to 97% ! this means far less energy wasted during charging and more power available to you in less time
• More energy stored in less space
• Internal intelligent management means each battery module can operate to its potential, rather than performing only as well as the weakest battery
• Additional batteries can be added, 3.55kWh at a time
• Improved Low temperature performance

Based on the rated performance and upfront cost, the Pylontech Lithium batteries deliver an exceptional cost of ownership. These batteries feature a 10 year warranty and offer some of the best value for money from batteries on the market, when comparing to costs of grid power these batteries work out substantially cheaper.

Victron Remote Management Portal (VRM)

Victron’s remote management portal is second to none, included with the Cerbo GX devices this allows the user to monitor the system remotely from anywhere in the world with an internet connection, check on battery percentage, solar production, house loads, and even start your generator remotely.  You can see an example of the monitoring system here (Click on Free Demo – no login required, select Vic Jones for an off grid example):Click HERE

Warranty Information

• All Victron components have a 5 year full warranty
• The Pylontech Lithium batteries features a 10 year warranty
• All other items come with a minimum 12 month warranty
