500W 12V Lithium Touring Solar Kit with Victron 100/50 MPPT

Build a premium caravan, RV, camper trailer or 4WD touring system around a StarPower 500W fixed shingled solar panel, MOBI 135Ah LiFePO4 battery and genuine Victron BlueSolar MPPT 100/50 solar charge controller.

This combination has been electrically checked against the published panel and controller limits before listing.

Kit includes

• 1 × StarPower 500W 12V shingled monocrystalline fixed solar panel
• 1 × MOBI 12V 135Ah LiFePO4 deep cycle battery
• 1 × Victron BlueSolar MPPT 100/50 (12/24V, 50A) solar charge controller
• Solar panel connection leads
• Battery connection / Anderson hardware as supplied
• Solar panel mounting hardware

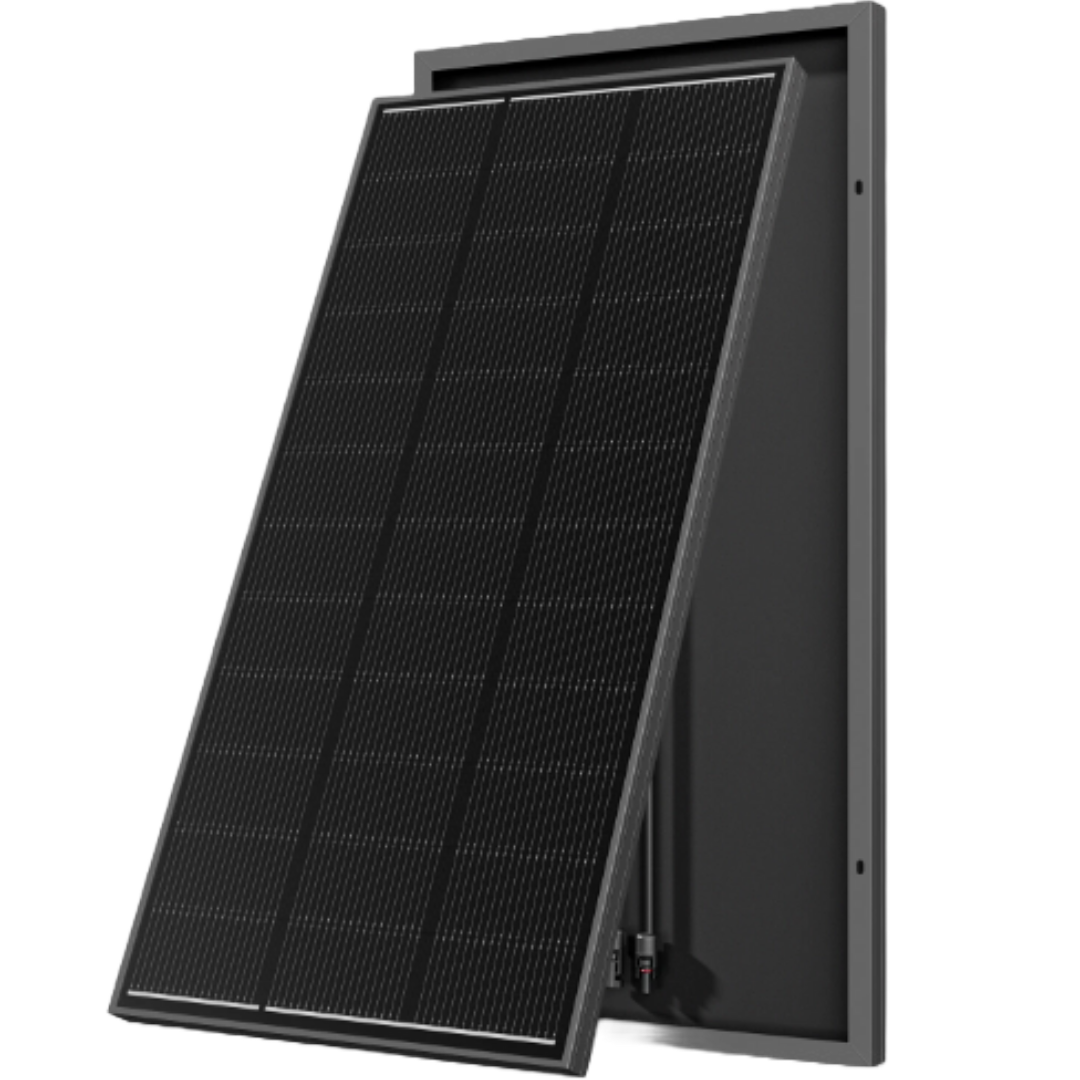

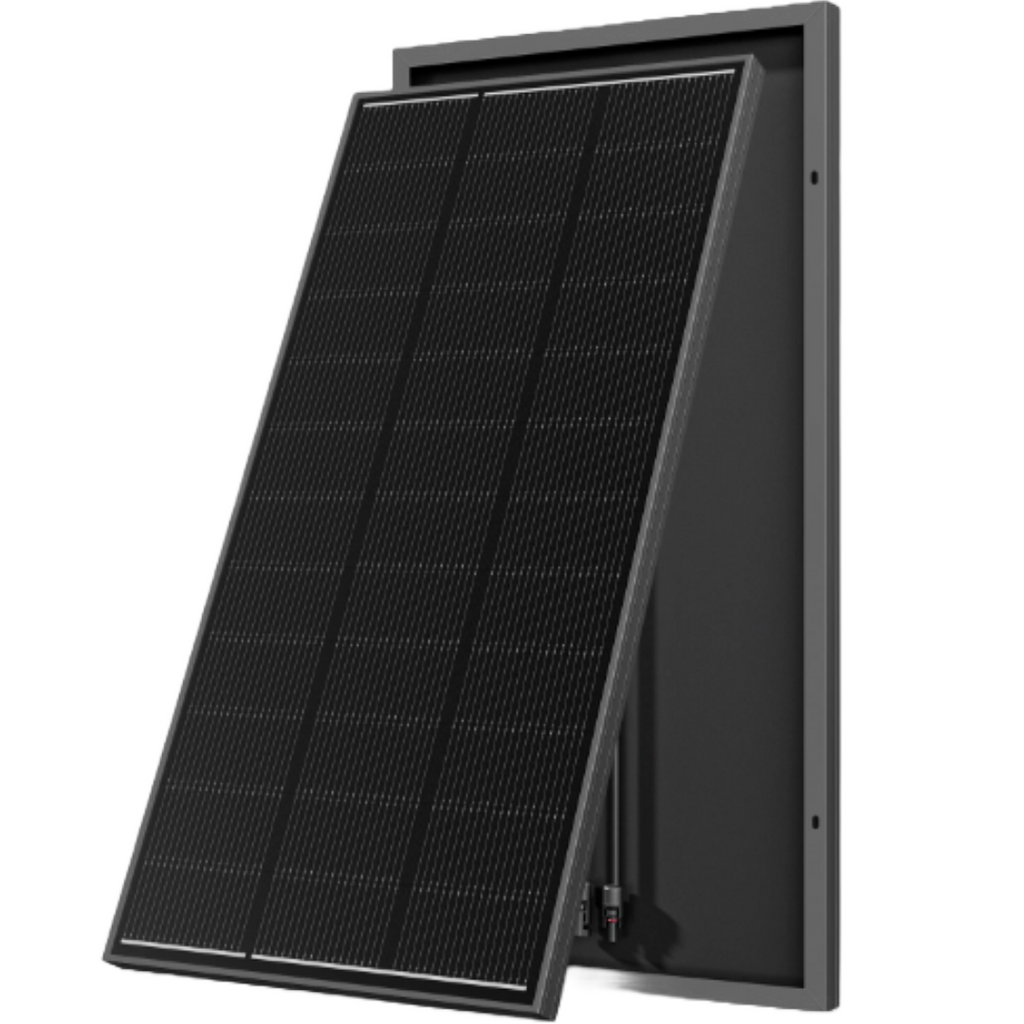

500W solar panel specifications

• Maximum power: 500W
• Vmp: 25.2V
• Imp: 19.85A
• Voc: 29.74V
• Isc: 21.44A

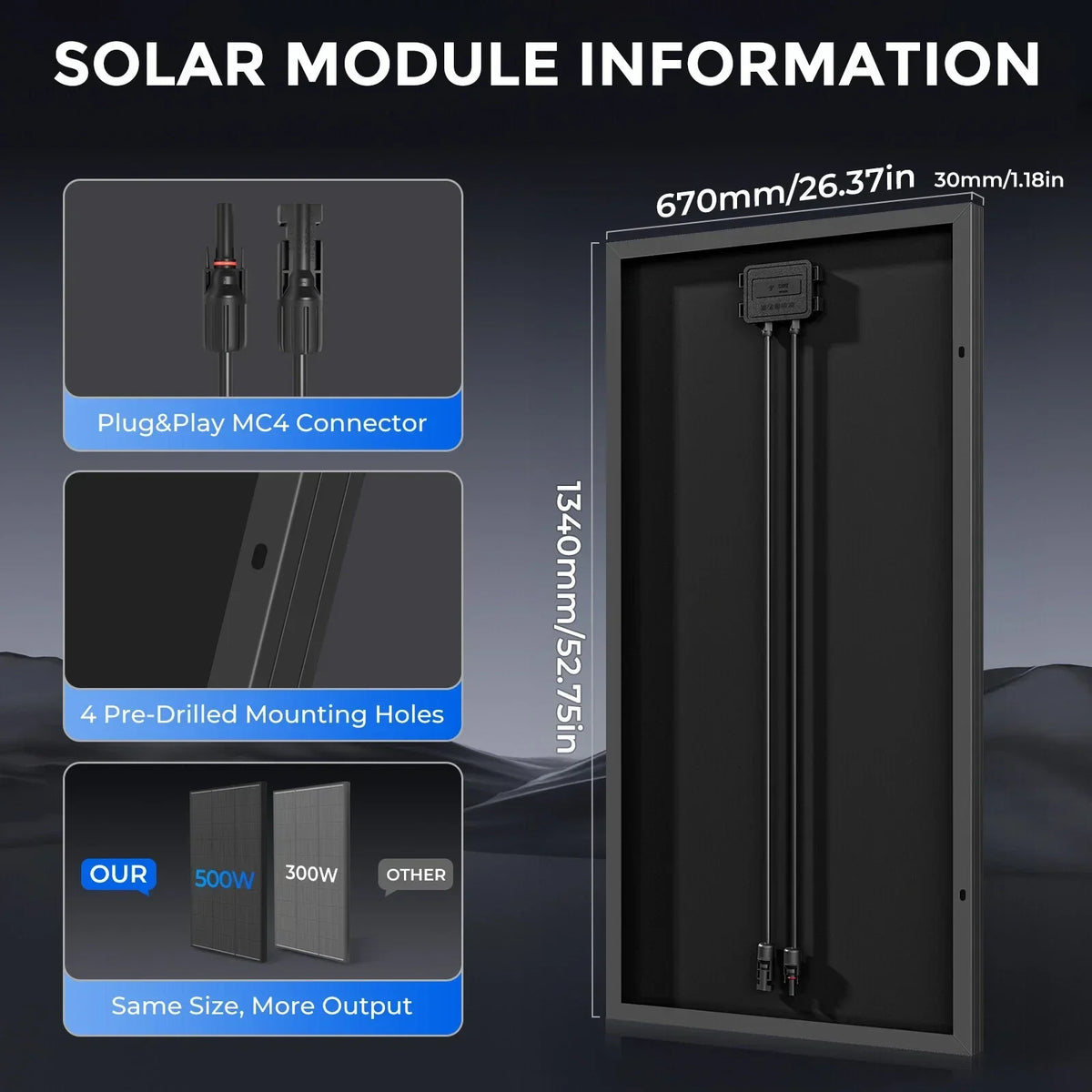

• Dimensions: 1340 × 670 × 30mm
• Weight: 14.5kg

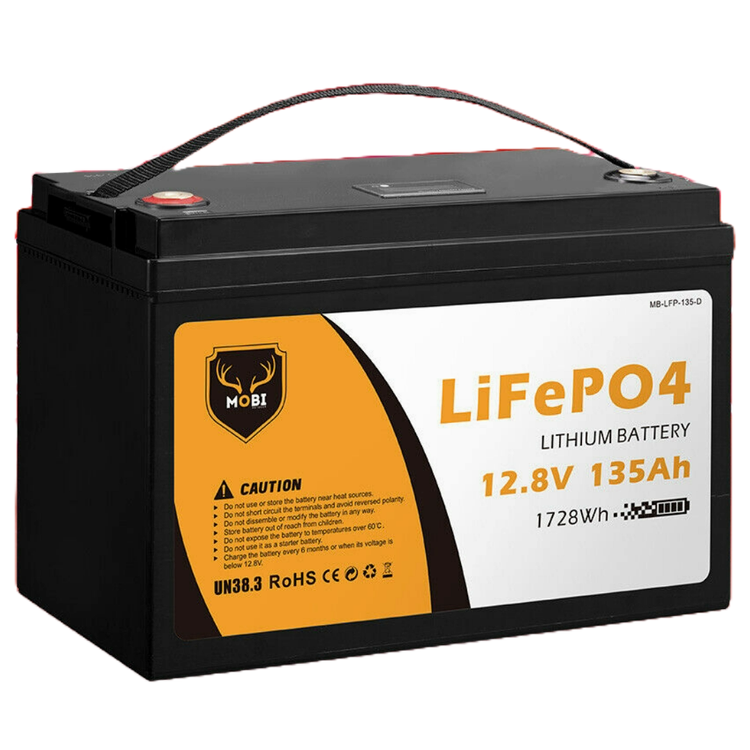

MOBI 135Ah LiFePO4 battery

• Nominal voltage: 12V
• Capacity: 135Ah
• Battery chemistry: lithium iron phosphate (LiFePO4)
• Maximum continuous discharge current: 100A
• M8 terminals

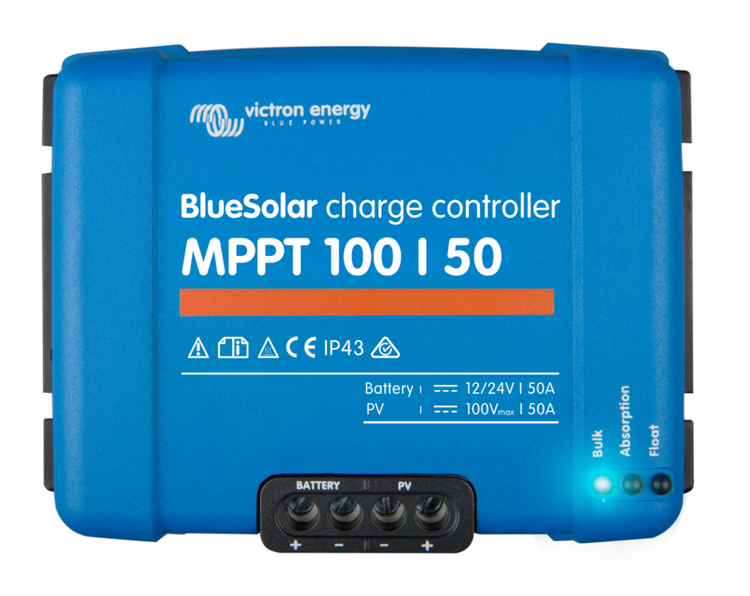

Victron BlueSolar MPPT 100/50 compatibility

The Victron 100/50 is rated for 50A charge current, up to 100V PV open-circuit voltage, up to 60A PV short-circuit current and 700W nominal PV power on a 12V battery system. The supplied 500W panel has a Voc of 29.74V and Isc of 21.44A, keeping this single-panel configuration comfortably inside those controller limits.

Best for

• Caravans, motorhomes and RVs
• 4WD touring and remote travel
• Camper trailers
• Portable fridges, lighting and 12V accessories
• Extended off-grid stays
• Customers upgrading from AGM to lithium storage

Why choose this lithium touring kit?

• 500W solar input: strong daytime charging capacity from a single fixed panel.
• 135Ah LiFePO4 storage: high usable capacity with lower weight than comparable lead-acid storage.
• Victron MPPT control: proven 50A MPPT regulation with generous PV voltage and current headroom for this panel.
• Matched components: the core solar and charging specifications have been checked together rather than bundled generically.

Installation information

Configure the Victron charge profile for the supplied LiFePO4 battery before use. Use correctly sized solar and battery cabling, fusing and isolation. Actual solar output varies with sunlight, panel angle, temperature, shading and cable losses. Permanent vehicle, caravan or marine electrical work should be completed by a suitably qualified installer where required.

Component photographs show the actual panel, MOBI battery and Victron controller models used in this bundle. Minor cable and mounting-hardware appearance can vary between supply batches.
