50W Flexible Solar Panel
£41.00
Sale price
£41.00
Regular price
£59.00
Shipping calculated at checkout.
RNG-50DB-H-US
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description

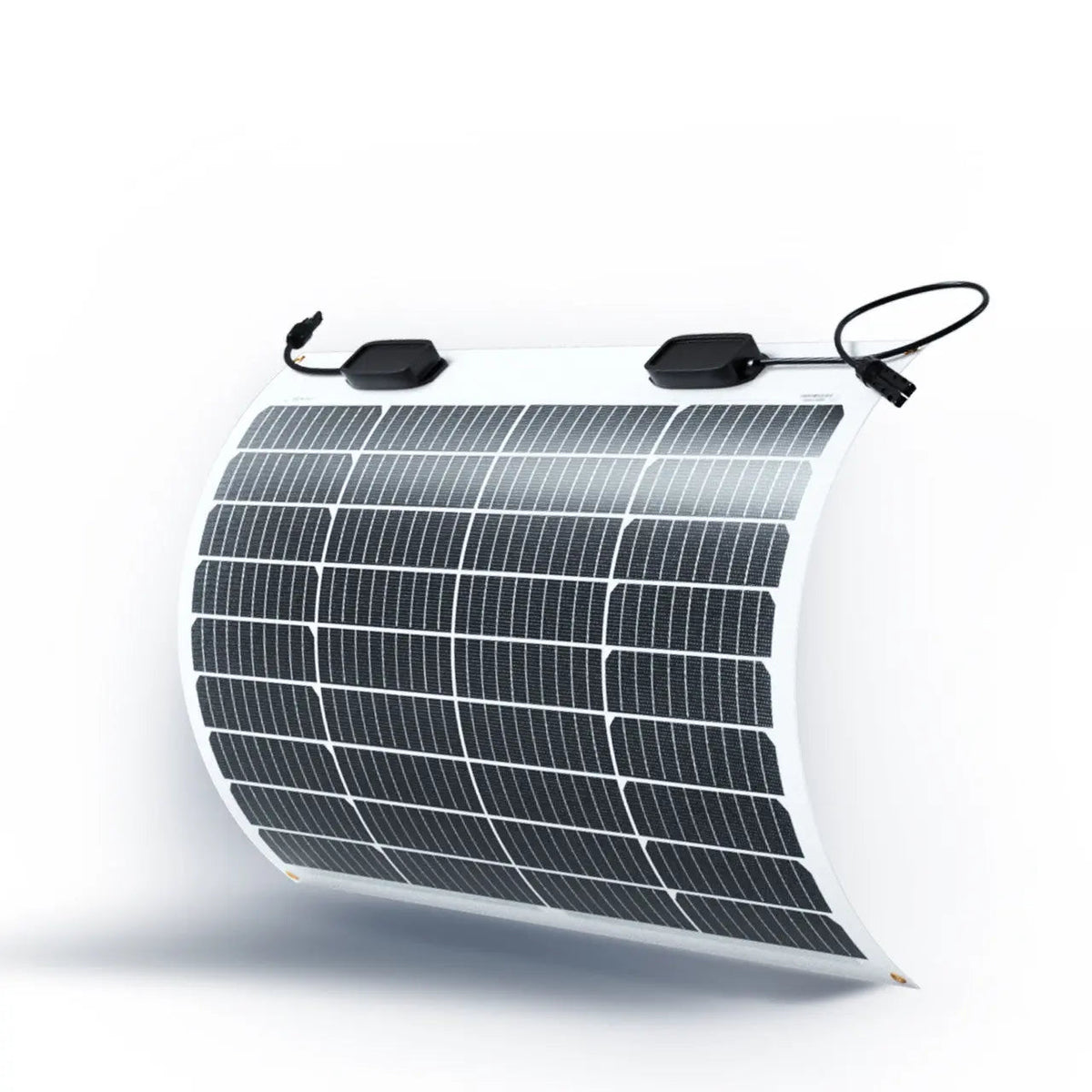

Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 50W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle, the Renogy 50W Lightweight Solar Panel is thin and capable of flexing up to 248 degrees. At 2.87 pounds, this flexible solar panel weighs only a quarter of its traditional 50W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer.

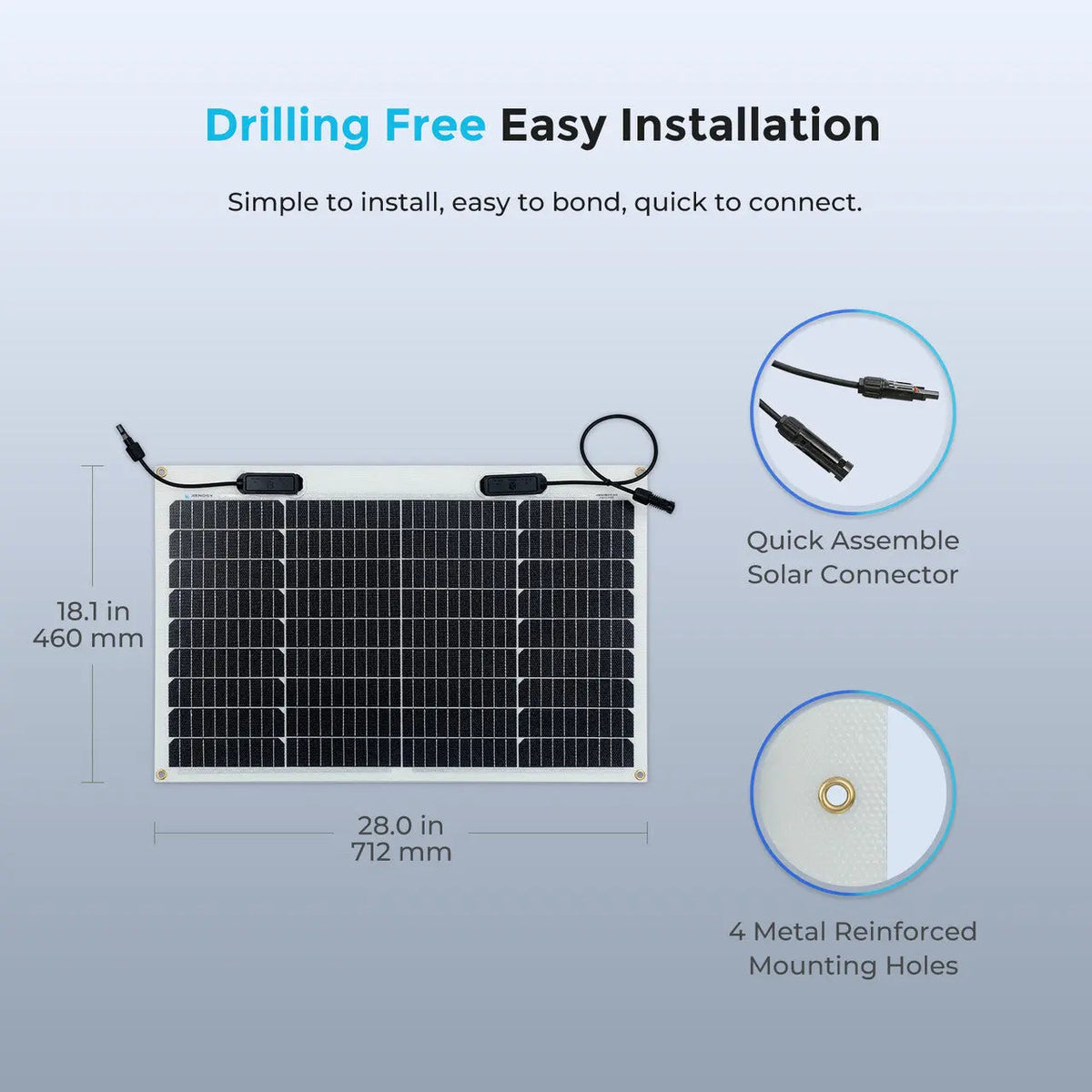

Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.
Key Features

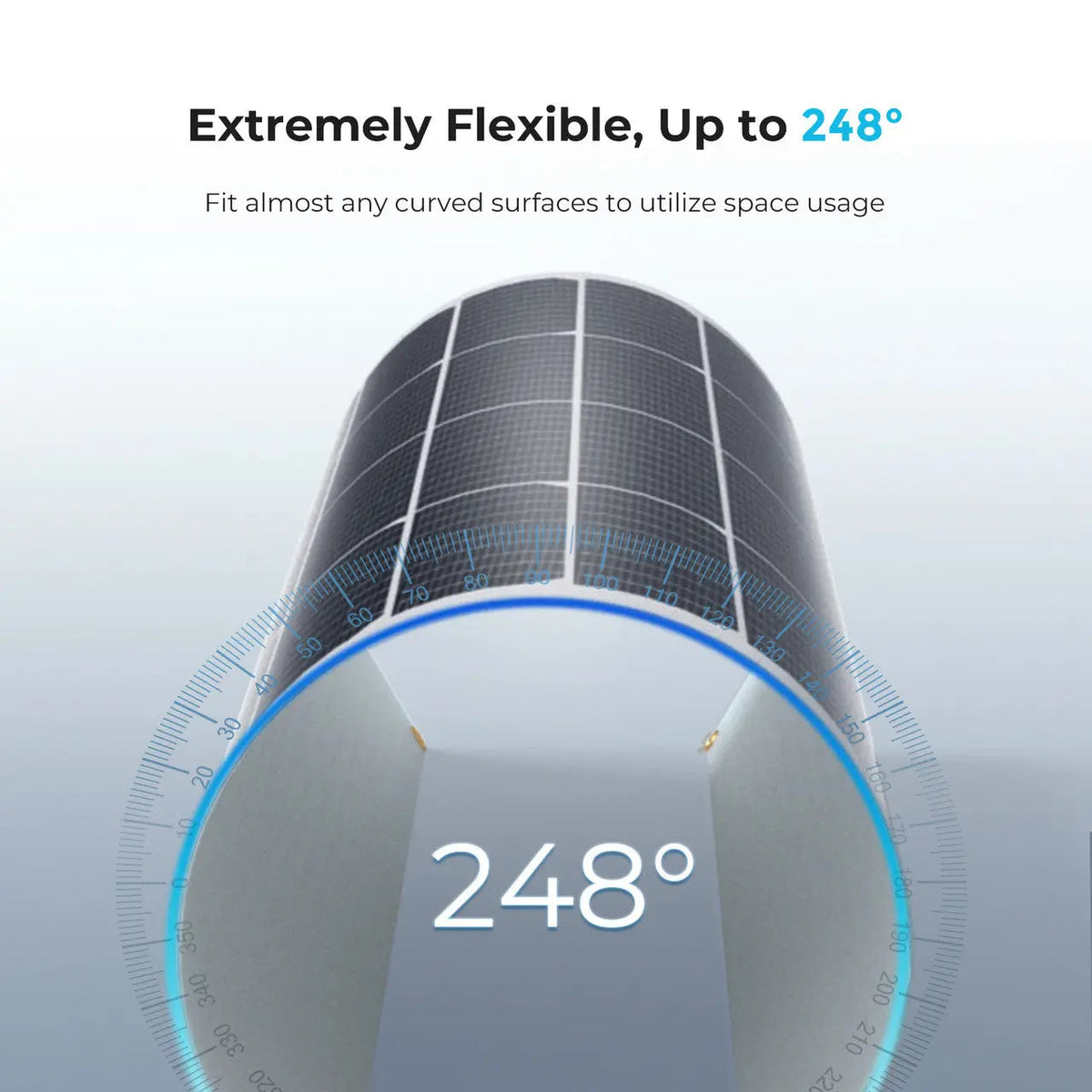

Extremely Flexible
- This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream

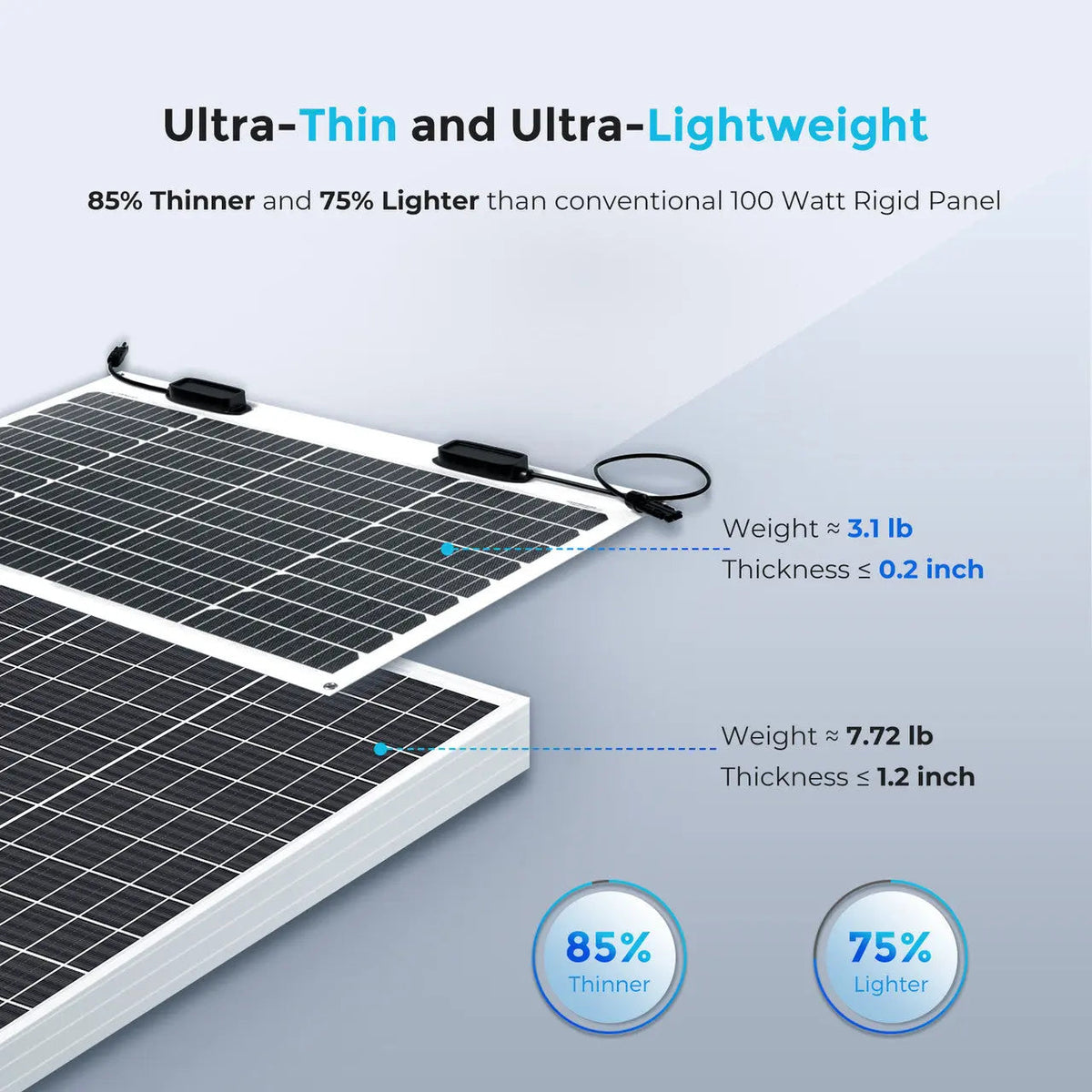

- Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze
- Hardly noticeable, the Renogy 50W Lightweight Panel laid flat is only a tenth of an inch tall making it ideal for a stealthy solar setup.
- Rigorously tested, the 50W panel was designed to withstand extreme wind of up to 2400 Pa and snow loads of up to 5400 Pa
Package Includes
| Renogy 50W Flexible Solar Panel
1 x
|
| Renogy 50 Watt 12 Volt Flexible Monocrystalline Solar Panel | |||
|---|---|---|---|
| Electrical Specifications | Mechanical Specifications | ||
| Maximum Power at STC: | 50W | Cell Type | Monocrystalline (6.25 x 1.85 in) |
| Open Circuit Voltage | 24.3V | Number of Cells | 36 (4 x 9) |
| Short Circuit Current | 2.75A | Dimensions | 26.9 x 20.0x 0.16 in (683 x 508 x 4 mm) |
| Optimum Operating Voltage | 20.3V | Weight | 2.87 lbs (1.3 kg) |
| Optimum Operating Current | 2.47A | Front Glass | Tempered Glass 0.13 in (3.2 mm) |
| Module Efficiency | 14.4% | Frame | Black Anodized Aluminum Alloy |
| Maximum System Voltage | 600 VDC UL | Connectors | Solar Connectors |
| Maximum Series Fuse Rating | 15A | Fire Rating | Class C |
| Thermal Characteristics | Solar Connectors | ||
| Operating Temperature | -40°F to 185°F(-40ºC to +85ºC) | Rated Current | 30A |
| Nominal Operating Cell Temerature (NOCT) | 45±2ºC | Maximum Voltage | 1000VDC |
| Temperature Coefficient of Pmax | -0.37%/C | Maximum AWG Size Range | 10AWG |
| Temperature Coefficient of Voc | -0.28%/C | Temperature Range | -40ºF to 194ºF |
| Temperature Coefficient of Isc | 0.048%/C | IP Rating | IP 67 |
Warranty Information
| Panels | 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
Certification
 |
1.What do I need to complete my off-grid solar power system ?
A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4. How should I connect solar panels in my electrical circuit (series vs parallel)?
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
5. How many solar panels do I need ?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
6. Can I walk on flexible solar panels?
We suggest not. Walking on solar panels will exert excessive pressure on a small area, it may cause cracks and damage to the panel.
7. How to clean solar panels?
You can clean the panels with a non-abrasive sponge and water. We suggest regular maintenance to wipe the dust, sand, and other dirt away. Built-up dirt and stain will reduce the power output of the panel.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
 |
