5 Strings Solar Combiner Box
£75.00
Sale price
£75.00
Regular price
£137.00
Shipping calculated at checkout.
RPVCOM5SMN7P-US
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
DESCRIPTION
【5 TO 1 CONNECTION】 Combining up to 5 solar panel inputs into one, and each input can be equipped with a circuit breaker.
【SAFETY PROTECTION】 Circuit breaker and surge protection device can be installed to provide overload/short circuit protection and lightning protection.
【EASY TO INSTALL】 Offers built-in standard DIN rail for easy installation.
【IDEAL FOR OUTDOOR】 Protection level at IP55. The double slope top design and rubber seals on door make it more suitable for outdoor environments.
【WORRY-FREE USE】 Suitable for both On-Grid and Off-Grid Solar Systems. Material and workmanship warranty for 1 year.

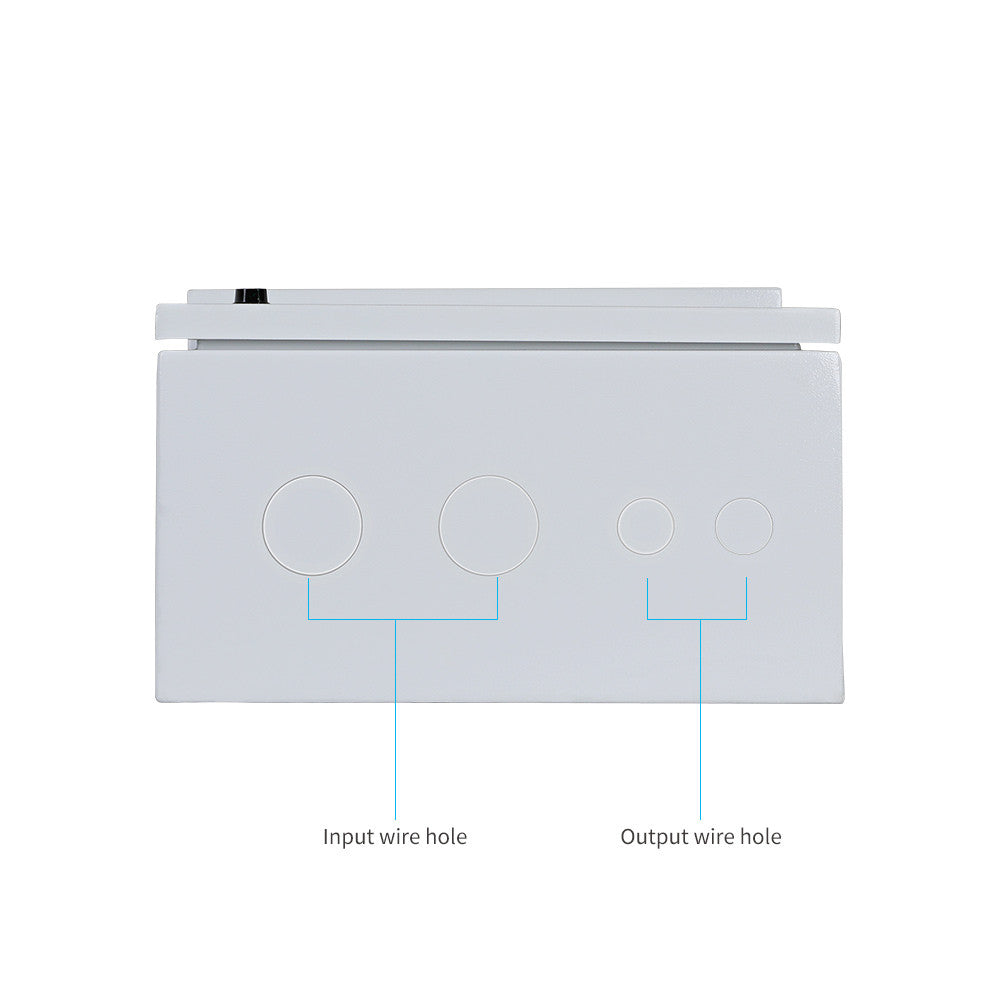

The Renogy 5 Strings Solar Combiner Box is the ideal solution to combine inputs from up to 5 strings of solar panels into a single output. It accepts up to five 1P miniature circuit breakers and one 2P surge protection device for improved safety of the solar system. The built-in standard DIN rail enables easy installation of the protection devices. Equipped with a rain cap and rubber seals, the grey steel enclosure is designed to survive in outdoor environments. The knockouts are reserved for waterproof strain reliefs or conduits.

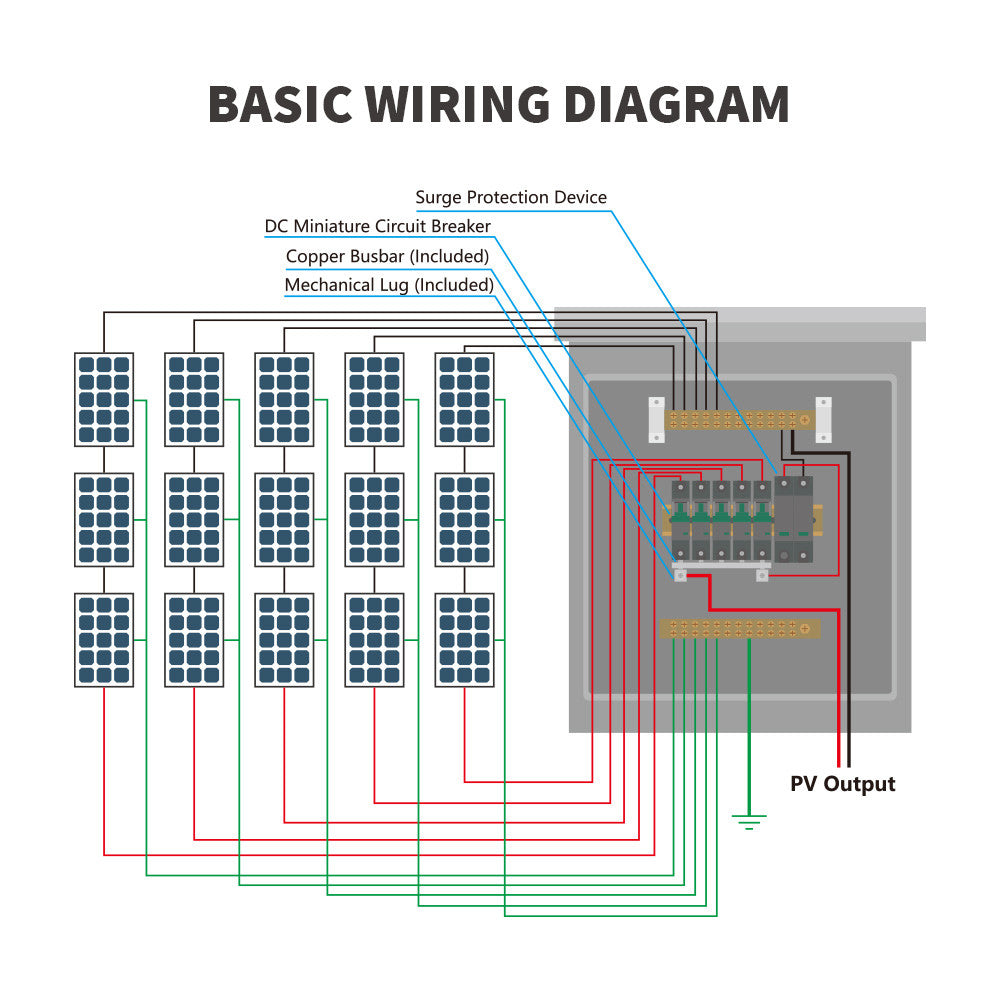

5 TO 1 CONNECTION
Combining up to 5 solar panel inputs into one, and each input can be equipped with a circuit breaker which can protect wires and devices.
SAFETY PROTECTION

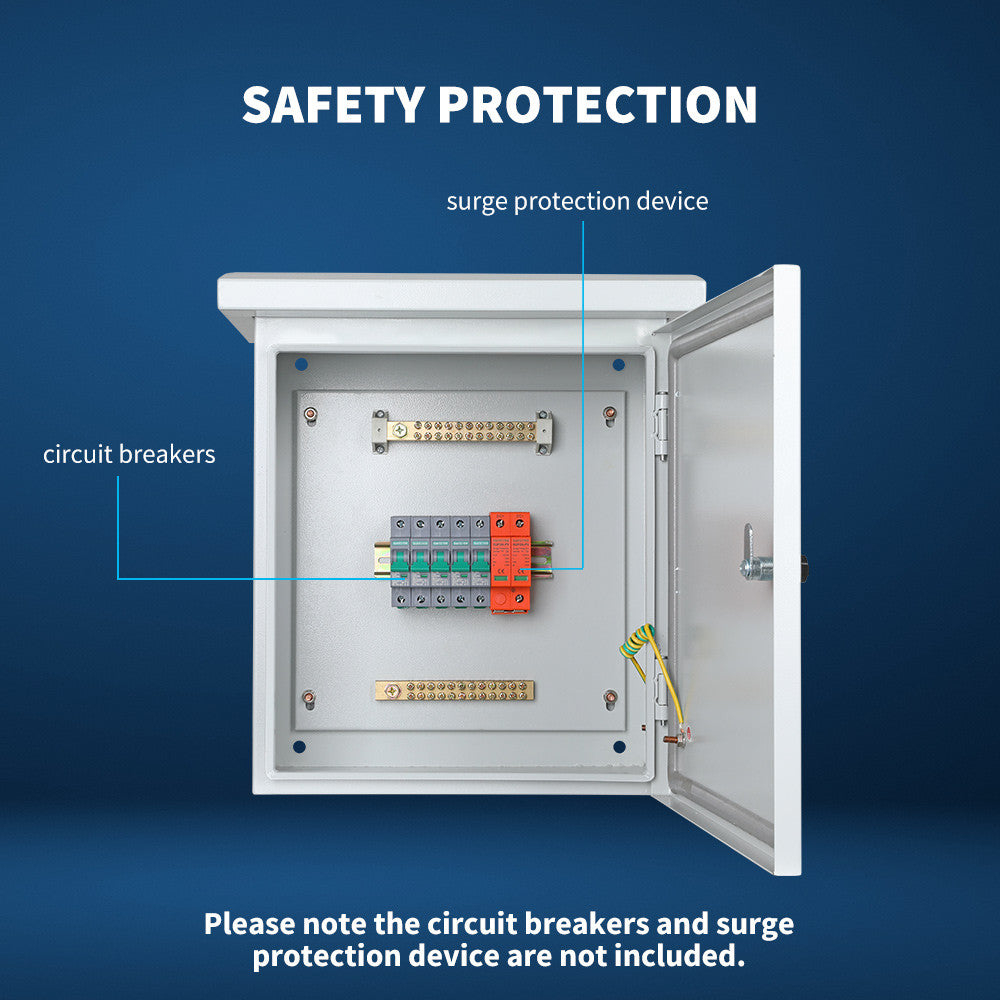

The product accepts up to five 1P miniature circuit breakers and one 2P surge protection device. They can provide overload/short circuit protection and lightning protection for improving the safety of the solar system.
Please note all the breakers, interrupter and surge protection device are not included.
IDEAL FOR OUTDOOR

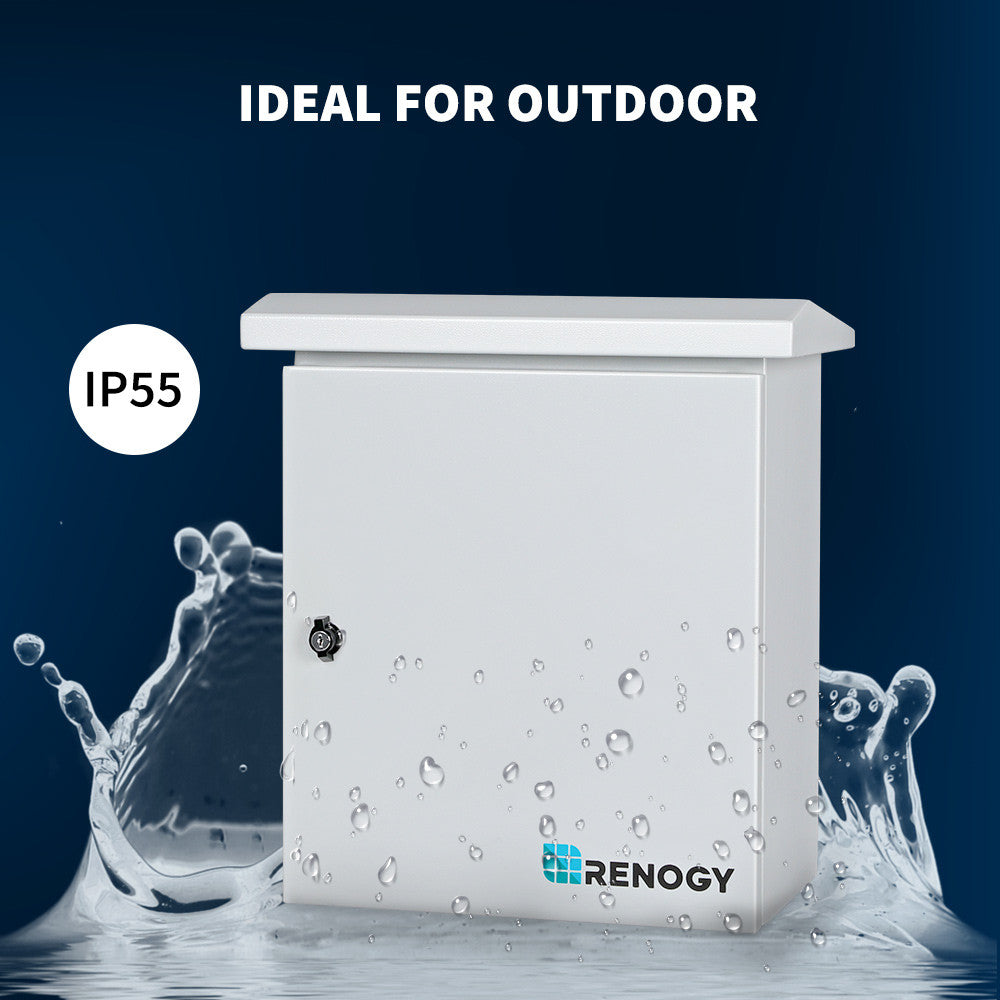

Protection level at IP55. It is designed with a rain cap, the double slope design can be more effective to prevent from wind and rain, and makes the outdoor system use safer. The door is equipped with rubber seals which can prevent rain from entering the box.
PRODUCT DISPLAY

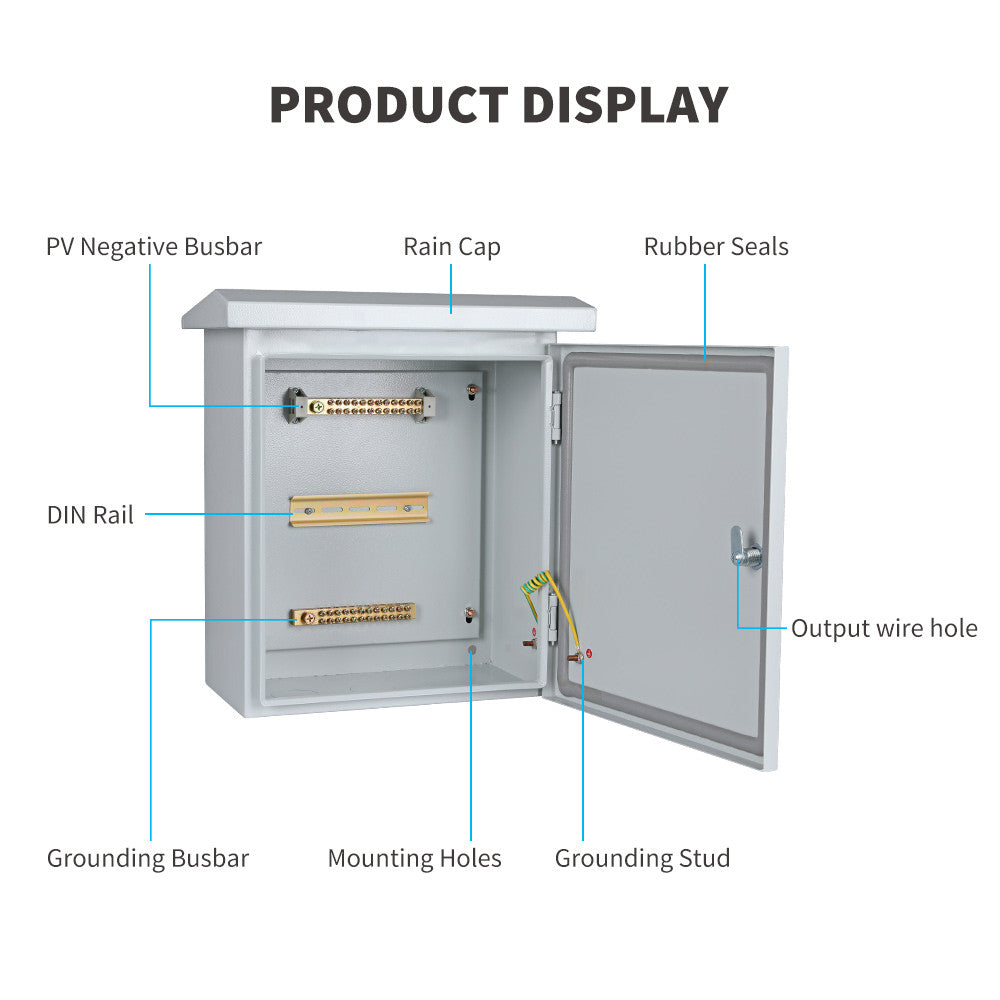

The diagram detailed shows all components of the box, besides these, waterproof strain reliefs or conduit are reserved for installation.
EASY TO USE
The product offers a built-in standard DIN rail for easy installation. Mounting holes are reserved on the back for fixationto make sure the box is firm and stable.
When you lock the door, screw the black ring first and then lock it with the key. When you open it, use the key first, and then twist the black ring.
WHAT'S IN THE BOX

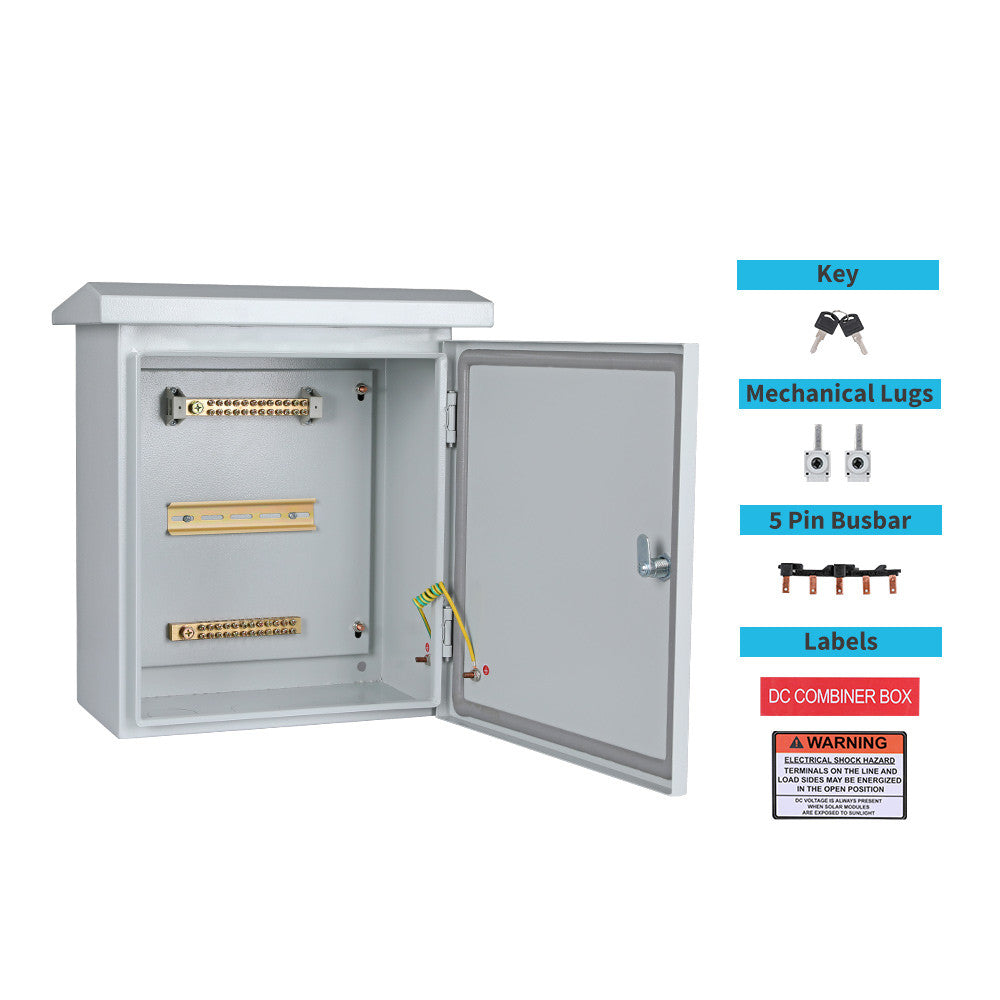

The diagram shows all the accessories of a solar combiner box.
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK
Package Includes
| 5 Strings Solar Combiner Box
1 x
| 5 Pin Busbar
1 x Rated Current 100A
|
| Mechanical Lugs
2 x
| Key
1 x
|
| Labels
2 x
|
| 160A 2P DC Molded Case Circuit Breaker | |||
|---|---|---|---|
| Maximum PV Input/Output Voltage | 250VDC | Recommended Busbar Terminal Torque | 26 inch·lbs (2.9 N·m) (Compression Terminal), 106 inch·lbs (12 N·m) (Lug Terminal) |
| Maximum Number of Input Circuits | 5 | Busbar Conductor Size | 14 AWG~6 AWG (Compression Terminal), 12 AWG~4 AWG (Lug Terminal) |
| Maximum Overcurrent Protection Device Rated Current | 63A | Knockout Diameter | 1.99 inch (2), 1.12 inch (2) |
| Rated Short Circuit Current | 6KA | DIN Rail Width | 1.38 inch (35 mm) |
| Maximum Output Current | 100A | Enclosure Material | Cold-Formed Steel |
| Number of Busbars | 2 (PV Negative Busbar, Grounding Busbar) | Enclosure Protection Rating | IP55 |
| Busbar Rated Current | 200A | Enclosure Security | Keyed Cam Lock |
| Busbar Material | Copper | Mounting Method | Vertical Wall Mount |
| Busbar Terminal | Compression Terminals (24), Lug Terminal (1) | Installation Environment | Outdoor/Indoor |
| Busbar Screw | M5 (Compression Terminal), M8 (Lug Terminal) | Accessories | |
| Mechanical Specifications | 5 Pin Busbar | Rated Current 100A | |
| Dimensions | 17.1 x 15.0 x 8.8 in (435 x 379.7 x 222.5 mm) | Mechanical Lugs (2) | Key and Labels(2) |
| Weight | 20.9 lb | Warranty | |
| Knockout Diameter | 1.99 inch (4), 1.12 inch (4) | Material and workmanship warranty | 1 Year |
1.If the ground wire is attached from the combiner box to the grounding rod, do the panels still need to be grounded?
If the panels are grounded to the same rod, I suppose you do not need to add a second grounding. In the case of an electrical storm, the grounding of the combiner panel is of the upmost importance.
2. Can I use different wattage panels to connect to this box?
No, only panels with the same voltage and wattage can be connected to the same box.
3. Under what circumstances is this used?
It is mainly used in home kits to combine up to 5 solar panel inputs into one single output, and it can be installed either indoor or outdoor.
4. Does a surge protective device have to be installed?
Yes, we suggested installing it in order to avoid device damage caused by lightning.
