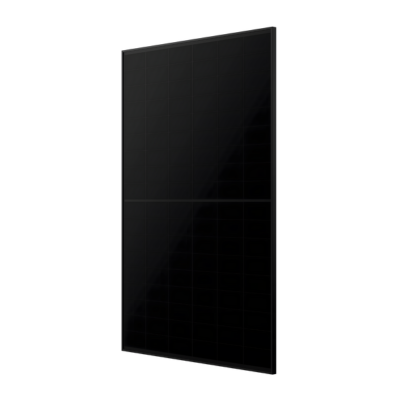

The TCL-BC-460-54P-BLK-SG-RES is a high-performance 460W N-Type Back Contact solar module engineered for maximum efficiency, durability, and aesthetics. With a maximum efficiency of 23.6%, innovative busbar-free back contact design, and a sleek full-black finish, this panel is ideal for Australian residential rooftops, off-grid systems, and commercial installations.

Back contact (BC) cell technology enhances energy density, reduces operating temperatures, and minimises the risk of micro-cracks and hotspots. Combined with TCL’s robust build quality and long-term warranties, this solar panel ensures reliable clean energy production for decades.

Key Features:

• High Output: 460W maximum power

• Efficiency: Up to 23.6%

• Back Contact Technology: Higher energy density & lower operating temps

• Aesthetic Design: Sleek full-black appearance for rooftops

• Durability: Lower hotspot risk, weather resistant, comprehensive certifications

• Warranty: 25-year product warranty + 30-year linear performance warranty

Electrical Specifications (STC):

• Rated Maximum Power (Pmax): 460W

• Power Tolerance: 0 ~ +3%

• Module Efficiency: 23.6%

• Open Circuit Voltage (Voc): 41.7V

• Short Circuit Current (Isc): 13.41A

• Maximum Power Voltage (Vmp): 34.9V

• Maximum Power Current (Imp): 13.19A

• Maximum System Voltage: 1000V DC

• Maximum Series Fuse Rating: 25A

• Nominal Module Operating Temperature (NMOT): 45 ± 2°C

• Operating Temperature Range: -40°C ~ +70°C

Temperature Coefficients:

• Pmax: -0.30%/°C

• Voc: -0.24%/°C

• Isc: +0.05%/°C

Mechanical Data:

• Cell Type: 182mm N-Type Back Contact Cells

• Number of Cells: 54 (6 × 9 layout)

• Module Dimensions: 1757 × 1134 × 30 mm

• Weight: 20.5 kg ± 3%

• Front Glass: 1.6 mm heat-strengthened glass with AR coating

• Backsheet: Black

• Frame: Black anodized aluminium alloy

• Junction Box: IP68, with 3 diodes

• Cables: 4.0 mm², length +1200 mm / -1200 mm (customisable)

• Connectors: Staubli PV-KST4/6II-UR, PV-KBT4/6II-UR

• Maximum Static Load: Front +5400 Pa / Back -2400 Pa

• Fire Rating: IEC Class C

Warranty:

• 25-Year Product Warranty

• 30-Year Linear Power Warranty (99% first year, 88.85% by year 30)
